- AcePro HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR, 4Kx2K 60Hz (4:4:4 8-bit), HDR, Dobly Vision, EDID management
■ Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable ■ Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit ■ Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support ■ Supports USB 2.0 data transmission between the receiver and transmitter ■ Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter ■ Supports ARC on the receiver unit ■ Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side ■ High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use ■ Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements Note: Does not support connecting to Router or Switch
Eigenschaften
Extends HDMI 2.0 audio and video signal
from your HDMI source to a remote HDMI display up to 330ft (100m) away at Full HD 1080p, or 230ft (70m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
Delivers crystal clear picture quality
with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
Pure unaltered uncompressed 7.1ch digital HDMI
over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
Supports USB 2.0 data transmission
between the receiver and transmitter

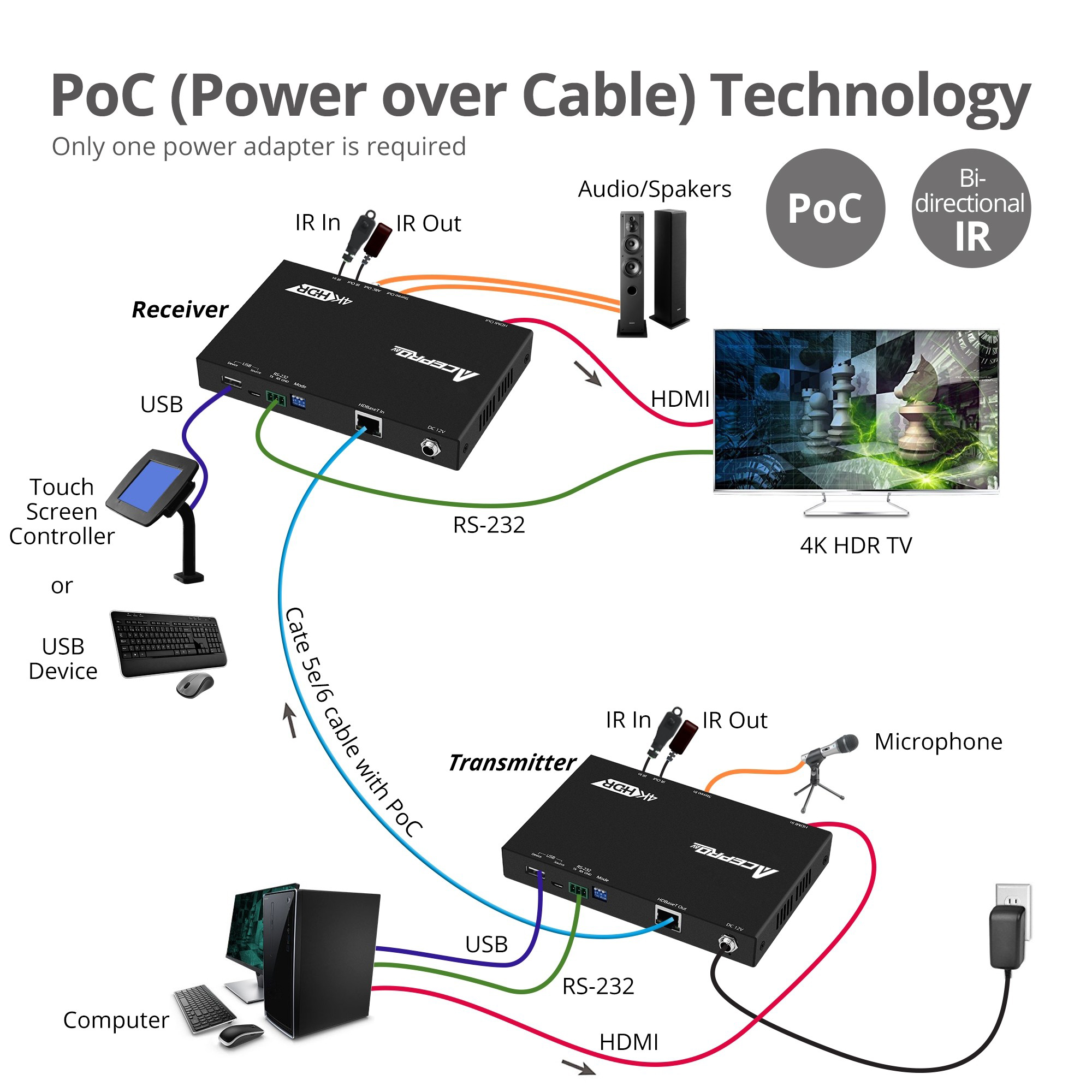

Supports PoC (Power over Cable) technology
which allows both the transmitter and receiver units to be powered through only one power adapter
Supports ARC on the receiver unit
Bi-directional IR sensors
allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
High quality metal housing with cooling slots
provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
Note: Does not support connecting to Router or Switch
Package Contents
4K HDR HDMI 2.0 & USB 2.0 Extender Over HDBaseT with RS-232 & IR
Transmitter (TX) 1pc
Receiver (RX) 1pc
Power adapter
IR Blaster extension cable & IR Receiver extension cable
Mounting ears (4) & Screw kit (8+4)
Terminal Block (2)
User Reference Guide
Spezifikation
Compliant with HDMI 2.0 and HDCP 2.0
Supports EDIDby pass, CEC, Deep Color
Supports 3840x2160@60Hz 4:4:4 8bit
Supports 3840x2160@60Hz HDR 4:2:0 10bit
Video bandwidth up to 18Gbps (600MHz per channel)
Video latency: <20µs
Auto skew equalization
Full Duplex RS-232 control up to 115200 bps through connector

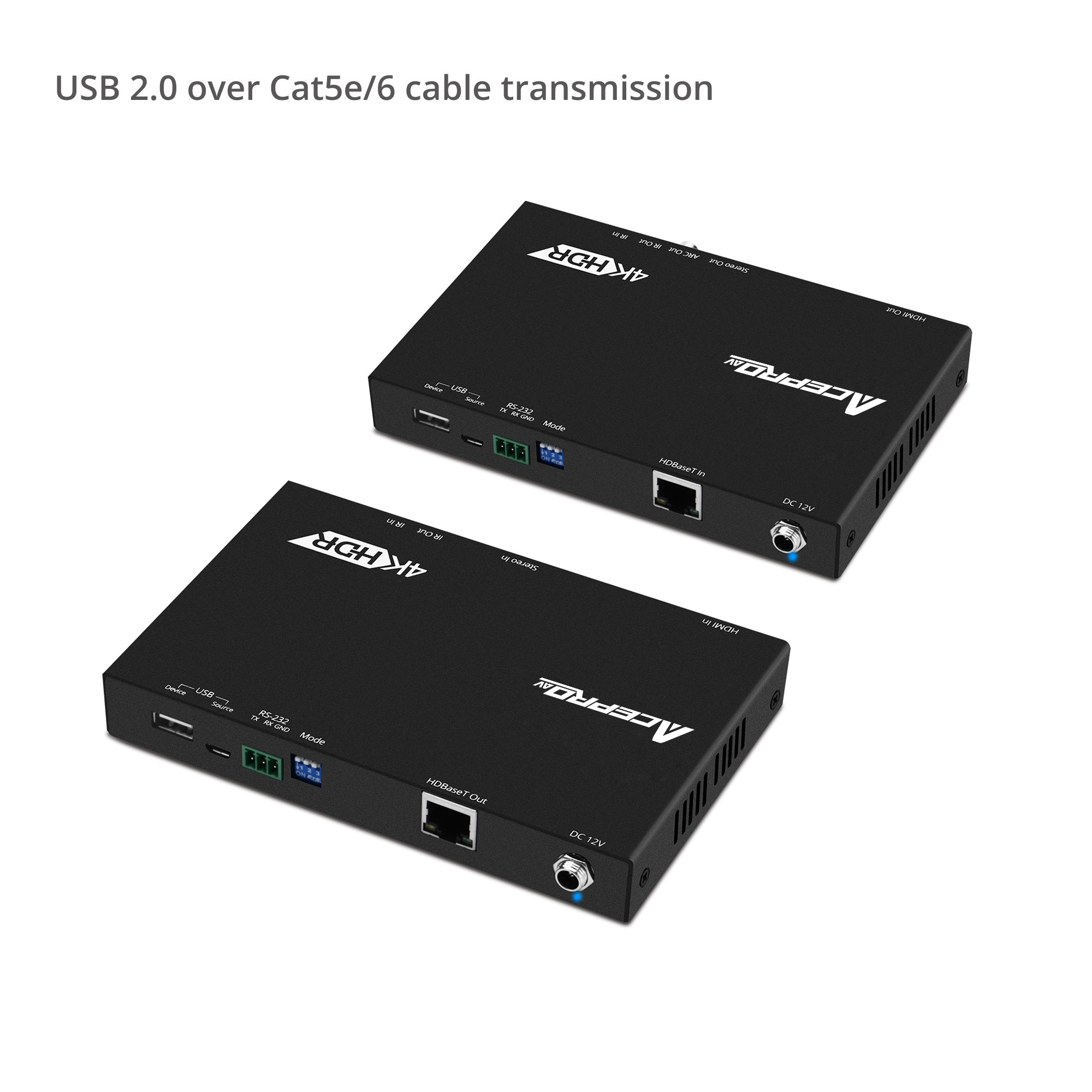

Full Duplex USB 2.0 data transmission up to 480Mbps
Audio support: DTS-HD Master Audio and Dolby True HD
Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
Power consumption:18 watts (max)
ESD protection: ±15kV Air & ±8kV Contact
Resolution: 480p / 720p / 1080i / 1080p / 3840x2160@60Hz YUV444 8bit / HDR 3840x2160@60Hz YUV420 10bit
Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through one power adapter connected to either unit
Aluminum housing with wall mount design
Transmission protocol:HDBaseT
Note: Does not support connecting to Router or Switch
Transmission Distance:
■ 1080p @60Hz: up to 100m
■ 4K (3840x2160) @30Hz/60Hz: up to 70m
Product:
Transmitting unit (TX):
■ Dimensions: 5.91" (L) x 0.79" (H) x 3.74" (W)
■ Weight: 0.84 lbs

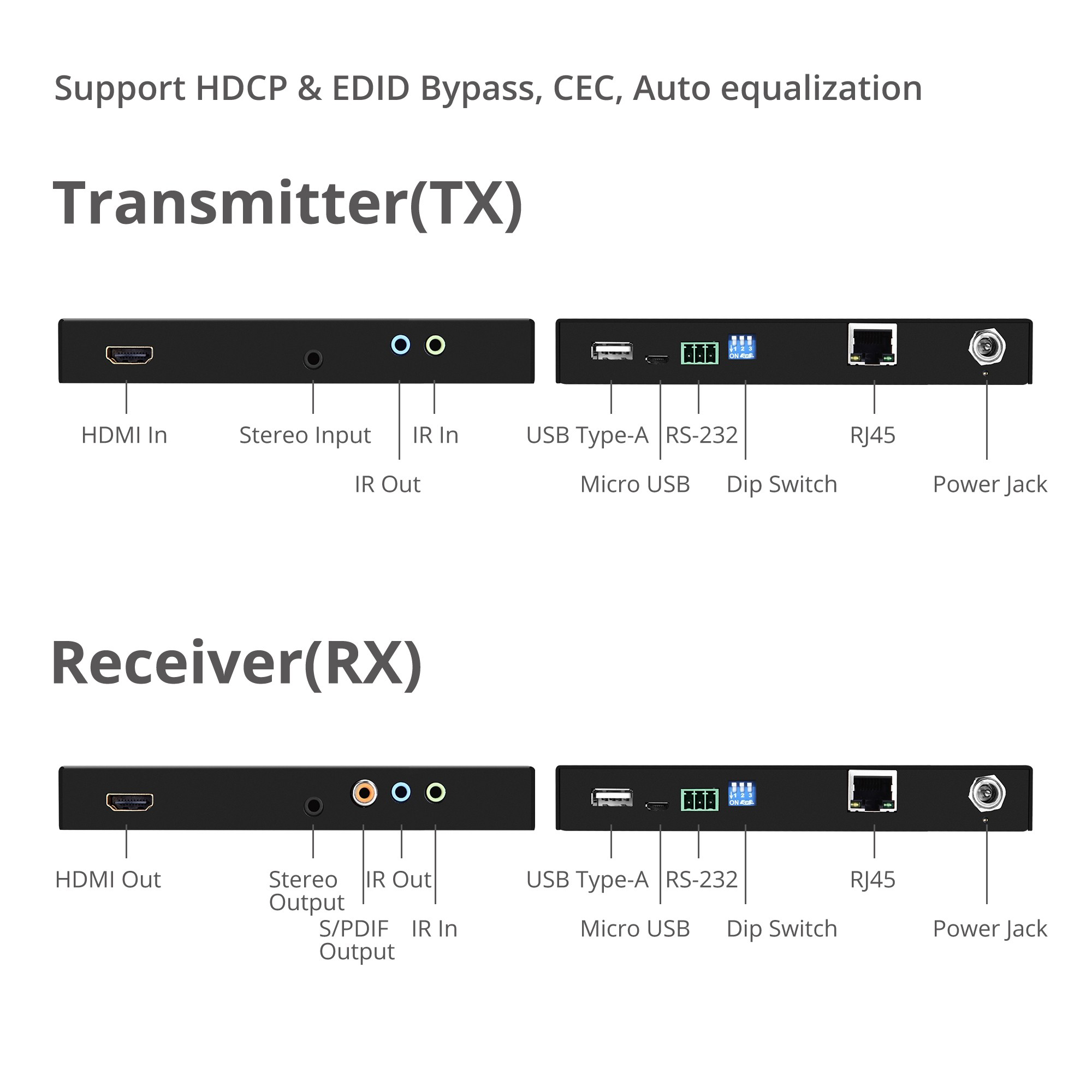

Connectors:
■ 1x 19-pin HDMI, Type A, Female, Input
■ 1x 8-pin, RJ45, output
■ 1x 3.5mm jack, IR In
■ 1x 3.5mm jack, IR Out
■ 1x 3.5mm jack, Audio In
■ 1x 4-Pin, USB 2.0, Type-A, Female, USB Host
■ 1x 5-Pin, USB 2.0, Micro USB, Female, USB Device
■ 1x Power LED indicator

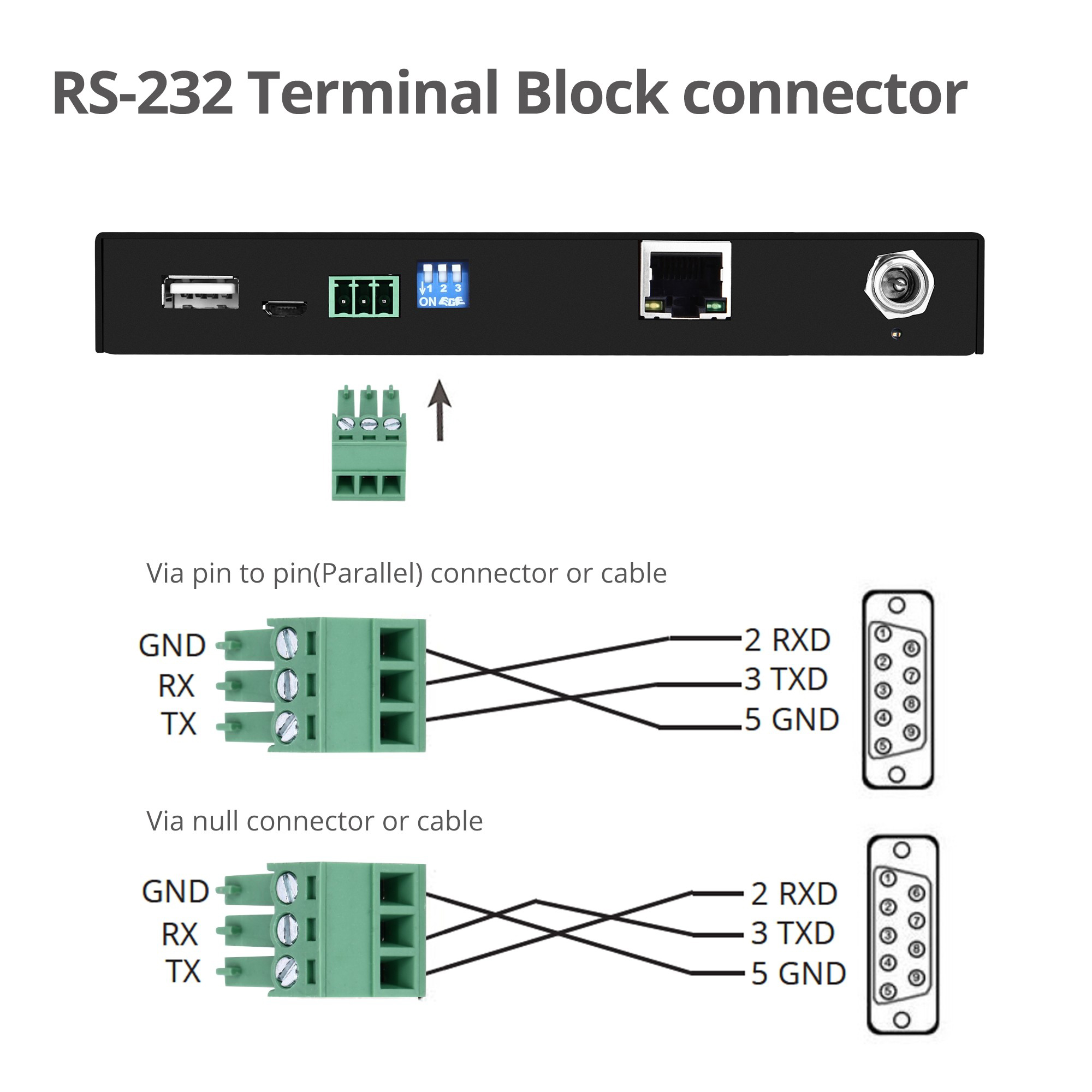

■ 1x 3-Pin, RS-232, Phoenix connector
■ 1x 3-Pin, DIP Switch
■ 1x Power jack
Receiving unit (RX):
■ Dimensions: 5.91" (L) x 0.79" (H) x 3.74" (W)
■ Weight: 0.90 lbs
Connectors:
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 8-pin, RJ45, Input
■ 1x 3.5mm jack, IR In
■ 1x 3.5mm jack, IR Out
■ 1x 3.5mm jack, Audio Out
■ 1x Coaxial jack, S/PDIF Audio Out
■ 1x 4-Pin, USB 2.0, Type-A, Female, USB Host
■ 1x 5-Pin, USB 2.0, Micro USB, Female, USB Device
■ 1x Power LED indicator
■ 1x 3-Pin, RS-232, Phoenix connector
■ 1x 3-Pin, DIP Switch
■ 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 12V/2A
UL Listed: E163743 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: Taiwan
