- AcePro-CE49-1
- AcePro 4K HDMI Wireless Extender Kit
■ Wirelessly transmits uncompressed 4K HDMI signals with stereo audio up to 98ft (line of sight) Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions. Your actual transmission distance may be much less than the maximum distance ■ Supports video resolutions up to 3840x2160@30Hz to deliver stunning and crystal clear images ■ 4K video with virtually zero latency perfect for game play ■ 60GHz wireless technology prevents signal interference and provides optimal reception quality ■ Premium and durable aluminum housing provides excellent heat dissipation and ensures system stability during long hours of operation ■ Unique free standing design creates a sleek and stylish presence that integrates well with other A/V equipment
Eigenschaften
Wireless uncompressed 4K signals up to 98ft

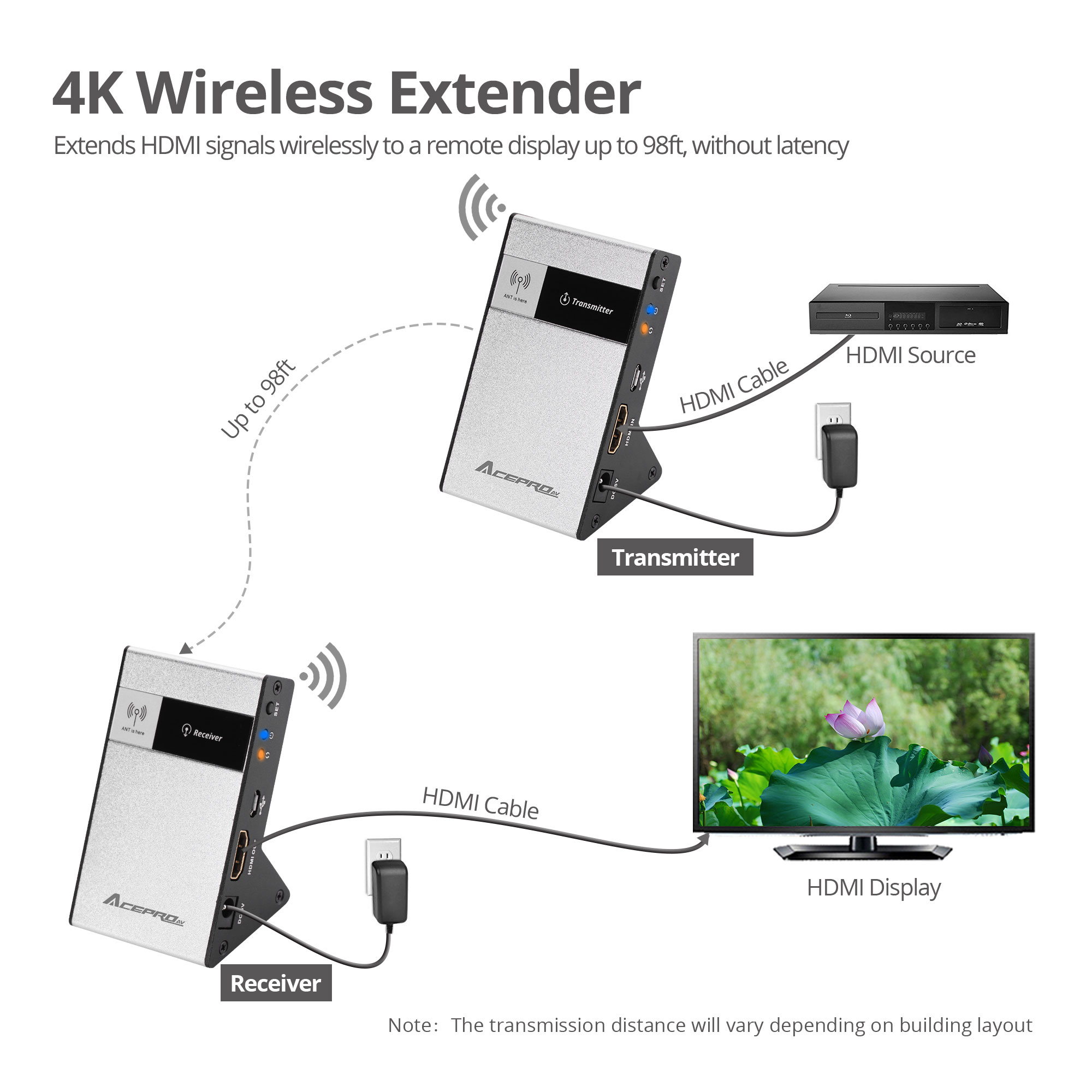

Wirelessly transmits uncompressed 4K HDMI signals with stereo audio up to 98ft (line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions. Your actual transmission distance may be much less than the maximum distance
High resolution 4K support
Supports video resolutions up to 3840x2160@30Hz to deliver stunning and crystal clear images
Low latency
4K video with virtually zero latency perfect for game play
60GHz wireless signal
60GHz wireless technology prevents signal interference and provides optimal reception quality
Sturdy metal housing
Premium and durable aluminum housing provides excellent heat dissipation and ensures system stability during long hours of operation
Unique design
Unique free standing design creates a sleek and stylish presence that integrates well with other A/V equipment
Spezifikation
Compatible with HDMI 1.4, HDCP 1.4 and CEC
Wireless frequency: 60GHz
Latency: 0ms
Bandwidth: Up to 10.2Gbps
Resolution: 480p / 720p / 1080i / 1080p / 3840x2160@30Hz
Distance: Up to 30m (98ft line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions. Your actual transmission distance may be much less than the maximum distance
HDMI cable length: Up to 3 meters (Input & Output)
Supports Dolby, TrueHD, DTS-HD Master Audio and LPCM digital audio streams up to 7.1 Channels
Color: Black & Silver
Housing: Aluminum
Product:

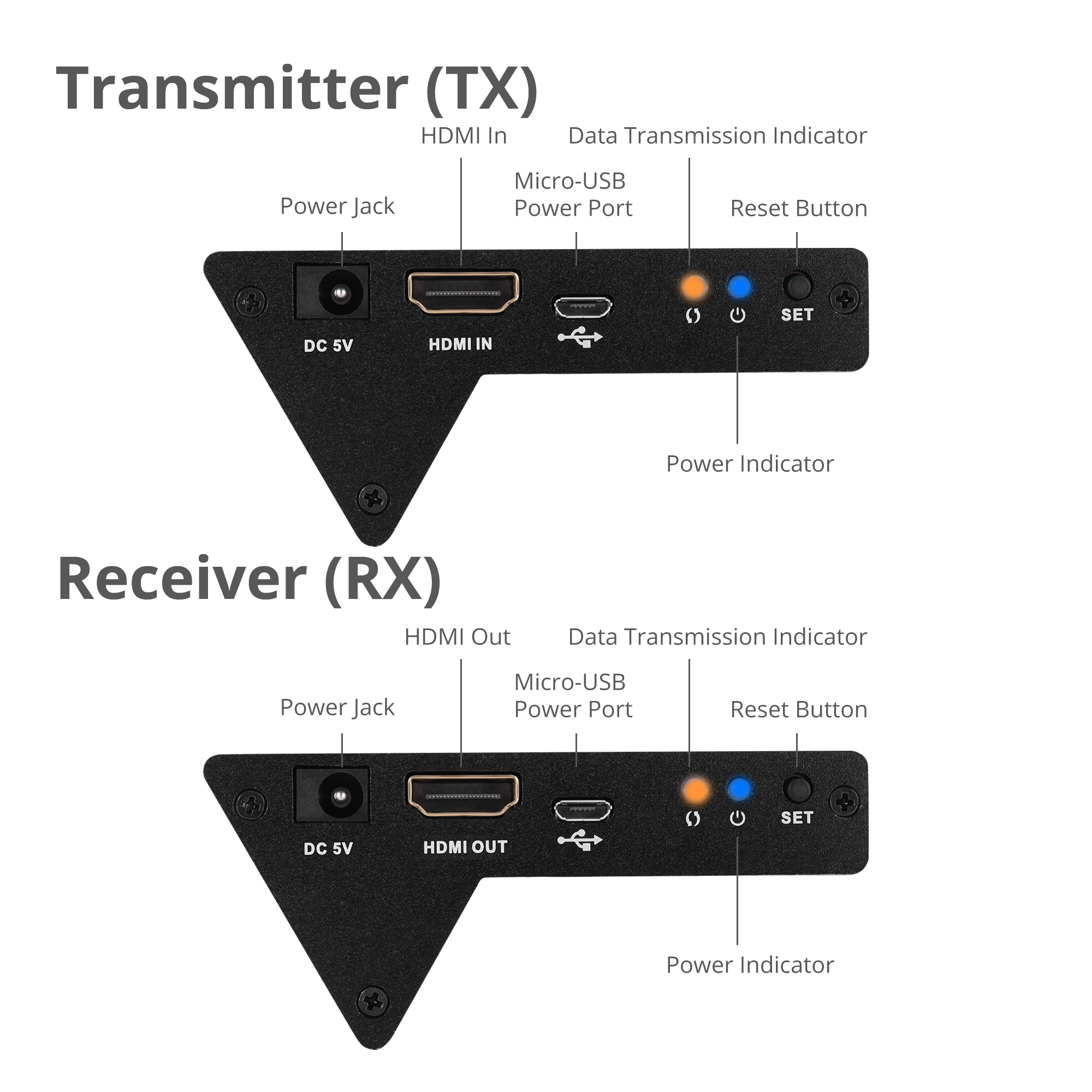

Transmitting unit (TX):
■ Dimensions: 3.54" (W) x 2.09" (H) x 2.44" (D)
■ Weight: 0.35 lbs
■ 1x, 19-pin, HDMI, Female, Input
■ 1x, Power jack

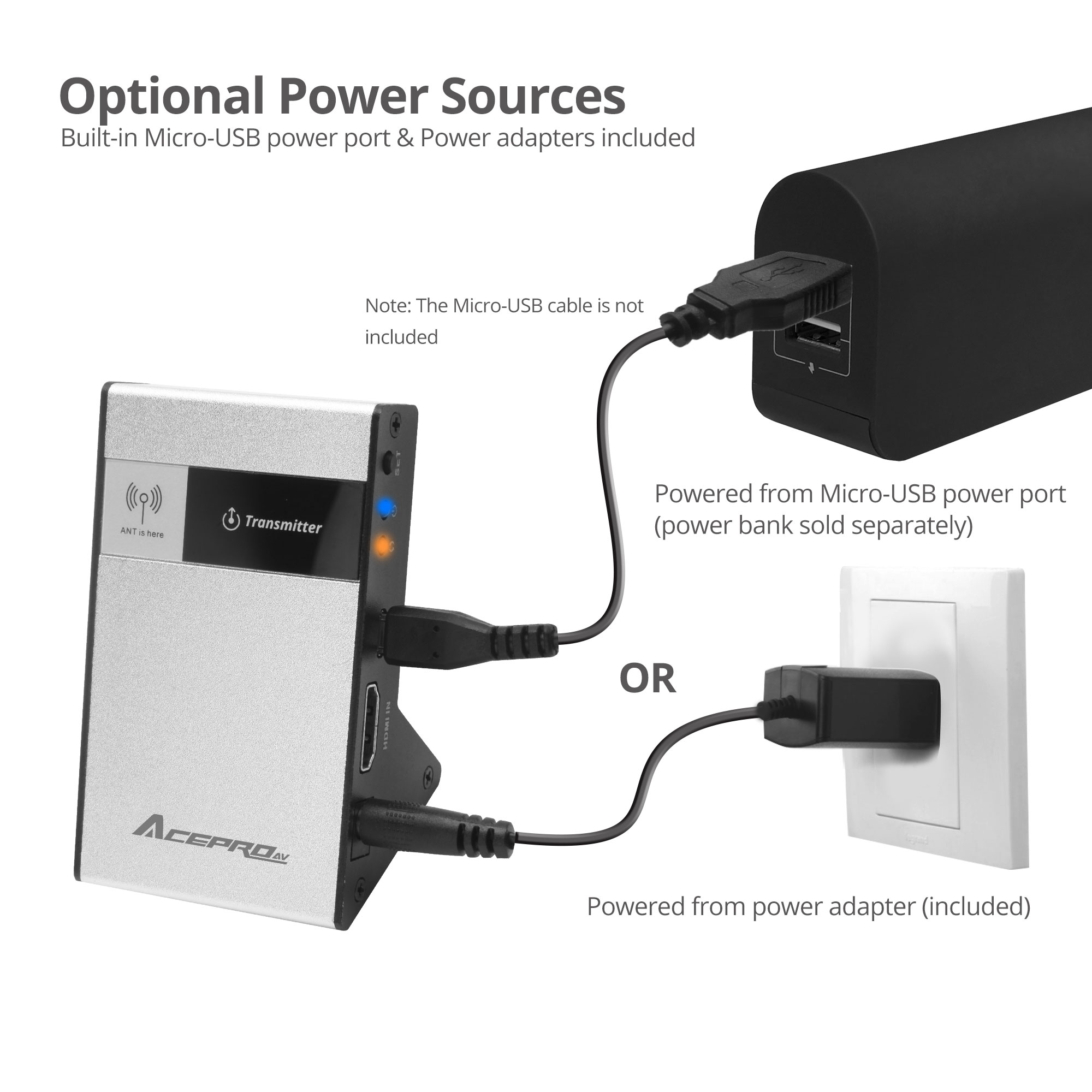

■ 1x, 5-Pin, Micro USB, Power input
■ 1x, Power jack
■ 1x, 5-Pin, Micro USB, Power input. Note: Do not connect the included power adapter and Micro USB port at the same time.
■ 2x, LED indicators, Power & Data
■ 1x, Reset button
Power Adapter:
■ Input: AC 100-240V/50-60Hz
■ Output: DC 5V12A
■ UL Listed: E335801 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 158 degrees F
■ Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
