- AcerPro 8-Port HDMI Splitter Extender with IR - 40M
■ Extends high definition video signals up to 130ft (40m) over economical Cat6 cabling to up to eight HDMI displays ■ Delivers crystal clear Full HD content up to 1080p@60Hz resolution ■ IR control through Cat6 allows you to control the HDMI source device at the remote display location ■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation ■ Plug-n-Play installation, no software installation or hardware setup is required
Eigenschaften
Extends high definition video signals up to 130ft (40m)
over economical Cat6 cabling to up to eight HDMI displays
Delivers crystal clear Full HD content up to 1080p@60Hz resolution
IR control through Cat6
allows you to control the HDMI source device at the remote display location
High quality durable metal housing with ventilation panels
provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
Plug-n-Play installation
no software installation or hardware setup is required
Spezifikation
Compliant with HDMI 1.3 and HDCP 1.2
Transmission distance: up to 40m (130ft) at 1080p@60Hz resolution
Supports Digital stereo 2-ch DTS and PCM 7.1-ch audio
Supports full frequency IR signal from 20KHz to 60KHz

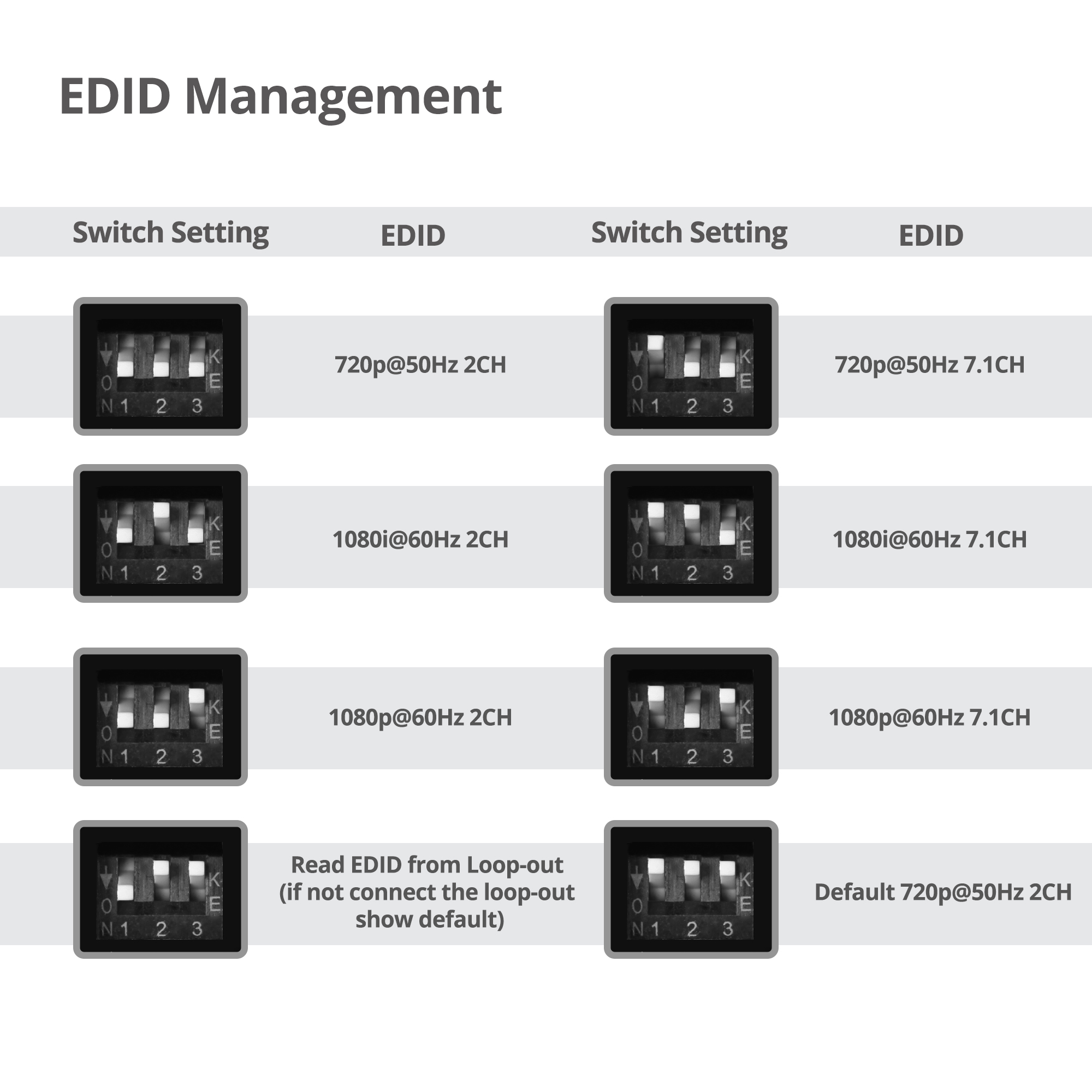

Supports EDID manual setting function

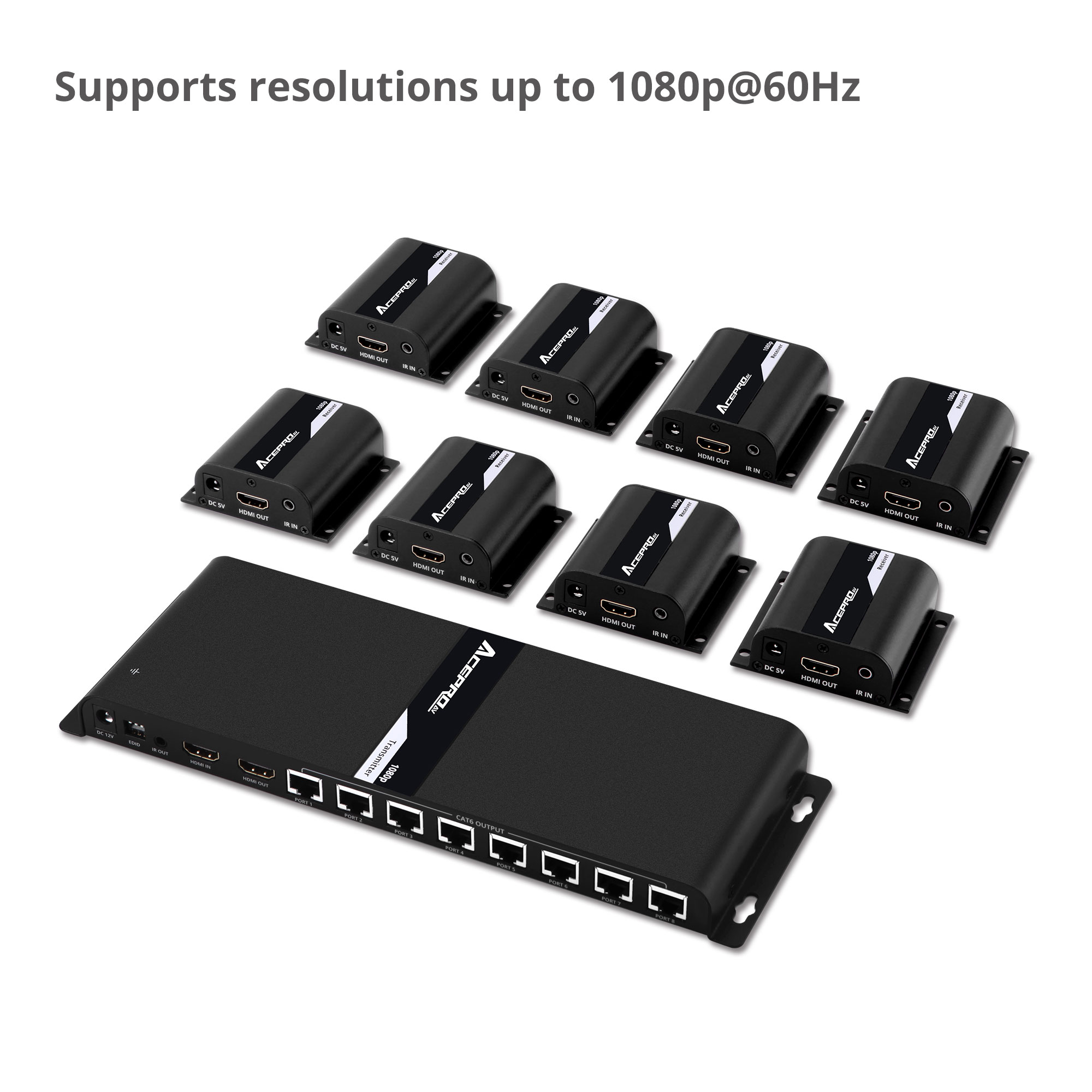

Resolution: 480p / 720p / 1080i / 1080p 60Hz
Metal housing with wall mount design
Network cable: UTP/STP CAT5e/6/6a/7
Product:

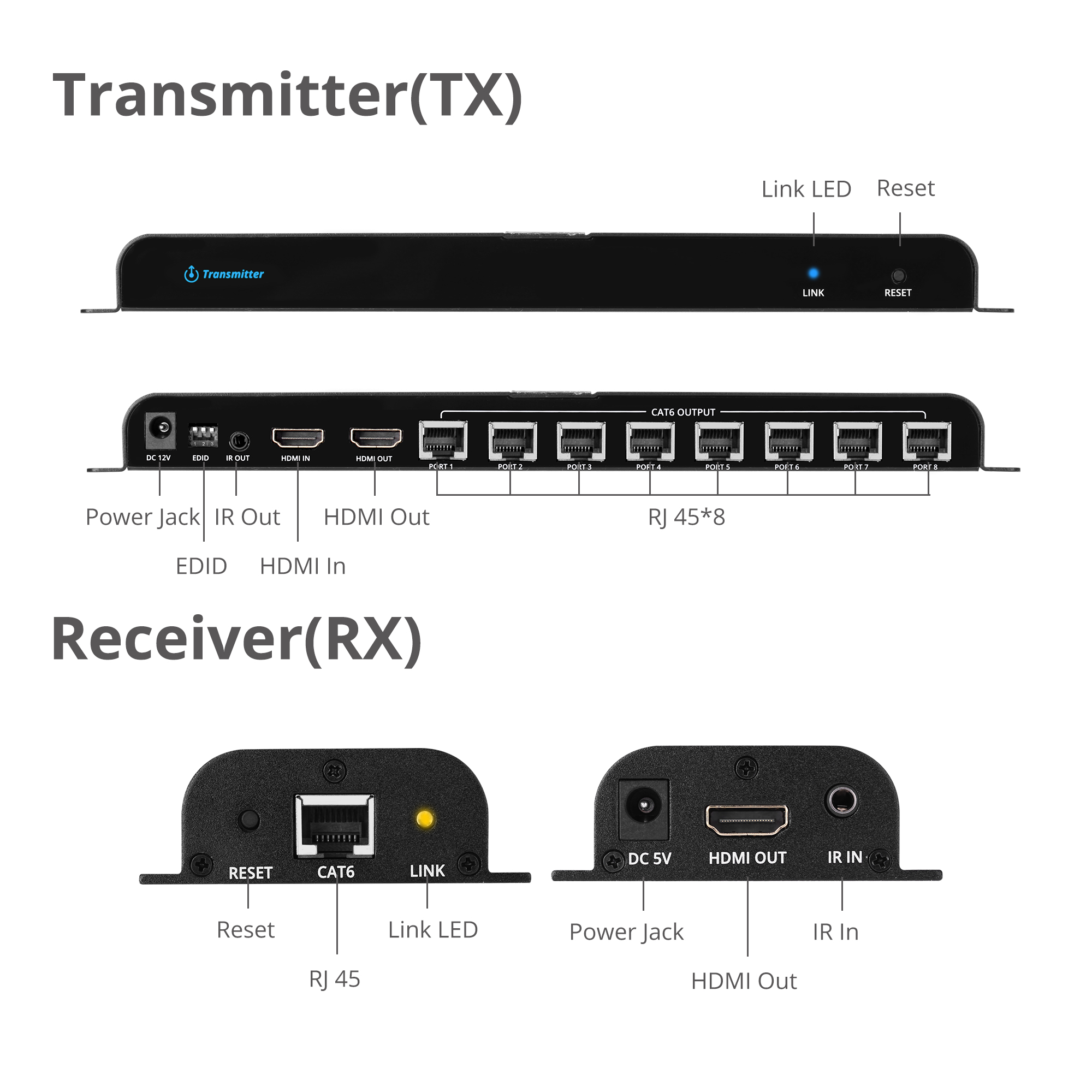

■ Transmitting unit (TX):
Dimensions: 10.87" (L) x 0.91" (H) x 3.82" (W)
Weight: 1.33 lbs
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, loopout
1x 3.5mm jack, IR Blaster
8x 8-pin, RJ45, HDMI signal output
1x Power jack
1x Reset button
1x 3-Pin Switch, EDID adjustment
■ Receiving unit (RX):
Dimensions: 2.81" (L) x 0.98" (H) x 2.64" (W)
Weight: 0.19 lbs
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDMI signal input
1x Power jack
1x Reset button
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 12V/2A for TX
■ Output: DC 5V/1A for RX
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: China
Notes:

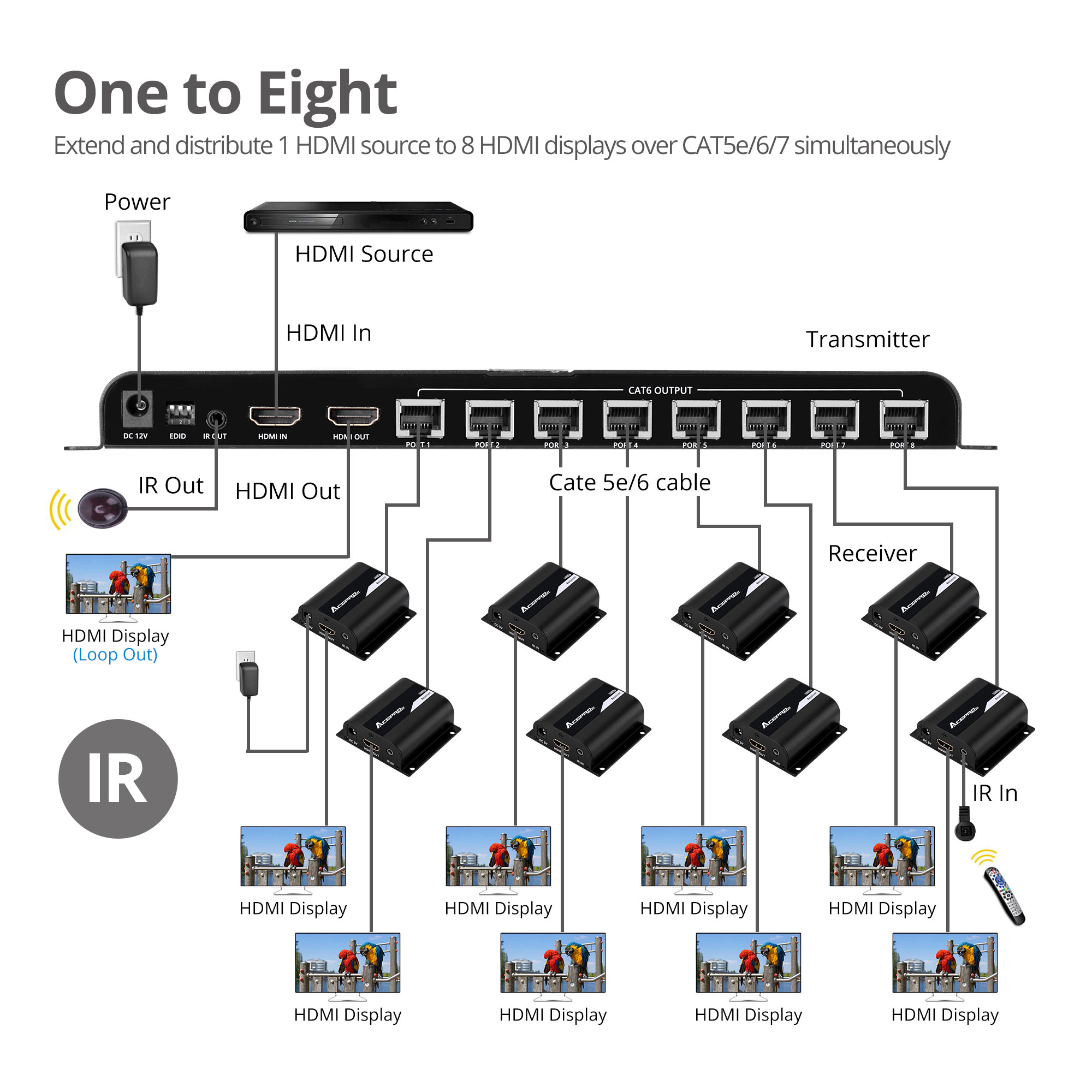

This kit is point to point connection and comes with 1 Transmitter and 8 Receivers. Does not work through routers or network switches
Good quality Cat6 cables are essential in delivering reliable quality content
