- AVLAB-US22-1
- AVLAB USB-C Multi-Function 4K HDMI Video Mini Dock with PD Charging, 4K 30Hz, SD/Micro SD UHS-I Reader, Gigabit LAN
■ Compatible with Mac or Windows computers with DisplayPort Alternate mode audio/video signal and USB Power Delivery Specification system charging technology enabled USB-C port ■ Adds a wide variety of ports to your USB-C enabled computer instantly. Includes - one USB-C port (Charge and Sync), one HDMI port, one Gigabit Ethernet, three USB 3.0 ports and two flash memory card slots ■ Advanced charge and sync USB-C port supports Power Delivery (PD) protocol and enables charging from PD compatible power adapter simultaneously to the laptop unit or connects with many USB devices for a fast data communications ■ Simply connect your HDMI monitor or TV to the Dock's HDMI port, streams HDMI audio/video signals up to 4K UHD resolution ■ Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s ■ Plug-n-play, no driver installation or power adapter required ■ Compact design makes it easy to carry, a great tool to increase your productivity for home, office or on-the-go ■ Built-in DC power jack provides an option to connect to an external power source as needed (power adapter is not included) ■ Two shared flash memory card slots support various SD and Micro SD flash memory cards of up to 2TB capacity perfect solution for transferring files from your portable devices to your computer Note: Only one memory card slot can be used at any one time
Eigenschaften
Compatible with Mac or Windows computers
with DisplayPort Alternate mode audio/video signal and USB Power Delivery Specification system charging technology enabled USB-C port

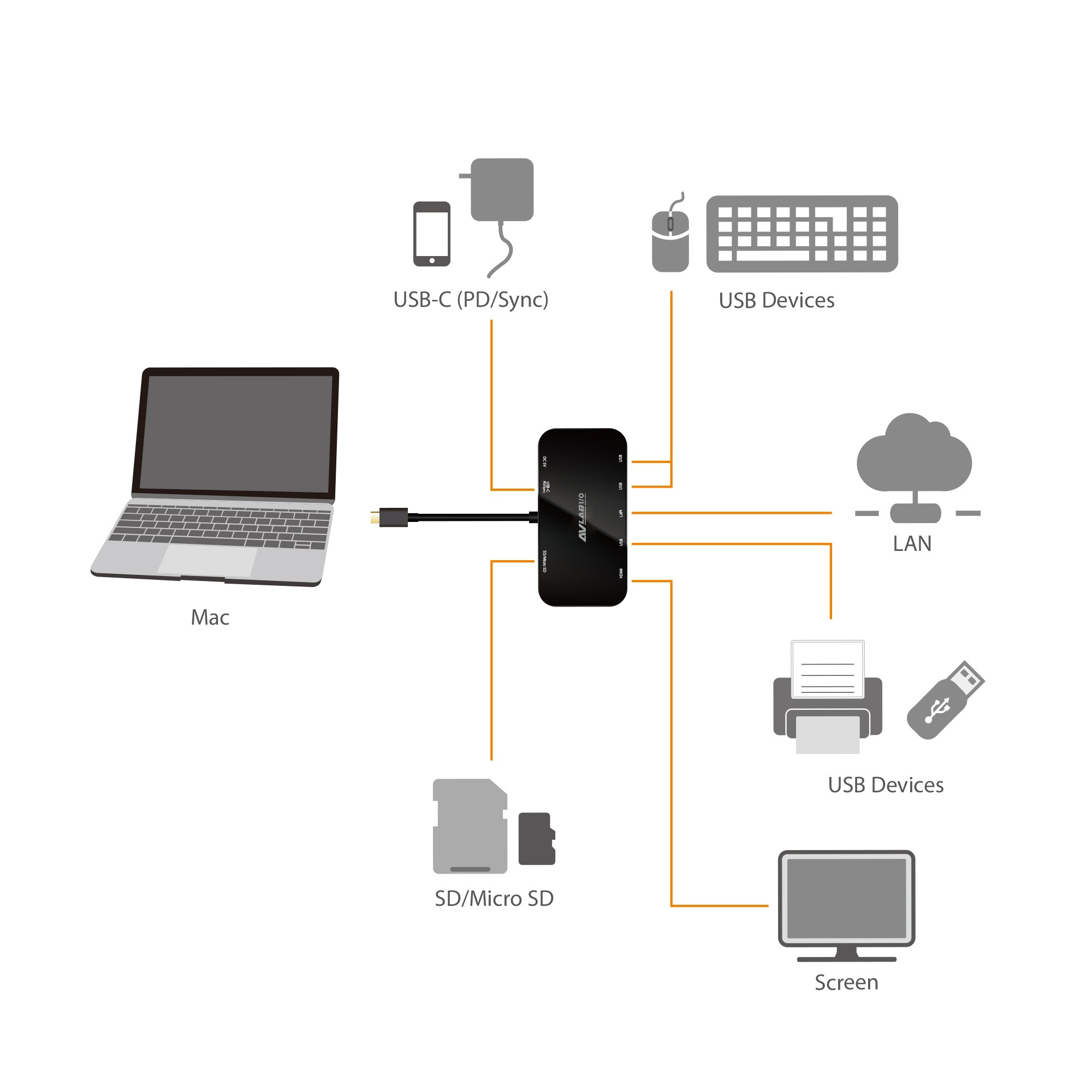

Adds a wide variety of ports to your USB-C enabled computer instantly. Includes - one USB-C port (Charge and Sync), one HDMI port, one Gigabit Ethernet, three USB 3.0 ports and two flash memory card slots

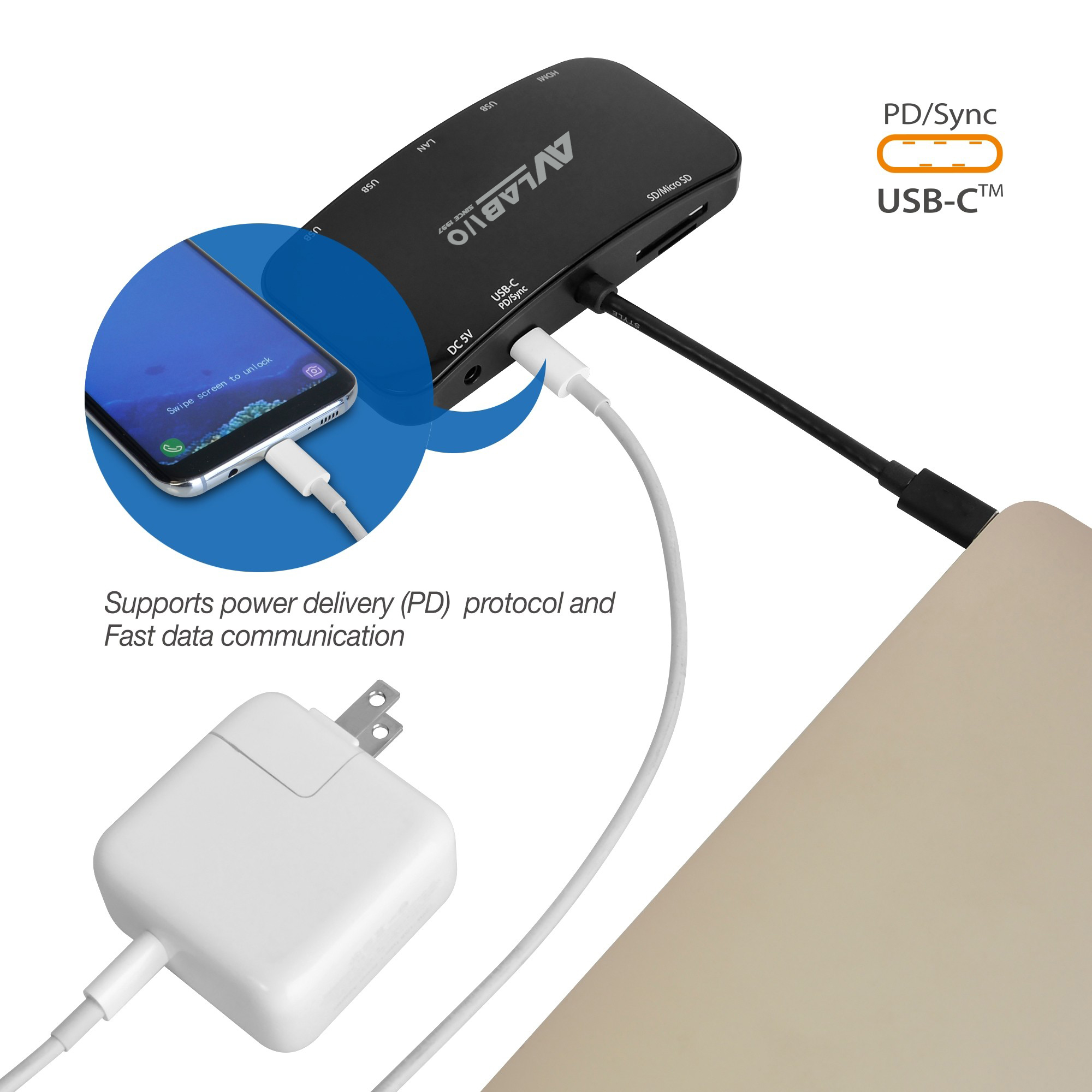

Advanced charge and sync USB-C port
supports Power Delivery (PD) protocol and enables charging from PD compatible power adapter simultaneously to the laptop unit or connects with many USB devices for a fast data communications

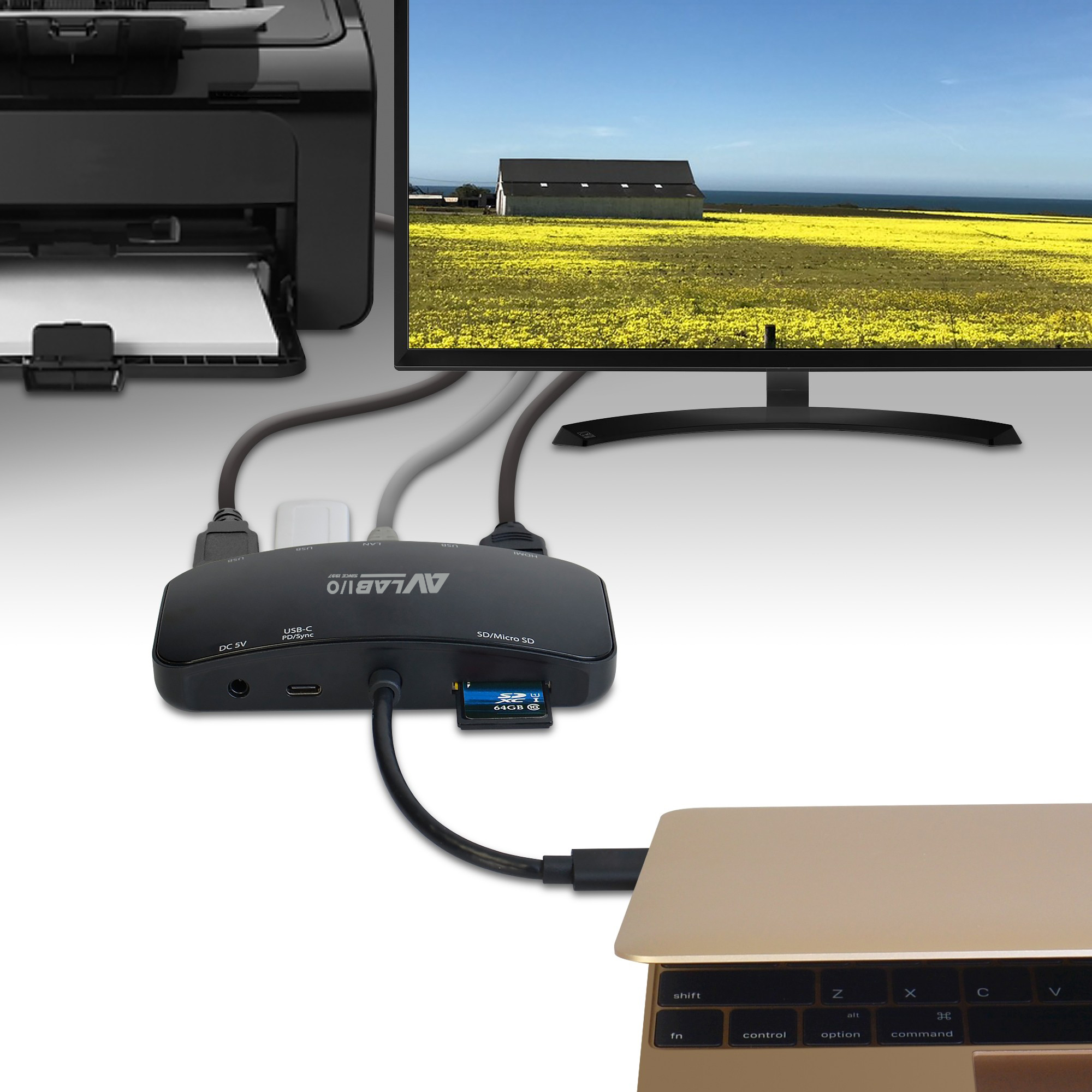

Simply connect your HDMI monitor or TV
to the Dock's HDMI port, streams HDMI audio/video signals up to 4K UHD resolution
Enables you to connect multiple USB peripherals simultaneously
such as mouse, keyboard, flash drive, printer and more
SuperSpeed USB 3.0 ports
support data transfer rate up to 5Gb/s
Plug-n-play, no driver installation or power adapter required
Compact design
makes it easy to carry, a great tool to increase your productivity for home, office or on-the-go
Built-in DC power jack
provides an option to connect to an external power source as needed (power adapter is not included)

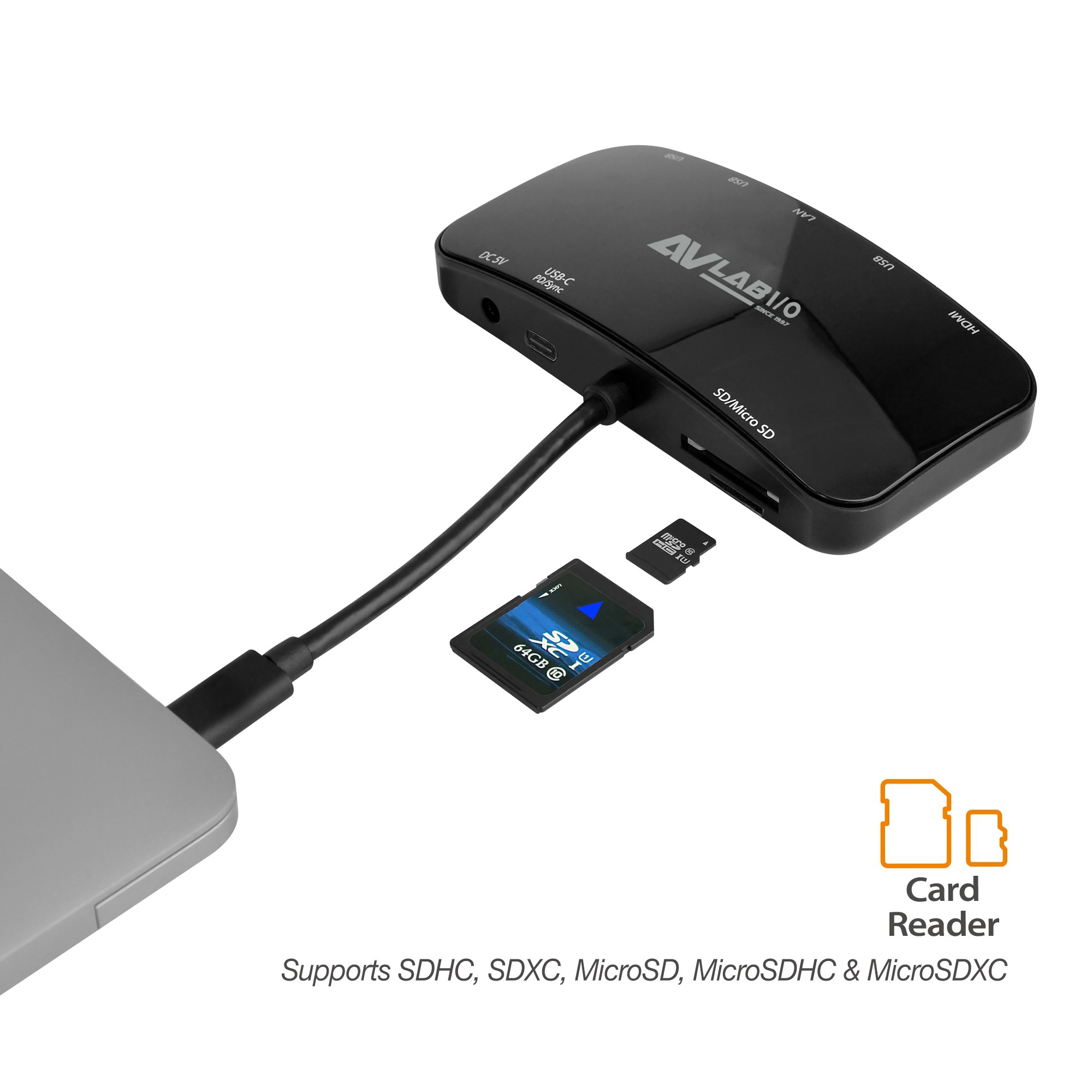

Two shared flash memory card slots support various SD and Micro SD flash memory cards of up to 2TB capacity perfect solution for transferring files from your portable devices to your computer
Note: Only one memory card slot can be used at any one time
Spezifikation
Chipset: PS176 + RTL8153
Compatible with DisplayPort Specification version 1.2
Compatible with HDMI 1.4 specification
Supports HDCP 1.4
Audio over HDMI out: 7.1 channel
Compatible with USB Type-C Intel® Thunderbolt™ 3 systems that are capable of outputting a DisplayPort Alt mode signal
Supports USB 3.0 data transfer rate up to 5Gb/s
PD Charging: Up to 60 watts
USB-C System Interface Requirements:
■ A) DisplayPort Alternate mode signal and USB Power Delivery Specification, or
■ B) Thunderbolt 3 technology
Gigabit Ethernet:
■ Up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s Ethernet networks
■ Supports IEEE 802.3x full duplex operation
■ Compatible with IEEE 802.3, 802.3u
■ Supports crossover detection and auto-correction
Memory Card Reader:
■ Supports SDHC (UHS-I), SDXC (UHS-I), microSD (T-Flash), microSDHC (UHS-I), and microSDXC (UHS-I)
Note: Only one memory card slot can be used at any one time
■ Memory card capacity: Up to 2TB (max)
■ SD memory cards: Insert with the gold pins forward and facing down
■ MicroSD memory cards: Insert with the gold pins forward and facing up
Supported Video Cable Length:
■ HDMI: Up to 5 meters (max)
Resolution:
■ HDMI output: Up to 3840x2160@30Hz
Connectors:
■ 1x USB-C, Male, Input
■ 1x 19-pin, HDMI Type-A, Female, Output
■ 3x 9-pin, USB 3.1 Gen-1, Type-A, Female, Output
■ 1x 8-pin, RJ45, Network, Female, Output
■ 1x USB-C, Female, PD charge or data
■ 1x SD memory card slot and 1x Micro SD memory card slot
Note: Only one memory card slot can be used at any one time
1x DC Power Jack: Note: Connecting a power adapter is optional, it's only needed if the hub is not working correctly, the connected devices are
unstable or not detected
■ Power input: 5V/2A (max)
■ Dimensions: OD 3.5mm / ID 1.5mm / L 10mm
Product dimensions: 4.45" (W) x 0.83" (H) x 2.24" (D)
Embedded USB cable length: 4.7 inches
Product weight: 0.19 lbs
Color: Black
Housing material: ABS
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: <85% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: China
FAQ
- Q: What is USB Type-C?
- USB-C is a type of USB connector that is capable of supporting the following: ■ Data transfer speeds up to 10Gbps, if you use USB 3.1. ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it. ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode). If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth. Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
- Q: How do I confirm that Windows detects my USB device?
- To confirm that Windows detects your USB device, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
- Q: How do I confirm that Windows detects my expansion device?
- To confirm that Windows detects your expansion card, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
