- AVLAB-CB22-1

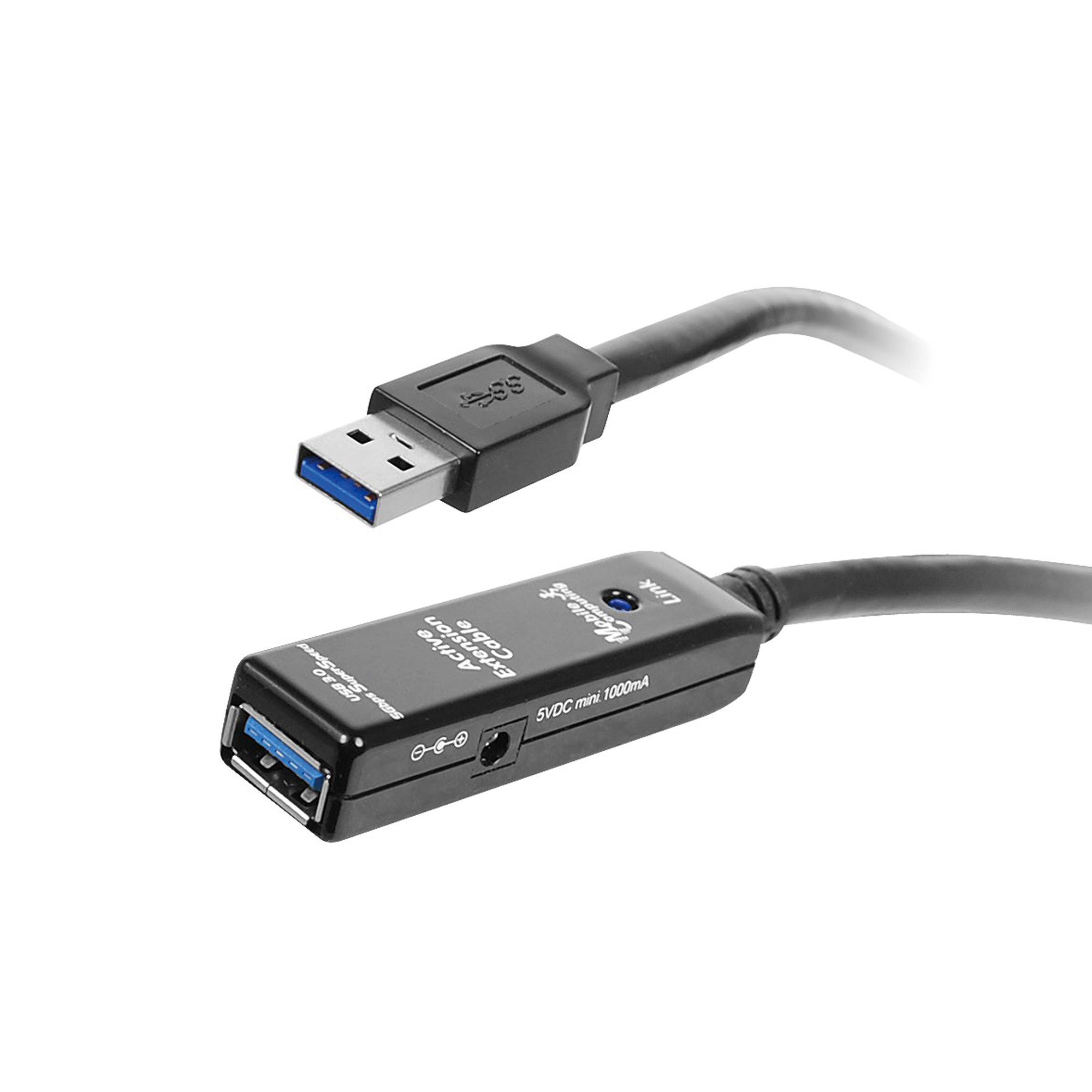

- AVLAB USB 3.0 Active Repeater Cable - 10M
■ Extends USB data transmission distance beyond the normal USB boundary
■ Supports data transfer rates up to 5Gb/s
■ Supports daisy chain connection – up to 2 cables*
■ Built in power adapter jack for supporting power hungry USB devices
■ Plug-n-play, no driver installation required
■ Fully shielded for error-free data transmissions
■ Built-in over current protection to protect the connected device and repeater cable itself from unforeseen power surge
*Note: When daisy chaining, the external power adapter is required for supplying sufficient power to the connected device.
Eigenschaften
Extends USB data transmission distance
beyond the normal USB boundary
Supports data transfer ratesup to 5Gb/s
Supports daisy chain connection
– up to 2 cables*
Built in power adapter jack
for supporting power hungry USB devices
Plug-n-play
, no driver installation required
Fully shielded
for error-free data transmissions
Built-in over current protection
to protect the connected device and repeater cable itself from unforeseen power surge
*Note: When daisy chaining, the external power adapter is required for supplying sufficient power to the connected device.
Spezifikation
Chipset: VIA VL811+ B2
Supports Isochronous data transfer
Product weight: 1.71 lbs (776 g)
Length: 32.8 ft (10 m)
Color: Black
Connectors:

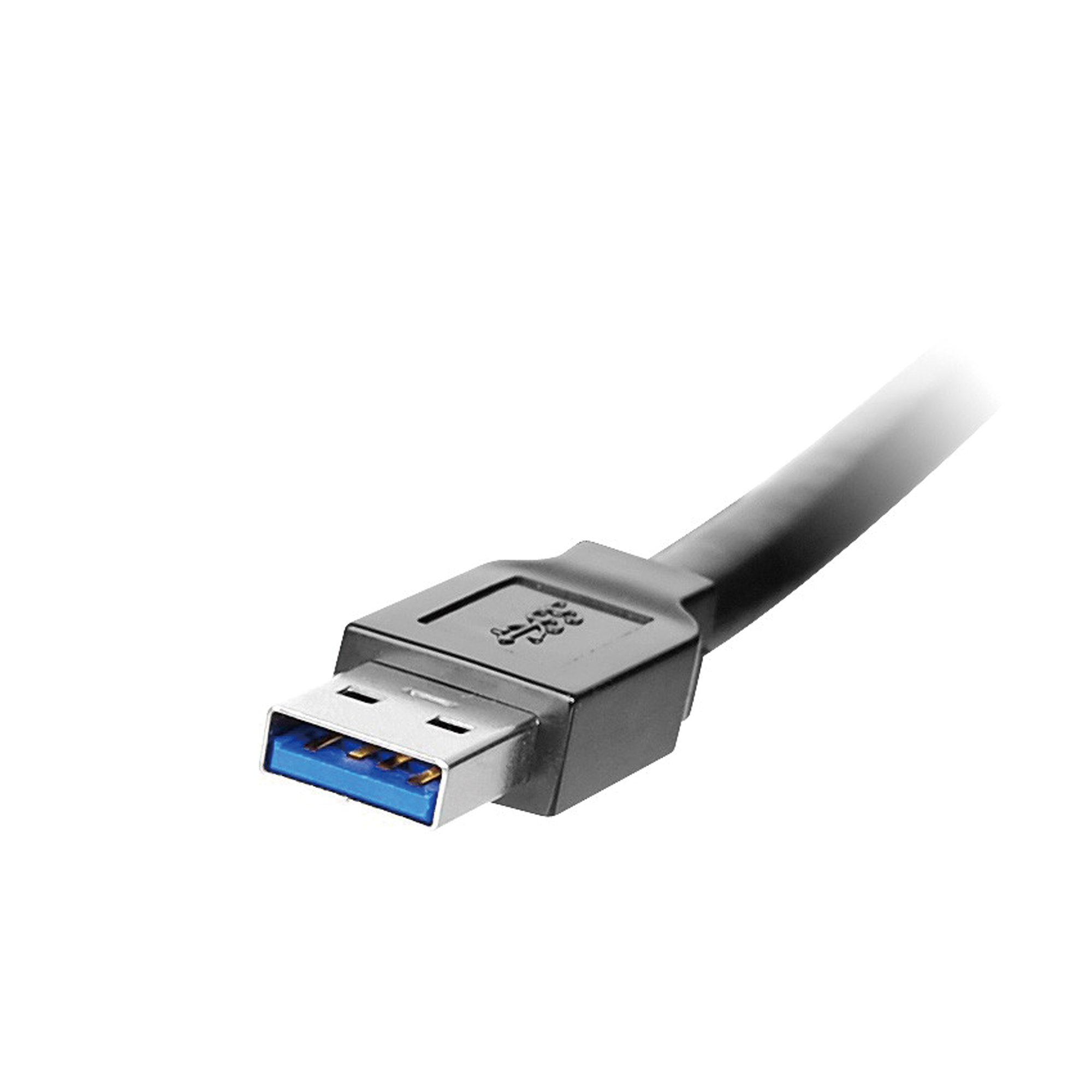

■ 9-pin, USB 3.0, Type A, Male

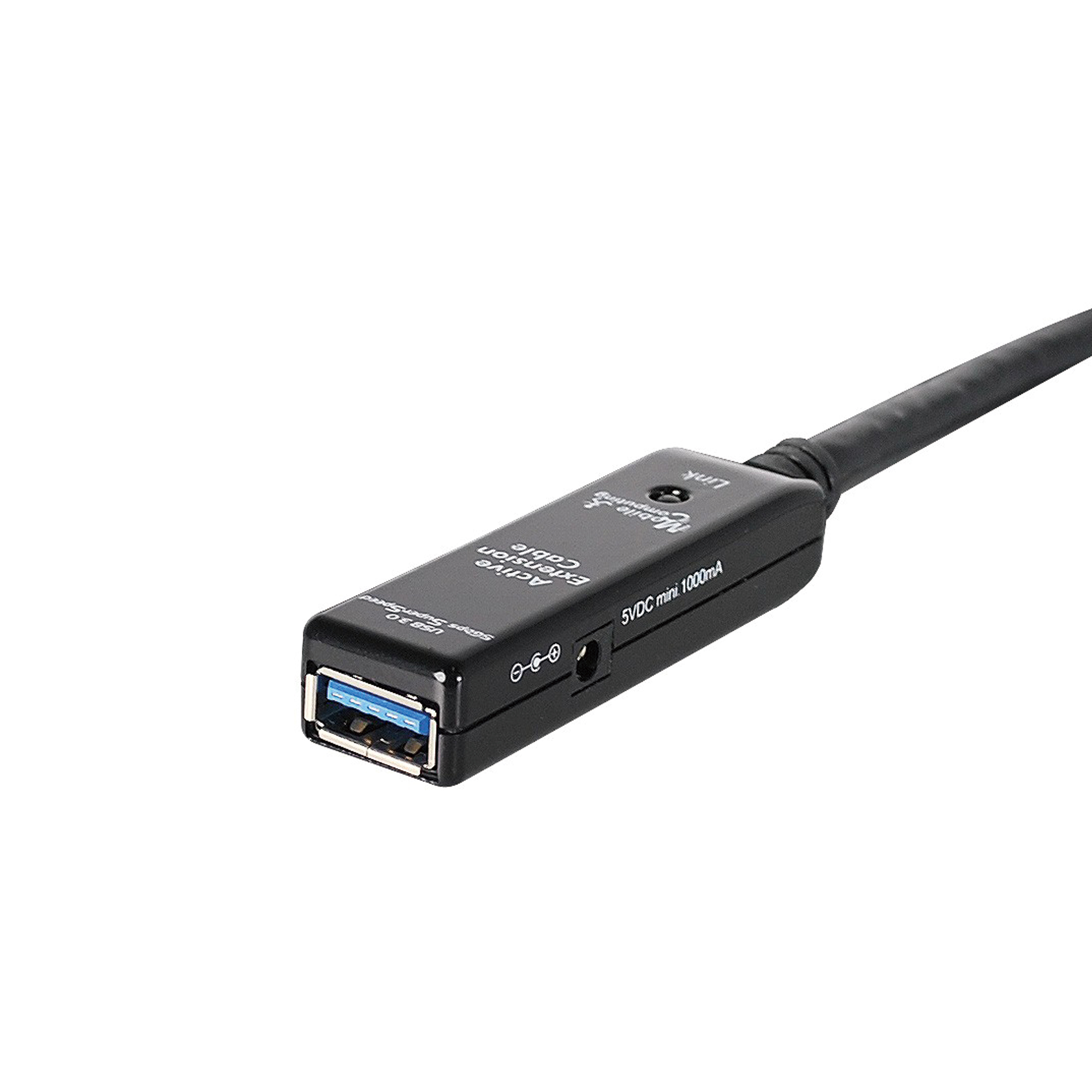

■ 9-pin, USB 3.0, Type A, Female
■ Power adapter jack: 3.3mm (OD) x 1.3mm (ID) x 9mm (L)
Max daisy chain distance*: 20m (2 cables)
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F (0 to 50 C)
■ Storage temperature: -40 to 131 degrees F (-40 to 55 C)
■ Operating humidity: 20% to 93% RH
■ Storage humidity: 15% to 95% RH
Power adapter:
■ Input: 100-240VAC, 0.5A
■ Output: 5VDC, 2.0A
■ Power plug dimensions: 3.3mm (OD) x 1.3mm (ID) x 9mm (L)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: Taiwan
*Note: When daisy chaining, the external power adapter is required for supplying
sufficient power to the connected device.
Requirements
■ Desktop or notebook computer with an available USB port
■ Windows® 8 (32-/64-bit) / 7 (32-/64-bit) ) / Vista (32-/64-bit) / XP (32-/64-bit)
Package Contents
■ USB 3.0 Active Repeater Cable – 10M
■ Power adapter
Herunterladen
FAQ
- Q: What is USB Type-C?
- USB-C is a type of USB connector that is capable of supporting the following: ■ Data transfer speeds up to 10Gbps, if you use USB 3.1. ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it. ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode). If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth. Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
- Q: Does this cable/adapter require me to install drivers. Or perform any other setup tasks?
- This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
- Q: The monitor is not getting a signal and the monitor says “Out of Range.” What do I do?
- The error “Out of Range” normally means that the resolution being output by the computer is not compatible with the display. Try lowering the resolution to see if that helps resolve the issue. You may need to connect another monitor or restart the computer or source to accomplish this.
- Q: What is Thunderbolt 3?
- Thunderbolt™ 3 is the latest version of the Thunderbolt standard for connecting computers and electronic devices. It is capable of the following: ■ Total bandwidth up to 40Gbps. Data transfer speeds are dependent on the other features that you are using in your setup. ■ USB 3.1 Gen 2 support. ■ 4K 60Hz video on one or two separate displays. ■ 5K 60Hz video on a single display. ■ A 10 GbE network connection between two Thunderbolt 3 compatible computers. ■ Up to six devices daisy-chained from a single Thunderbolt 3 port. ■ Alternate modes, such as DisplayPort Alternate Mode (DP Alt Mode). ■ Bi-directional power delivery up to 100W (not all Thunderbolt 3 devices support power delivery). USB-C and Thunderbolt 3 Thunderbolt 3 uses the USB-C connector, but not all host connections, cables, and devices with a USB-C connector support Thunderbolt 3. This means that a USB-C device is compatible with a Thunderbolt 3 host connection, but a Thunderbolt 3 device is not compatible with a USB-C host connection. Therefore, it is important to know whether you have a USB-C or a Thunderbolt 3 host, cable, or device.
