- AVLAB-SC08-1

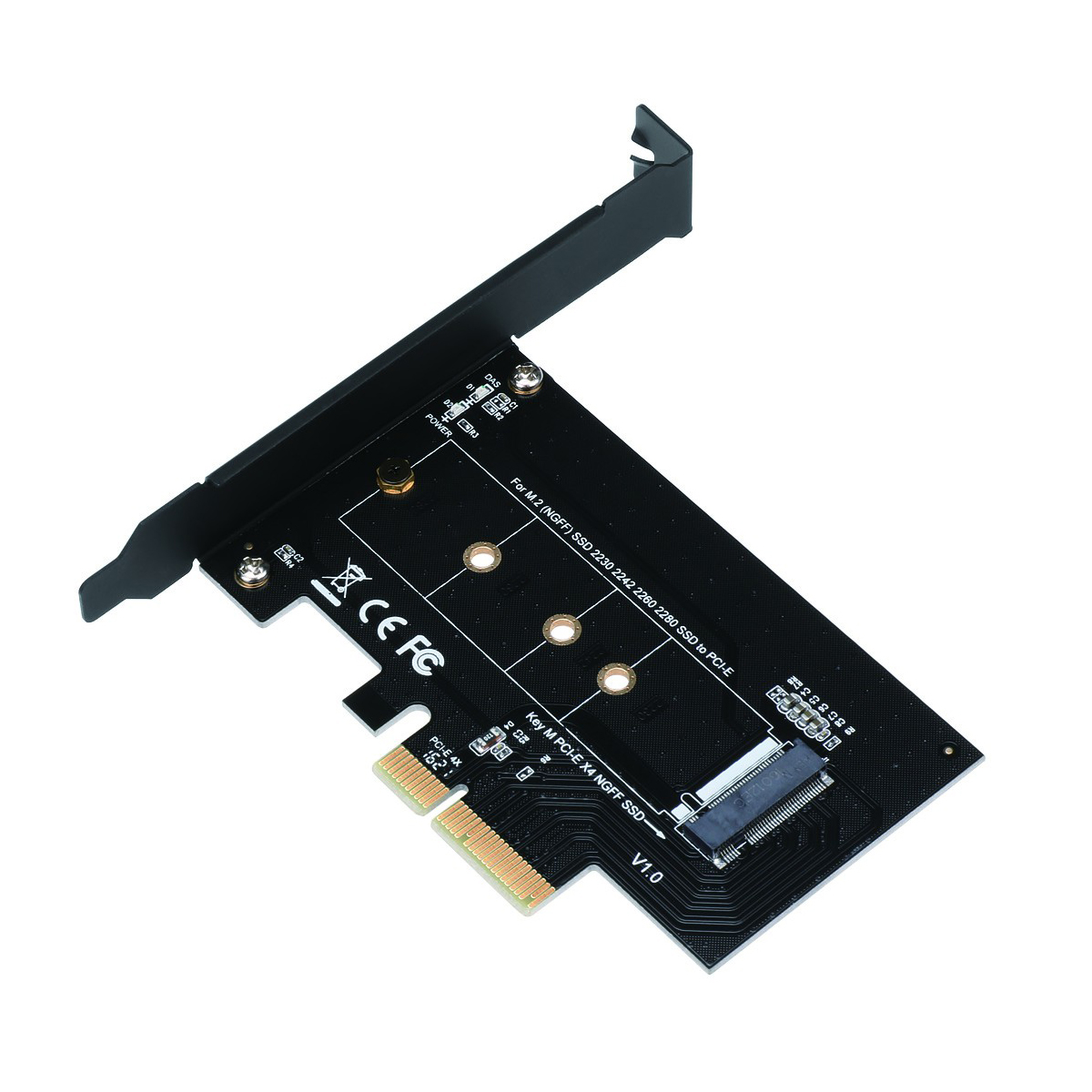

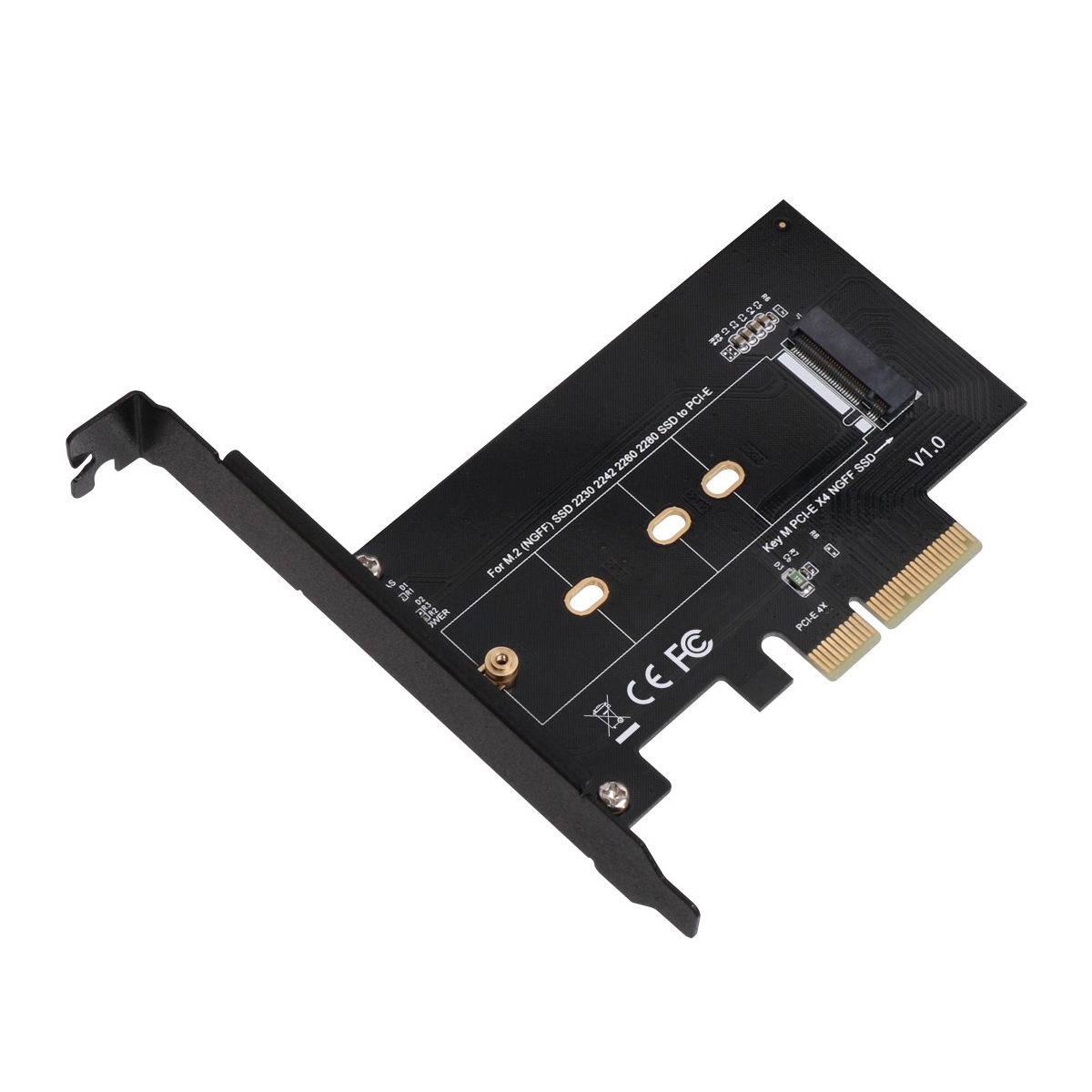

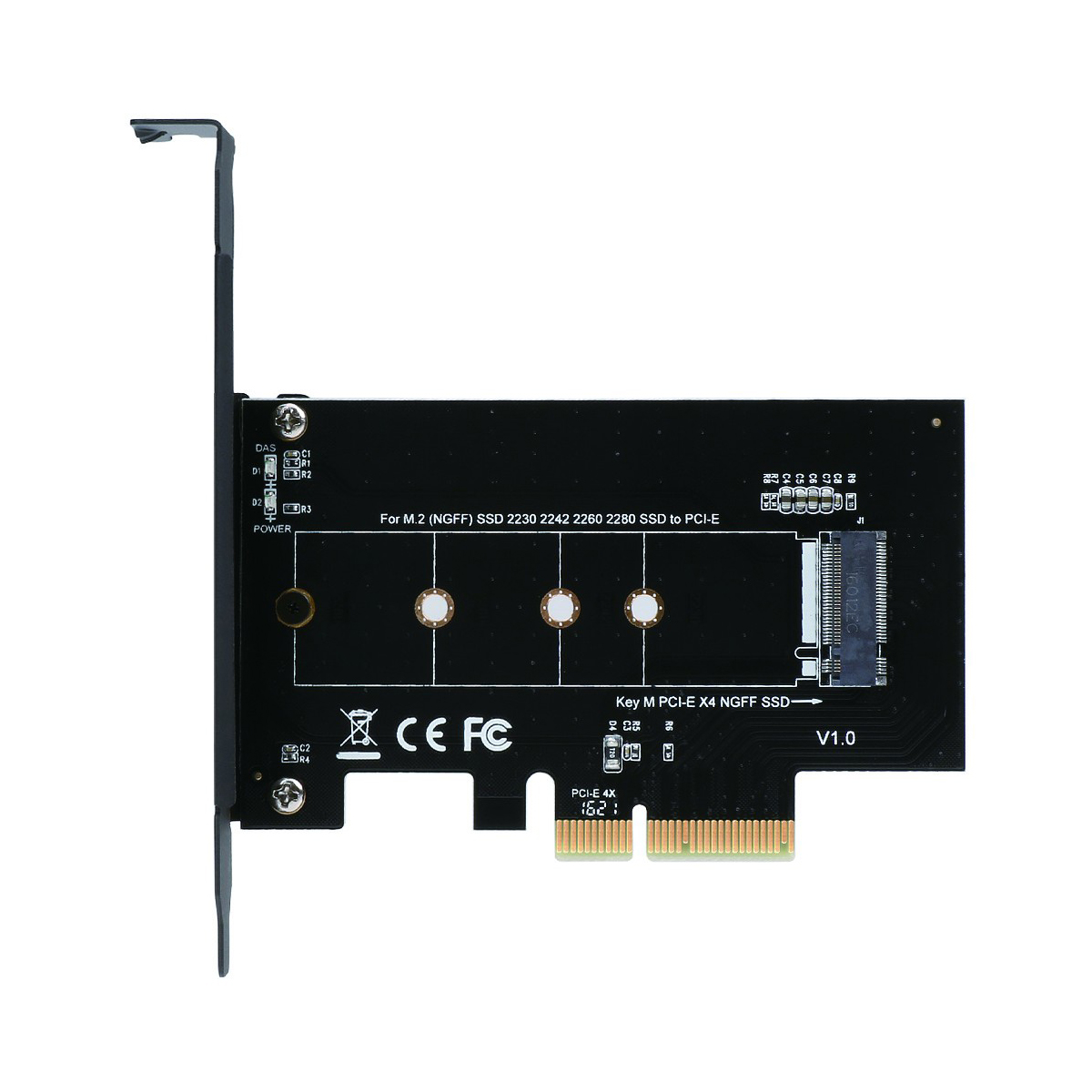

- AVLAB M.2 NGFF SSD PCIe Card, 2230/2242/2260/2280 (NVMe/AHCI) M key PCIe Adapter
■ Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance Note: This adapter is not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs ■ Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes ■ Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0 ■ Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot ■ Built-in LEDs indicate power and data transfer status ■ Includes both low-profile and full-profile slot brackets for flexible system chassis installation ■ No driver installation required
Highlights
EXPANSION

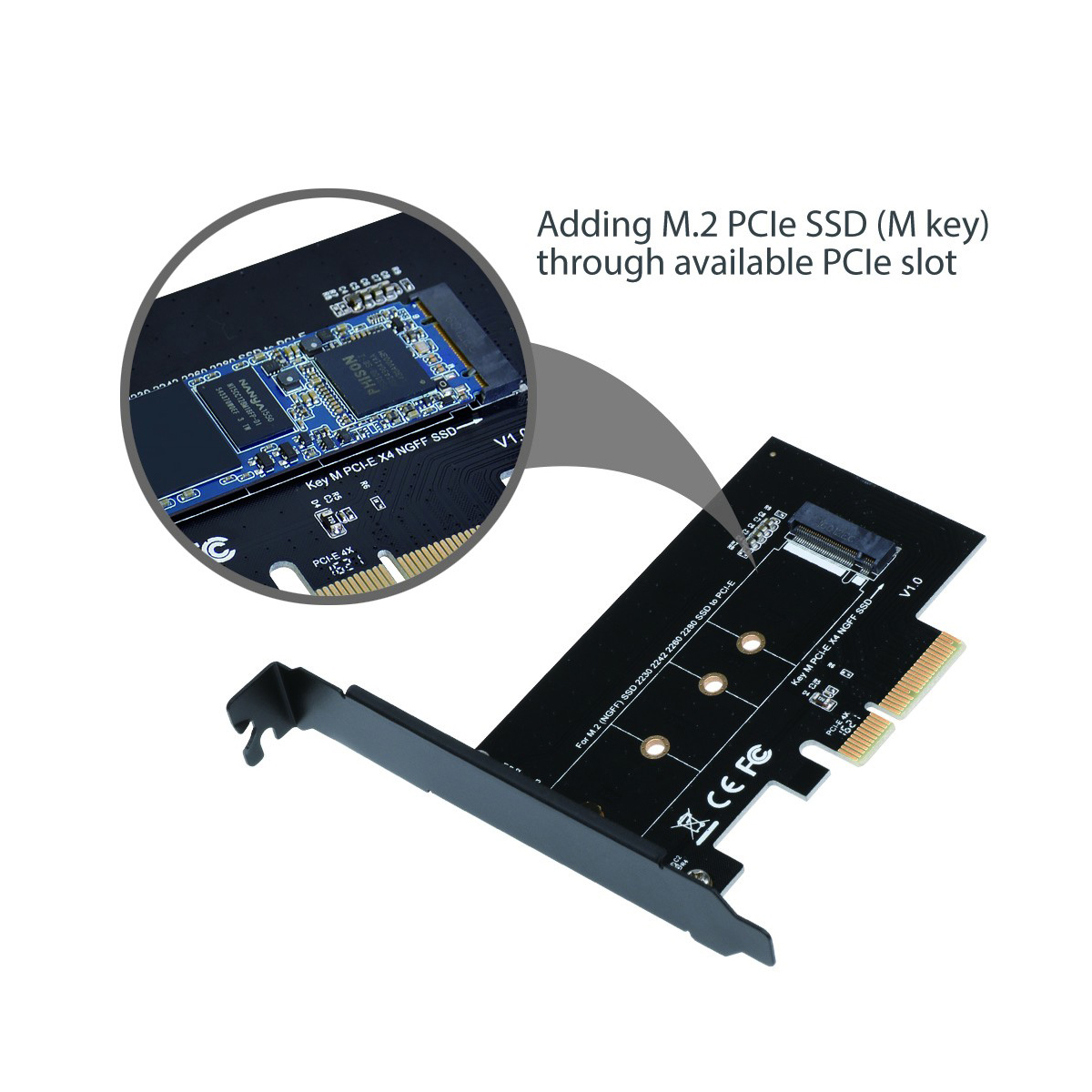

Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance
Note: This adapter is not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs
NVME OR AHCI SUPPORT
Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes
BACKWARDS COMPATIBLE
Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0
PCI EXPRESS
Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
POWER AND STATUS INDICATOR
Built-in LEDs indicate power and data transfer status
FULL HEIGHT AND LOW PROFILE SUPPORT
Installs in full height and low profile chassis with included brackets
PLUG AND PLAY SUPPORT
No driver installation required
Specification
PCIe 3.0 compliant
Bus type: PCIe (x4)
Drive type (not included): M key M.2 PCIe SSD (NVMe or AHCI)
Note: Systems released prior to 2015 may not support NVMe SSDs. Please check with your system provider for compatible SSD.
Compatible drive length: 30 / 42 / 60 / 80 (mm)
Product:
■ Dimensions: 4.72" (W) x 0.79" (H) x 3.54" (D)
■ Weight: 0.09lb
■ Color: Black
Connector:
■ Host bus connector: PCI Express x4
■ Operating humidity: M.2 connector (M key)
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F (0 to 50 degrees C)
■ Storage temperature: 14 to 140 degrees F (-10 to 60 degrees C)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: Taiwan
Download
FAQ
- Q: How do I confirm that Windows detects my expansion card?
- A: To confirm that Windows detects your expansion card, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a RS-422/485 controller card would be under Ports (COM & LPT)
- Q: How do I confirm that Windows detects my USB device?
- To confirm that Windows detects your USB device, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
- Q: How can I make sure my serial port is working in Windows?
- To check whether or not an RS-232 serial port is working, perform an RS-232 loopback test by doing the following: If your serial port is not female, convert it by taking a female/female cable or gender changer and plugging it into the serial port. Take a metal paperclip or wire and cross pins 2 and 3. If you look closely at the female end, the pins should be numbered. Open a telnet session on the COM port number of the device that you are testing. Note: To open a telnet session on the COM port, you need a telnet client like PuTTY or Hyper Terminal. Windows XP comes with Hyper Terminal. When the session is open, anything you type into it you should see. The loopback test fails when you cannot see what you are typing. If the loopback test fails, make sure that the serial cable or gender changer that you are using works and that the adapter is in the correct port.
