• AVLAB-US09-1

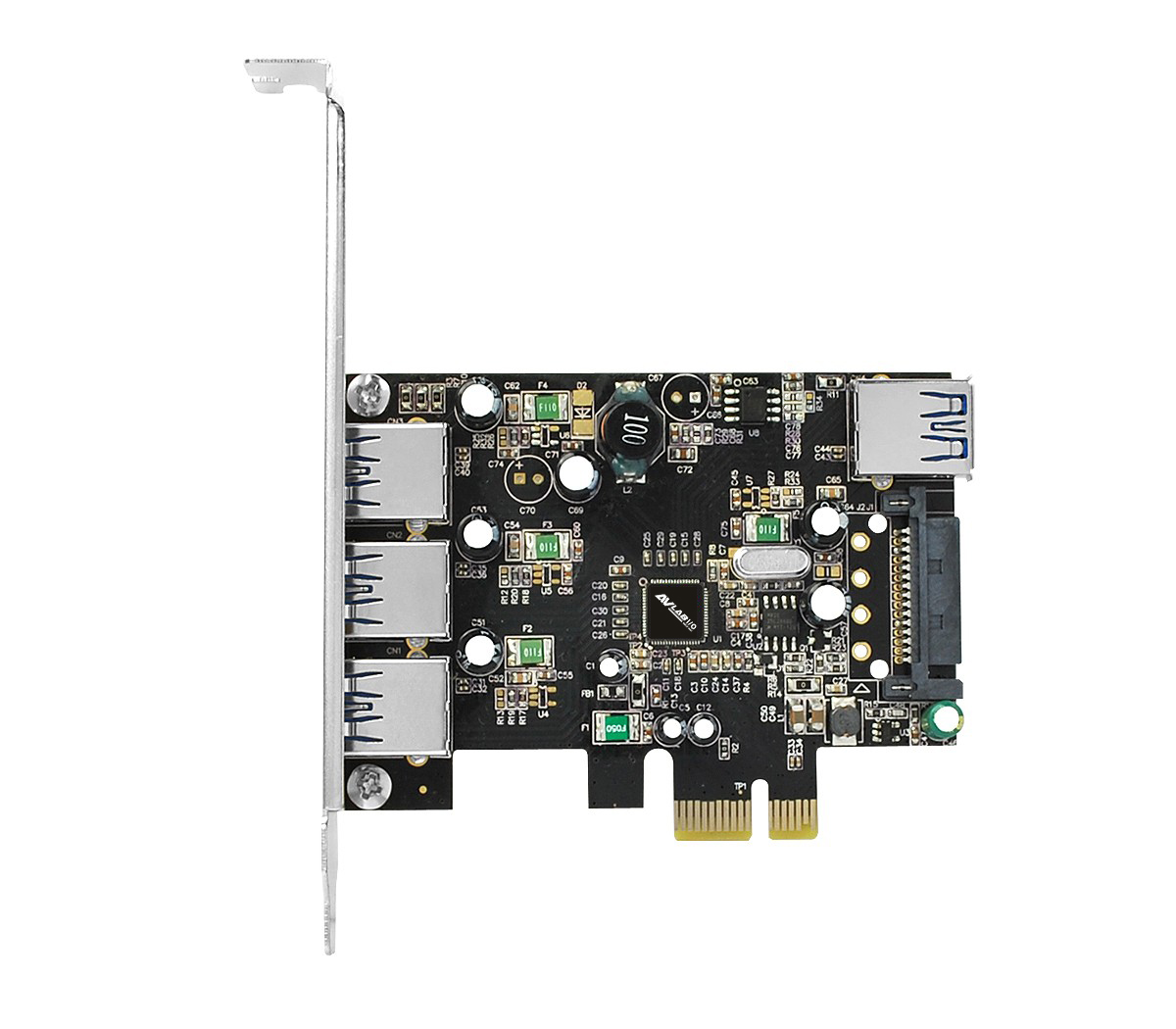

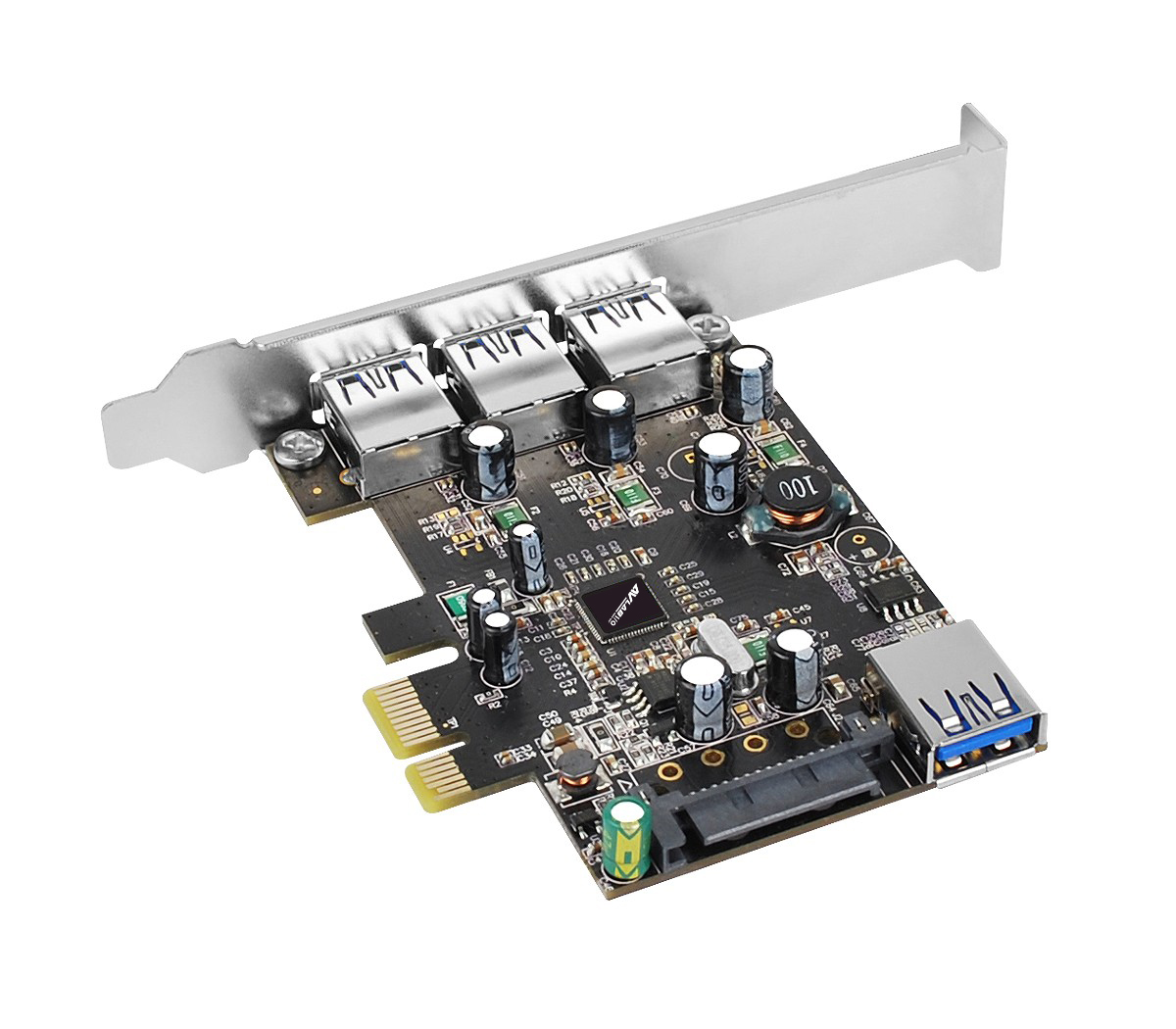

  • AVLAB 4-Port USB 3.0 PCIe i/e with SATA Power in, 3 Ext & 1 Int, Dual Profile Bracket (VL805)

■ Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcam, video surveillance cameras, digital video cameras, multi-channel audio and more
■ Add four (3 external & 1 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC
■ Supports per port over-current protection
■ Supports data rate up to 5Gb/s and backwards compatible with USB 2.0/1.1 devices
■ Dual profile design to work with full height and low profile chassis with included brackets

  • $0 $0

Highlights

Works with high-bandwidth USB 3.0 devices,
such as external hard disks, high resolution webcam, video surveillance cameras, digital video cameras, multi-channel audio and more

Add four (3 external & 1 internal) SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC

Supports per port over-current protection

Supports data rate up to 5Gb/s
and backwards compatible with USB 2.0/1.1 devices

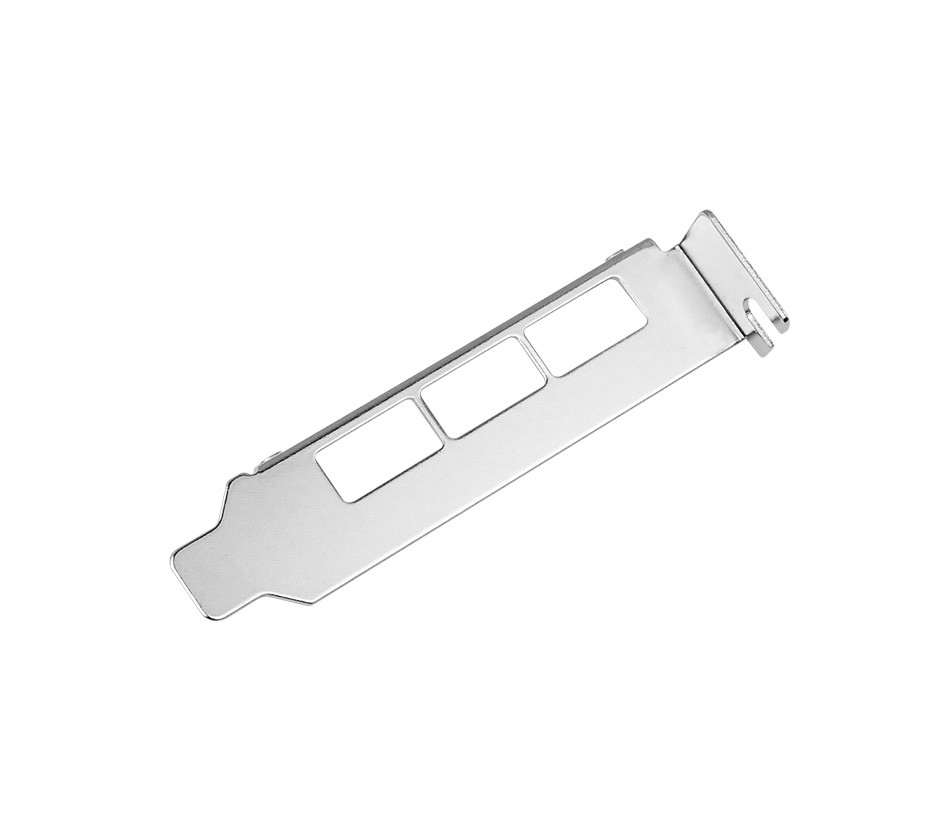

Dual profile design
to work with full height and low profile chassis with included brackets

Specification

Chipset: VL805



Compliant with USB 3.0 specification



Compliant with PCI Express Base Specification, Revision 2.0



Supports ultra-fast data transfer rate up to 5Gb/s and backwards compatible with USB 2.0/1.1 devices



Dual profile design to work with full height and low profile chassis with included brackets



Supports per port over-current protection



Bus: PCI-Express (PCIe)



Output Interface: USB 3.0



Connector:

■ 3 x 9-pin, USB 3.0, Type A, External

■ 1 x 9-pin, USB 3.0, Type A, Internal

■ 1 x 15-pin, SATA power, male, Internal



Product Dimensions: 3.9" (W) x 4.72" (H) x 0.79" (D)



Product weight: 0.12 lbs



Environmental conditions:

■ Operating temperature: 32 to 140 degrees F

■ Operating humidity: 10% to 90% RH (non-condensing)

■ Storage temperature: 14 to 176 degrees F

■ Storage humidity: 10% to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 1 years limited



Country of origin: China

FAQ

  • Q: What is USB Type-C?
  • USB-C is a type of USB connector that is capable of supporting the following:
    ■ Data transfer speeds up to 10Gbps, if you use USB 3.1.
    ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it.
    ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode).

    If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth.

    Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
  • Q: How do I confirm that Windows detects my USB device?
  • To confirm that Windows detects your USB device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.

    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB device would be under Universal Serial Bus controllers.
  • Q: How do I confirm that Windows detects my expansion device?
  • To confirm that Windows detects your expansion card, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB device would be under Universal Serial Bus controllers.
