- AVLAB 3-Port USB 3.0 Type-A/C PCIe with M.2 SSD Adapter, 2230/2242/2260/2280, B Key M.2 SATA SSD
■ Installs into standard height or low profile system chassis with the included bracket ■ Performance enhanced combination: Upgrade system performance and connection instantly with one M.2 slot (B key), one USB 3.0 Type-C and two USB 3.0 Type-A through a PCI Express slot ■ Fully compliant with 2230, 2242, 2260 and 2280 form factor B key M.2 SATA SSDs via multiple mounting holes Note: This adapter is not compatible with M.2 PCIe SSDs ■ Each USB Type-A port delivers up to 900mA and Type-C up to 1.5A power output with Over-Current protection to further protect your connected peripherals ■ Versatile USB Type-C and Type-A connectivity combination, expands system’s connectivity options for maximum productivity ■ Faster speeds: USB ports support UASP (USB Attached SCSI Protocol), which increases transfer speeds, great for backing up data such as HD videos and high-resolution photos
Highlights
Installs into standard height or low profile system chassis with the included bracket
Performance enhanced combination:
Upgrade system performance and connection instantly with one M.2 slot (B key), one USB 3.0 Type-C and two USB 3.0 Type-A through a PCI Express slot

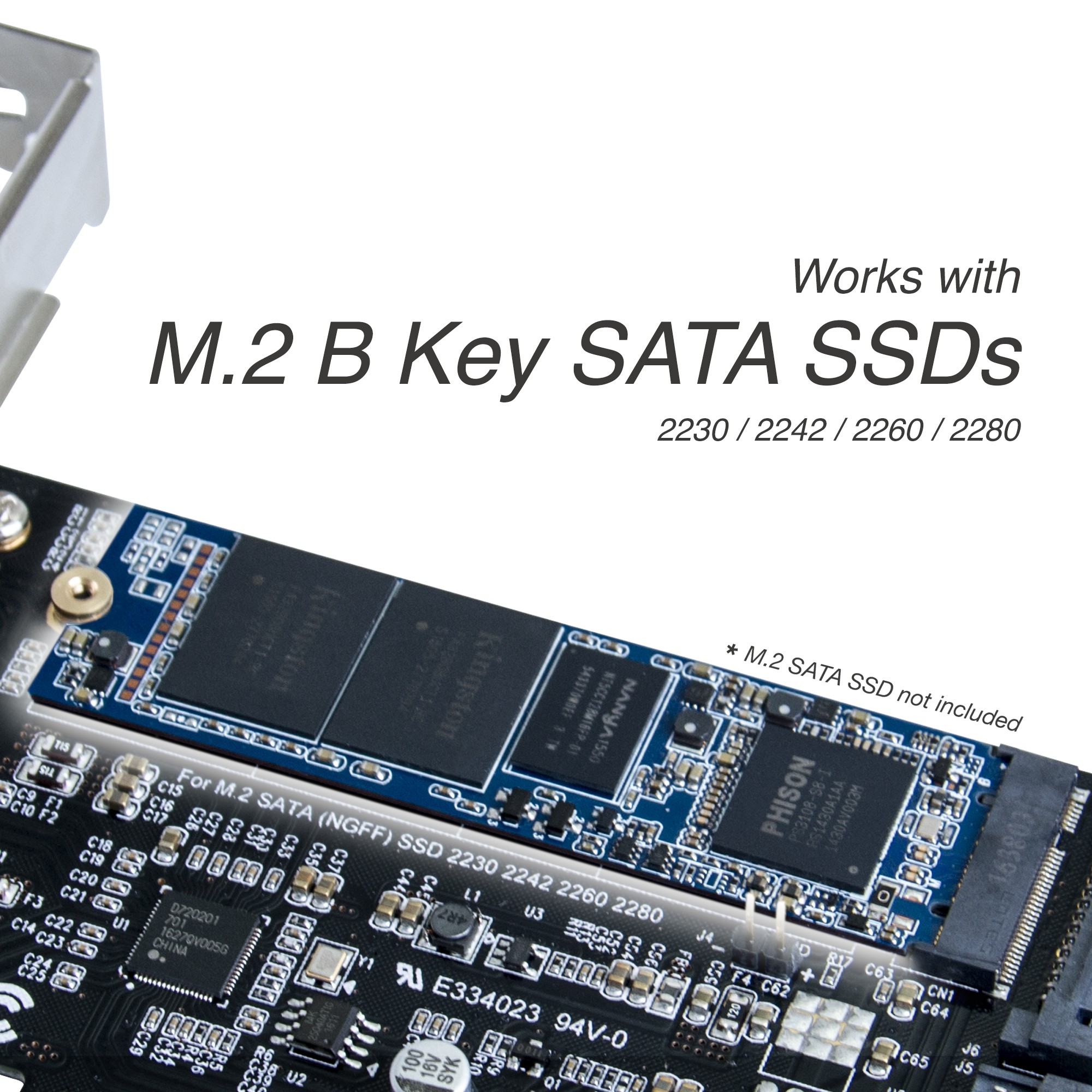

Fully compliant with 2230, 2242, 2260 and 2280 form factor B key M.2 SATA SSDs via multiple mounting holes
Note: This adapter is not compatible with M.2 PCIe SSDs
Each USB Type-A port

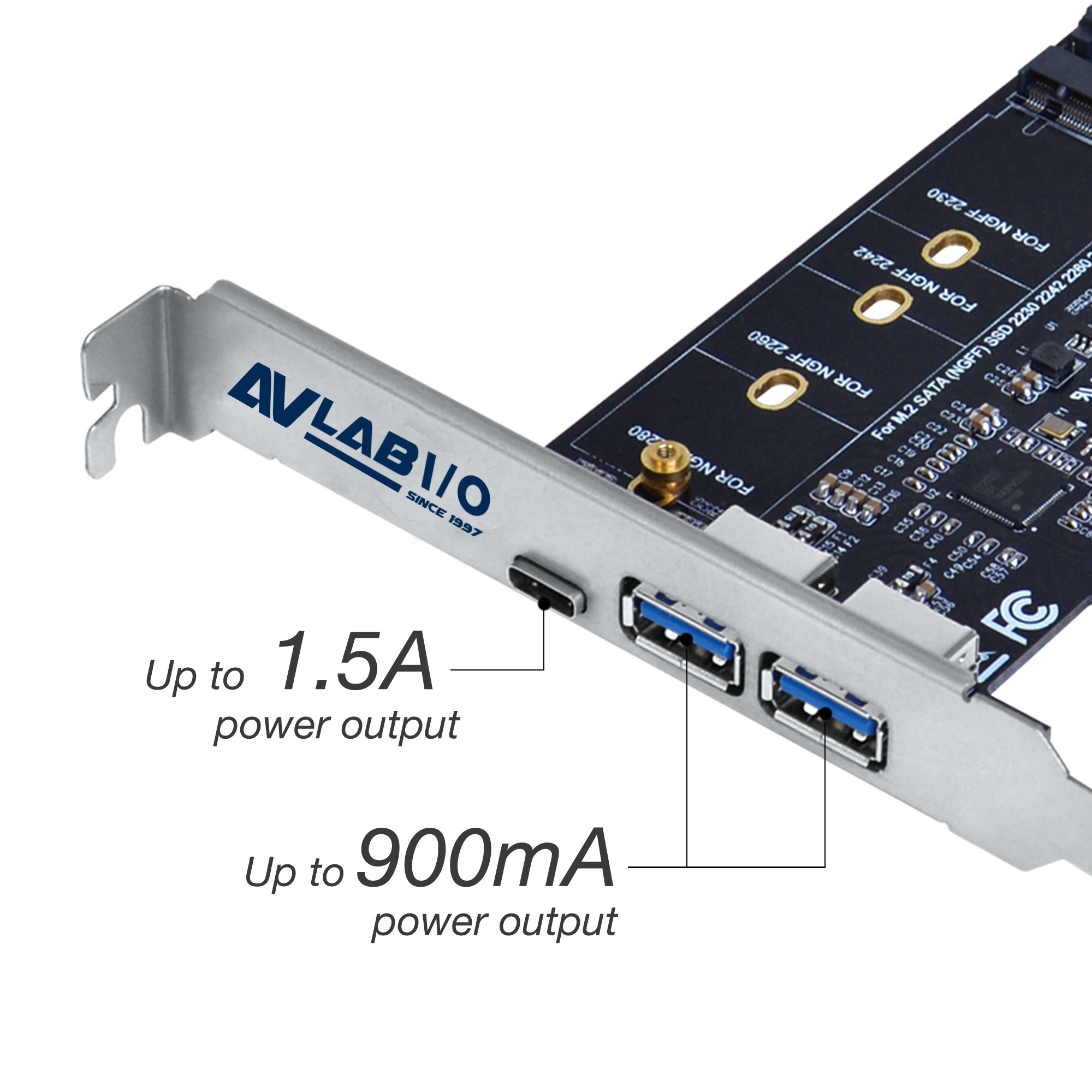

delivers up to 900mA and Type-C up to 1.5A power output with Over-Current protection to further protect your connected peripherals
Versatile USB Type-C and Type-A
connectivity combination, expands system’s connectivity options for maximum productivity
Faster speeds:
USB ports support UASP (USB Attached SCSI Protocol), which increases transfer speeds, great for backing up data such as HD videos and high-resolution photos
Specification
Chipset: Renesas uPD720201
Bus connector: PCI Express x1
Compatible with PCI Express 2.0
Data transfer rate: Up to 5Gbps
USB power output:
■ Type-C: Up to 1.5A
■ Type-A: Up to 900mA
Drive type: B key M.2 SATA SSD (not included)
Not compatible with M.2 PCIe SSDs
Compatible SSD drive form factor: 2230 / 2242 / 2260 / 2280 (30 / 42 / 60 / 80mm)
Connectors:
External:
■ 2 x USB 3.0 Type A, Female, Data
■ 1 x USB 3.0 Type-C, Female, Data
Internal:
■ 1 x M.2 slot (B key)

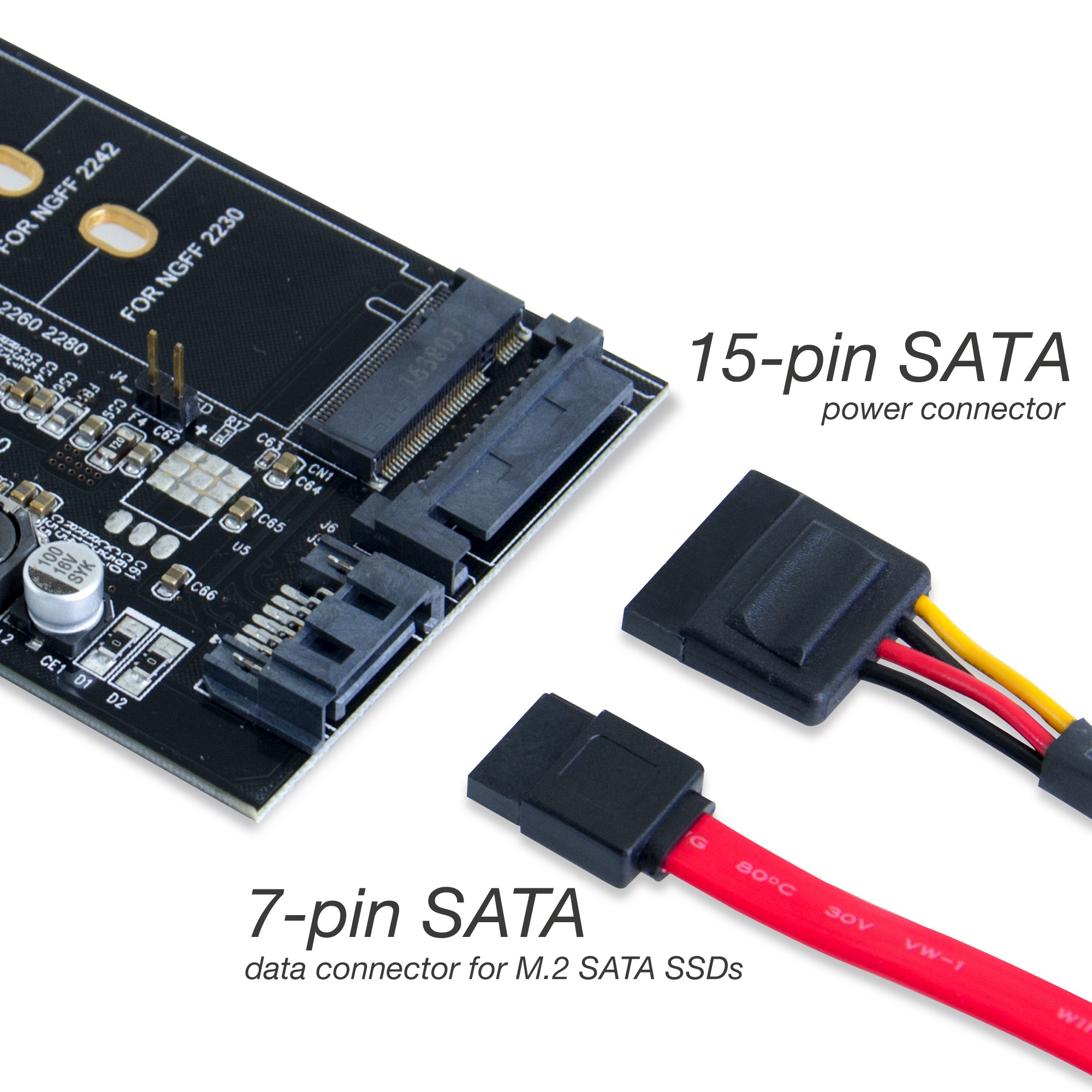

■ 1 x 7-pin SATA, data connector
■ 1 x 15-pin SATA, power connector
Product:
■ Dimensions: 4.72" (W) x 5.00" (H) x 0.79" (D)
■ Weight: 0.11 lbs
■ Color: Black
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, RoHS
Warranty: 1 year limited
Country of origin: Taiwan
