• AVLAB-US12-1

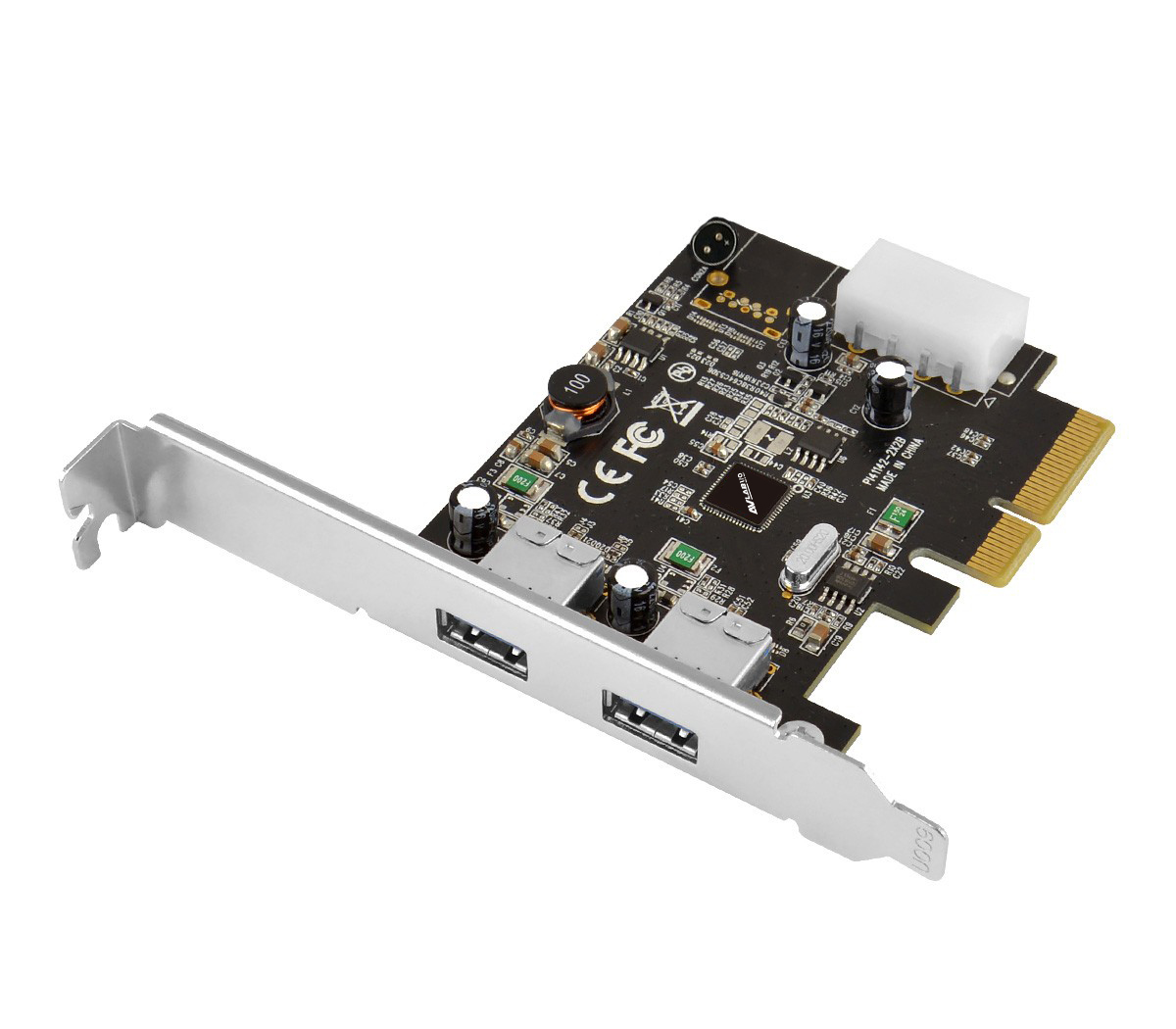

  • AVLAB Dual Port USB 3.1 Gen 2 PCIe Host Adapter Card, 2 USB type-A, 10Gbps, 4-Pin Power in, Dual Profile Barcket

■ Complies with PCI-Express 3.0 standard

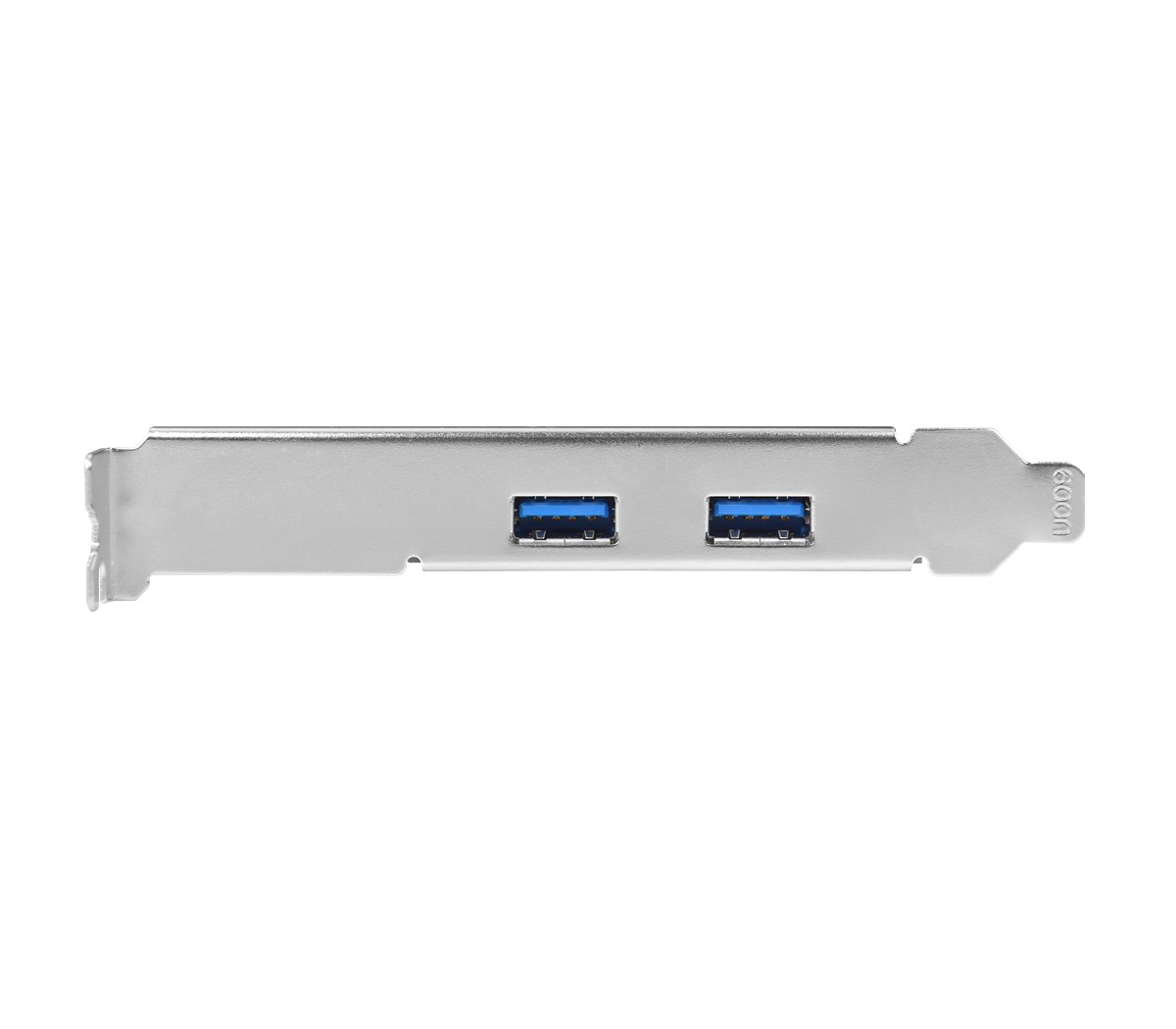

■ Dual-profile bracket design (full and low profile) fits different system form factor with included low profile bracket
■ The latest USB generation 3.1 supports data transfer rate up to 10Gb/s (twice as fast as USB 3.0)
■ Each USB port provides up to 900mA power output to better support the power consumption of connected device
■ Each USB port features independent over-current protection to further protect your device ■ Supports plug-n-play, hot-swappable, and backwards compatible with USB 1.1 / 2.0 / 3.0

  • $0 $0

Highlights

Complies with PCI-Express 3.0 standard

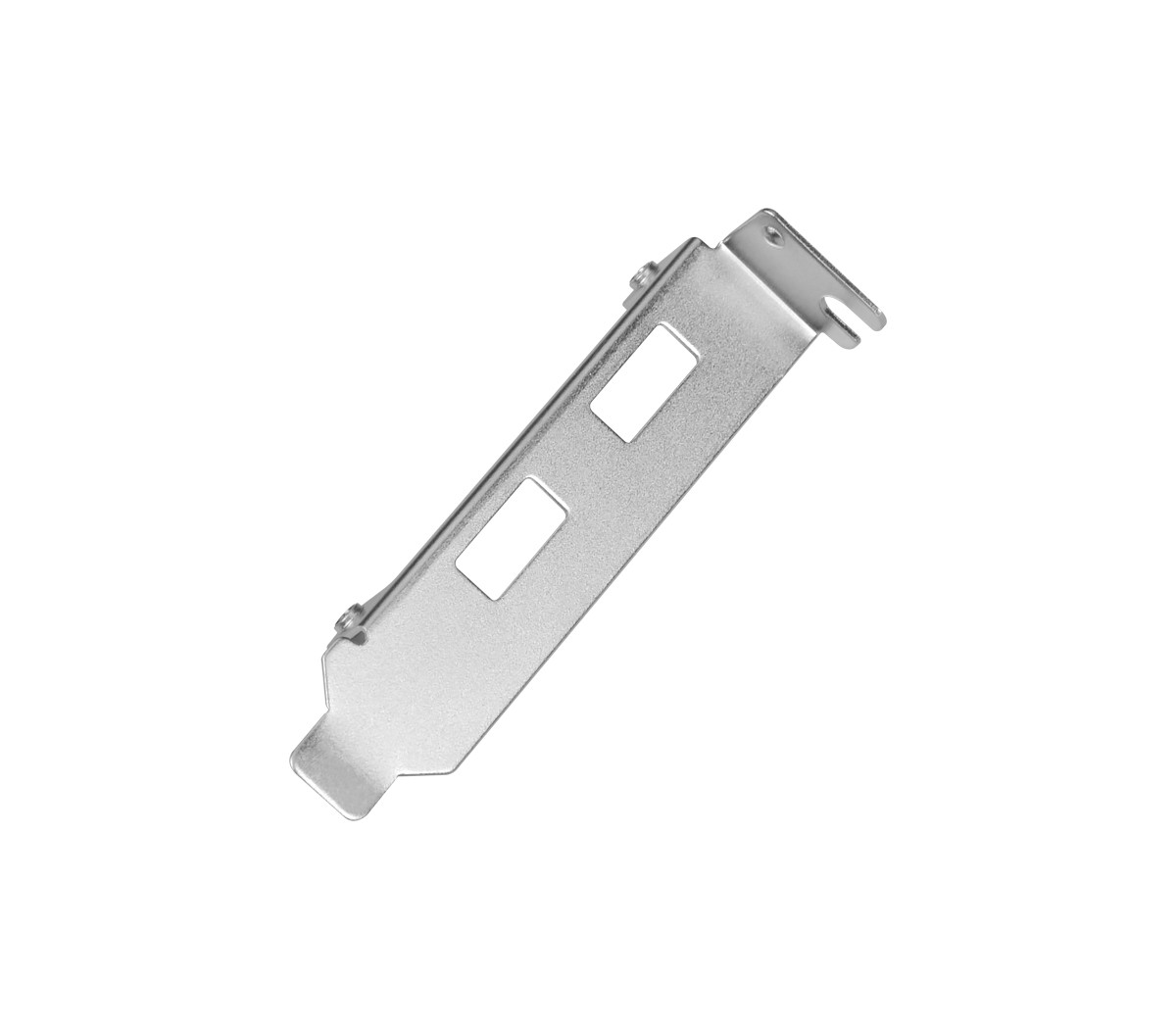

Dual-profile bracket design (full and low profile)
fits different system form factor with included low profile bracket

The latest USB generation 3.1
supports data transfer rate up to 10Gb/s (twice as fast as USB 3.0)

Each USB port
provides up to 900mA power output to better support the power consumption of connected device

Each USB port
features independent over-current protection to further protect your device

Supports plug-n-play,
hot-swappable, and backwards compatible with USB 1.1 / 2.0 / 3.0


Specification

Chipset: Asmedia ASM1142



Compliant with PCI Express 3.0 specification



Built-in 4-pin power connector to connect with system power supply as needed to ensure sufficient power supplied through USB port


Form factor: Dual Profile PCI Express


Bus connector: Four lanes (4x) PCI Express


Data transfer rate: 10Gbps / 5Gbps / 480Mbps / 12Mbps / 1.5Mbps


Power output: Up to 900mA each USB port



Power consumption: 3W



Product:

■ Dimensions: 4.72" (W) x 3.46" (H) x 0.79" (D)

■ Weight: 0.11 lbs

■ Color: Black



Connector:



■ 1 x 4-pin, Power connector, Input

■ 2 x 9-pin, USB 3.1, Type-A, Female, Output



Environmental conditions:

■ Operating temperature: 32 to 140 degrees F

■ Storage temperature: 14 to 158 degrees F

■ Relative humidity: 5 to 90% RH (no condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 1 years limited



Country of origin: China

FAQ

  • Q: What is USB Type-C?
  • USB-C is a type of USB connector that is capable of supporting the following:
    ■ Data transfer speeds up to 10Gbps, if you use USB 3.1.
    ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it.
    ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode).

    If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth.

    Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
  • Q: How do I confirm that Windows detects my USB device?
  • To confirm that Windows detects your USB device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.

    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB device would be under Universal Serial Bus controllers.
  • Q: How do I confirm that Windows detects my expansion device?
  • To confirm that Windows detects your expansion card, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB device would be under Universal Serial Bus controllers.
