- AVLAB-US16-1
- AVLAB 3-Port SuperSpeed USB 3.0 Hub with LAN Adapter - Type-C Ready, Gigabit, USB-C to USB-A converter
■ Simply adds three USB 3.0 ports and one Gigabit Ethernet port (RJ45) to desktop, laptop, or tablet computer via single USB port ■ Tuck-away USB cable design reduces cable clutter and tangles, compact size provides great portability and easy storage ■ Compatible with Windows and Mac operating systems ■ SuperSpeed USB 3.0 interface supports data transfer rates up to 5Gbps and backward compatible with USB 2.0/1.1 devices ■ Includes Type-C (Male) to Type-A (Female) adapter to use with desktop or laptop with USB Type-C port ■ RJ-45 connector provides reliable wired network connection with speeds up to 1000 Mbps, supports half and full-duplex operation and Wake-on-LAN ■ Powered by USB port, no external power adapter required
Highlights

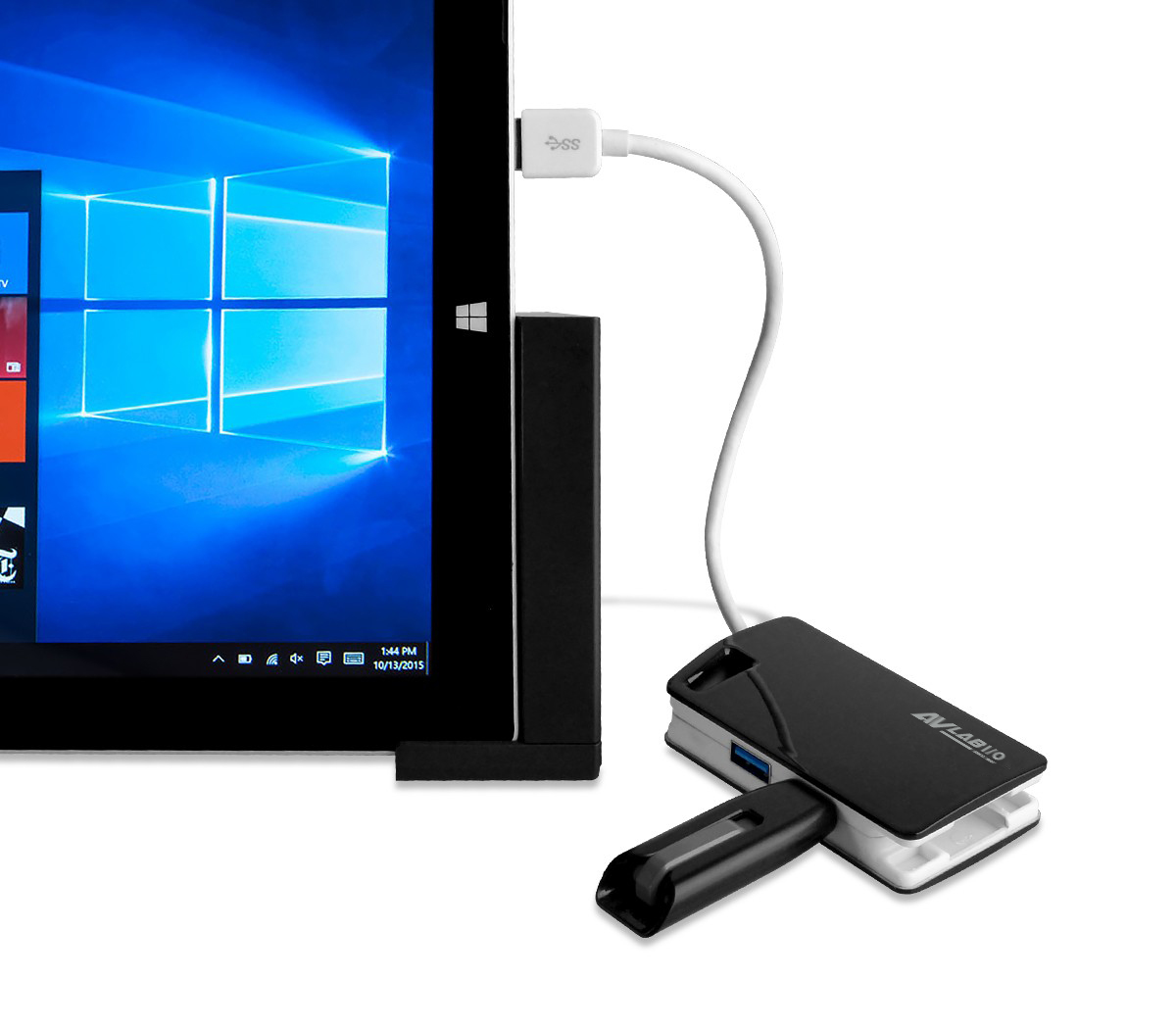

Simply adds three USB 3.0 ports
and one Gigabit Ethernet port (RJ45) to desktop, laptop, or tablet computer via single USB port

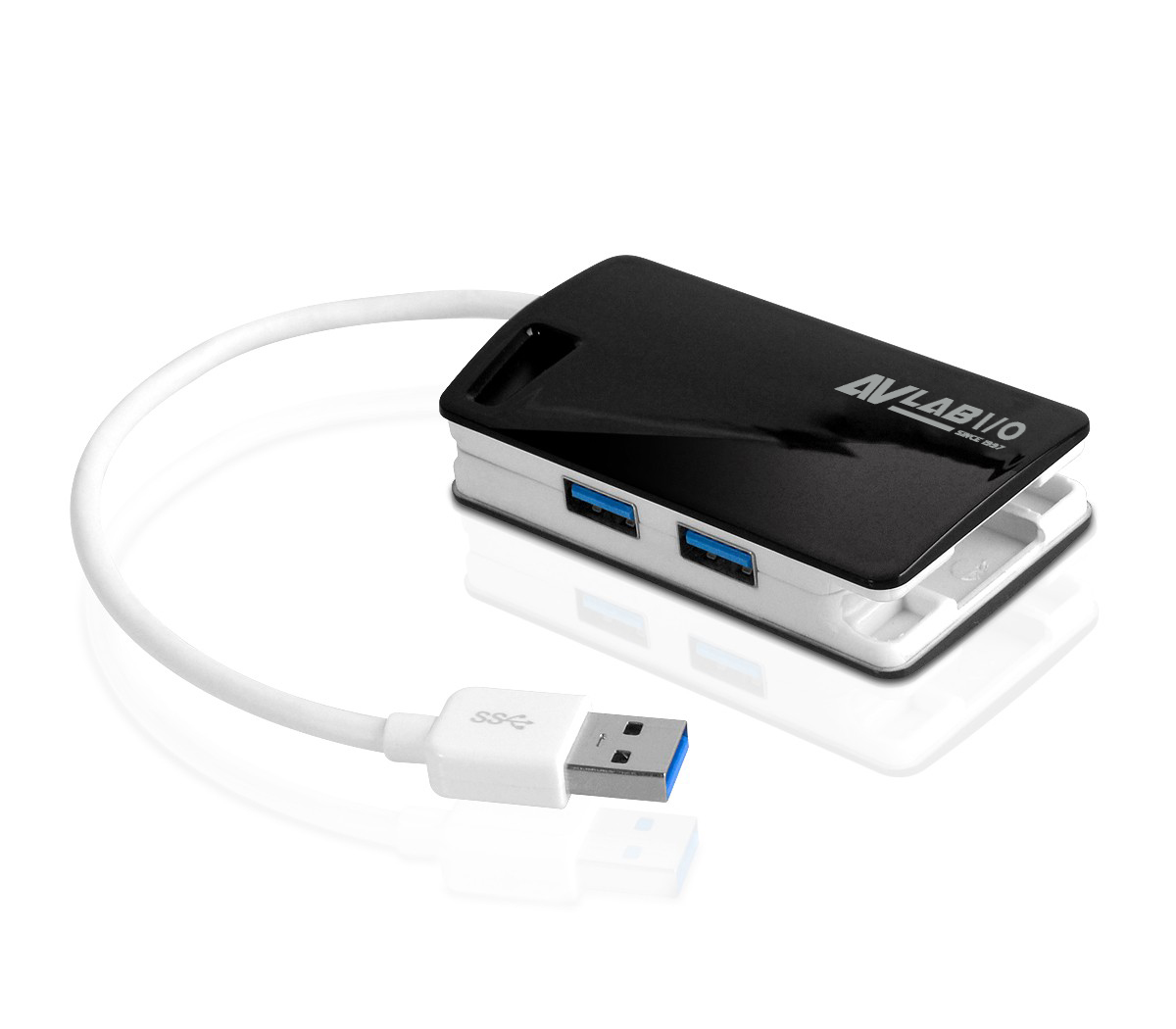

Tuck-away USB cable design
reduces cable clutter and tangles, compact size provides great portability and easy storage
Compatible with Windows and Mac operating systems
SuperSpeed USB 3.0 interface
supports data transfer rates up to 5Gbps and backward compatible with USB 2.0/1.1 devices

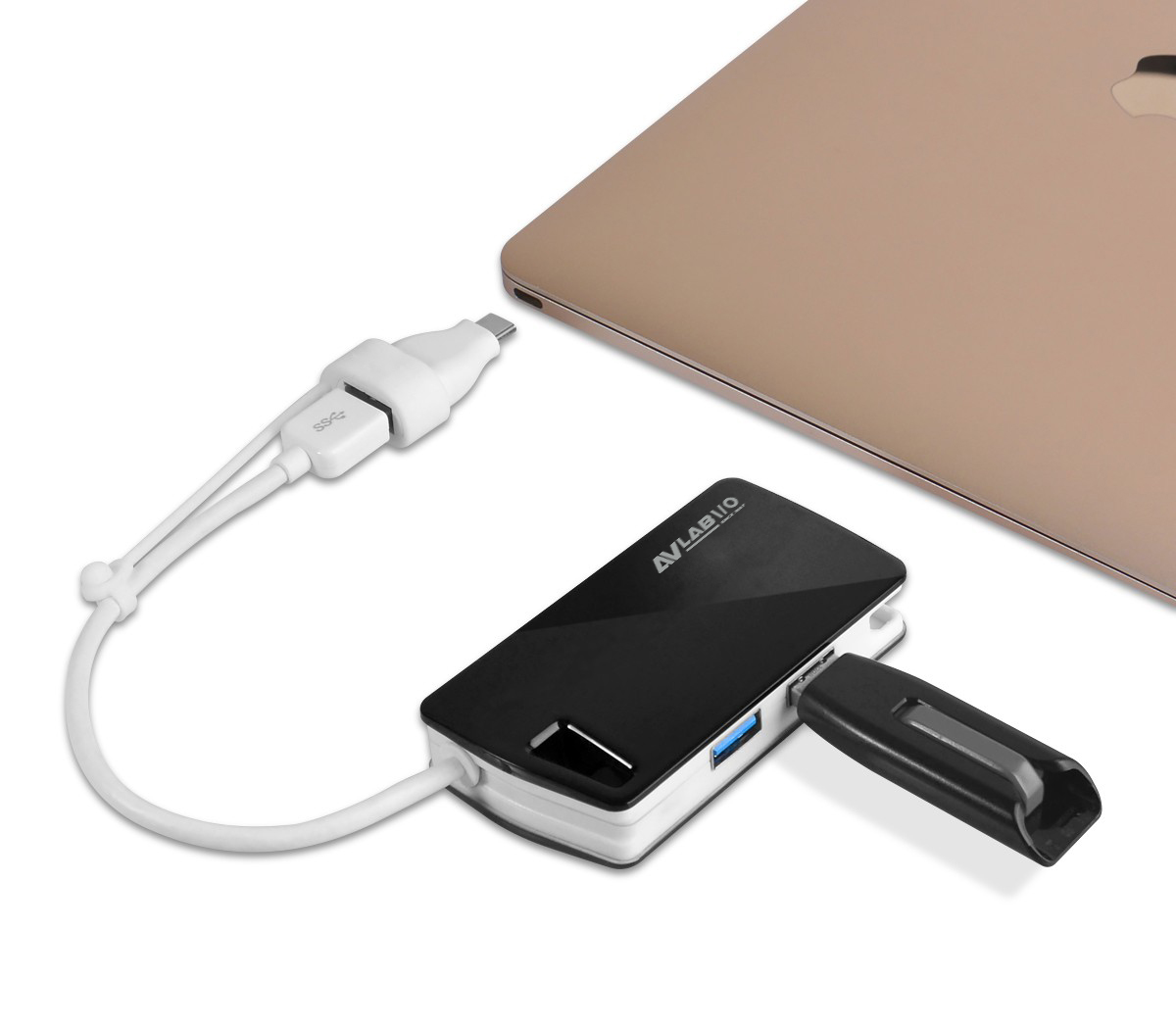

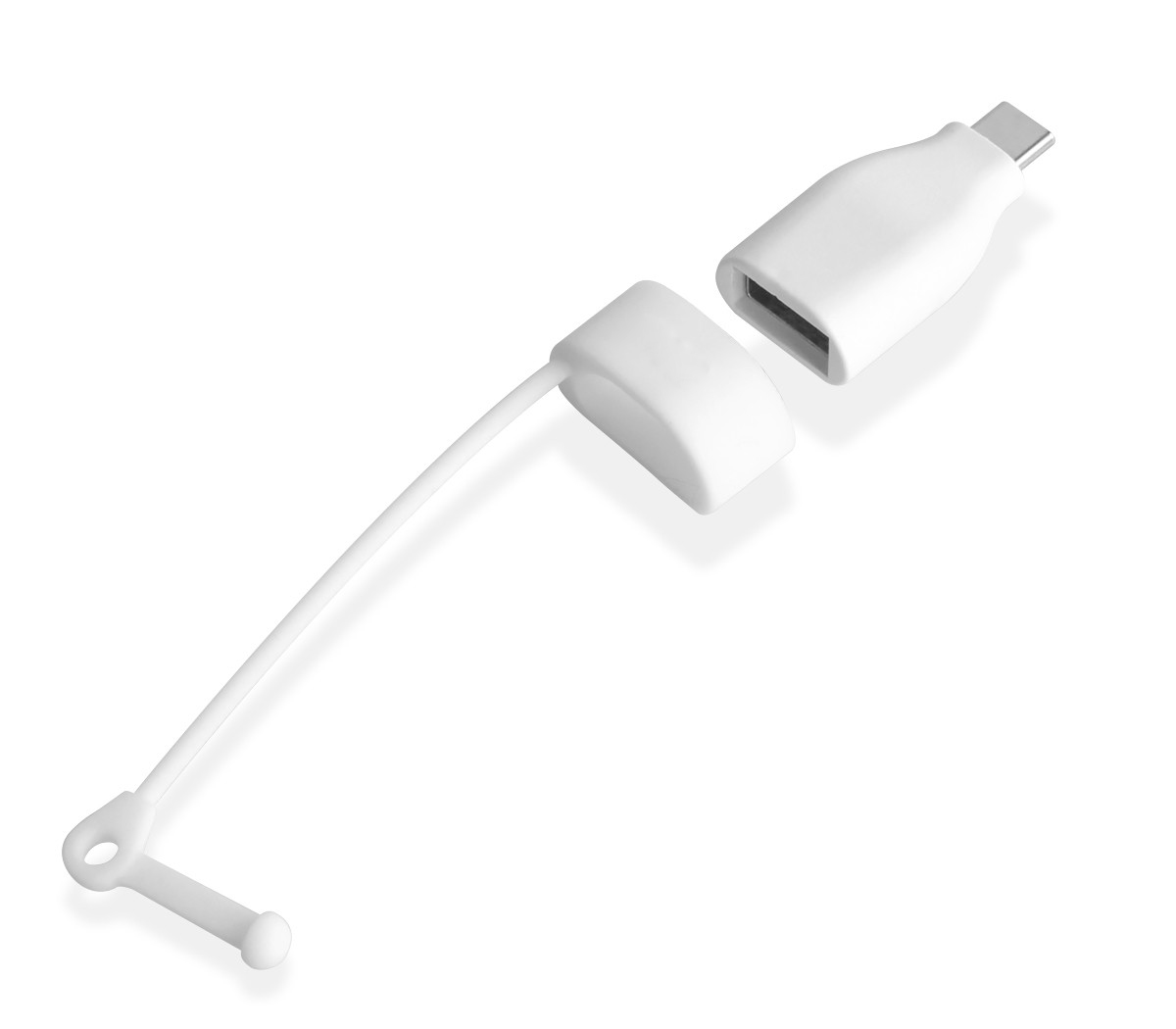

Includes Type-C (Male) to Type-A (Female) adapter
to use with desktop or laptop with USB Type-C port
RJ-45 connector provides reliable wired network connection
with speeds up to 1000 Mbps, supports half and full-duplex operation and Wake-on-LAN
Powered by USB port, no external power adapter required
Specification
Chipset:
■ USB 3.0: VIA VL812 B2
■ Gigabit Ethernet: Realtek RTL8153
Connectors:
■ 1x USB 3.0 Type-A, Male
■ 3x USB 3.0 Type-A, Female
■ 1x RJ45, Female, Ethernet
Built-in USB cable length: 0.5ft (17cm)
Power: USB Bus Powered (5V DC / 500mA)
Product details:
■ Weight: 0.12 lbs
■ Dimension: 3.27" (W) x 0.71" (H) x 1.81" (D)
Color: Black and White
Environmental conditions:
■ Operating temperature: 32 to 104 F
■ Storage temperature: -4 to 140 F
■ Relative humidity: 5% to 85% RH (non-condensing)
Certifications/Standards: FCC, RoHS
Warranty: 1 year limited
Country of origin: China
FAQ
- Q: What is USB Type-C?
- USB-C is a type of USB connector that is capable of supporting the following: ■ Data transfer speeds up to 10Gbps, if you use USB 3.1. ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it. ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode). If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth. Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
- Q: How do I confirm that Windows detects my USB device?
- To confirm that Windows detects your USB device, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
- Q: How do I confirm that Windows detects my expansion device?
- To confirm that Windows detects your expansion card, complete the following: Press the Windows key+R, type devmgmt.msc, and press Enter. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
