- AcePro-CE03-1
- AcePro HDMI to DP 1.2 Converter Box - 4Kx2K 60Hz (4:4:4 8-bit), 7.1 Ch Audio, EDID Management, FW update, Stereo & S/PDIF Coaxial Audio
■ High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion ■ Supports UHD 3840x2160@60Hz (4:4:4 8bit), 3840x2160@30Hz, 1080p@60Hz resolution via EDID management DIP switches, allowing for expanded compatibility with different monitors. Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4 ■ Compliant with HDMI 2.0a, DisplayPort 1.2a, and HDCP 2.2/1.4. Supports 8-bit, 10-bit, 12-bit Deep Color. Note: Nvidia G-Sync monitors can only support up to 1080p ■ Allows mirror, extended or primary display modes working in conjunction with your system's graphics adapter, allowing flexible support for presentation, gaming, and multimedia applications ■ Separate Coaxial audio jack and 3.5mm Stereo audio jack, extracts 7.1Ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device. Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time ■ Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use ■ Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility ■ Plug & Play Installation - No driver or software installation required NOTES: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion Not fully compatible with *Nvidia G-Sync” monitors due to mismatched timings. Only supports up to 1080p for these monitors The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4 The DisplayPort output does not contain audio stream
Highlights

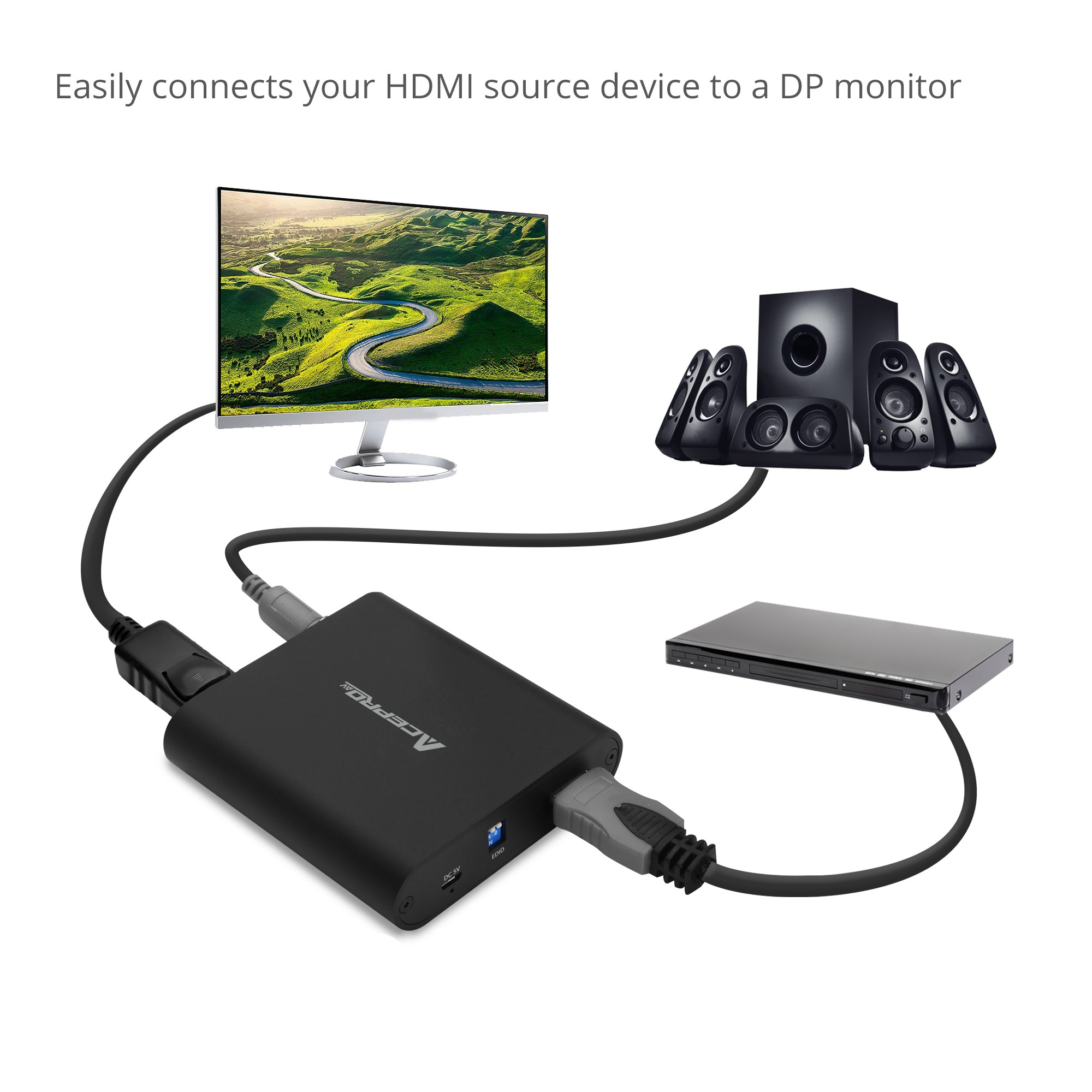

High performance HDMI to DisplayPort adapter
allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion

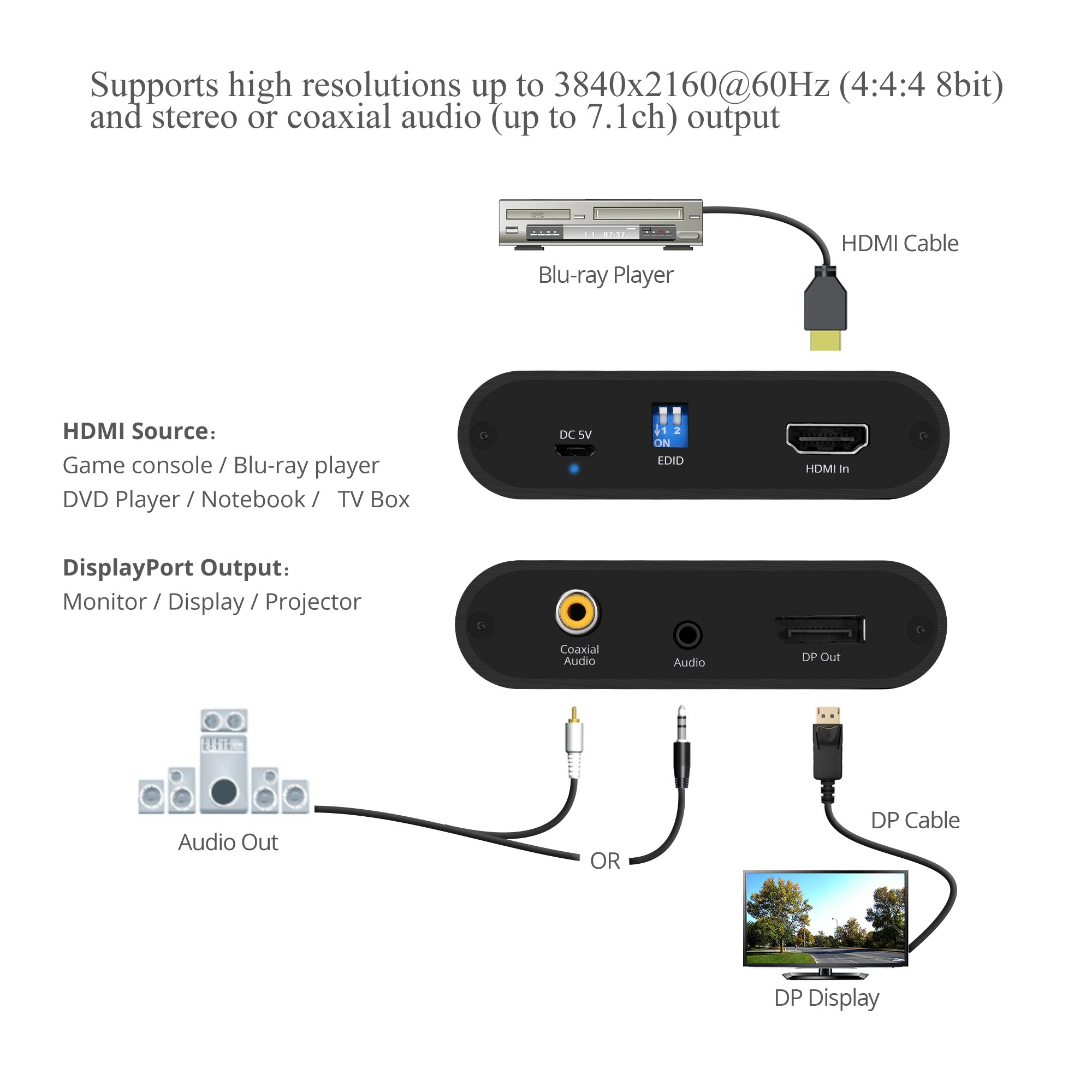

Supports UHD 3840x2160@60Hz (4:4:4 8bit), 3840x2160@30Hz, 1080p@60Hz resolution via EDID management DIP switches
allowing for expanded compatibility with different monitors. Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
Compliant with HDMI 2.0a, DisplayPort 1.2a, and HDCP 2.2/1.4
Supports 8-bit, 10-bit, 12-bit Deep Color. Note: Nvidia G-Sync monitors can only support up to 1080p
Allows mirror, extended or primary display modes working in conjunction with your system's graphics adapter
allowing flexible support for presentation, gaming, and multimedia applications
Separate Coaxial audio jack and 3.5mm Stereo audio jack
extracts 7.1Ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device.
Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time

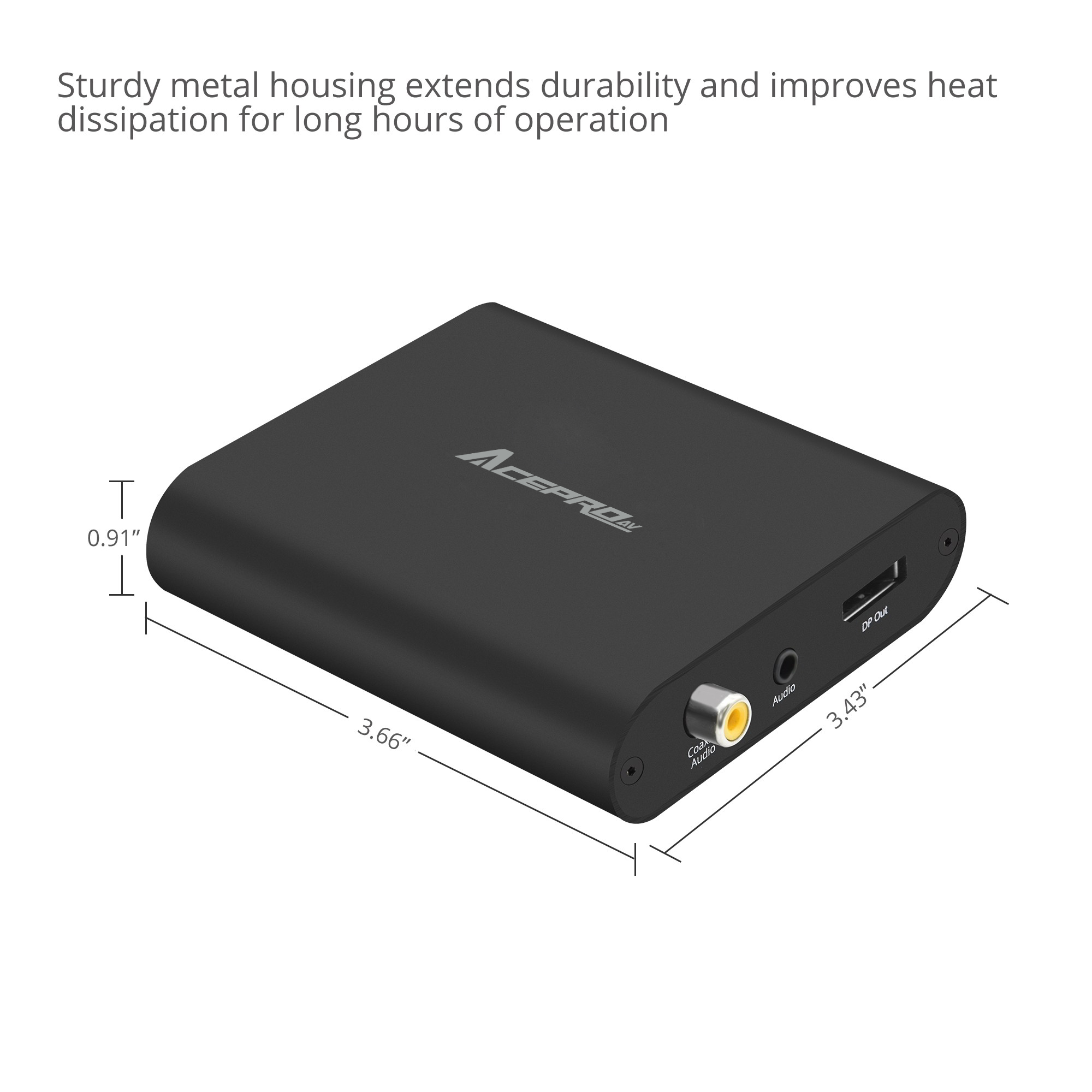

Sturdy metal housing
adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
Dual mode Micro USB port
to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
Plug & Play Installation
No driver or software installation required
NOTES:
This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion
Not fully compatible with *Nvidia G-Sync” monitors due to mismatched timings. Only supports up to 1080p for these monitors
The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
The DisplayPort output does not contain audio stream
Requirements
HDMI source device such as computers, game consoles, Blu-ray/DVDplayers, and media players
DisplayPort displays, monitors, and HD TVs
Package Contents
HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz
Power Adapter
Mounting Kit
User Reference Guide
Specification
Compliant with HDMI 2.0a and DisplayPort 1.2a
Compliant with HDCP 1.4 and 2.2
Supports xvYCC, x.v.Color and Deep Color
Supports up to 3840x2160@60Hz 4:4:4 8bit
Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
Supports 8-bit, 10-bit, and 12-bit Deep Color
Supports audio extraction via 3.5mm Stereo jack and RCA Coaxial jack
Video bandwidth: 18Gbps (single-link 600MHz)
Resolution support 480p/720p/1080i/1080p/2160p
Maximum Resolution: 3840x2160@60Hz (4:4:4 8bit)
Supported HDMI Audio Formats: PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
Power indicator LED
ESD protection: ±15kV Air / ±8kV Contact
Aluminum housing with wall mount design
Product:
■ Dimensions: 3.66" (L) x 3.43" (H) x 0.91" (W)
■ Weight: 0.41 lbs
■ Color: Black
■ Housing material: Aluminum
HDMI cable length:
■ 4K@60Hz: Up to 10m (5m/In; 5m/Out)
■ 1080p@60Hz & 4K@30Hz: Up to 15m (5m/In; 10m/Out)

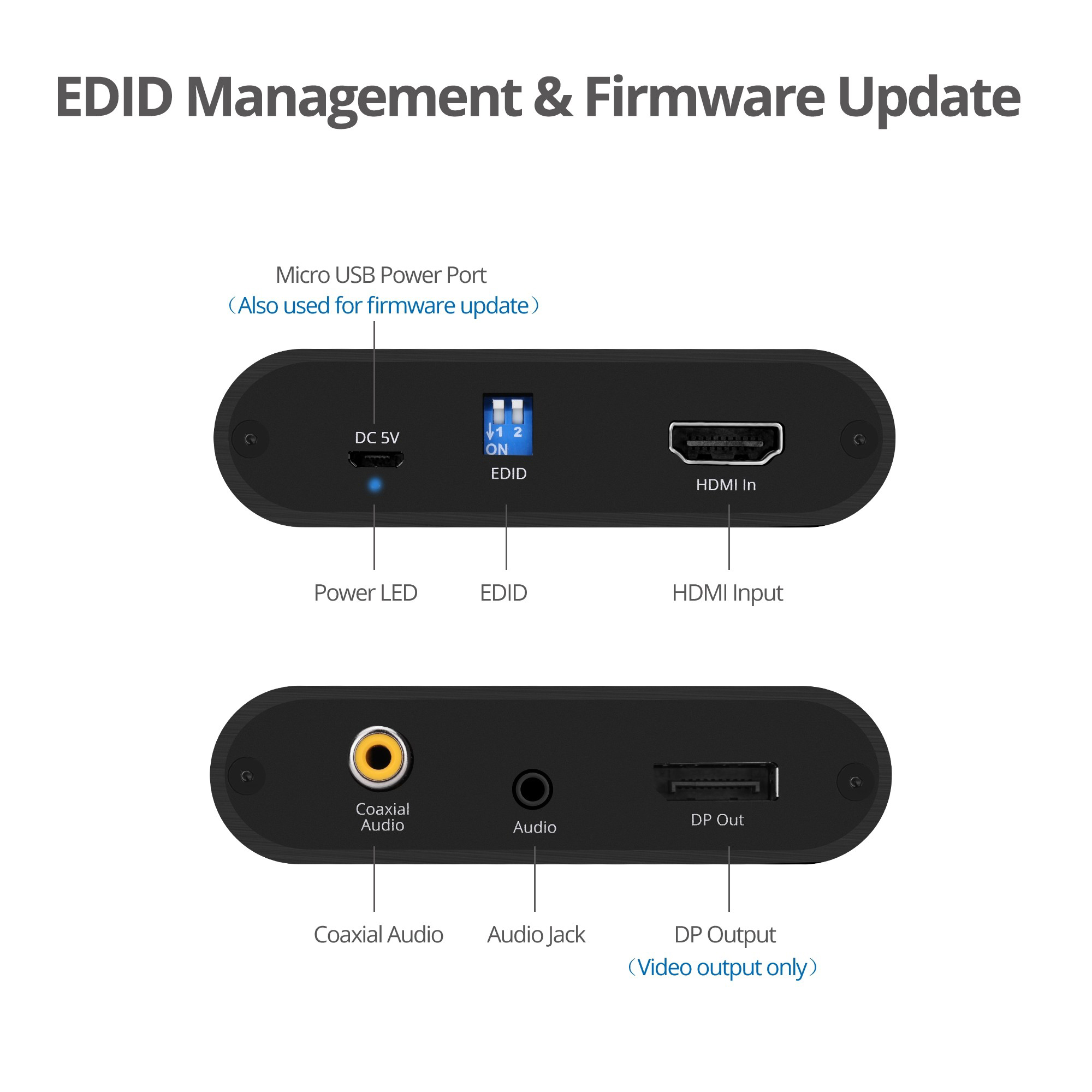

Connector:
■ 1x 19-Pin, HDMI, Type A, Female, Input
■ 1x 20-Pin, DisplayPort, Female, Output
■ 1x Coaxial audio, Female, Digital audio, Output
■ 1x 3.5mm audio jack, Female, Analog audio,Output
■ 1x 5-Pin, Micro USB, Female, Power Input/Firmware update
EDID management:
■ 1x 2-Pin, DIP Switch
■ 1080p@60Hz
■ 3840x2160@60Hz
■ 3840x2160@30Hz
■ 4096x2160@60Hz
Power Adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: 5VDC/2A
■ UL Listed: E135856/Level:VI
Environmental Conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of Origin: Taiwan
FAQ
- What is “HDCP”?
- HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented. Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible. Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
- What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
- HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second. 4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
- What is “EDID”?
- Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number. The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
