- AcePro-CE17-1

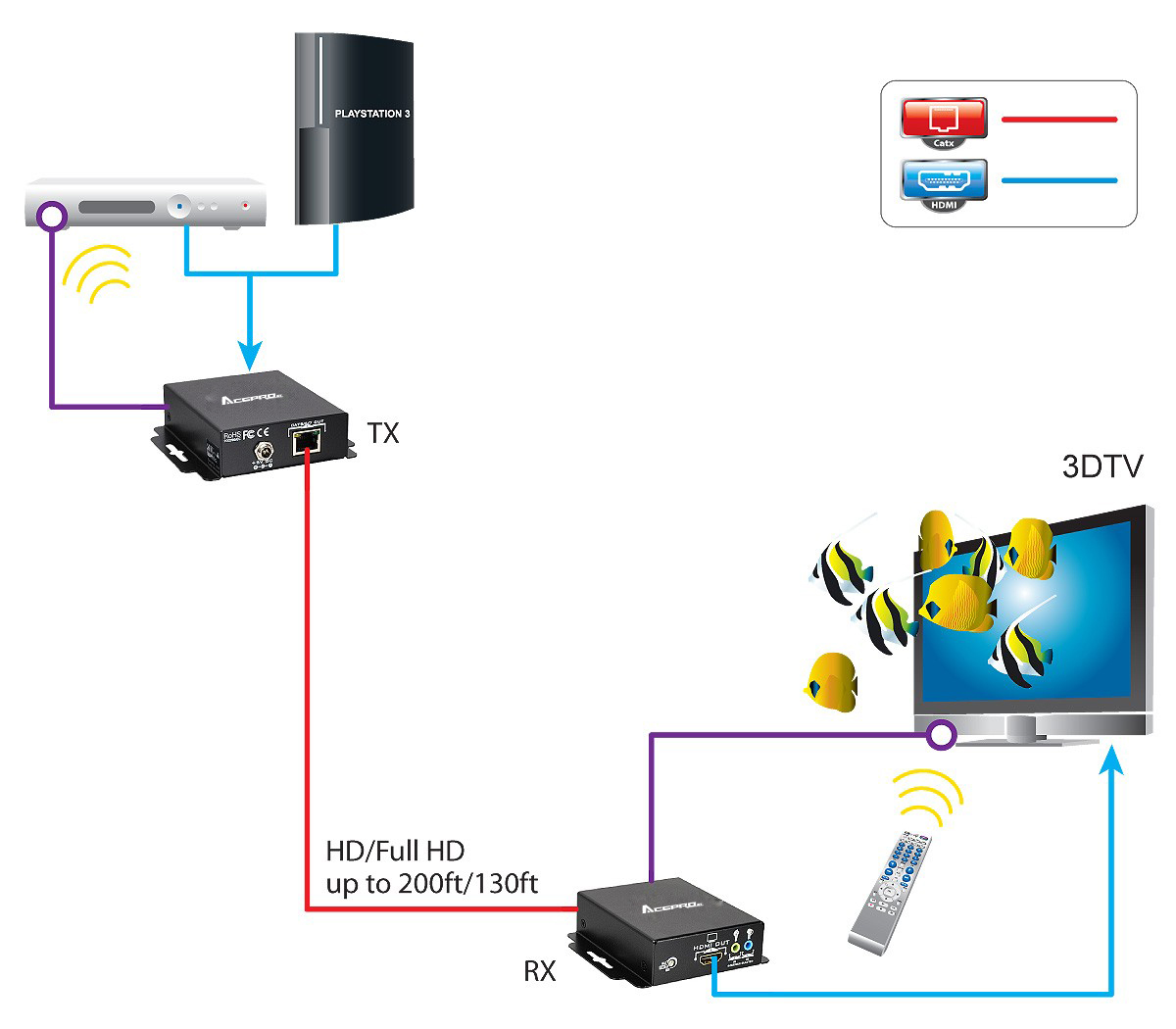

- AcePro HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support, EQ & EDID management, 60m, wall mountable
■ Utilizing the HDBaseT technology platform to send dynamic HDMI and 3D source signal to display unit at remote location via a single Cat5/6 cable ■ Provides remote controllability to the display unit via built-in full duplex bi-directional IR communication channel ■ Transmits full scale 1080p HD with 36-bit color depth signal up to 65ft or 1080p @ 24-bit signal to 130ft and extends further with 720p/1080i signal to the maximum distance of 200ft via CAT6 cable ■ Supports DTS-HD and Dolby True HD high bit rate audio formats and delivers uncompressed 7.1-channel or stereo digital audio to remote display unit ■ 8-level equalization control provided to adjust for possible image skew or distortion ■ Offers full 3D support and EDID learning feature
Highlights
Utilizing the HDBaseT technology platform
to send dynamic HDMI and 3D source signal to display unit at remote location via a single Cat5/6 cable
Provides remote controllability
to the display unit via built-in full duplex bi-directional IR communication channel
Transmits full scale 1080p HD
with 36-bit color depth signal up to 65ft or 1080p @ 24-bit signal to 130ft and extends further with 720p/1080i signal to the maximum distance of 200ft via CAT6 cable
Supports DTS-HD and Dolby True HD high bit rate audio formats
and delivers uncompressed 7.1-channel or stereo digital audio to remote display unit
8-level equalization control
provided to adjust for possible image skew or distortion
Offers full 3D support and EDID learning feature
Package Contents

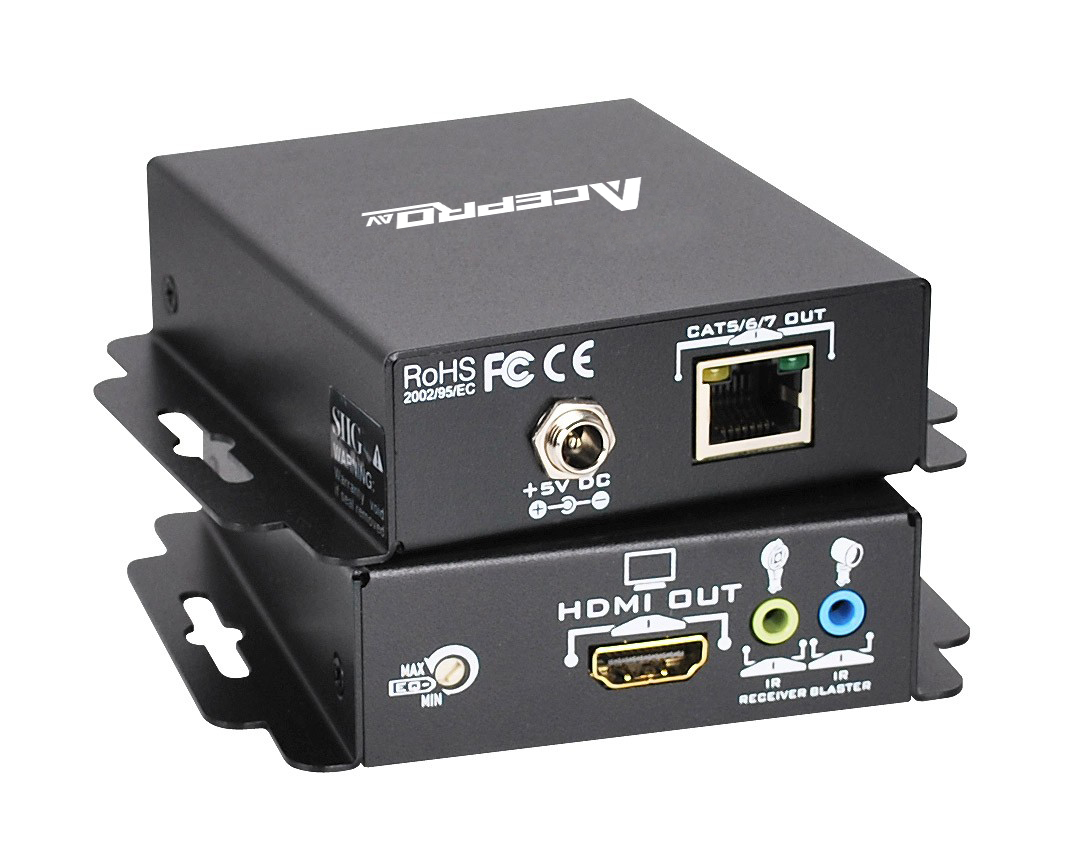

HDMI Extender over Single CAT5/6 with 3DTV Support (TX & RX units)
Power adapter
2x IR cable modules (IR blaster & IR receiver)
Installation kit
Installation guide
Specification
HDMI 1.4a and HDCP 1.1 compliant
8-level equalization control to adjust cable skew
Supports uncompressed 7.1-channel or stereo digital audio
Video bandwidth: Single-link 225MHz (6.75Gb/s)
Input TMDS signal: 1.2V (peak-to-peak)
Input DDC signal: 5V (peak-to-peak, TTL)
Supports full frequency IR signal from 20KHz to 60KHz
Metal housing with wall mount design
Power consumption: 3 Watts
Transmitting unit (TX):
■ Dimensions: 3.75" (W) x 4.15" (H) x 1.10" (D)
■ Weight: 0.55 lbs
Input:
■ 1x HDMI (Type A, 19-pin female)
■ 1x 3.5mm jack
Output:
■ 1x RJ45 (WE/SS 8P8C with 2 LED indicators)
■ 1x 3.5mm jack
Receiving unit (RX):
■ Dimensions: 3.75" (W) x 4.15" (H) x 1.10" (D)
■ Weight: 0.55 lbs
Input:
■ 1x RJ45 (WE/SS 8P8C with 2 LED indicators)
■ 1x 3.5mm jack
Output:
■ 1x HDMI (Type A, 19-pin female)
■ 1x 3.5mm jack
Transmission:
■ 720p/1080i (HD @ 24-bit): up to 200ft (CAT6)
■ 1080p (full HD @ 24-bit): up to 130ft (CAT6)
■ 1080p (full HD @ 36-bit): up to 65ft (CAT6)
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F (0 to 40 degrees C)
■ Storage temperature: -4 to 140 degrees F (-20 to 60 degrees C)
■ Relative humidity: 20% to 90% RH (non-condensing)
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: 5V DC, 2A
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: Taiwan
Download
FAQ
- What is “HDCP”?
- HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented. Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible. Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
- What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
- HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second. 4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
- What is “EDID”?
- Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number. The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
