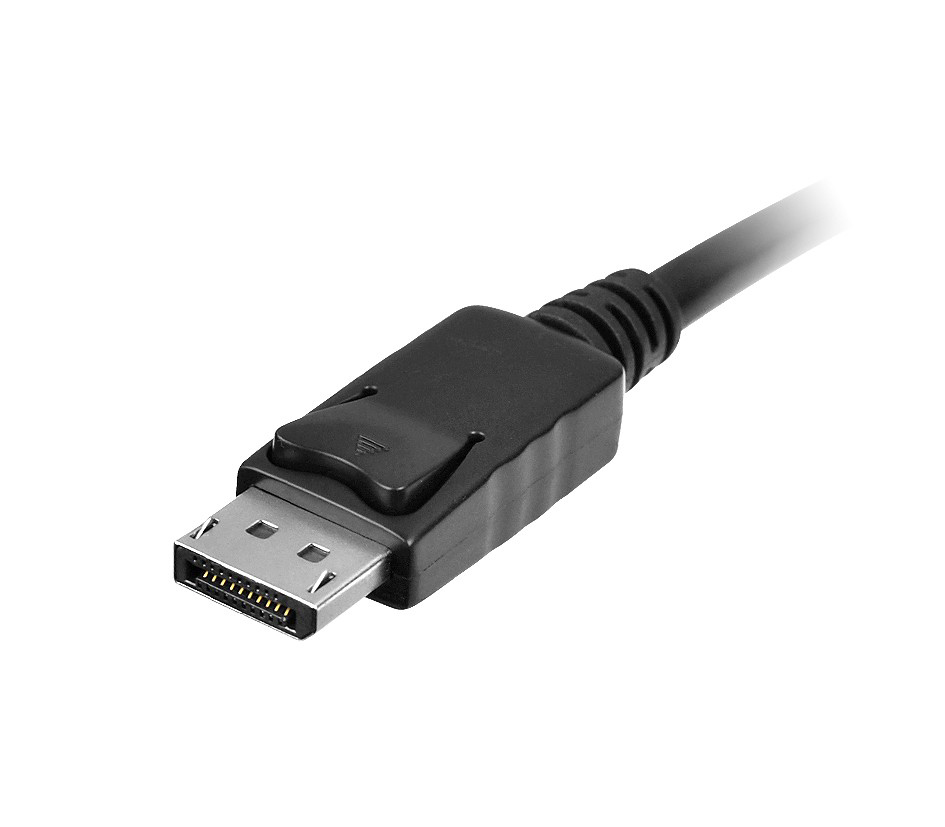

- AVLAB DisplayPort to HDMI Adapter, 1920x1080
■ Designed for connecting the DisplayPort equipped computer systems to HDMI equipped televisions and monitors to provide optimal video and audio quality ■ Triple-shielded 9.5” (24cm) cable with 20-pin DisplayPort male to 19-pin HDMI female connectors ■ PVC jacket for maximum audio/video performance with virtually no signal loss ■ Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gb/s) and HDMI 1.3a (up to 2.25 Gb/s) specifications ■ Supports HDCP (High-bandwidth Digital Content Protection)
Designed for connecting the DisplayPort equipped computer systems to HDMI equipped televisions and monitors
to provide optimal video and audio quality
Triple-shielded 9.5” (24cm) cable with 20-pin DisplayPort male to 19-pin HDMI female connectors
for maximum audio/video performance with virtually no signal loss
Compliant with DisplayPort 1.1 (both 1.62 and 2.7 Gb/s) and HDMI 1.3a (up to 2.25 Gb/s) specifications
High-bandwidth Digital Content Protection
DisplayPort to HDMI adapter cable
Triple-shielded cable with PVC jacket for maximum audio/video performance and prevention of signal loss
■ PC VGA, SVGA, XGA, SXGA and UXGA display modes
■ HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Supports multi-channel digital audio (system's DisplayPort must support audio)
AC to DC level trigger - requires dual-mode DisplayPort source
Video bandwidth: Up to 2.25 Gb/s (max)
Adapter type: Passive
Cable weight: 0.11 lbs
Overall length: 9.0” ± 0.5" (230mm ± 13mm)
■ 20-Pin DisplayPort (male) to 19-pin HDMI (female)
■ DisplayPort connector housing (L x W x H): 1.88" x 0.75" x 0.44" (47 x 19 x 11 mm)
■ HDMI connector housing (L x W x H): 1.9" x 0.7" x 0.4 (46 x 19 x 12 mm)
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Humidity: < 85% non-condensing
Certifications/Standards: FCC, CE, RoHS
Warranty: Lifetime limited
Country of origin: China
- Active or passive converter and what is the difference?
- A passive video signal converter changes the type of connection that is being used but does not change the signal that passes through the converter. Because the video signal is not modified, passive converters tend to be smaller, simpler, and less expensive than active video signal converters. Examples of passive converters include DVI-I to VGA, HDMI to DVI, and DisplayPort to Mini-DisplayPort converters. An active video signal converter modifies both the type of connection that is being used and the signal that passes through the converter. Because this type of conversion can be complex, active converters tend to be larger than passive video signal converters and sometimes require additional power. Examples of active converters include DVI-D to VGA, HDMI to DisplayPort, and VGA to HDMI converters.
- My DisplayPort display is not working when I try to output 4K at 30Hz with this device. How do I resolve this issue?
- To output 4K to a DisplayPort display at 30Hz, your monitor must support the resolution and refresh rate. If your monitor also supports 4K at 60Hz (DP 1.2 or higher), you may also need to set the monitor to work at 30Hz. To resolve this issue, use the buttons on your monitor to change the DisplayPort settings to DP1.1. For more information about how to change your monitor settings, refer to the website of the manufacturer of your monitor.
- Does this device require me to install drivers. Or perform any other setup tasks?
- This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
