• AVLAB-US42-1

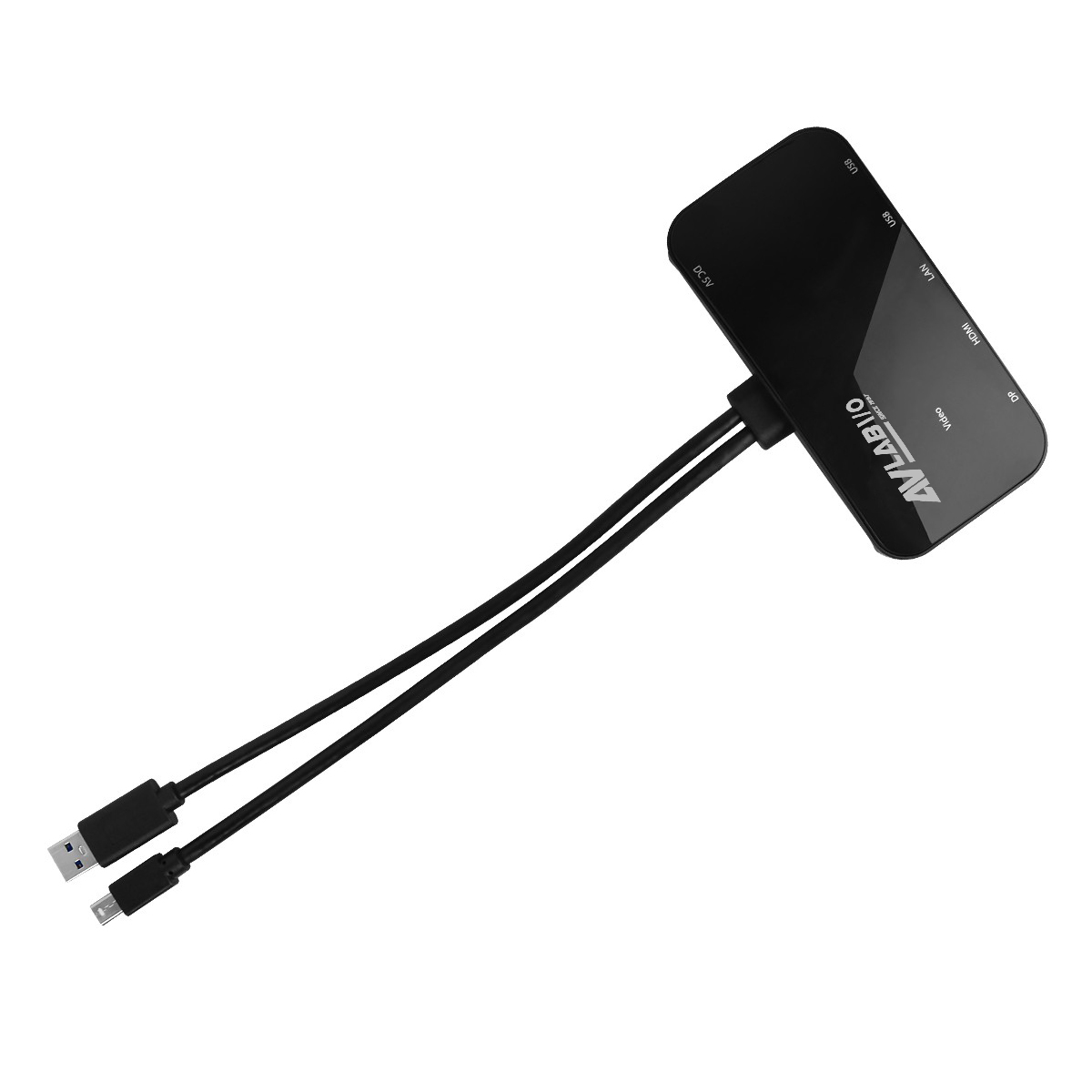

  • AVLAB Mini-DP Video Dock with USB 3.0 LAN Hub - Black, Full-HD 1080p 60Hz, Gigabit, DP/HDMI Video

■ Solves your system's connectivity needs by adding two USB 3.0 ports and one Gigabit Ethernet port through one USB 3.0 port
■ Supports USB 3.0 data transfer rates up to 5Gbps for smooth and stable performance
■ Converts your system's Mini DisplayPort output to either HDMI or DisplayPort output

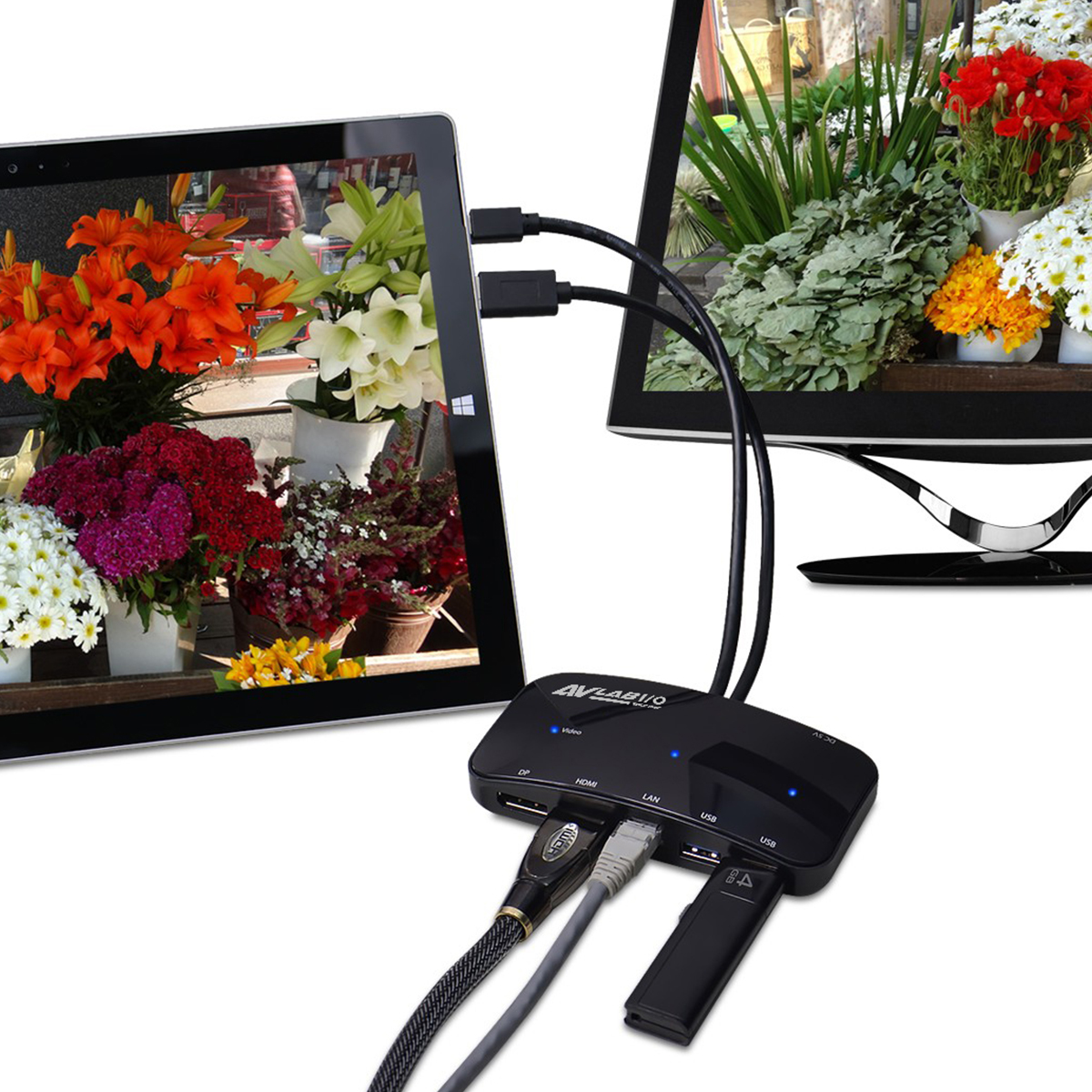

■ Supports triple display modes (Mirror, Extended, Primary) through either HDMI or DisplayPort output to various applications such as presentation or entertainment
■ Compact and lightweight design makes it easy-to-carry and the perfect on-the-go gadget
■ Compatible with many Mini DisplayPort and USB 3.0 equipped computers, laptops and tablets
■ Plug and play, no driver installation and no external power adapter required
docking station

  • $0 $0

Highlights

Solves your system's connectivity needs by adding two USB 3.0 ports
and one Gigabit Ethernet port through one USB 3.0 port

Supports USB 3.0 data transfer rates up to 5Gbps
for smooth and stable performance

Converts your system's Mini DisplayPort output
to either HDMI or DisplayPort output

Supports triple display modes (Mirror, Extended, Primary)
through either HDMI or DisplayPort output to various applications such as presentation or entertainment

Compact and lightweight design
makes it easy-to-carry and the perfect on-the-go gadget

Compatible with many Mini DisplayPort and USB 3.0 equipped
computers, laptops and tablets

Plug and play
, no driver installation and no external power adapter required



Specification

Chipset: GL3520D + PS8312 + RTL8153


Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0


Compliant with DisplayPort 1.1a for both 1.62 and 2.7 Gbps link rates


Compliant to HDMI 1.3a specification up to 2.25Gbps


Compatible with Intel® Thunderbolt


Full link training support for 1, 2 or 4 lanes for Dual Mode DP output


Gigabit Ethernet:
■ Supports up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s
■ Supports IEEE 802.3x full duplex operation
■ Compatible with IEEE 802.3, 802.3u
■ Supports crossover detection and auto-correction


Supported video cable length:
■ HDMI: Up to 5M (max)
■ DisplayPort: Up to 3M (max)


Resolution:
■ DisplayPort:Up to [email protected]
■ HDMI: Up to [email protected]

*Note: Only one video output can be used at any one time, either HDMI or DisplayPort. Does not support both outputs simultaneously


Product:
■ Overall length (including the embedded cable): 11.81" (300mm)
■ Dimensions: 4.74" (W) x 2.38" (H) x 0.98" (D)
■ Weight: 0.24 lbs
■ Color: Black
■ Housing material: ABS

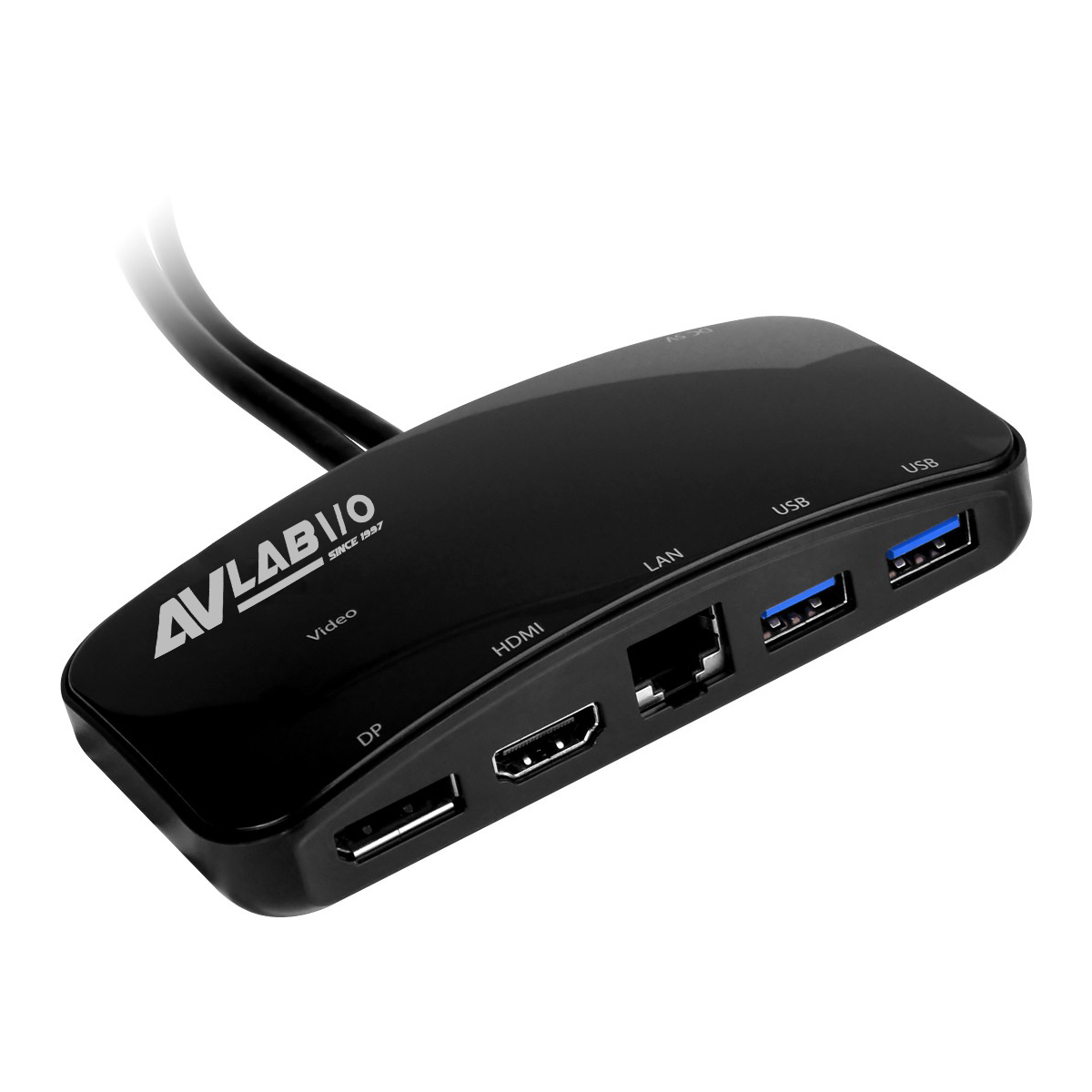

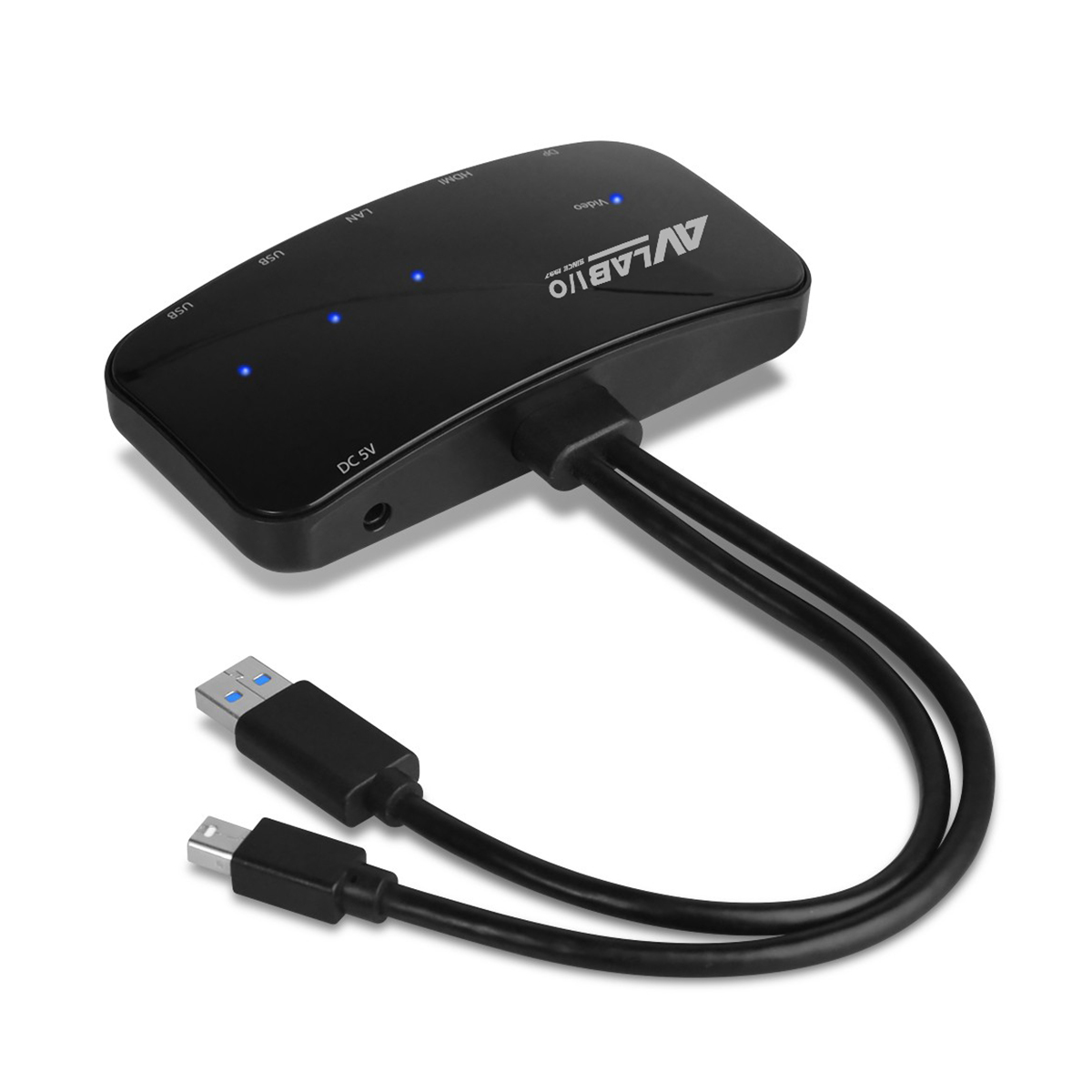

Connectors:
■ 1x 20-pin, Mini DisplayPort, Male, Input
■ 1x 9-pin, USB 3.0, Type-A, Male, Input
■ 1x 20-pin, DisplayPort, Female, Output
■ 1x 19-pin, HDMI Type-A, Female, Output
■ 2x 9-pin, USB 3.0 Type-A, Female, Output
■ 1x 8-pin, RJ45, Network, Female, Output
■ 1x, DC Jack, 5V/2A (max)
■ Dimensions: OD 3.5mm / ID 1.5mm / L 10mm


Environmental conditions:
■ Operating temperature:32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: <85% RH (non-condensing)


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 years limited


Country of origin: China


Requirements
■ Intel® CoreTM Duo 2.0 GHz CPU with an available Mini DisplayPort and USB 3.0 port
■ Windows® 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
■ Mac OS X® 10.13 to 10.6


Package Contents
■ Mini-DP Video Dock with USB 3.0 LAN Hub - Black
■ Rubber Pad x4
■ User Reference Guide

FAQ

  • Does this device require me to install drivers. Or perform any other setup tasks?
  • This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
  • What do I need in my setup to make sure this USB-C device will work?
  • To use all of the features of this USB-C device, it is required that all of the following components support USB Power Delivery 2.0 and DisplayPort Alternate Mode:

    ■ The USB-C host connection.
    ■ The USB-C cable.
    ■ The USB-C device (for example, a hard drive docking station).

    To check how much power this device requires, visit the product page, and look on the Technical Specifications tab.

    For more information about the power delivery capabilities of your other components, refer to the information provided by the manufacturers.
  • How do I confirm that Windows detects my USB device?
  • To confirm that Windows detects your expansion card, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it.
    For example, a USB device would be under Universal Serial Bus controllers.
