• AcePro-CE33-1
  • AceProAV 4-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management. 4Kx2K 60Hz (YUV 4:4:4 8-bit), auto down Scaling, HDR, 18Gbps, 3DTV, FW update


■ EAN Code: 4712896221549
■ HDMI SPLITTER 1 IN 4 OUT - Distributes HDMI video and audio from a single input source to 4 HDMI displays without signal degradation. The 4 EDID modes allows widespread use for showroom, classroom, church, multiple displays events, and duplicating satellite tv signal.

  • $0 $0

Highlights

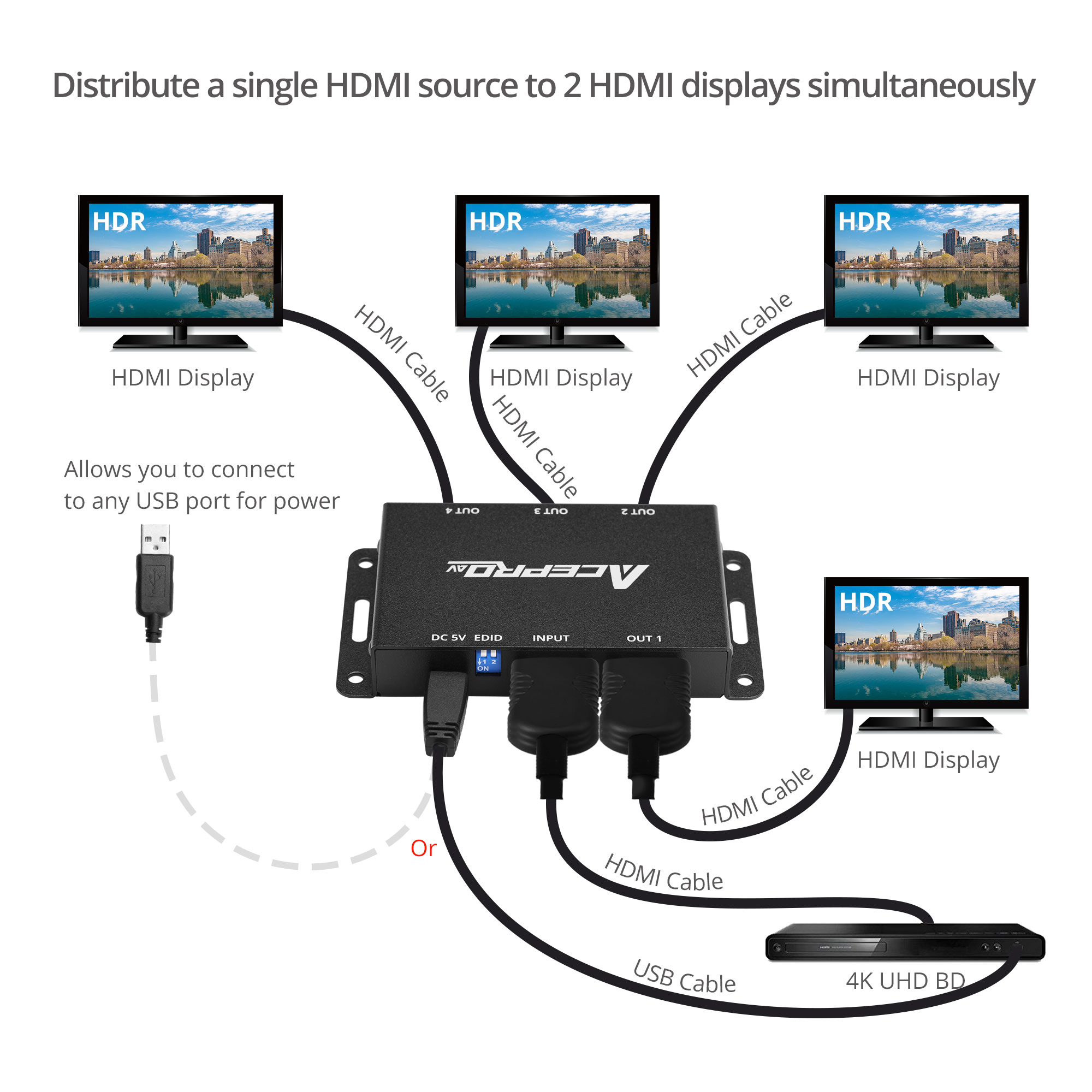

Distributes up to 2 HDMI displays simultaneously from a single source
Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality

HDMI 2.0 and HDCP 2.2
Compliant with HDMI 2.0 and HDCP 2.2

Bandwidth
Supports 18Gbps bandwidth

Color Reproduction
Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color

Surround Sound Support
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

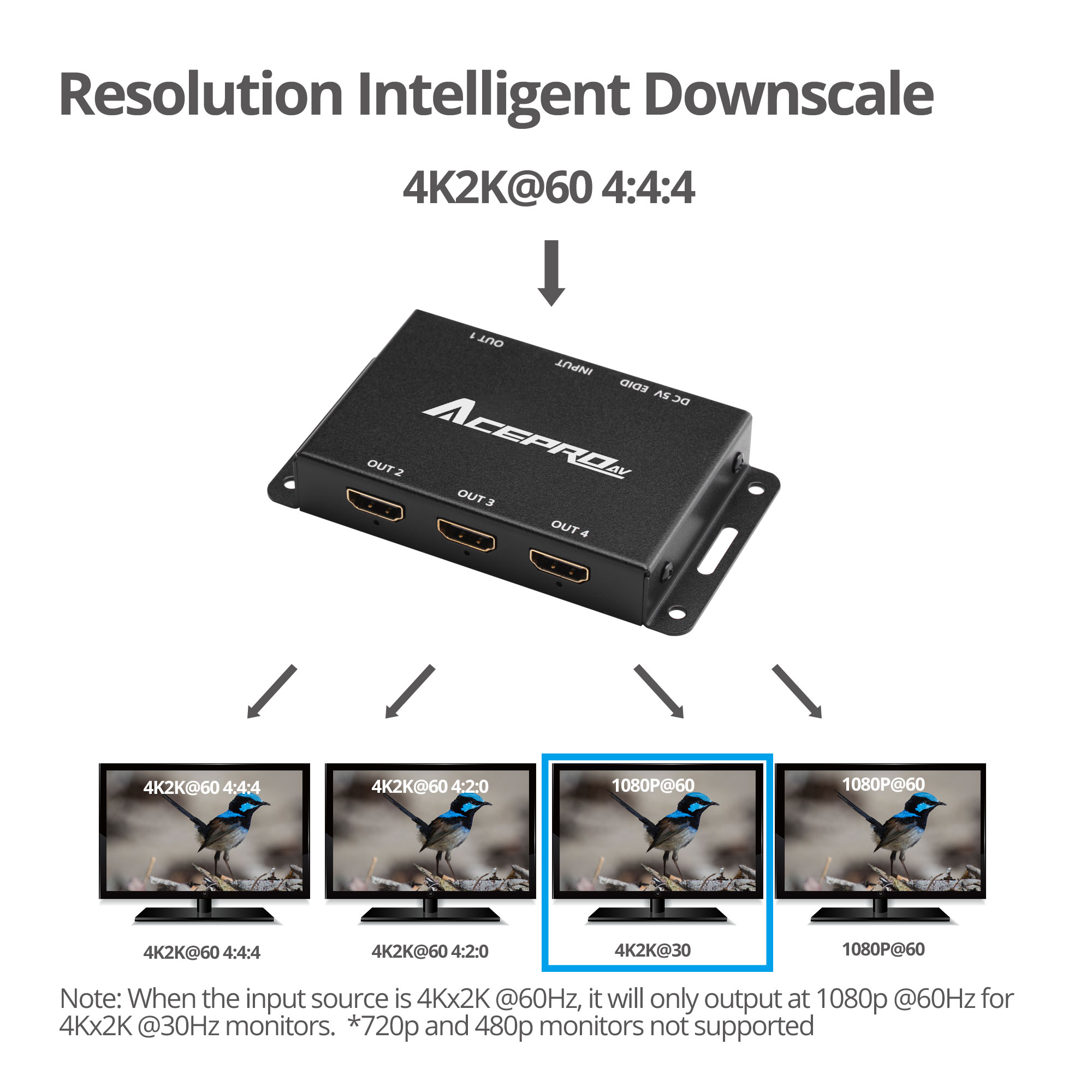

Resolution Downscaling
Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor

Supports Mixed 4K and 1080P
Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations

EDID and Firmware Management
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility

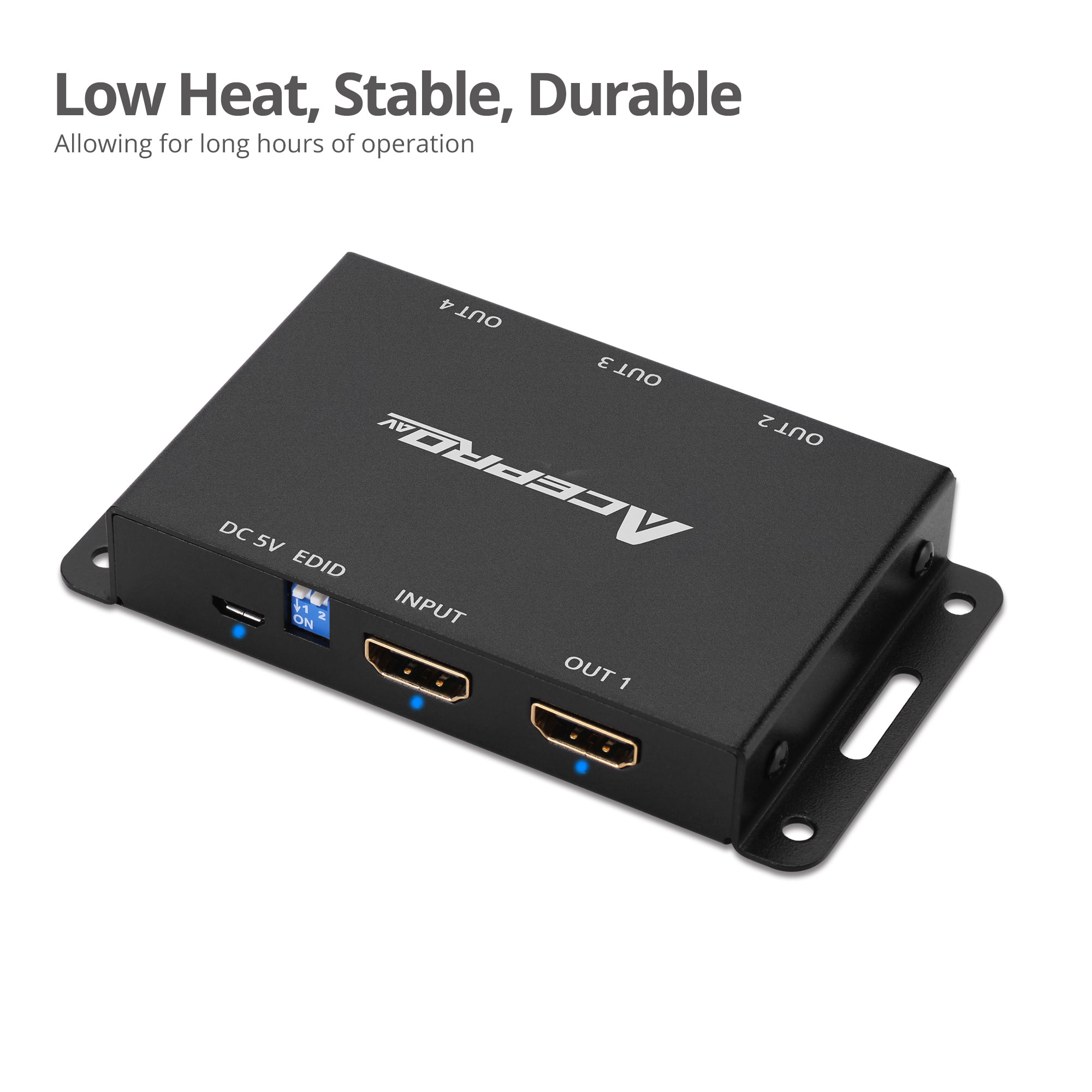

High quality metal housing
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance

*Notes
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally

Specification

Chip: IT6664E



Compliant with HDMI 2.0, HDCP 2.2



Supports xvYCC, x.v.Color & Deep Color



Supports 3840x2160@60Hz, YUV 4:4:4, 8bit



Supports 3840x2160@60Hz HDR, YUV 4:2:0, 10bit



Video bandwidth: 18Gbps (single-link 600MHz)



Resolution support: 480p/720p/1080i/1080p/2160p@60Hz, 4K HDR



HDMI cable length:
■ 3840x2160 @60Hz: up to 10m (5m/In; 5m/Out)
■ 1080p & 3840x2160@30Hz: up to 15m (5m/In; 10m/Out)



Supports default EDID and EDID learning from display



Built-in Micro USB port for power or firmware update



Audio support: Dolby Digital, DTS-HD and Dolby TrueHD audio



LED indication for power and signal status



ESD protection: ±15kV Air / ±8kV Contact



Product:
■ Dimensions: 3.57" (L) x 0.67" (H) x 2.42" (W)
■ Weight: 0.40 lbs

■ Color: Black
■ Housing material: Metal

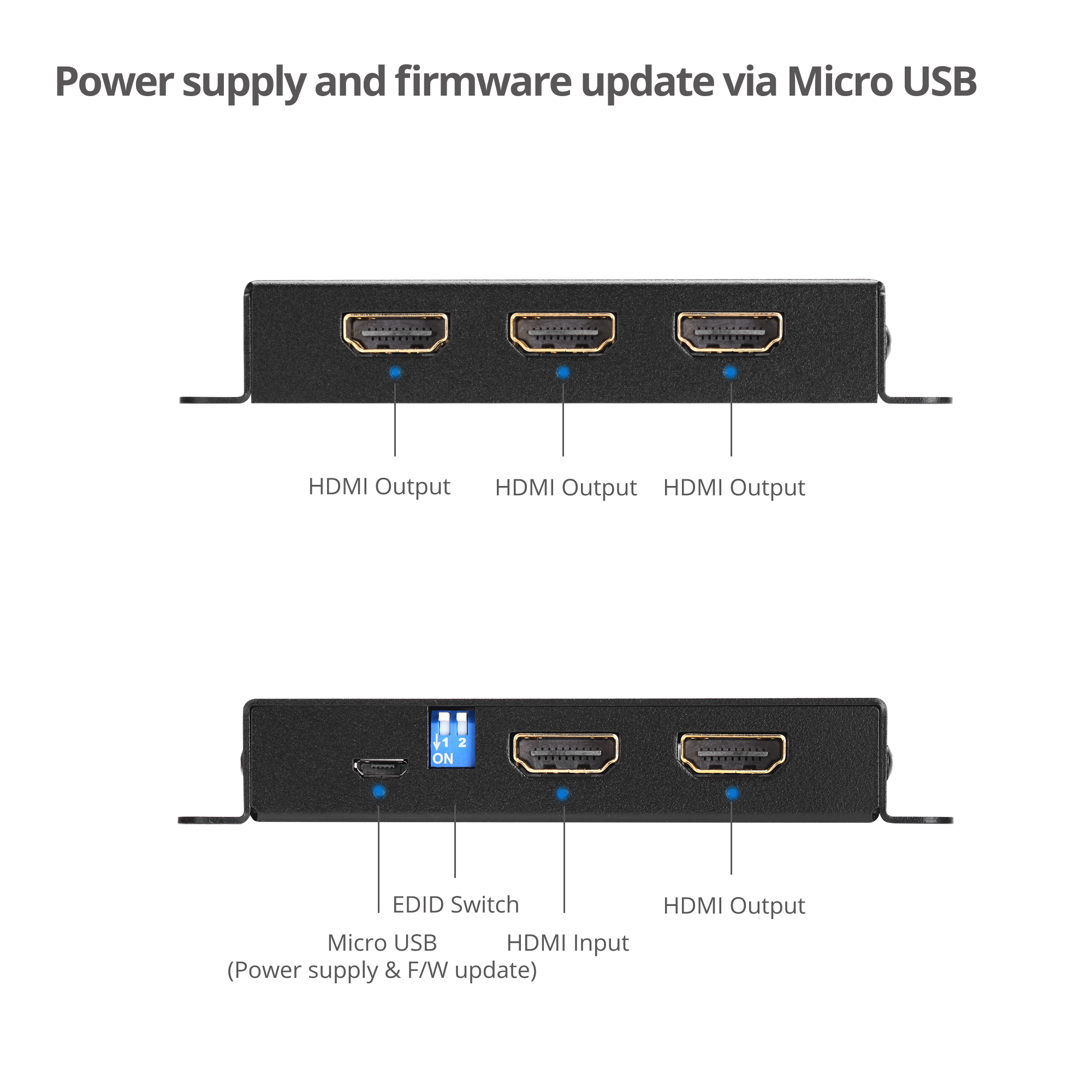

■ Connector:
 ■ 1x 19-Pin, HDMI, Type A, Female, Input
 ■ 4x 19-Pin, HDMI, Type A, Female, Output
 ■ 1x 5-Pin, Micro-USB, Female, Power / Firmware update
 ■ 1x 2-Pin, Switch, EDID Management



Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F

■ Relative humidity: 20 to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



TAA Compliant



Warranty: 3 year limited



Country of origin: Taiwan
