• AcePro-CE46-1
  • AcerPro HDMI 2.0 4-Display Video Wall Processor

■ Allows you to display one HDMI/DisplayPort source signal to up to 4 displays tiled together to form one large screen
■ Easy to layout and modified to fit your applications in digital signage, broadcasting, education and surveillance systems and optimize visual effects
■ Supports HDMI and Mini DisplayPort input from 640x480 to 4Kx2K @60 YUV 4:4:4, interlaced or progressive
■ Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
■ Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
■ Supports individual propagation delay on each display to have the best visual perception
■ The video wall processor can control by USB, push button, Ethernet, IR remote control and cloud control
■ High quality metal housing with ventilation panels better promote the heat dissipation and system stability during long hours of operation
■ Premium design easily adopts into versatile application environment, mounting brackets included for different installation requirements

  • $0 $0

Highlights

Allows you to display one HDMI/DisplayPort source signal to up to 4 displays tiled together to form one large screen

Easy to layout and modified
to fit your applications in digital signage, broadcasting, education and surveillance systems and optimize visual effects

Supports HDMI and Mini DisplayPort input
from 640x480 to 4Kx2K @60 YUV 4:4:4, interlaced or progressive

Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use

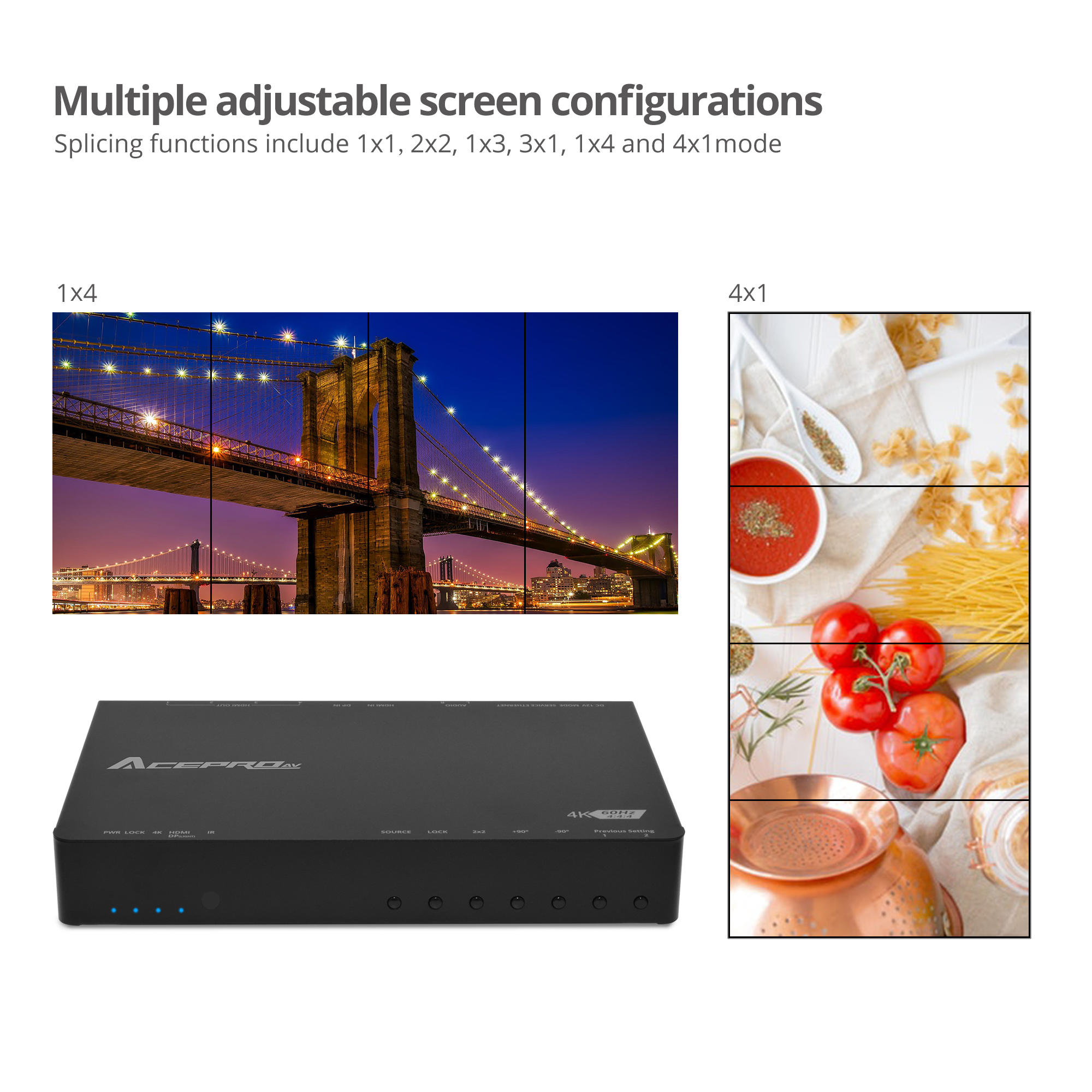

Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode

Supports individual propagation delay on each display to have the best visual perception

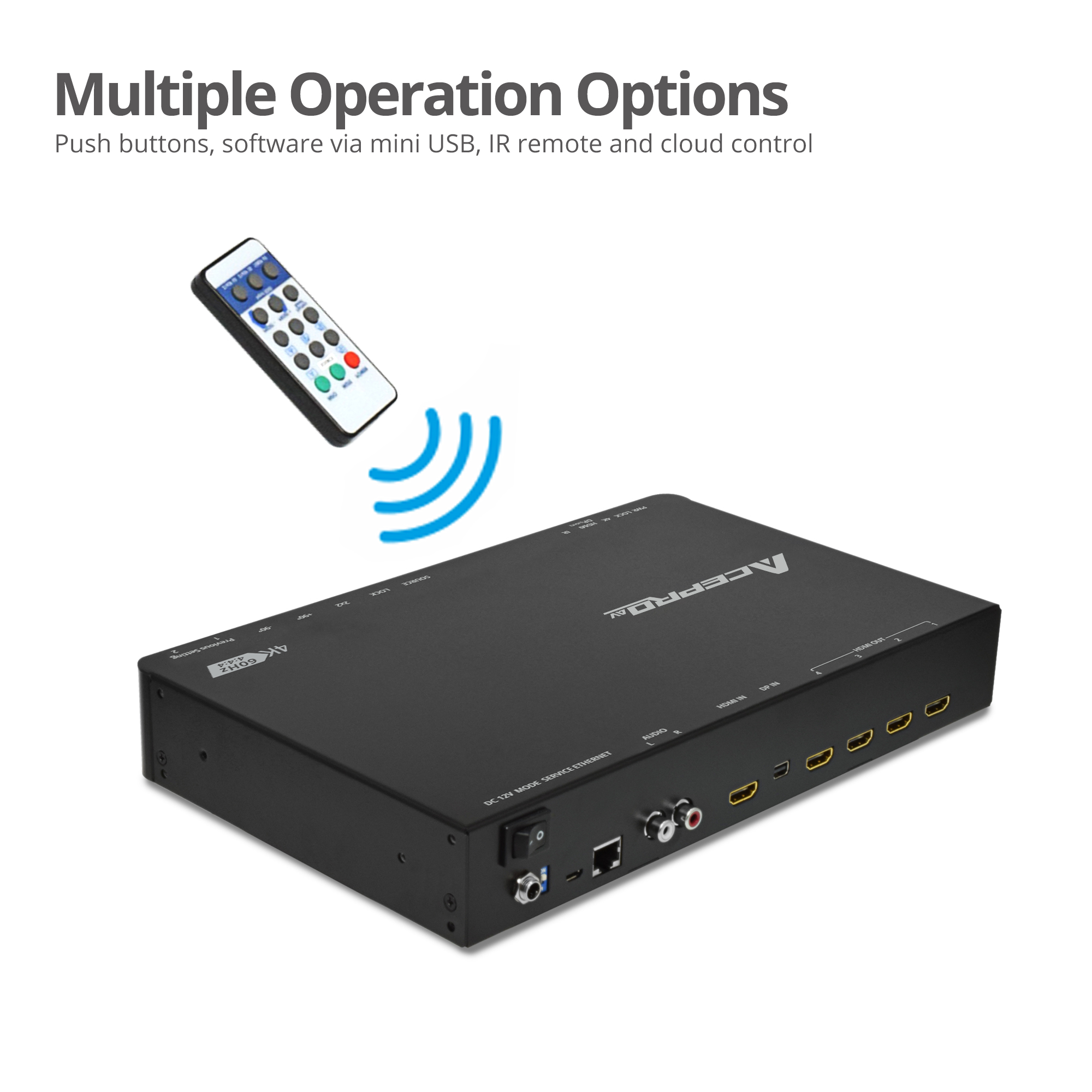

The video wall processor can control by USB, push button, Ethernet, IR remote control and cloud control


High quality metal housing
with ventilation panels better promote the heat dissipation and system stability during long hours of operation

Premium design
easily adopts into versatile application environment, mounting brackets included for different installation requirements

Specification

Compliant with HDMI 2.0a and DisplayPort 1.2a specification


Compliant with HDCP 2.2 & 1.4


Video Format Support: HDMI / Mini DisplayPort


Video resolution:
■ Input: 4Kx2K @60 (4:2:2 8-bit) / 4Kx2K @60 (4:4:4 8-bit)

 Output (each display): 1920x1080 @60 / 1920x1200 @60


Video bandwidth: input 18Gbps (single-link 600MHz) / Output: 6.75Gbps (single-link 225MHz)


User-selectable output settings, up to 1920x1200

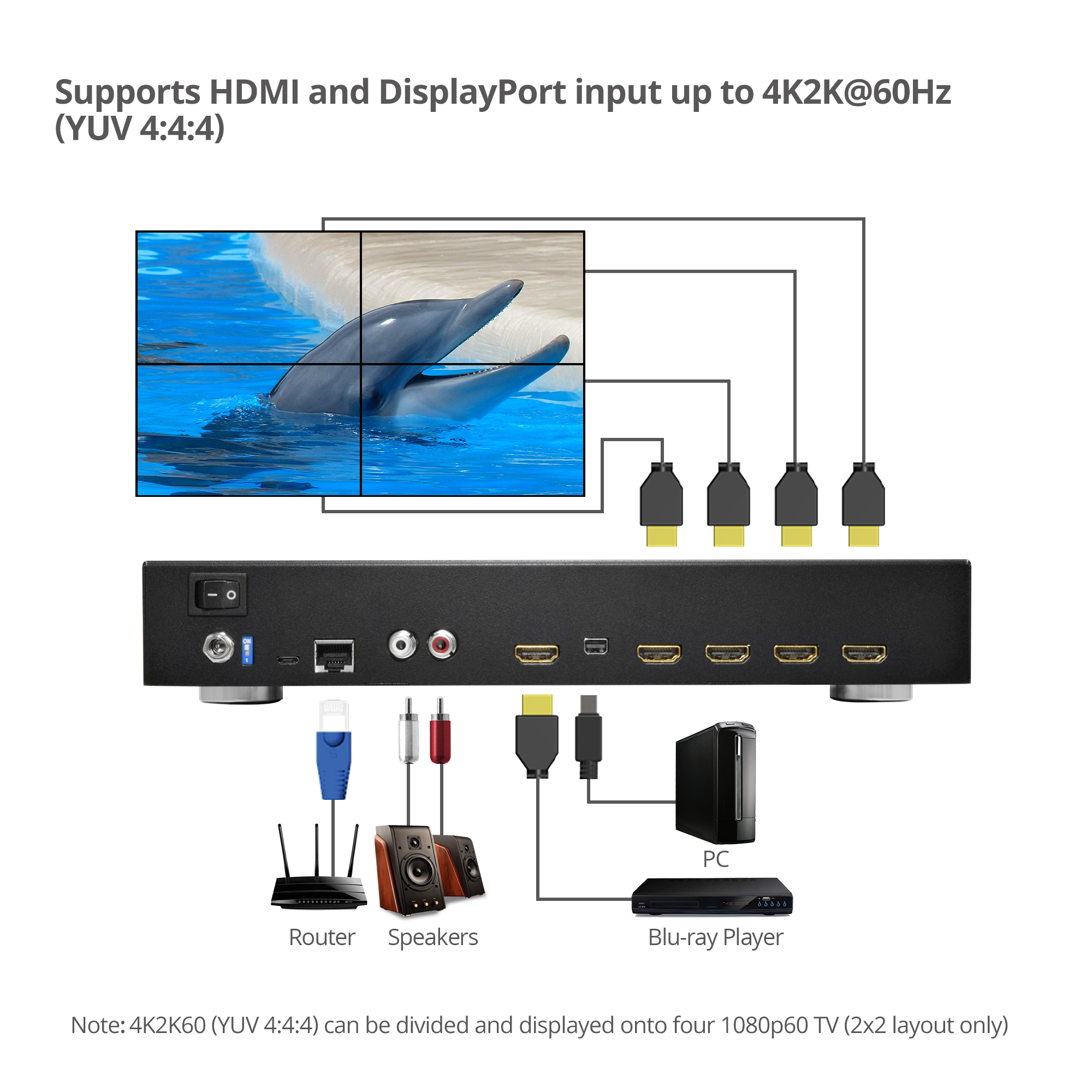

4Kx2K @60 (YUV 4:4:4) can be divided and displayed onto four 1080p @60 TV (2x2 layout only)



The video wall processor can control by USB, push button, Ethernet, IR remote control and cloud control


Firmware upgradable for new features and technology enhancements


Supports independent input rotation at the resolution up to 1080p


Supports resize, position, zoom for each HDMI output video


Supports PCM 2CH stereo audio


Power/Source/4K and Lock LED indicator


ESD protection:
■ Air: 15kV
■ Contact: 8kV


Power consumption: 12 Watts (Max)


Metal housing,  rack mountable


Product:
■ Dimensions: 11.40" (L) x 1.70" (H) x 7.00" (W)
■ Weight: 3.2 lbs
■ Color: Black
■ Housing: Metal

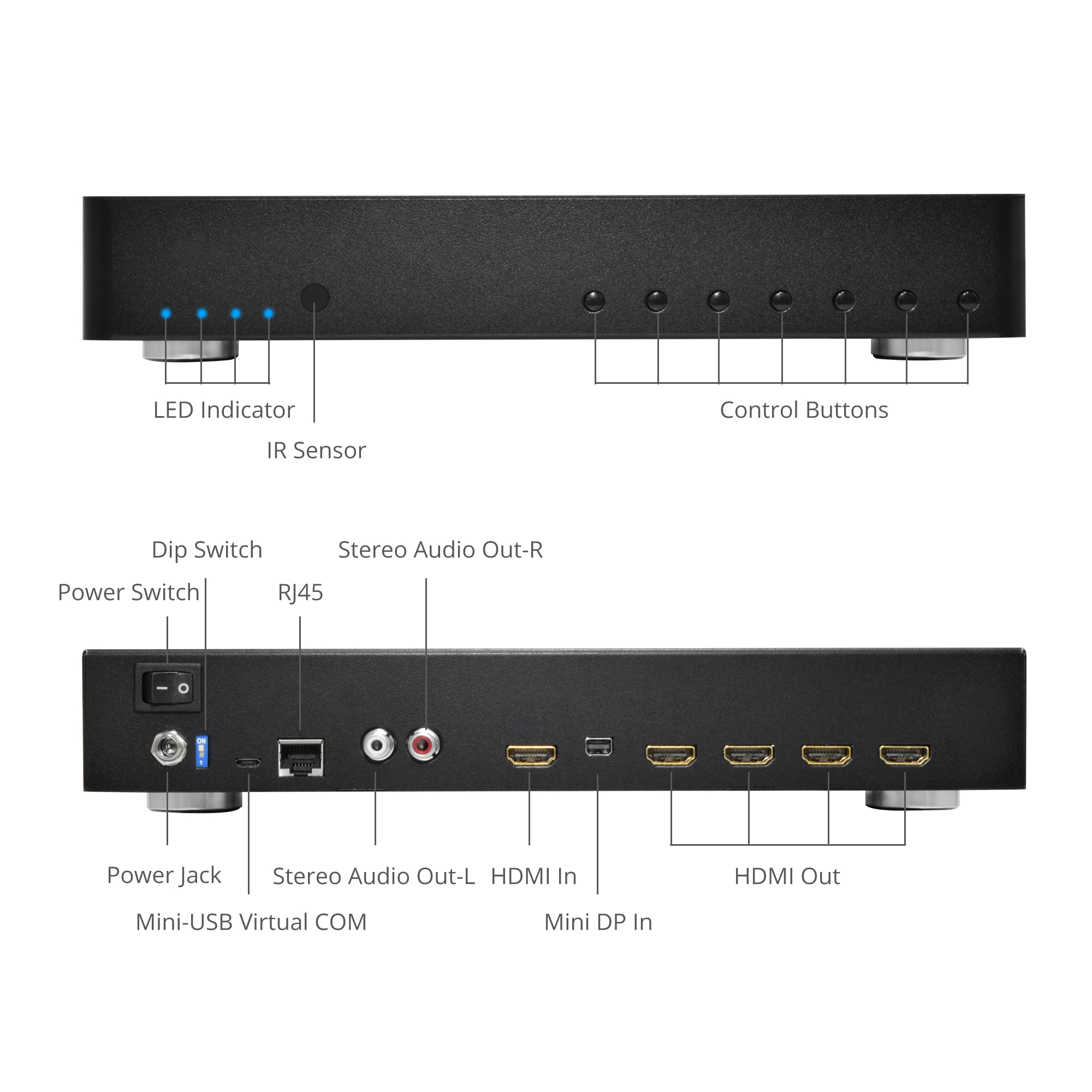

Connector:
■ 1x 19-pin, HDMI, Type A, Female, Input
■ 1x 20-pin, Mini DisplayPort, Female, Input
■ 4x 19-pin, HDMI, Type A, Female, Output
■ 1x Power Switch, On/Off
■ 7x Push Button, Control
■ 1x DIP Switch, for Firmware update
■ 1x 5-pin, Micro USB, USB virtual COM port
■ 1x 8-pin, RJ45 Ethernet, for Ethernet control
■ 2x RCA Stereo Audio, output


Power Adapter:

 Input: 100-240VAC, 50/60 Hz
■ Output: DC 12V/2A
■ UL Listed: E163743 / Level: VI


Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)


TAA compliant


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 years limited


Country of origin: Taiwan
