• AcePro-CE48-1
  • AcerPro HDMI 2.0 4K Installation Gear

■ Major Functions - Populates HDMI signals, detects important HDMI features, and examines cable quality a versatile HDMI diagnostic tool for AV installers and system integrators
■ Source Mode Video Resolution - [email protected] YUV 4:4:4 8-bit or [email protected] YUV 4:2:0 10-bit HDR, 1080p and 720p. With adjustable color depths, installers can instantly test the connected display's capability
■ Sink Mode - Detects HDMI information from the source device such as resolution, frame rate, HDCP version to help installers resolve tedious HDMI compatibility issue
■ Cable Mode - Verifies operating condition of HDMI cables and provides a cable quality indicator to help understand the cable status before doing any installation
■ Operating Convenience - Pocket size with chargeable battery up to 3 hours continuous operation on a full charge

  • $0 $0

Highlights

Major Functions
Populates HDMI signals, detects important HDMI features, and examines cable quality a versatile HDMI diagnostic tool for AV installers and system integrators

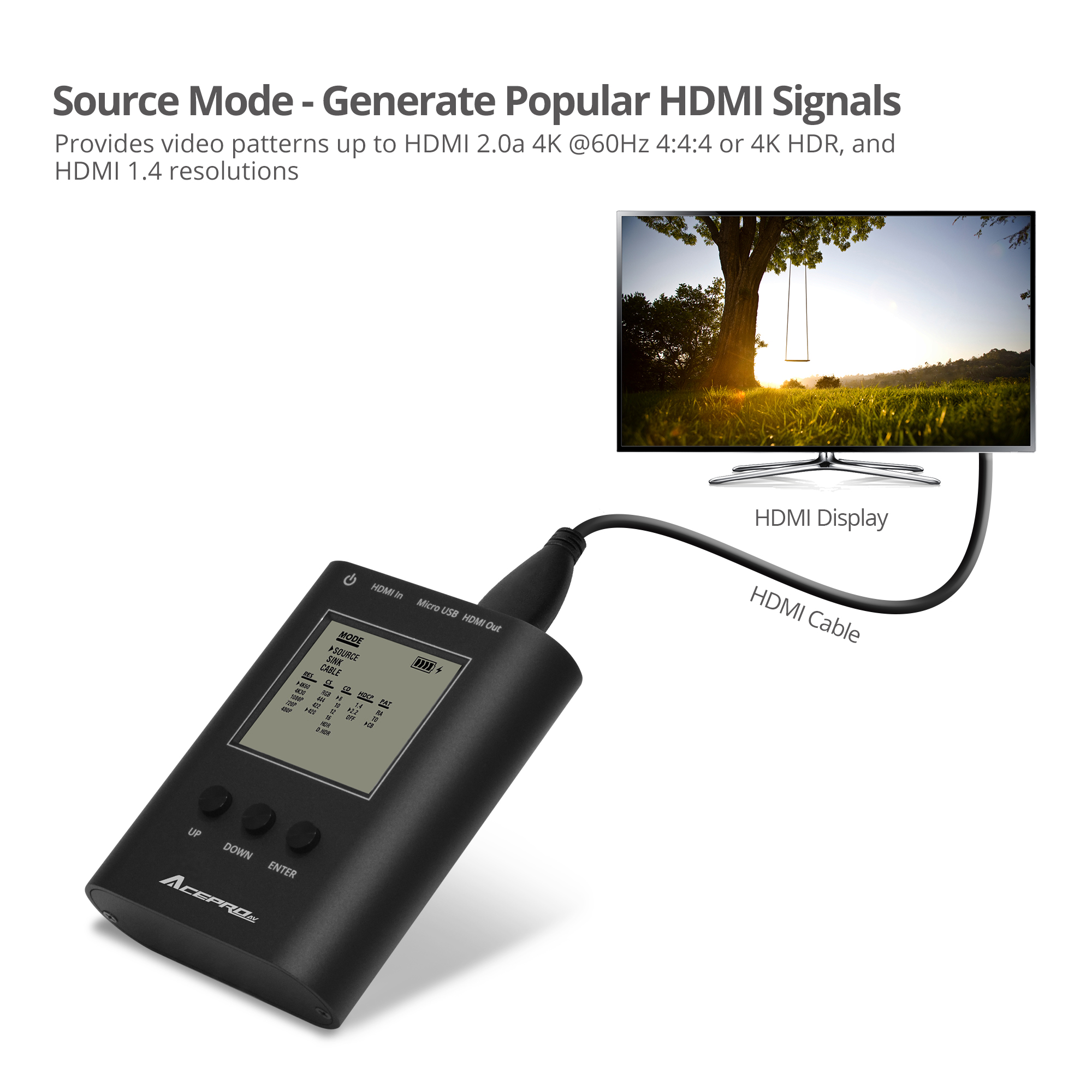

Source Mode Video Resolution
[email protected] YUV 4:4:4 8-bit or [email protected] YUV 4:2:0 10-bit HDR, 1080p and 720p. With adjustable color depths, installers can instantly test the connected display's capability

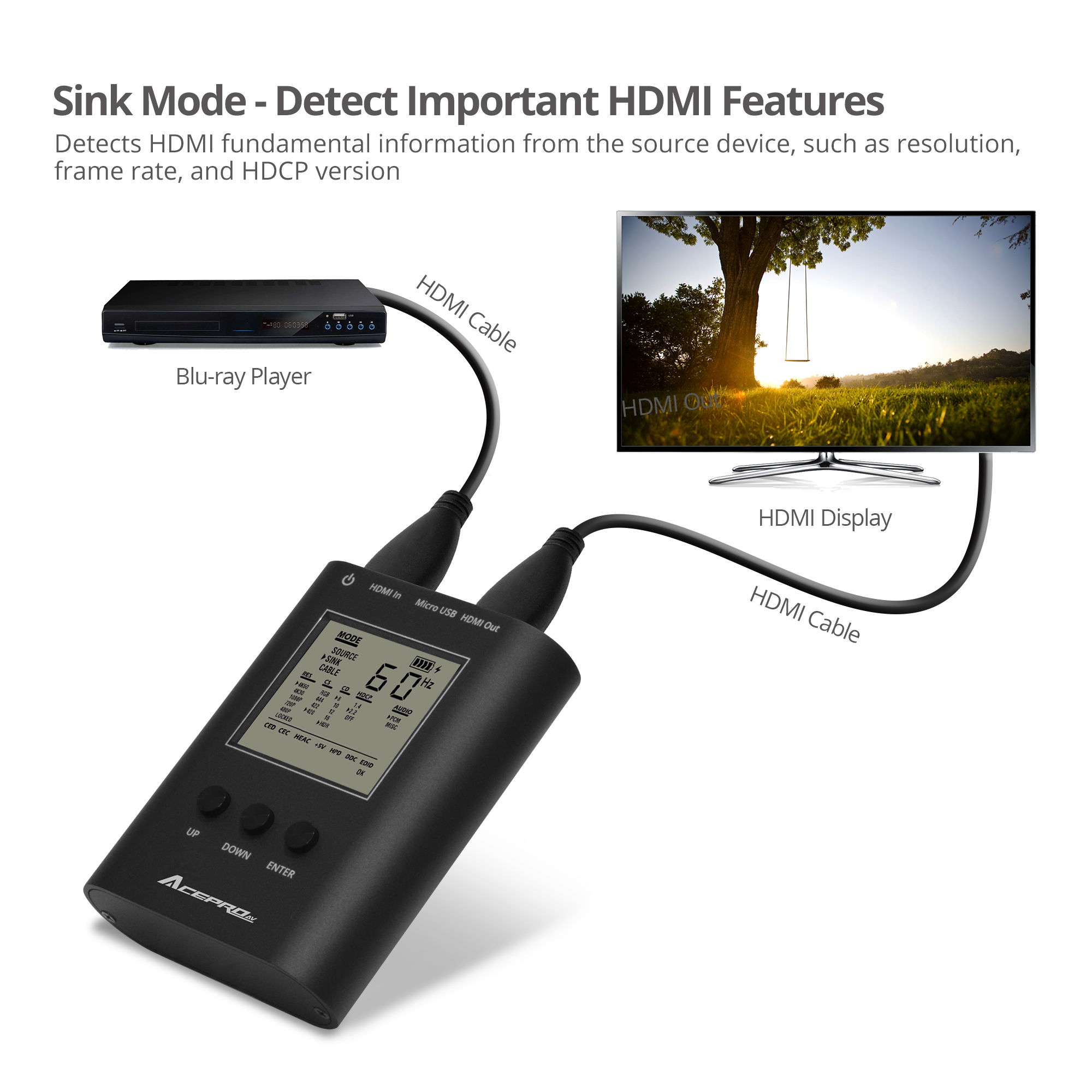

Sink Mode
Detects HDMI information from the source device such as resolution, frame rate, HDCP version to help installers resolve tedious HDMI compatibility issue

Cable Mode
Verifies operating condition of HDMI cables and provides a cable quality indicator to help understand the cable status before doing any installation

Operating Convenience
Pocket size with chargeable battery up to 3 hours continuous operation on a full charge

Specification

Compliant with HDMI 2.0a specification


Compliant with HDCP 1.4 & 2.2


Video bandwidth: up to 18Gbps


Resolution: [email protected] YUV 4:4:4 8-bit, [email protected] YUV 4:2:0 10-bit HDR


3 Functions:
■ Source Mode
■ Sink Mode
■ Cable Mode


Provide statistical analysis for cable quality for connection stability

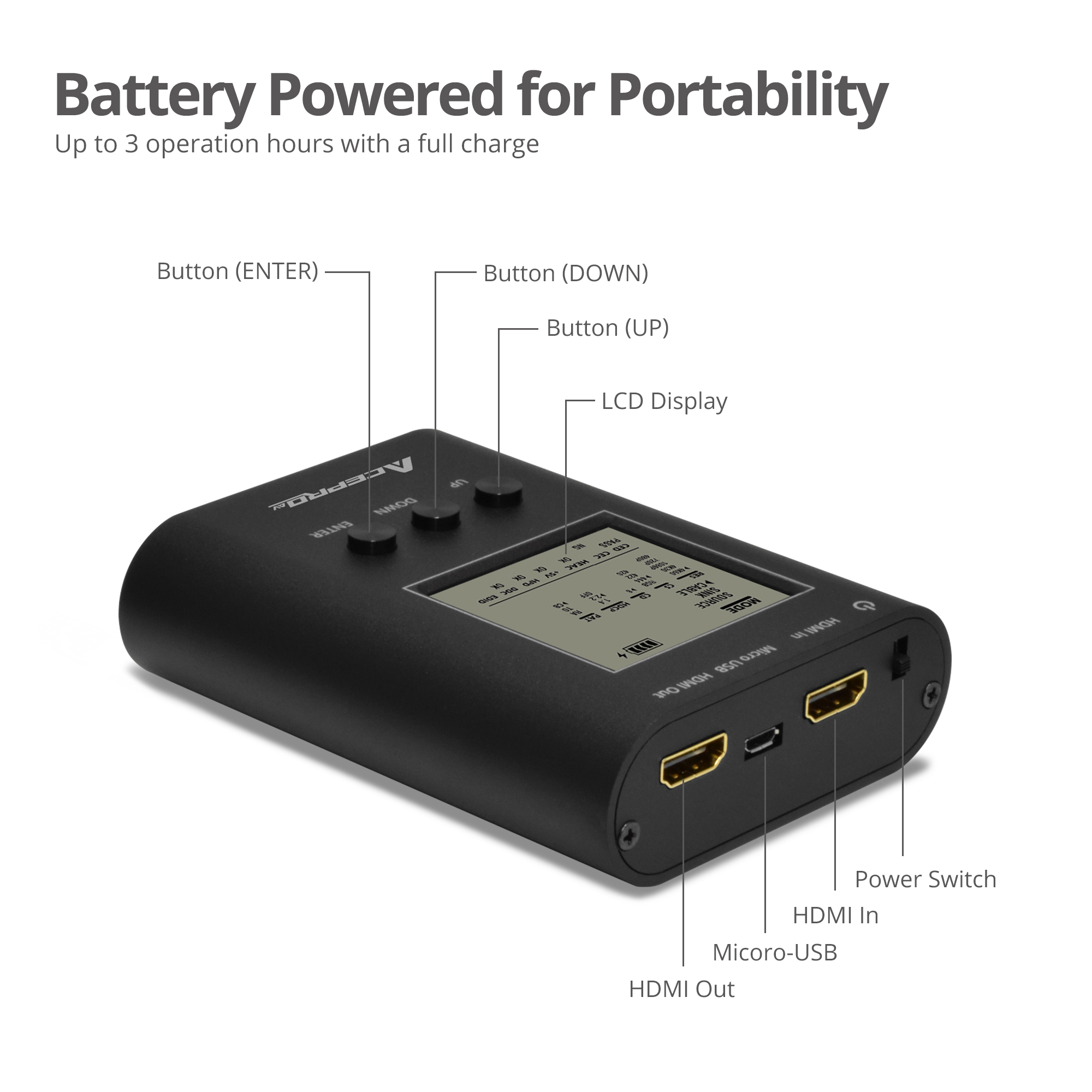

Battery powered and rechargeable with up to 3 hours operating time at full charge


Supports firmware update and battery recharge via Micro USB port


ESD protection: ±15kV Air / ±8kV Contact


Power consumption up to 5 watts


Product:
■ Dimensions: 5.1" (L) x 0.6" (H) x 3.5" (W)
■ Weight: 0.48 lbs
■ Color: Black
■ Housing: Metal


Connector:
■ 1x 19-pin, HDMI, Female, Input
■ 1x 19-pin, HDMI, Female, Output
■ 1x 5-pin, Micro USB, Female, F/W update and recharge
■ 3x Button Enter/Down/Up
■ 1x 2-pin Power On/Off switch


Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)


TAA compliant


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 year limited


Country of origin: Taiwan
