• AcePro-CE66-1
  • AcePro HDMI 2.0 4K 60Hz Over Cat6 Extender with IR - 120m

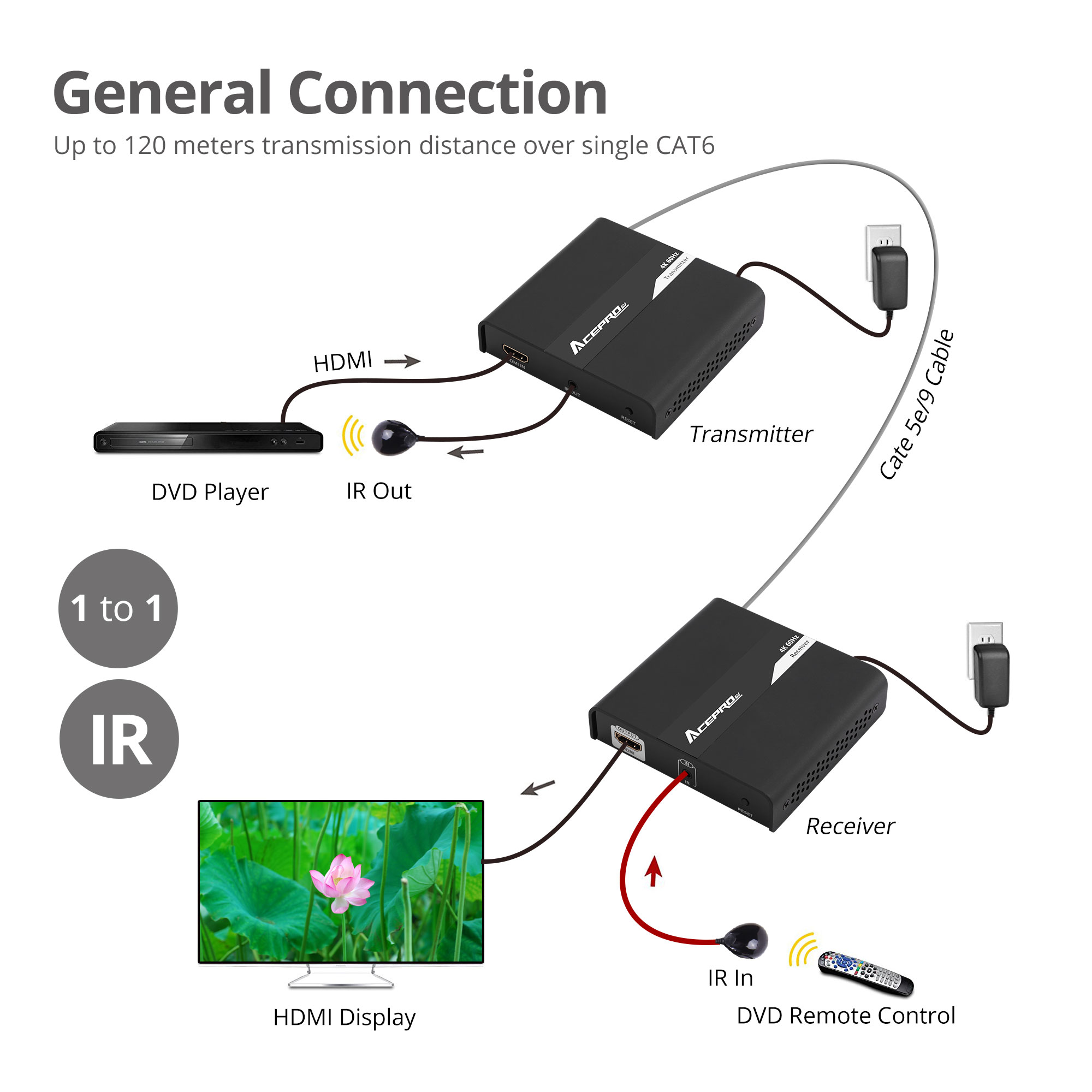

■ Extends HDMI A/V signals to a remote display up to 120M (396ft) away through a single Cat6 cable

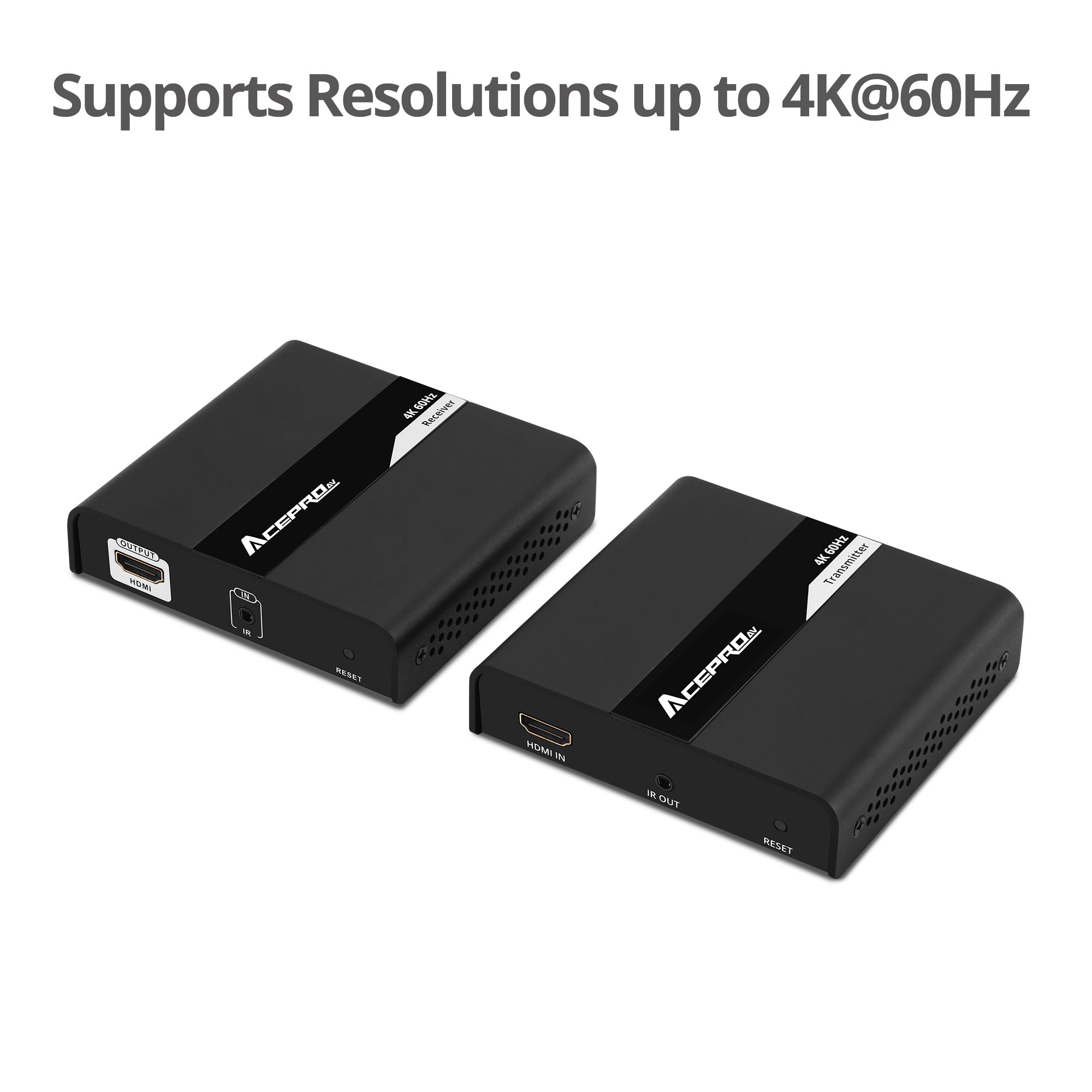

■ Delivers crystal clear picture quality with resolution up to 4Kx2K @60Hz

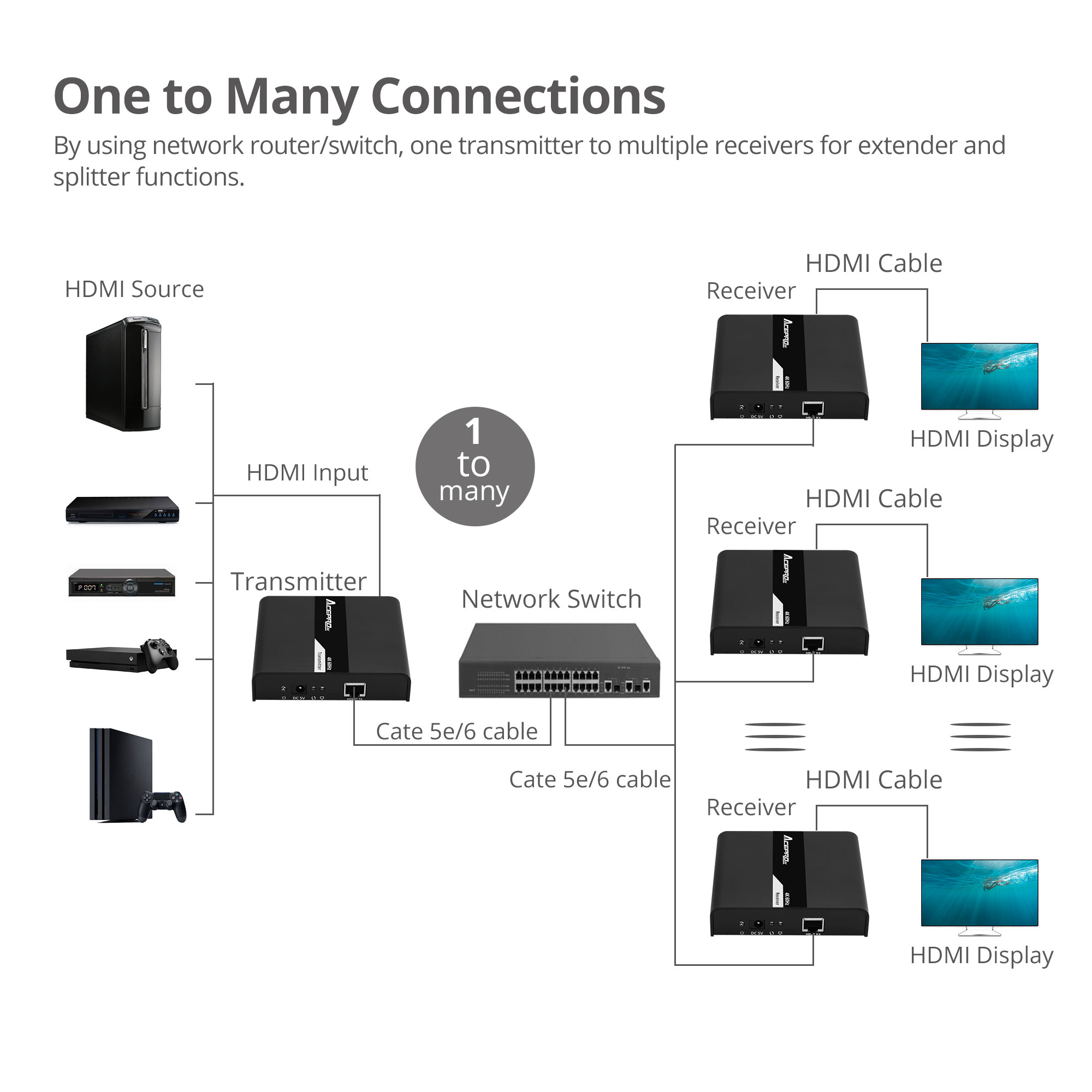

■ Features direct 1-to-1 connection or 1-to-many connection through unmanaged dedicated Gigabit network routers or switches
■ HDBitT® transport protocol allows connecting up to 30 receivers per transmitter to not only extend but split HDMI signals to multiple displays (additional receiver units, part# AcePro-CE67-1) sold separately
■ Supports HDMI 2.0 and HDCP 2.2 specifications and backwards compatible with earlier versions
■ IR extension allows you to remotely control the HDMI source device at the remote display side
■ High quality metal housing with ventilation panels provide efficient heat dissipation for system stability and reliable performance during long hours of operation
■ Premium design easily adapts into any application environment, mounting brackets included for different installation requirements

  • $0 $0

Highlights

Extends HDMI A/V signals
to a remote display up to 120M (396ft) away through a single Cat6 cable

Delivers crystal clear picture quality with resolution up to 4Kx2K @60Hz

Features direct 1-to-1 connection or 1-to-many connection

through unmanaged dedicated Gigabit network routers or switches

HDBitT® transport protocol
allows connecting up to 30 receivers per transmitter to not only extend but split HDMI signals to multiple displays (additional receiver units, part# AcePro-CE67-1) sold separately

Supports HDMI 2.0 and HDCP 2.2 specifications and backwards compatible with earlier versions

IR extension

allow you to remotely control the HDMI source device at the remote display side

High quality metal housing
with ventilation panels provide efficient heat dissipation for system stability and reliable performance during long hours of operation

Premium design
easily adapts into any application environment, mounting brackets included for different installation requirements

Specification

Transport protocol: HDbitT



Compliant with HDMI 2.0 and HDCP 2.2 specifications



Supported connections:
■ 1-to-1 connection
■ 1-to-many connection
Router connection (dedicated network router / switch), realize unlimited extension
Additional receivers (part# AcePro-CE67-1) sold separately



Supports audio: L/R stereo audio



Supports IR passback with 20KHz to 60KHz frequency



Supports HDMI input resolution: 480i / 480p / 576p / 720p / 1080i / 1080p@50/60Hz / 4Kx2K @24/25/30/60Hz



Supports HDMI output resolution: 1080p @60, 4Kx2K @30/60Hz



Transmission distance:
■ Cat5: up to 80m
■ Cat5e: up to 100m
■ Cat6: up to 120m



HDMI cable length: 5 meters (Input) / 5 meters (Output)



Housing material: Aluminum

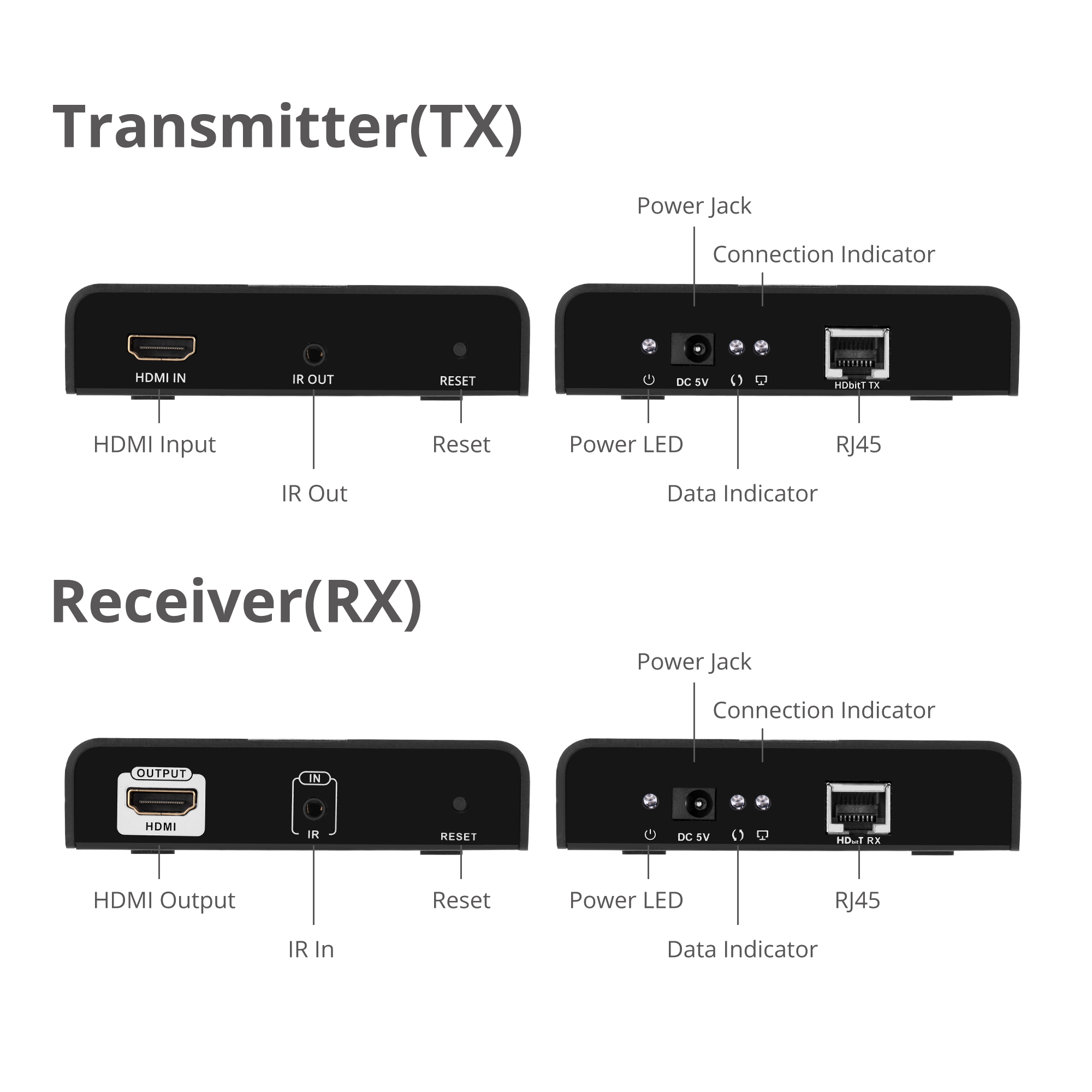

Product:
■ Transmitting unit (TX):
Dimensions: 4.06" (L) x 1.1" (H) x 3.82" (W)
Weight: 0.57 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR Blaster
1x 8-pin, RJ45, HDbitT signal, Output
3x LED indicator (Power/Data/Connection)
1x Reset button
1x Power jack
■ Receiving unit (RX):
Dimensions: 4.06" (L) x 1.1" (H) x 3.82" (W)
Weight: 0.56 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDbitT signal, Input
3x LED indicator (Power/Data/Connection)
1x Reset button
1x Power jack



Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/3A
■ UL listed: E335801 / Level: VI



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: % to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty:  1 year limited



Country of origin: China
