• new | AcePro-CE68-1
  • AcerPro HDMI Over Cat6 Extender with IR & Loop-out - 120m

■ Extendes HDMI signals up to 394ft (120m) to a remote display over economical Cat6 cabling
■ Delivers Full HD video content up to 1080p@60Hz resolution Features direct 1-to-1 connection or 1-to-Many connection through unmanaged Gigabit Ethernet routers or switches. With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. Note: Requires additional receivers (HDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver, sold separately) to support 1-to-Many connection through Gigabit Ethernet routers or switches
■ Supports a local HDMI output for monitoring the extended display
■ IR remote control over Cat6 allows you to remotely control the HDMI source device at the remote display side
■ High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
■ Built-in power led indicator provides easy power status monitoring
■ Plug-n-Play installation, no software installation or hardware setup is required

  • $0 $0

Highlights

Extends HDMI signals up to 394ft (120m)
to a remote display over economical Cat6 cabling

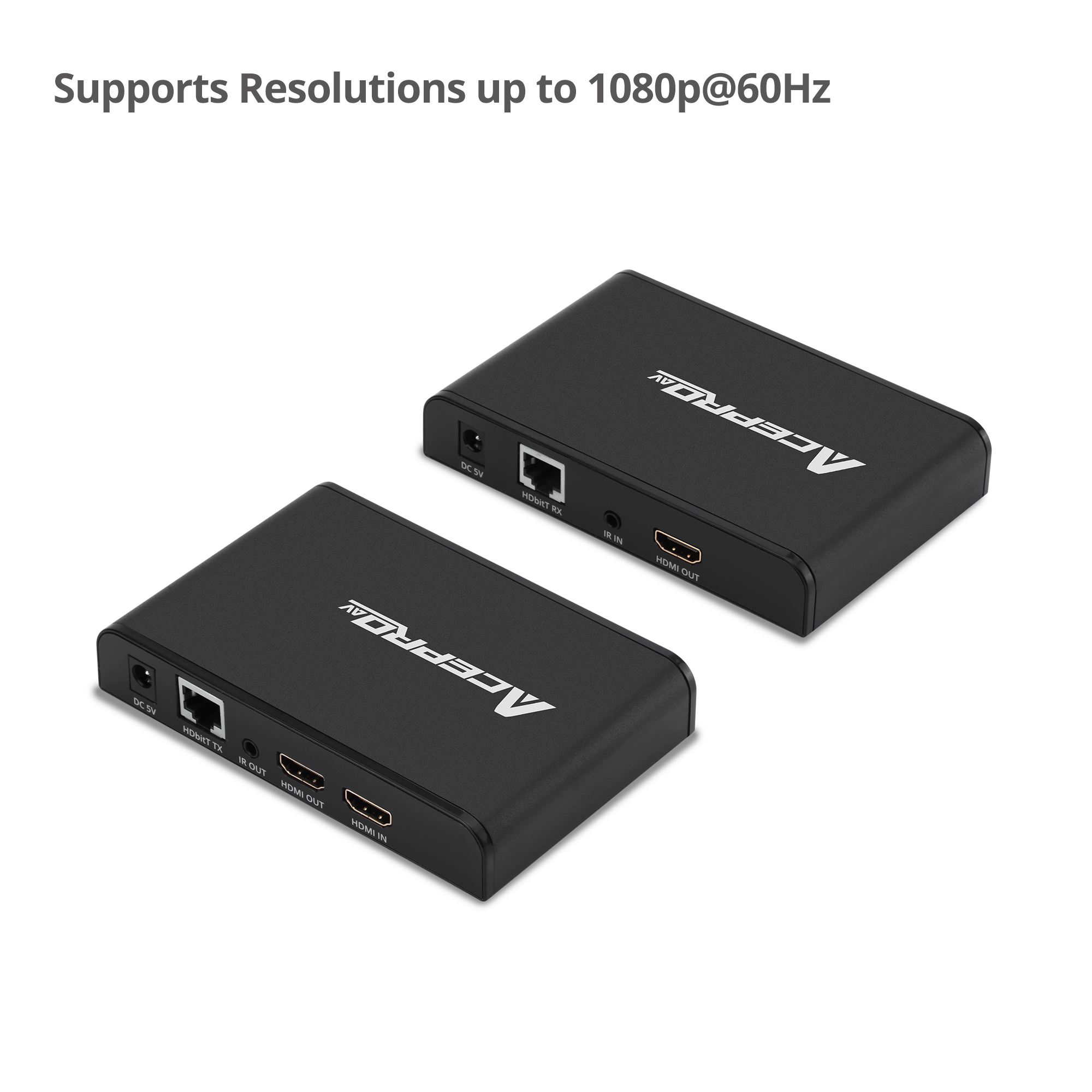

Delivers Full HD video content up to 1080p@60Hz resolution

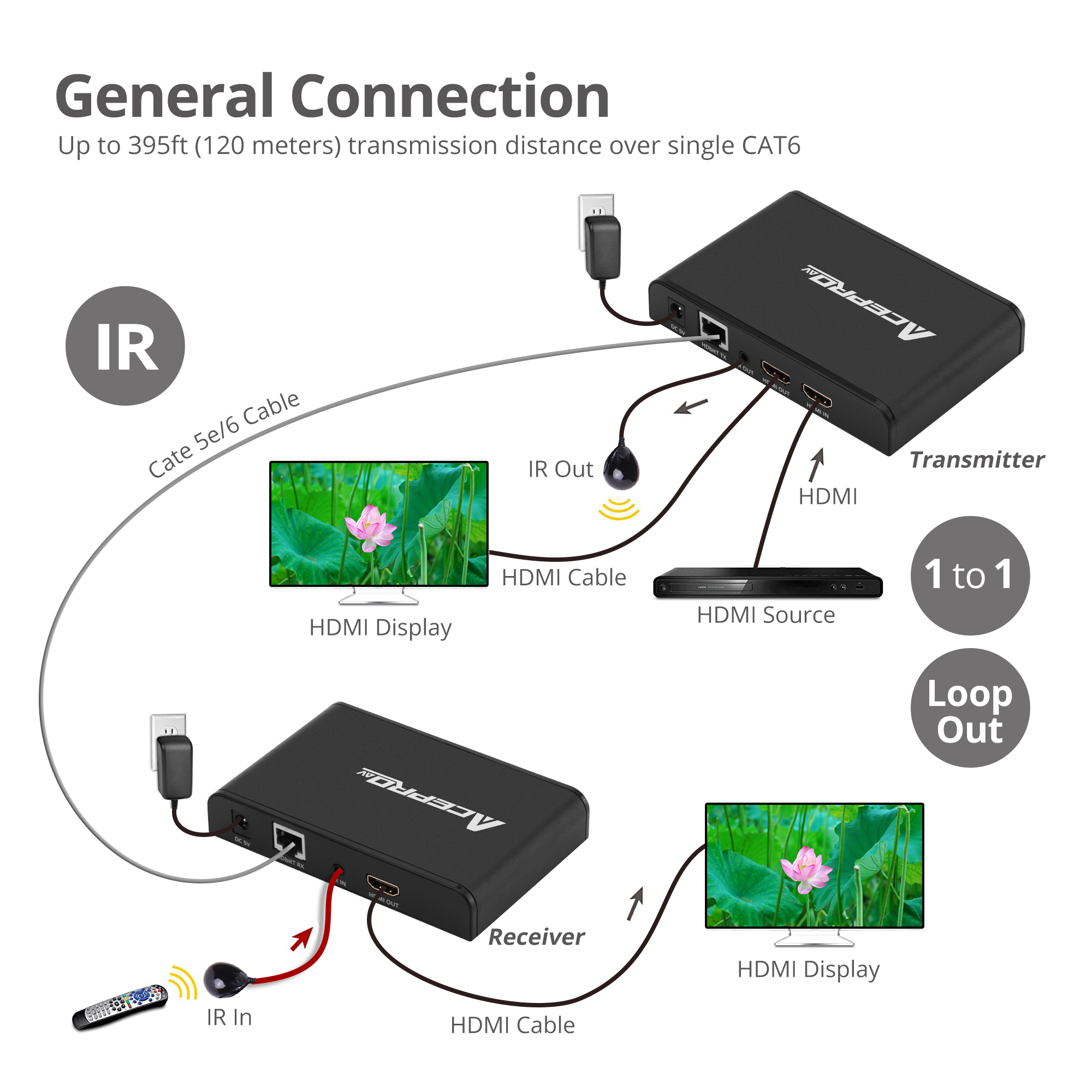

Features direct 1-to-1 connection or 1-to-Many connection through unmanaged Gigabit Ethernet routers or switches.

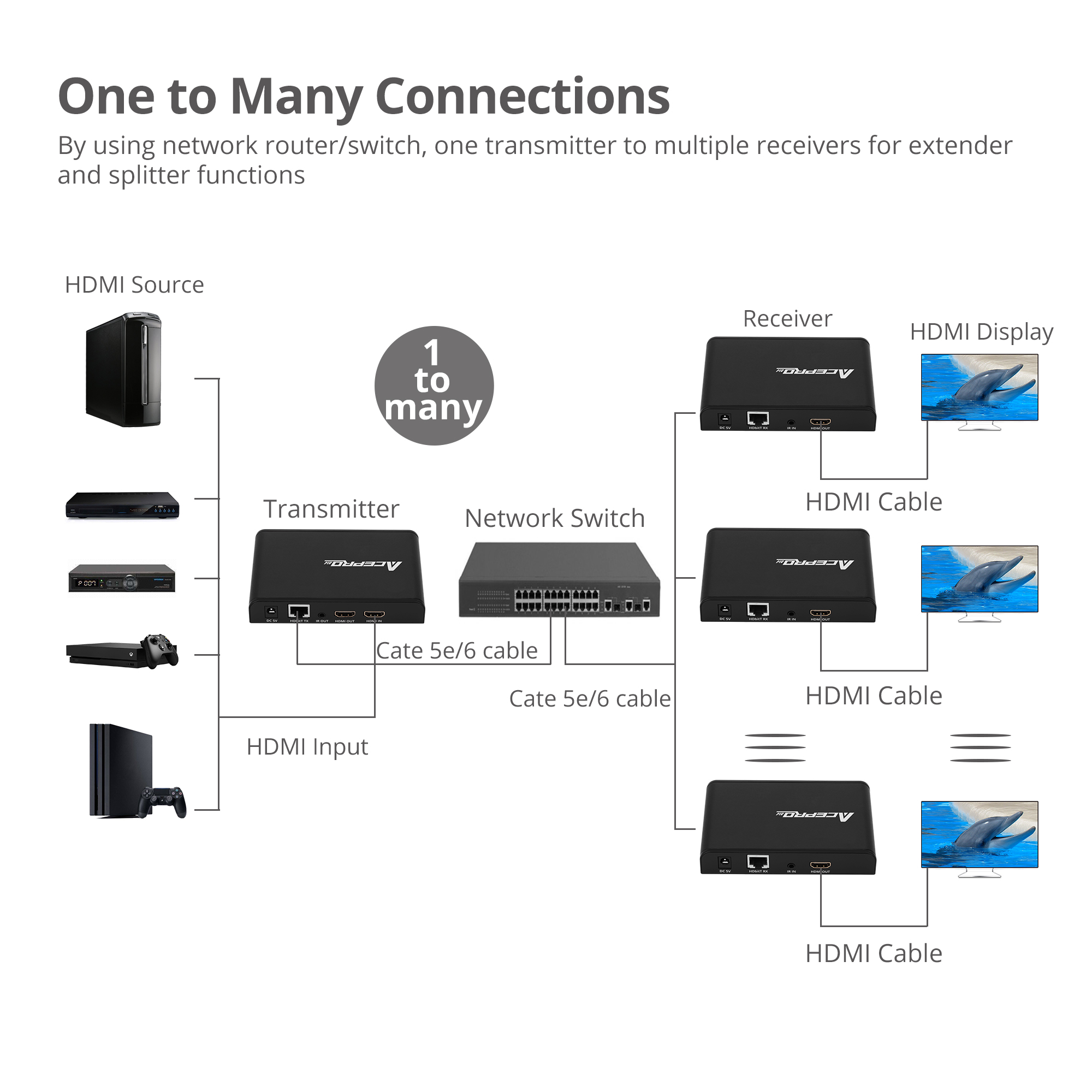

With HDBitT® transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays.  Note: Requires additional receivers (HDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver, sold separately) to support 1-to-Many connection through Gigabit Ethernet routers or switches

Supports a local HDMI output for monitoring the extended display

IR remote control over Cat6
allows you to remotely control the HDMI source device at the remote display side

High quality metal housing
with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Built-in power led indicator
provides easy power status monitoring

Plug-n-Play installation
no software installation or hardware setup is required

Specification

Compliant with HDMI 1.3 and HDCP 1.2



Transport protocol: HDbitT



Support connections:
■ 1-to-1 connection (extender)
■ One-to-Many connection: Splitter
■ Requires HDMI HDbitT Over Cat6 Extender with IR & Loop-out - Receiver, sold separately
■ Through dedicated Gigabit Ethernet switch/router), realize unlimited extension



Supports 2-Ch PCM stereo audio



Supports full frequency IR signal from 20KHz to 60KHz



Resolution: 480p / 720p / 1080i / 1080p 60Hz



Aluminum housing with wall mount design



Product:

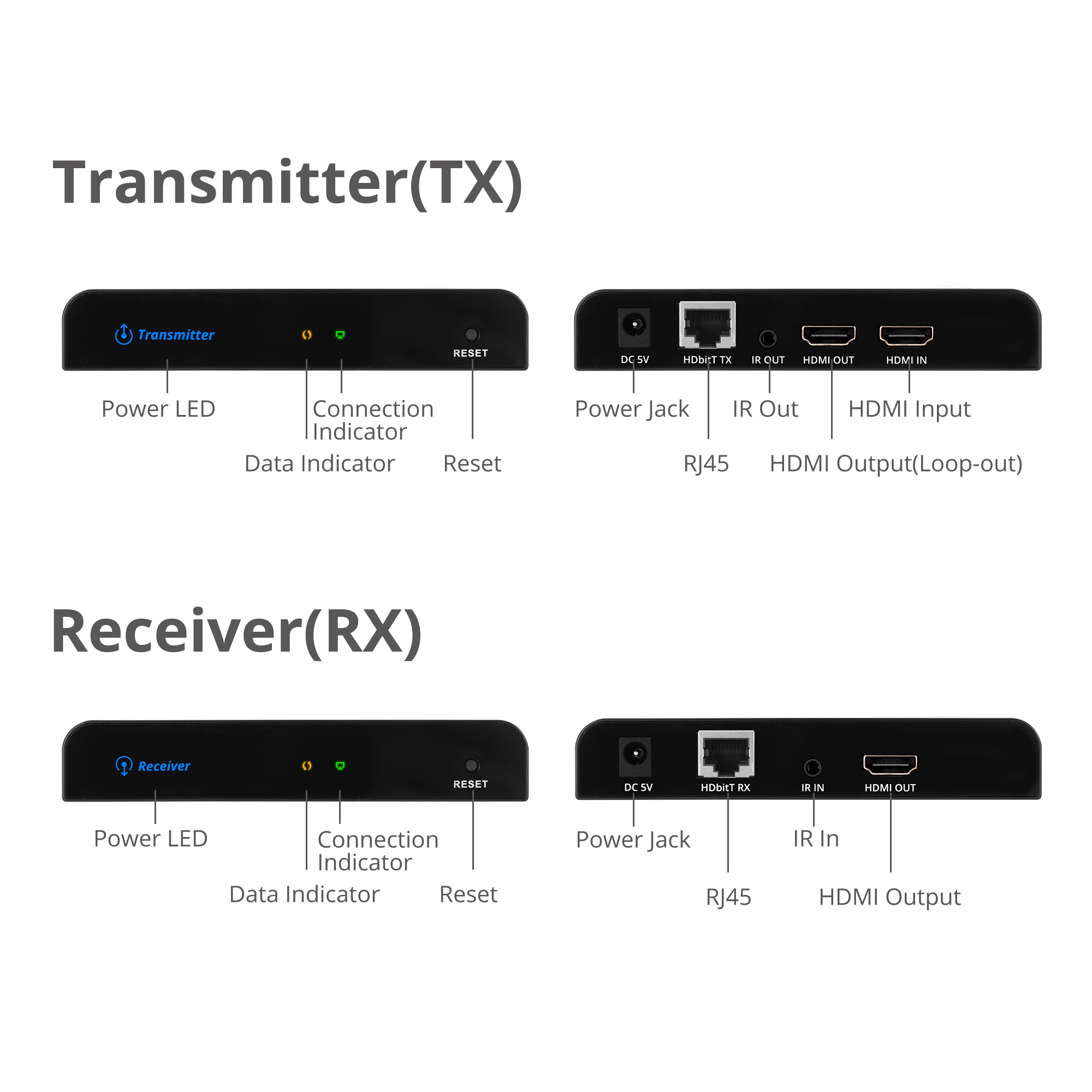

Transmitting unit (TX):
■ Dimensions: 5.12" (L) x 0.89" (H) x 3.31" (W)
■ Weight: 0.45 lbs
Connectors:
■ 1x 19-pin HDMI, Type A, Female, Input
■ 1x 19-pin HDMI, Type A, Female, Loop-out
■ 1x 3.5mm jack, IR Blaster
■ 1x 8-pin, RJ45, HDbitT signal output
■ 1x Power jack
■ 1x Reset button



Receiving unit (RX):
■ Dimensions: 5.12" (L) x 0.89" (H) x 3.31" (W)
■ Weight: 0.42 lbs

Connectors:
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 3.5mm jack, IR Receiver
■ 1x 8-pin, RJ45, HDbitT signal input
■ 1x Reset button
■ 1x Power jack



Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/1A
■ UL listed: E335801 / Level: VI



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 1 year limited



Country of origin: China
