• AcePro-CE75-1

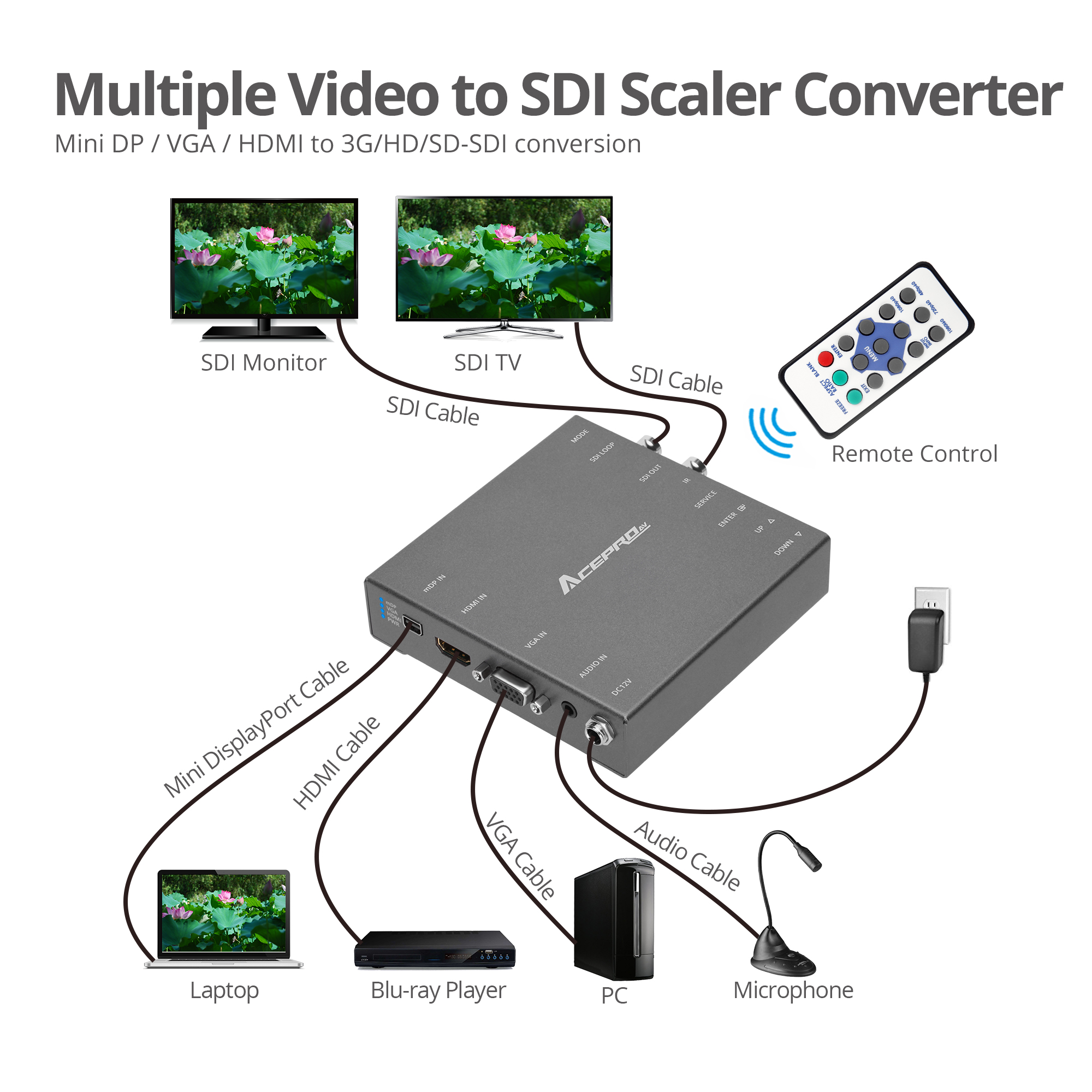

  • AcePro Multiple Video to SDI Scaler Converter

■ Professional quality multiple format video scaler converts HDMI, Mini DisplayPort, or VGA signal to 3G/HD/SD-SDI formats
Note: Only one video input connection is active at a time.
■ Supports output bandwidth up to 2.97 Gbps
■ Supports input pixel rate up to 165MHz
■ Supports push button control, IR control, and USB software control
■ Firmware upgradeable to future proof your investment
■ Wall-mount housing design for easy and secure installation

  • $0 $0

Highlights

Multiple Format Video Scaler
Professional quality multiple format video scaler converts HDMI, Mini DisplayPort, or VGA signal to 3G/HD/SD-SDI formats
Note: Only one video input connection is active at a time

Max Output Bandwidth 2.97 Gbps
Supports output bandwidth up to 2.97 Gbps

Max Input Pixel Rate 165 MHz
Supports input pixel rate up to 165MHz

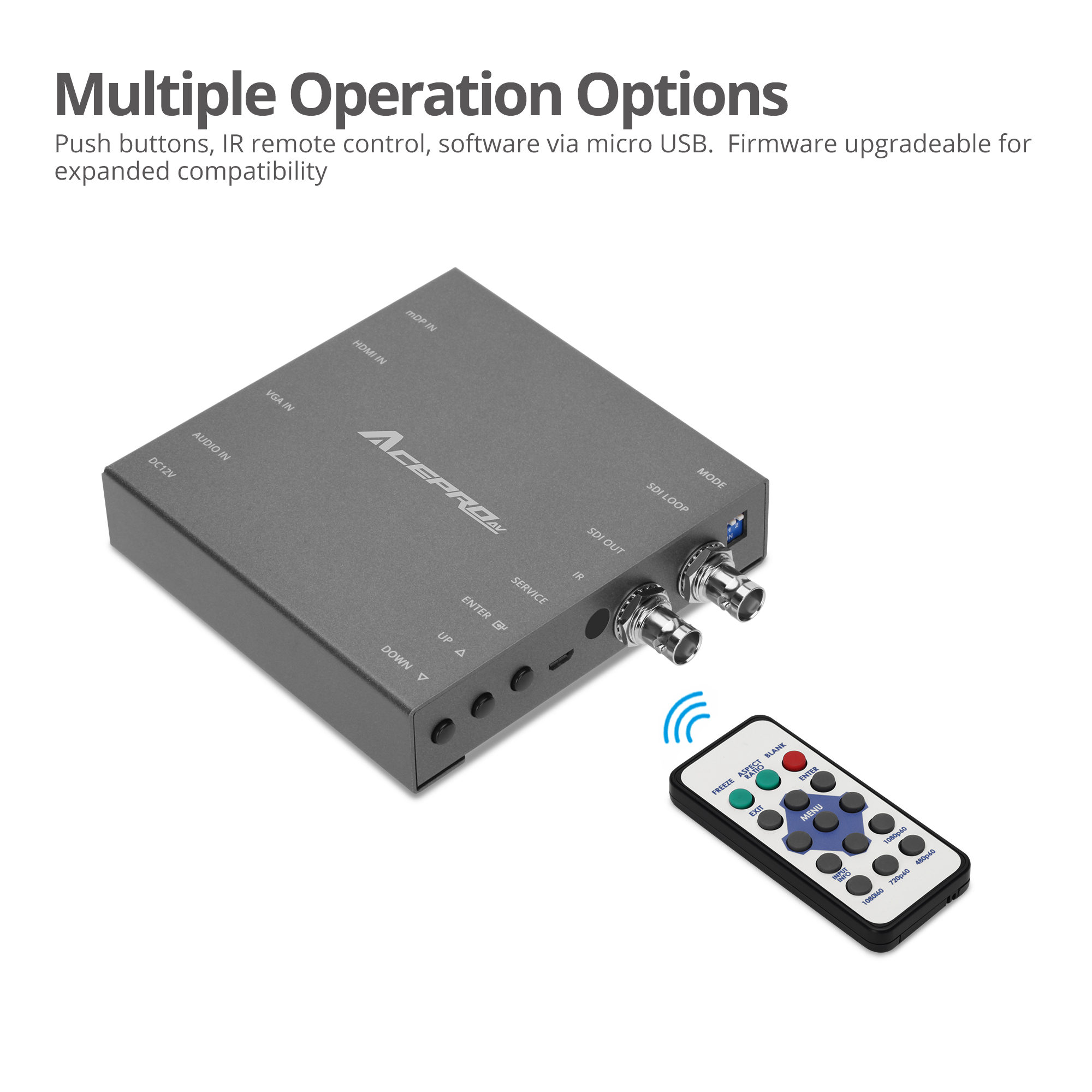

Multiple Controls
Supports push button control, IR control, and USB software control

Firmware Upgradeable
Firmware upgradeable to future proof your investment

Wall Mountable Design
Wall-mount housing design for easy and secure installation

Specification

Supports input video pixel rate up to 165MHz



Output bandwidth up to 2.97 Gbps



Supports 2Ch PCM with 48KHz sample rate

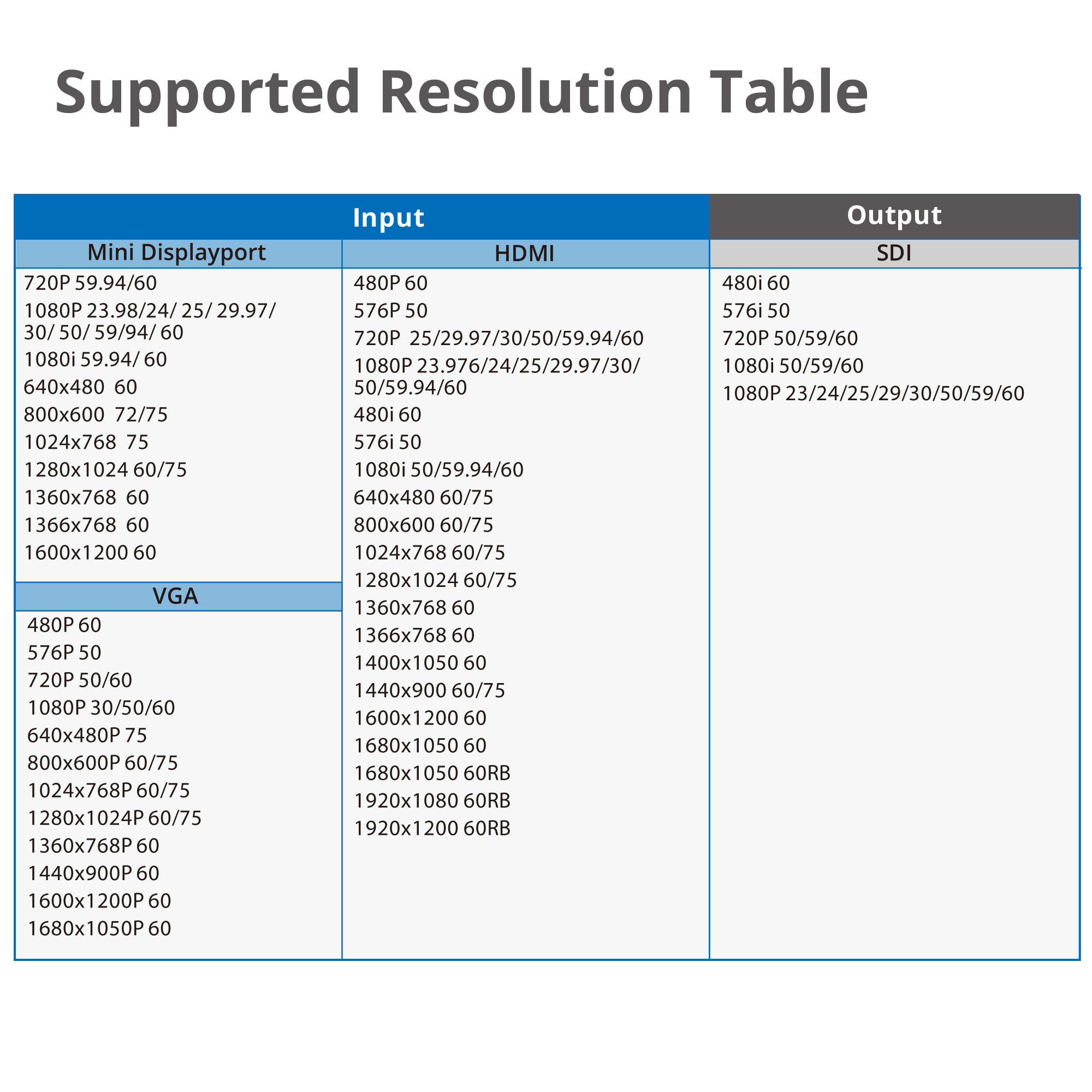

Supports multiple VESA resolution



Supports video enhancement features



Device control: IR remote, push button, OSD interface, and Micro-USB software



De-interlacing supported



Video H/V mirror supported



Over/under scanning adjustable



Active video area adjustment supported



Stable and independent output signal quality



Firmware upgradeable for expanding future compatibility



Video source connection LED indicator



ESD protection:
Air: ±19kV
Contact: ±12kV



Wall-mount housing design for easy and secure installation



Product:
Dimensions: 4.40" (L) x 0.98" (H) x 4.40" (W)
Weight: 0.52 lbs
■ Color: Gray
■ Housing: Metal

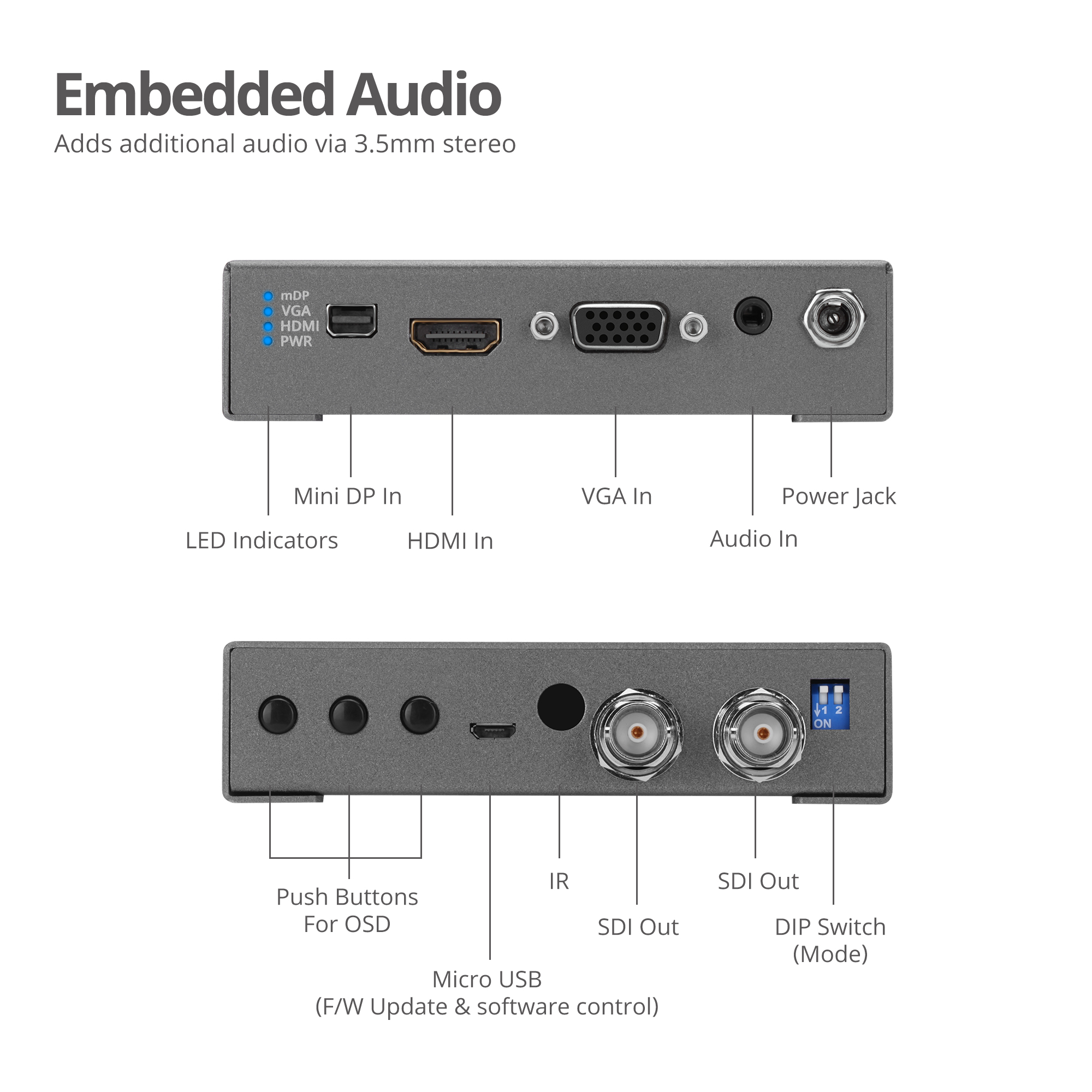

Connector:
■ 1x 19-pin, HDMI, Female, Input
■ 1x 20-pin, Mini DisplayPort, Female, Input
■ 1x 15-pin, VGA D-sub, Female, Input
■ 1x SDI, 3G/HD/SD, Output
■ 1x SDI, 3G/HD/SD, Loop-Out
■ 3x Push button, Left/Mid/Right function change
■ 1x 5-pin, Micro USB, female, Firmware / Control
■ 1x 3.5mm, Stereo Audio, Input (for VGA signal)
■ 1x 2-pin, DIP Switch, F/W update
■ 1x DC power jack



Power adapter:
Input: 100-240V AC / 50-60Hz
Output: DC 12V/2A
UL listed: E163743 / Level: VI



Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20% to 90% RH (non-condensing)



TAA Compliant



Certifications/Standards: FCC, CE, RoHS



Warranty: 3 years limited



Country of origin: Taiwan
