- AcePro-CE85-1

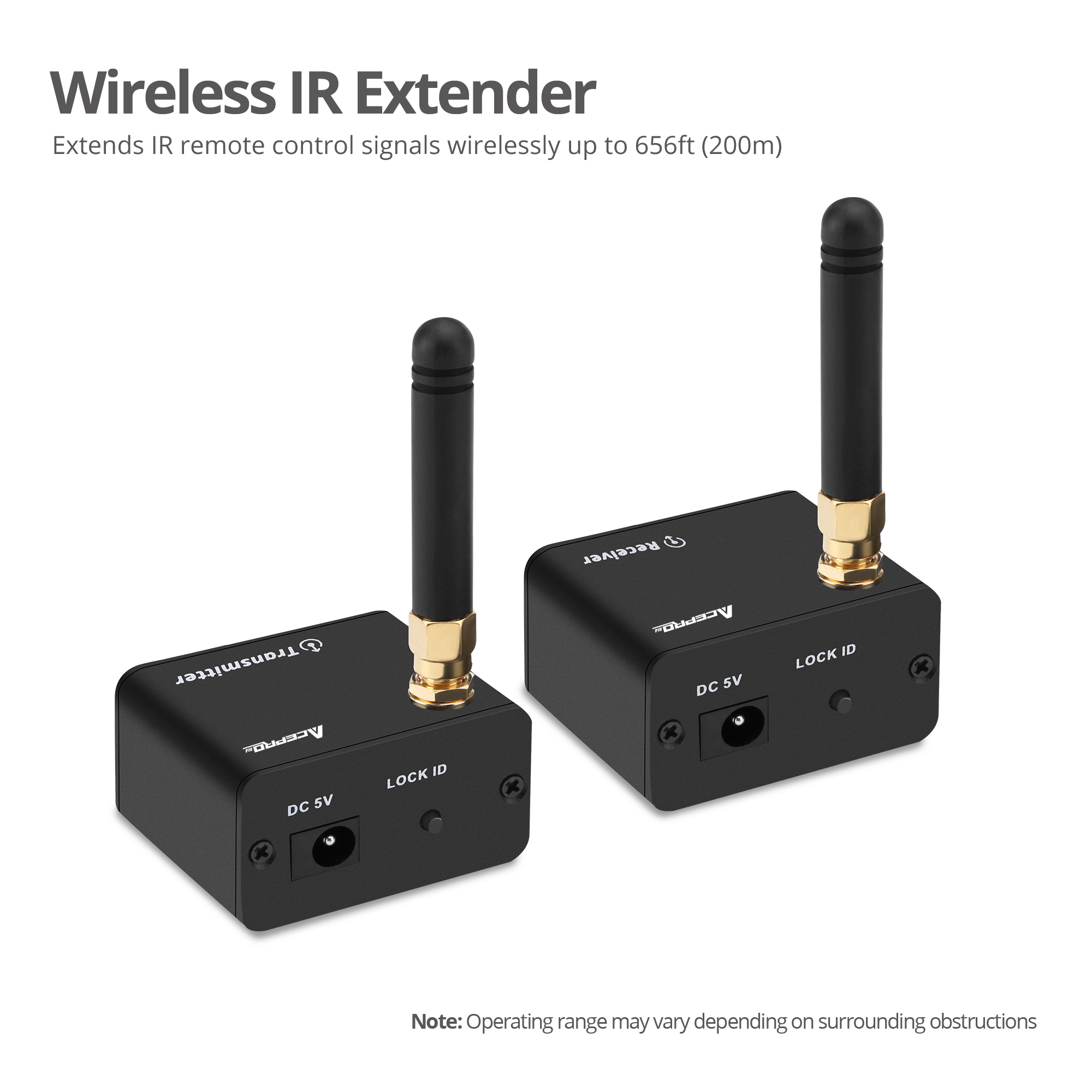

- AcePro Wireless IR Signal Extender Kit

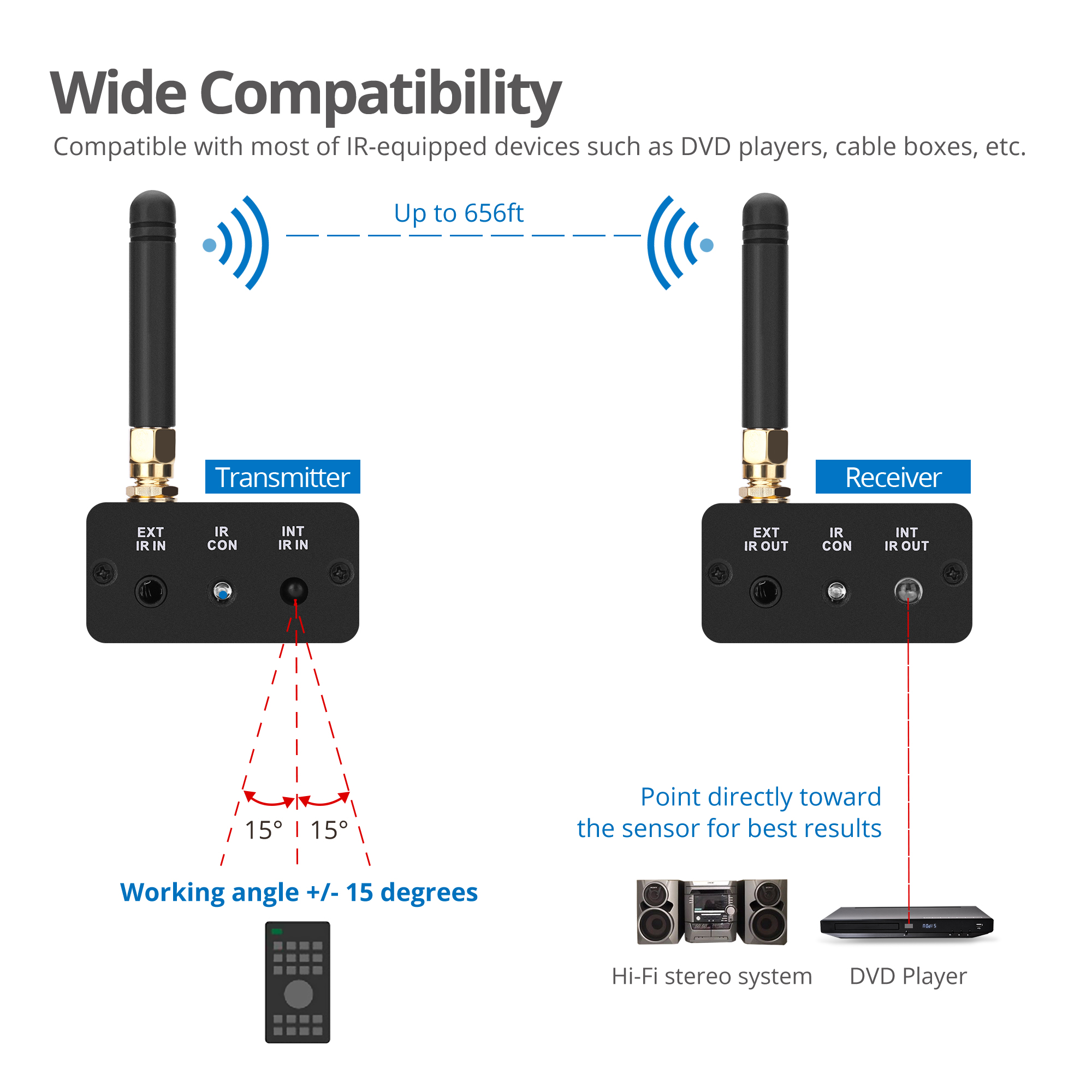

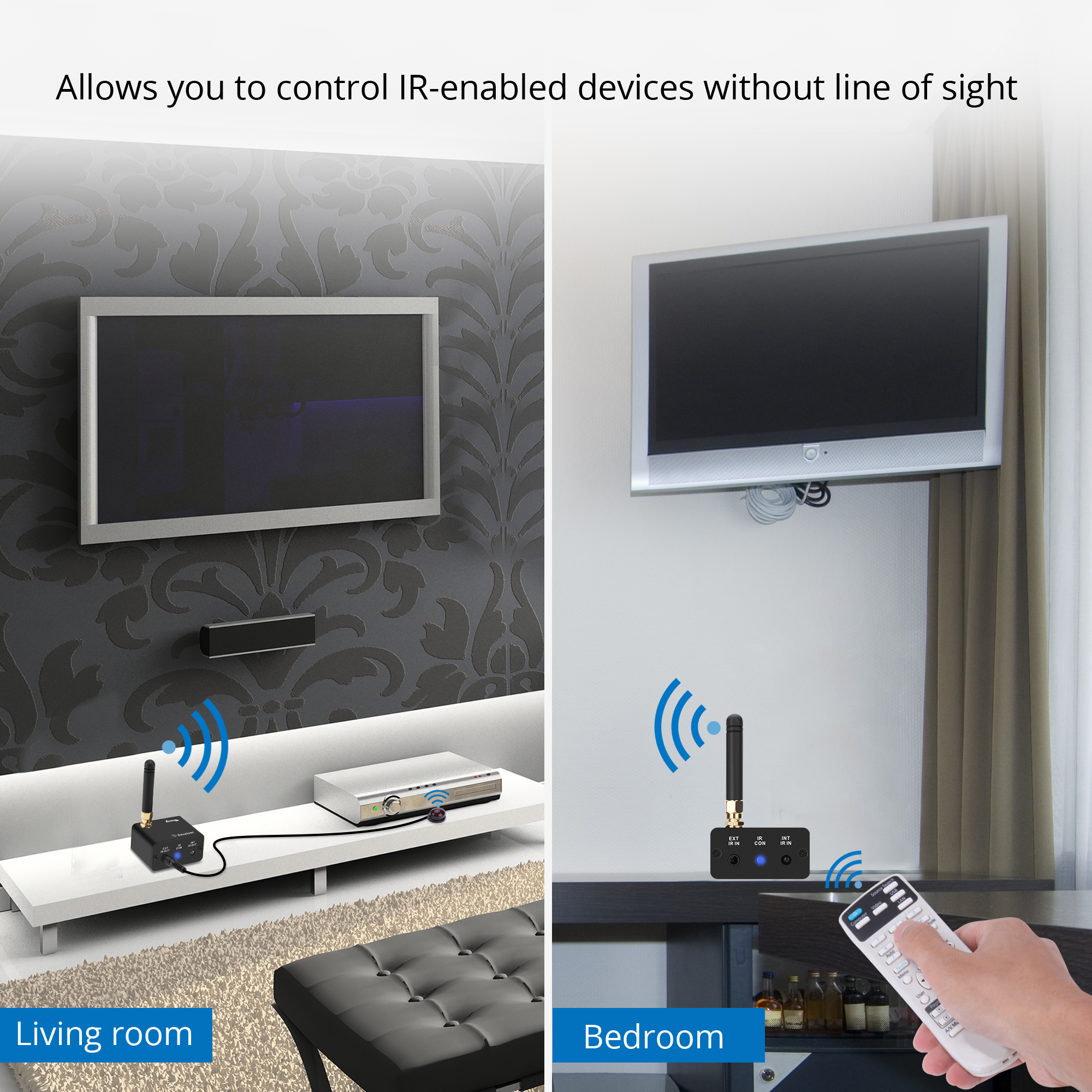

■ Wide coverage wireless signals penetrate walls and other obstructions allow you to move around freely and still have IR control of your A/V or other IR enabled equipment from remote locations up to 656ft (200m) away. Note: The wireless operating distance will vary depending on your building layout, surrounding obstructions, and electronic interference and may be less than the maximum distance ■ Compatible with IR remote controls using frequency range between 20KHz - 60KHz ■ High performance IR electronics provide real time signal transmission, virtually without delay, built-in LED indicator illuminates when the IR signal is received for easy status recognition ■ Portable size with included IR Blaster and IR Receiver extension cables allows easy and flexible placement anywhere in a home or office environment ■ Premium quality metal housing enhances heat dissipation and durability for dependable performance and long life
Highlights
Wide coverage wireless signals
penetrate walls and other obstructions allow you to move around freely and still have IR control of your A/V or other
IR enabled equipment from remote locations up to 656ft (200m) away.
Note: The wireless operating distance will vary depending on your building layout, surrounding obstructions, and electronic interference and may be less than the maximum distance
Compatible with IR remote controls using frequency range between 20KHz - 60KHz
High performance IR electronics
provide real time signal transmission, virtually without delay, built-in LED indicator illuminates when the IR signal is received for easy status recognition
Portable size
with included IR Blaster and IR Receiver extension cables allows easy and flexible placement anywhere in a home or office environment
Premium quality metal housing
enhances heat dissipation and durability for dependable performance and long life
Specification
Wireless transmission distance: up to 656ft (200m), line-of-sight
Wireless frequency: 915MHz
Power gain: 10dBm
IR frequency: 20KHz - 60KHz
Housing: Aluminum

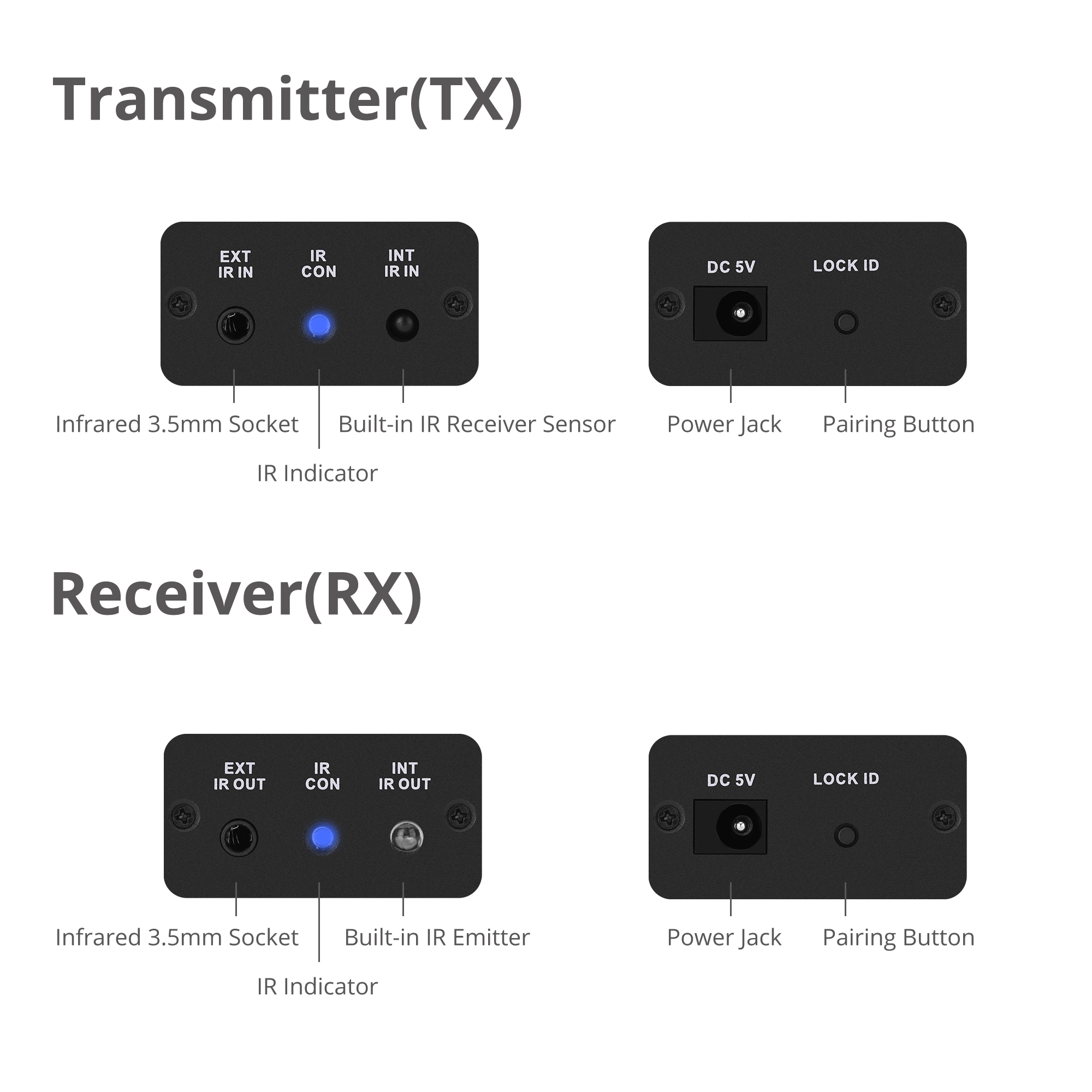

Transmitter unit (TX):
■ Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
■ Weight: 0.09 lbs
Connector:
■ 1x, 3.5mm, IR Jack, Receiver
■ 1x, DC Jack, USB power input
■ 1x, IR Receiver sensor
■ 1x, IR LED indicator
■ 1x, Click button, lock ID
Receiver unit (RX):
■ Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
■ Weight: 0.09 lbs
Connector:
■ 1x 3.5mm, IR Jack, Emitter
■ 1x DC Jack, USB power input
■ 1x IR Emitter sensor
■ 1x IR LED indicator
■ 1x Click button, lock ID
USB Power cable:
■ Input: 4-Pin, USB Type-A, Power input
■ Output: DC 5V output
■ Power consumption: 300mW
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 10 to 90% RH (non-condensing)
Certifications/Standards: FCC, RoHS
Warranty: 1 years limited
Country of origin: China
