- AcePro-CB11-1

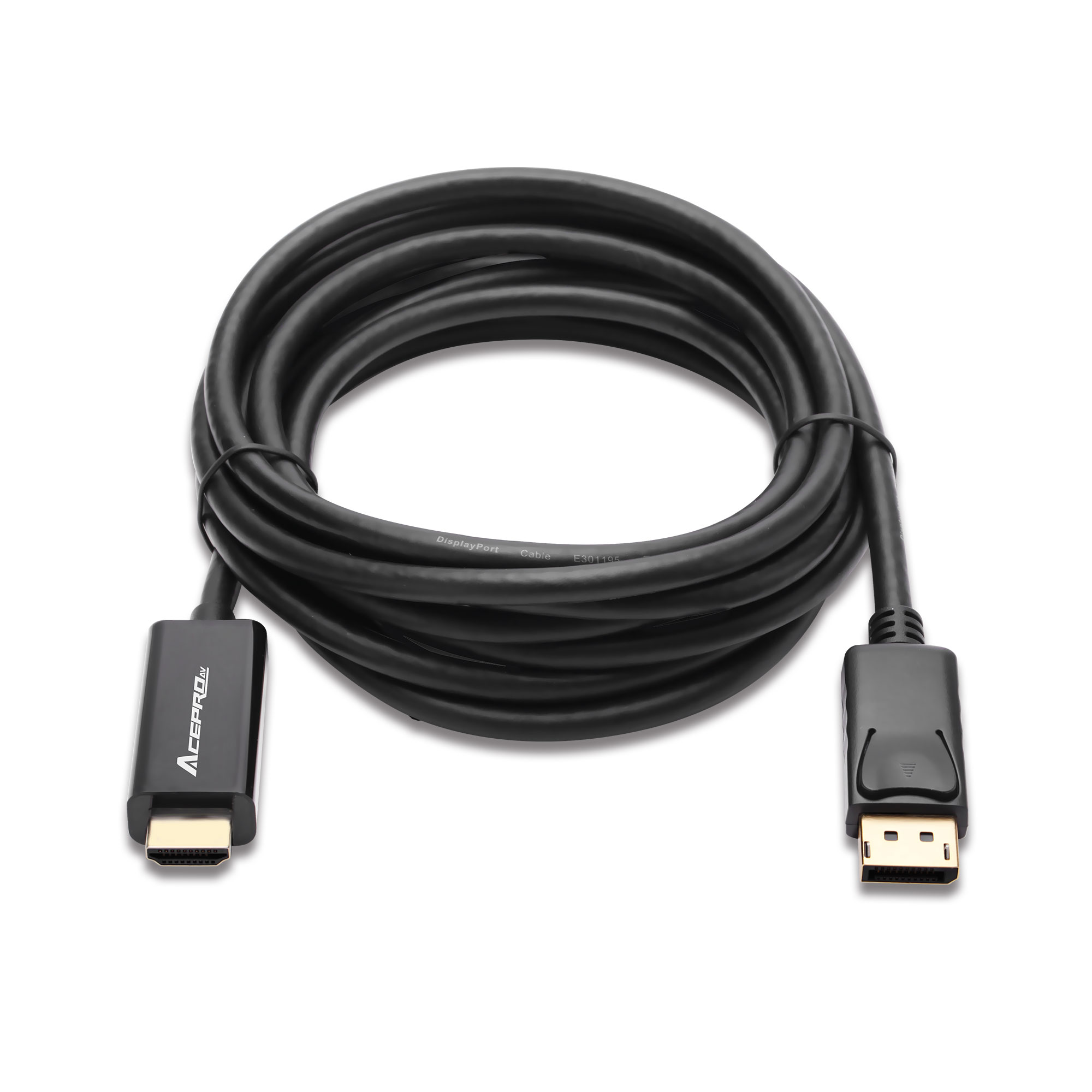

- AcePro DisplayPort 1.2 to HDMI 10ft Cable 4K/30Hz
■ Connects Dual Mode DisplayPort (DP++) enabled systems, desktops and laptops to HDMI HDTVs / Monitors Note: This is not a bi-directional cable. Does not work for HDMI to DisplayPort conversion ■ Compatible with DisplayPort 1.2 (1.62, 2.7, and 5.4 Gbps) and HDMI 1.4 (up to 10.2 Gbps) specifications ■ Supports HDTV resolutions up to 4K (3840x2160@30Hz) ■ Supports uncompressed high quality digital audio up to 7.1ch (the system's DisplayPort output must support audio) ■ Features gold plated connectors and triple shielded cable with PVC jacket for maximum video performance and signal integrity ■ Features latching DisplayPort connector to ensure secure connection ■ Supports HDCP (High-bandwidth Digital Content Protection) ■ Easy Plug-n-play installation with no driver installation required
Highlights
Dual Mode DisplayPort (DP++) Connection

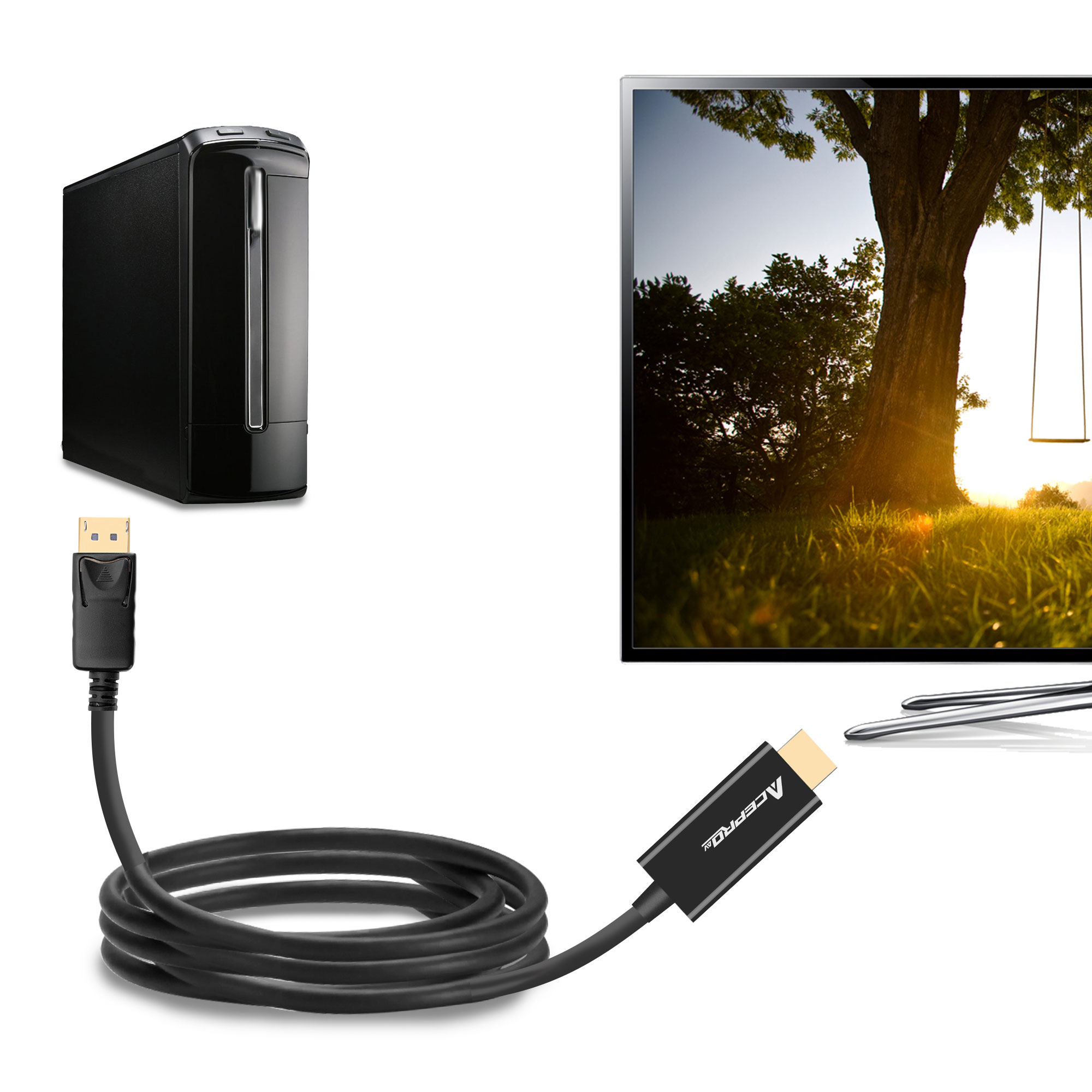

Connects Dual Mode DisplayPort (DP++) enabled desktops and laptops to HDMI HDTVs / Monitors
Note: This is not a bi-directional cable. Does not work for HDMI to DisplayPort conversion
Supports DisplayPort 1.2 and HDMI 1.4
Compatible with DisplayPort 1.2 (1.62, 2.7, and 5.4 Gbps) and HDMI 1.4 (up to 10.2 Gbps) specifications
Supports Up To 4K
Supports HDTV resolutions up to 4K (3840x2160@30Hz)
Supports High Quality Digital Surround Sound
Supports uncompressed high quality digital audio up to 7.1ch (the system's DisplayPort output must support audio)
Gold Plated Connectors For Better Connectivity
Features gold plated connectors and triple shielded cable with PVC jacket for maximum video performance and signal integrity
Latching DisplayPort Connector
Features latching DisplayPort connector to ensure secure connection
Supports HDCP
Supports HDCP (High-bandwidth Digital Content Protection)
Support Plug-n-play
Easy Plug-n-play installation with no driver installation required
Specification
Chip: PS8402
DisplayPort 1.2 compatible
Compatible with Dual Mode DisplayPort (DP++) outputs
HDMI 1.4 compatible
Triple-shielded cable with PVC jacket for maximum audio/video performance and prevention of signal loss
Gold plated connectors for optimal video quality
Display Resolutions:
■ PC: Up to 4K (3840 x 2160 @ 30Hz)
■ HDTV: 480i, 576i, 480p, 576p, 1080i, 1080p, and 4K@30Hz
Supports multi-channel digital audio (the system's DisplayPort output must support audio)
Video bandwidth: Up to 10.2 Gbps (max)
Adapter type: Passive
Product:
■ Cable length: 10ft (3.0M)
■ Cable weight: 0.31 lbs
■ Color: Black
■ Connectors:

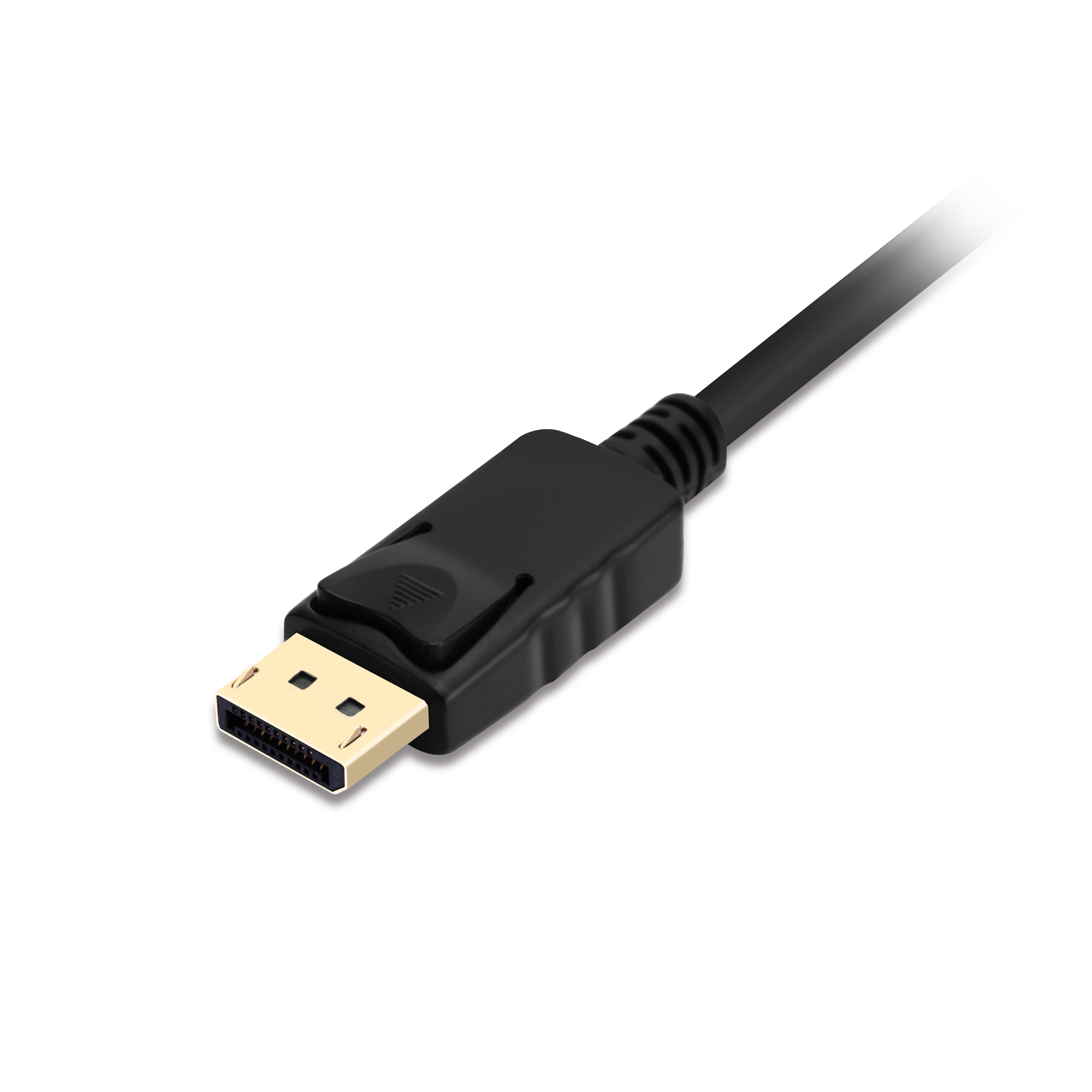

■ 1 x 20-pin, DisplayPort, Male, Input

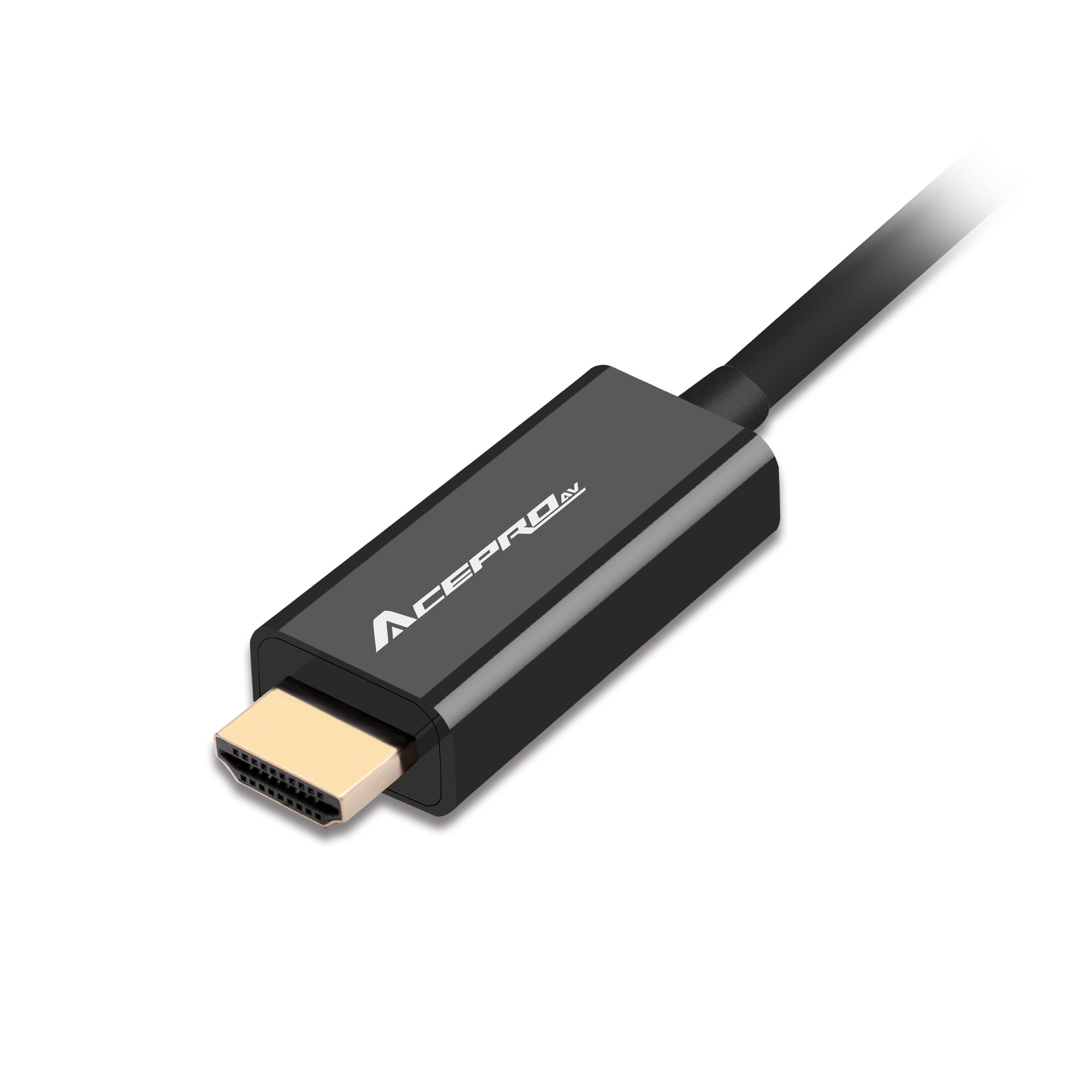

■ 1 x 19-pin, HDMI, Male, Output
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: < 85% non-condensing
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 year limited
Country of origin: China
