• AVLAB-NN02-1

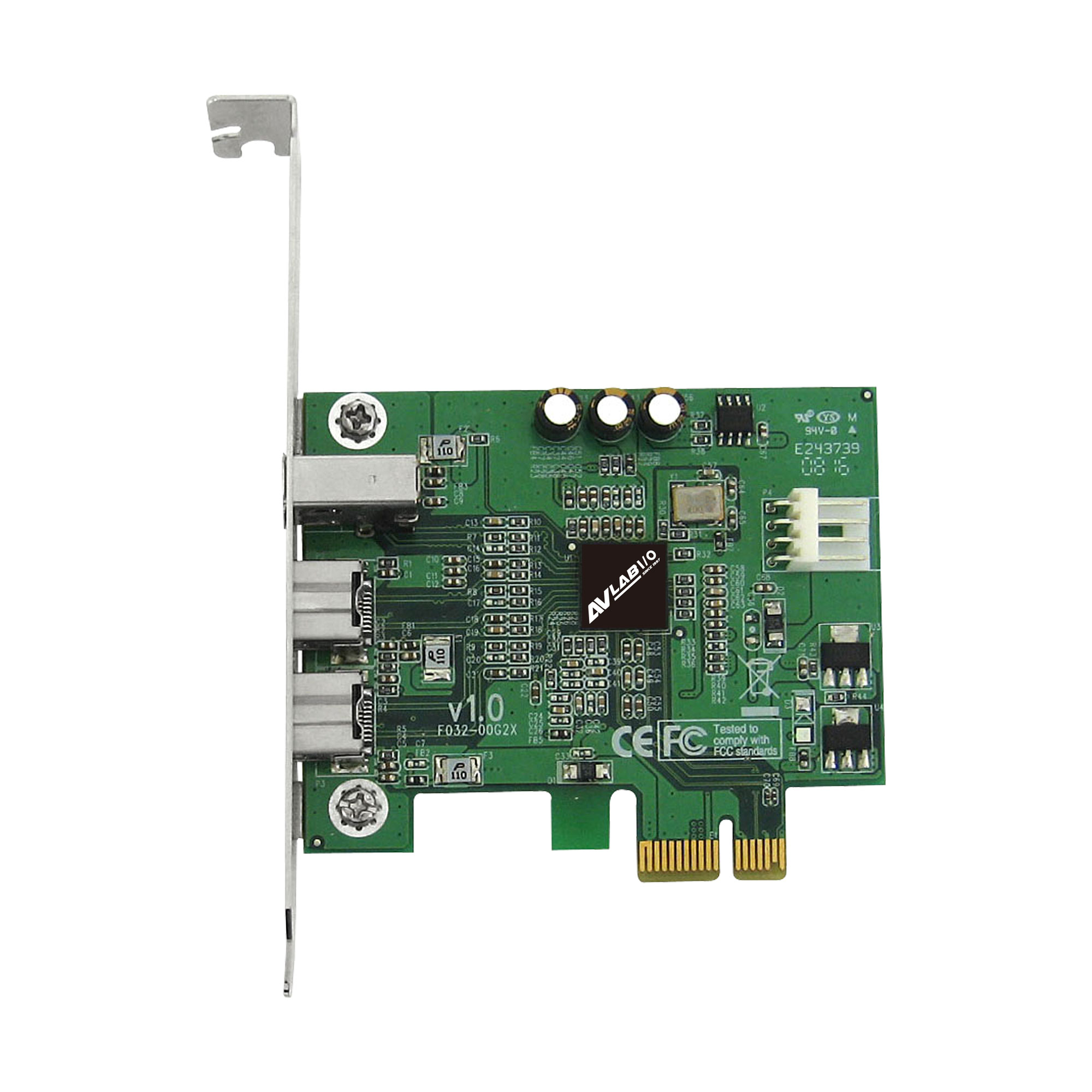

  • AVLAB 1394a/b PCIe Card - FireWire 400/800, 2x9-Pin, 1x6-Pin, Dual Profile Bracket


■ PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
■ Installs in any available PCI Express slot and supports data rates up to 800Mbps
■ Standard height and low profile brackets are included to work in different chassis form factors
■ Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

  • $0 $0

Highlights

PCI Express 1-lane (x1) FireWire adapter
works with PCI Express slots with different lane width

Installs in any available PCI Express slot
and supports data rates up to 800Mbps

Standard height and low profile brackets
are included to work in different chassis form factors

Works with various FireWire devices
including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices

Works with most big brands
Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing

Specification

Chipset: Texas Instruments TI XIO2213

Bus type: PCI Express x1

Port type: Two 9-pin and one 6-pin external FireWire ports

Compliant with PCI Express Base Specification Revision 1.0a

Supports IEEE P1394b and backward compatible with 1394a-2000 and 1394-1995 standards

Hot-swapping feature allows you to connect/disconnect devices without powering down the system

Supports serial bus data transfer rates of 100, 200, 400 and 800 Mb/sec and supports up to 63 devices

Onboard power connector to provide a reliable power source

Cable length: 16.4 ft / 5m (max)

Environmental conditions:
■ Operating temperature: 32 to 122 F (0 to 50 C)
■ Operating humidity: 10% to 90% RH
■ Storage temperature: -4 to 140 F (0 to 60 C)
■  Storage humidity: 10% to 90% RH

Certifications/Standards: FCC, CE, RoHS

Warranty: Lifetime limited

Country of origin: China
