- new | AVLAB-NN05-1

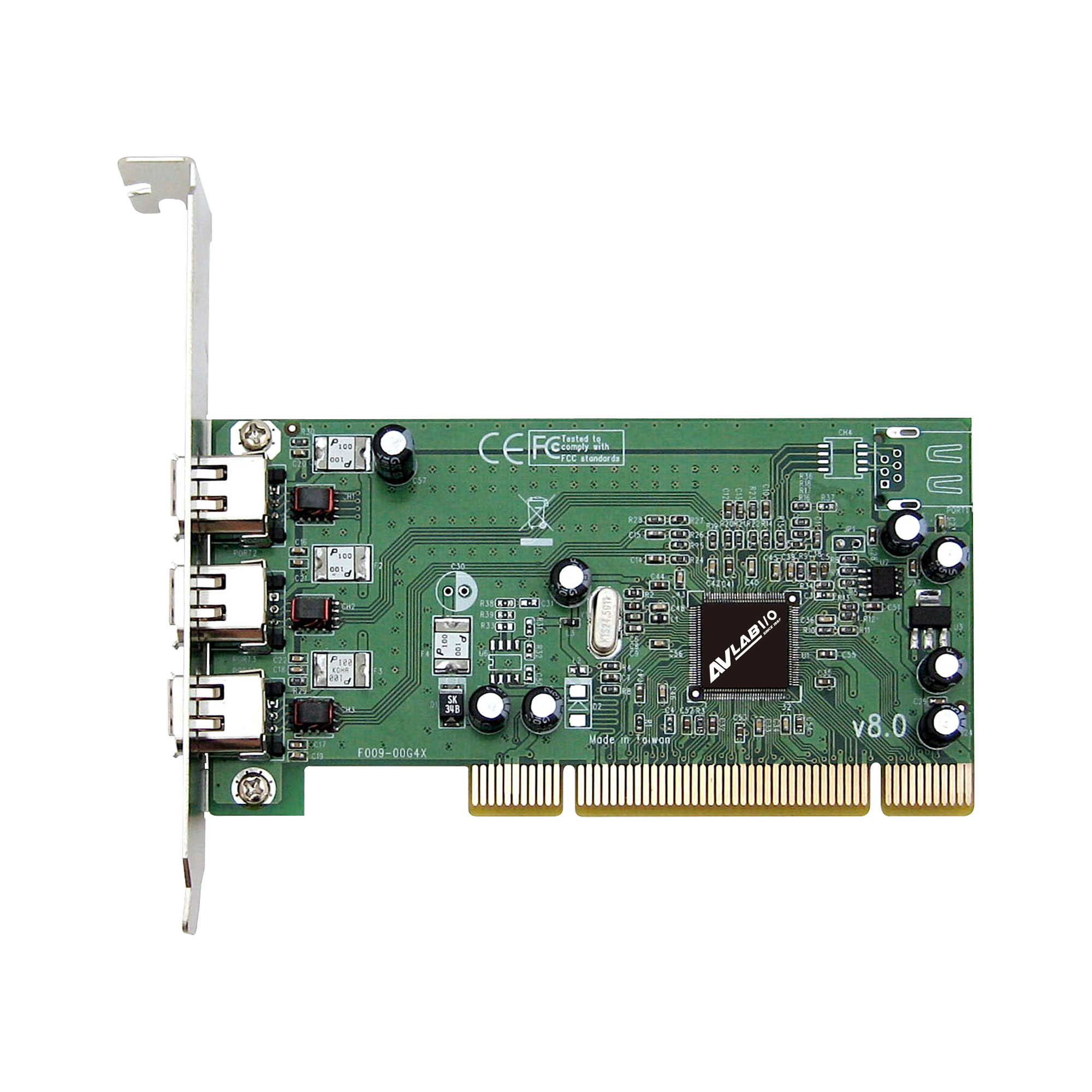

- AVLAB 1394a 3-Port PCI Card - 3x6-Pin, FireWire 400, Dual Profile Bracket
■ Three external IEEE 1394 (FireWire) ports support DV camcorders, hard disk, removable drives, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s ■ Supports both PC and Mac ■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing ■ Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Highlights
Three external IEEE 1394 (FireWire) ports
support DV camcorders, hard disk, removable drives, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s
Supports both PC and Mac
Work with most big brands
Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
Hot-swapping feature
allows you to connect/disconnect devices without powering down the system
Specification
Chip: TSB43AB23 (TI single chip)
Bus type: 32-bit PCI
Port type: 3, IEEE 1394a, External, Female
Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
Compliant with PCI Plug-n-Play 2.2
Supports serial bus data transfer rates of 100, 200 and 400Mb/sec
Cable length: 16.4 ft / 5m (max)
Product weight: 0.13 lbs
Product dimensions: 5.12" (w) x 4.72" (H) x 0.8" (D)
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Operating humidity: 20% to 80% RH
■ Storage humidity: 10% to 90% RH
Certifications/Standards: FCC, CE, RoHS
Warranty: Lifetime limited
Country of origin: China
