- AcePro-CE38-1
- AcePro 1x2 HDMI 2.0 Splitter with Audio Extractor / Auto Scaling & EDID Management
■ Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality ■ Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth ■ Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color & 7.1 CH surround sound audio. Note: Different setups may require adjustments to the EDID settings to work ■ Supports Dolby Digital, DTS-HD and Dolby TrueHD audio ■ Auto Video Scaling Feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Use Elgato or other game capture devices to record game play footage in 1080p, while actually playing in 4K. Limit HDMI cable length to no more than 10m (32.8ft) 5m Input + 5m Output. ■ Extracts audio from an incoming digital HDMI signal and converts it to an Optical S/PDIF Toslink and an S/PDIF RCA audio output. Capable of splitting audio to all three outputs simultaneously ■ High quality materials with sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference ■ Built-in EDID management and firmware update mechanism further expand compatibility Notes: - Auto downscale from 4K to 1080p should work in most cases. If Auto doesn’t work, try the Forced downscale option - Downscaling to 720p and 480p is not supported. - Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P. - YCbCr 4:2:2 downscaling is not supported. - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported. - 4K @30Hz monitors will display in 1080p @60Hz when the source content is 4K @60Hz. - Some Sharp 4K TV models (such as 4T-C45AH1T, LC-43UC30U) are found incompatible with our Splitter in a downscaling operation. Contact us before purchasing if you are not sure about compatibility. - Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.
Highlights
Distributes HDMI video and audio
From a single source to up to 2 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit)
3D, xvYCC, x.v.Color & Deep Color & 7.1 CH surround sound audio. Note: Different setups may require adjustments to the EDID settings to work
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto Video Scaling Feature
Detects and configures the video resolution automatically according to the capabilities of each connected monitor. Use Elgato or other game capture devices to record game play footage in 1080p, while actually playing in 4K. Limit HDMI cable length to no more than 10m (32.8ft) 5m Input + 5m Output.

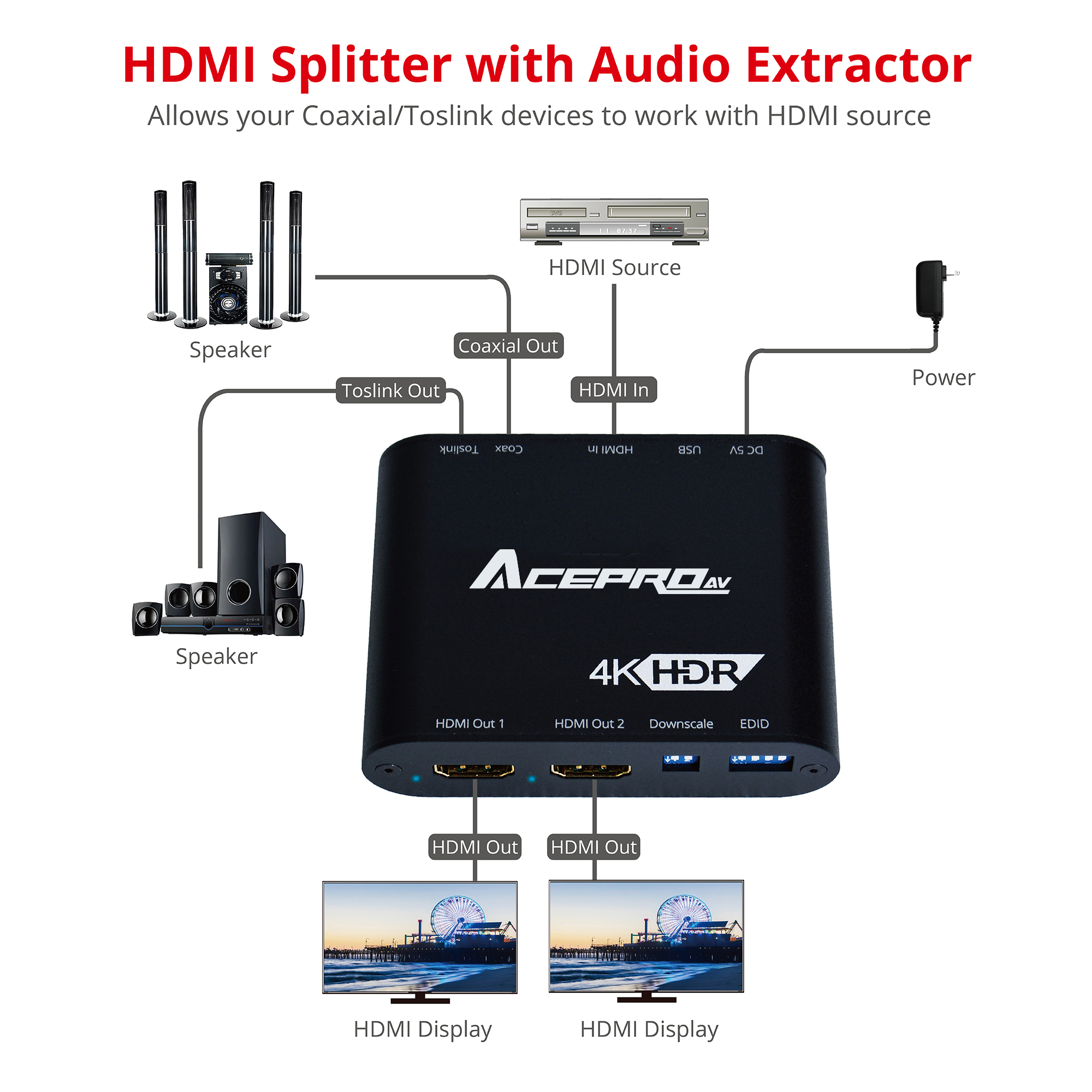

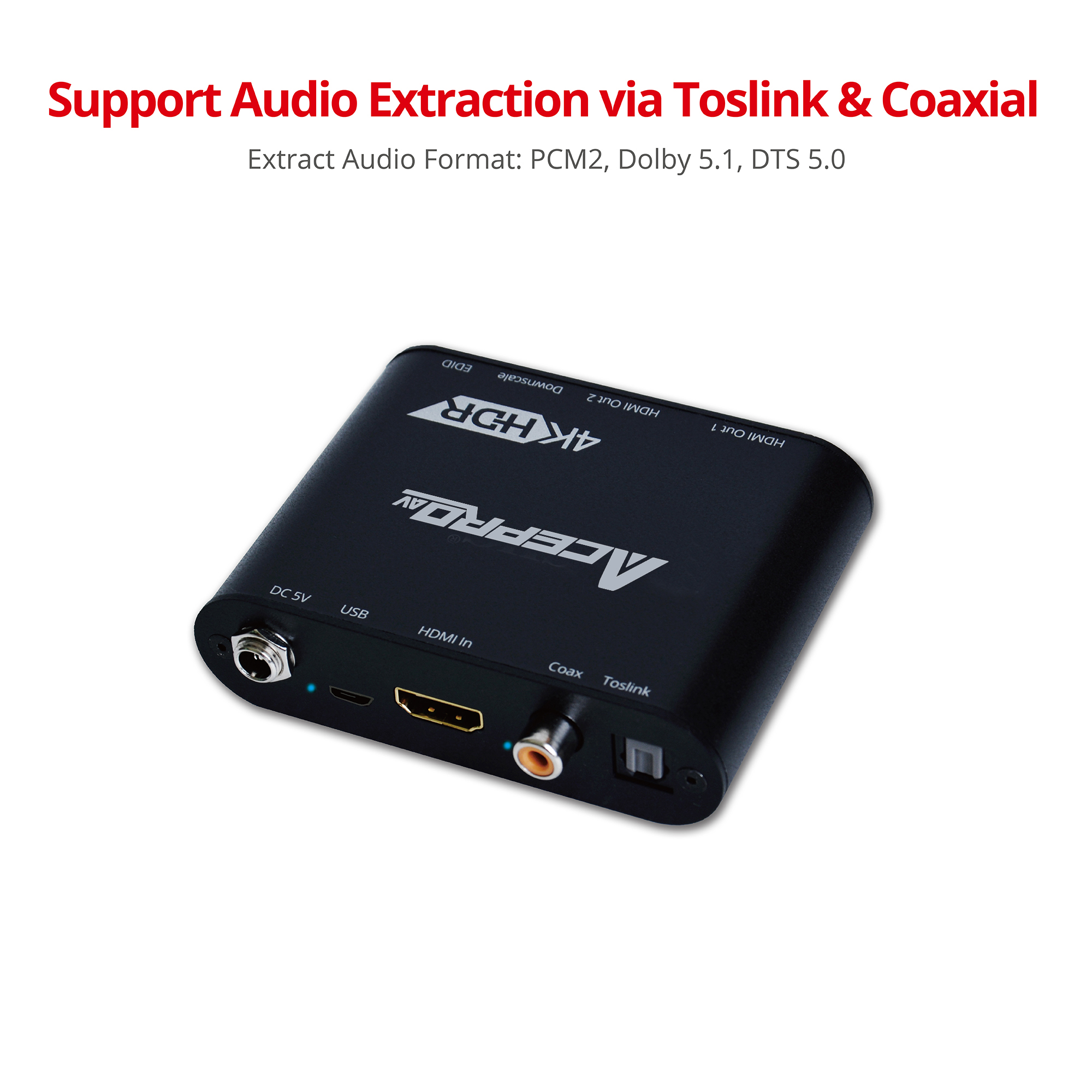

Extracts audio from an incoming digital HDMI signal
And converts it to an Optical S/PDIF Toslink and an S/PDIF RCA audio output. Capable of splitting audio to all three outputs simultaneously
High quality materials
With sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference
Built-in EDID management and firmware update mechanism further expand compatibility
Notes:

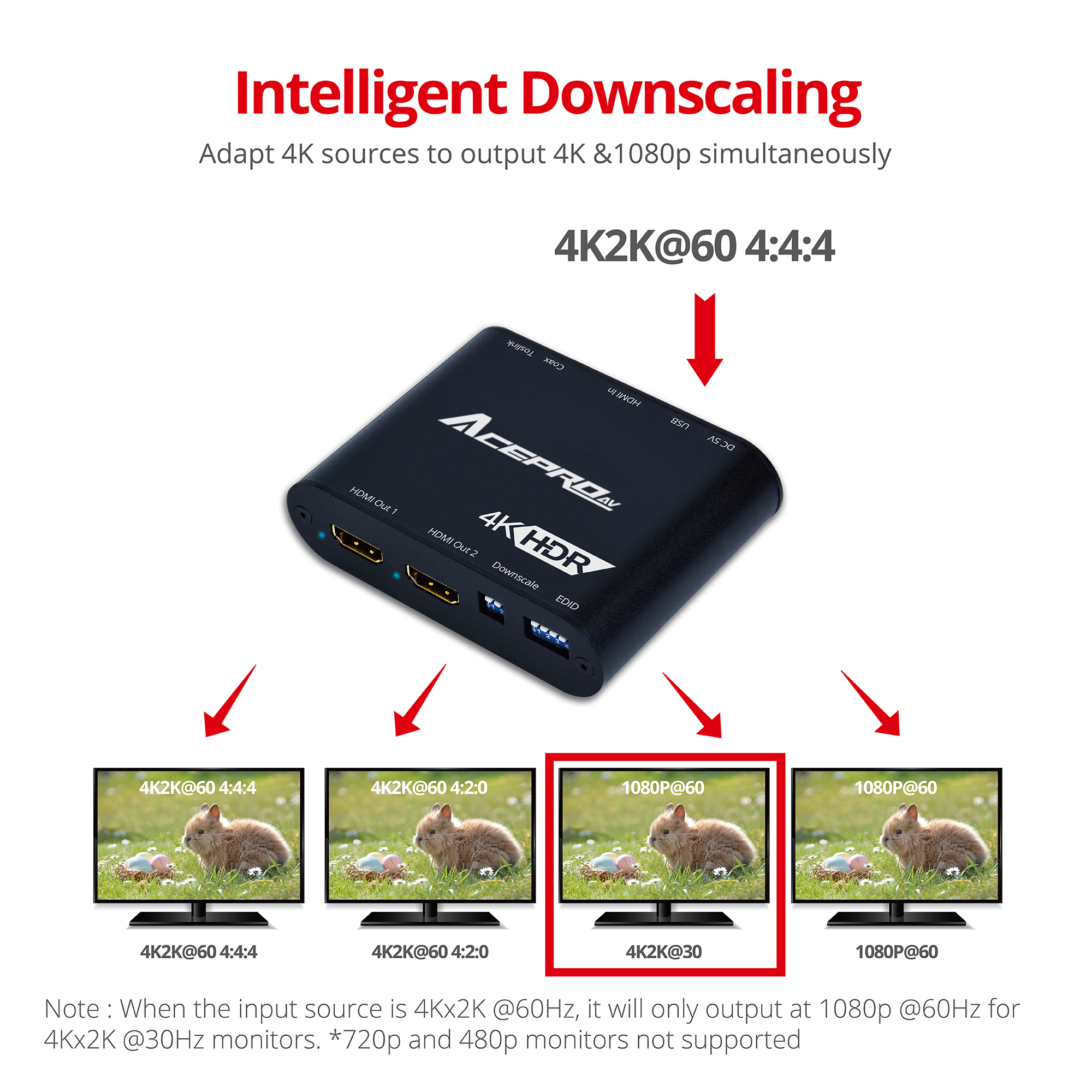

- Auto downscale from 4K to 1080p should work in most cases. If Auto doesn’t work, try the Forced downscale option
- Downscaling to 720p and 480p is not supported.
- Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P.
- YCbCr 4:2:2 downscaling is not supported.
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported.
- 4K @30Hz monitors will display in 1080p @60Hz when the source content is 4K @60Hz.
- Some Sharp 4K TV models (such as 4T-C45AH1T, LC-43UC30U) are found incompatible with our Splitter in a downscaling operation. Contact us before purchasing if you are not sure about compatibility.
- Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.
Specification
Chip:IT6663FN
Compliant with HDMI 2.0, HDCP 2.2
Supports xvYCC, x.v.Color & Deep Color
Supports 4K2K@60Hz YUV 4:4:4 8bit
Supports HDR 4K2K@60Hz YUV 4:2:0 10bit
Video bandwidth:18Gbps (single-link 600MHz)
Video support 480p/720p/1080i/1080p/HDR 4K2K@60Hz (YUV 4:2:0 10bits)/4K2K@60Hz (YUV 4:4:4 8bits)
EDID management:Embedded EDID and EDID learning
Micro-USB port for firmware update for expanding compatibility
Audio support:DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
LED indication for power and signal
ESD protection:±15kV Air / ±8kV Contact
Product:
■ Dimensions:3.54" (L) x 0.94"(H) x 2.56" (W)
■ Weight:0.31 lbs
■ Color:Black
■ Housing material: Metal
■ HDMI cable length:
- 4K @60Hz:Up to 10m (5m/In ; 5m/Out)
- 1080p & 4K@30Hz:Up to 15m (5m/In ; 10m/Out)

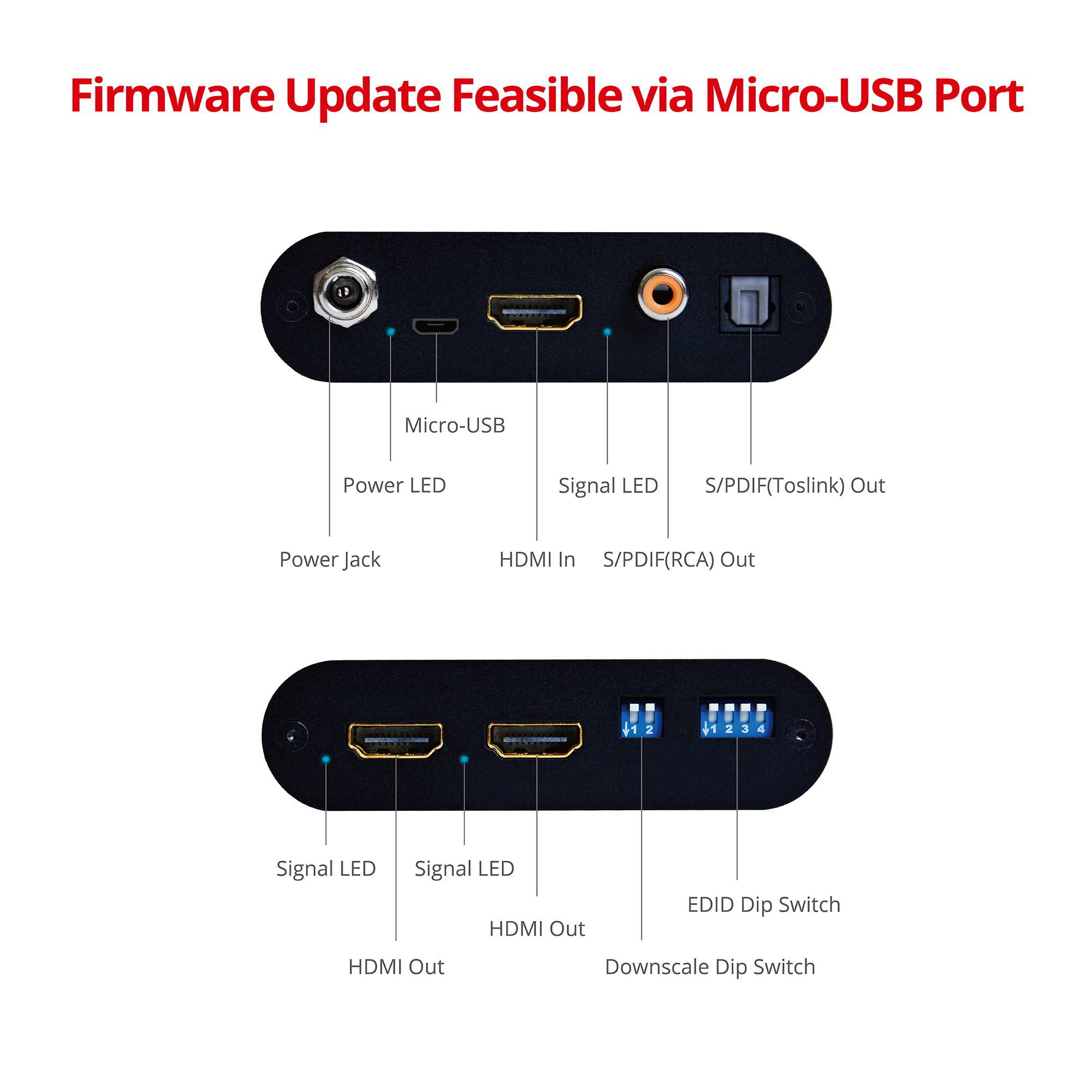

Connector:
- 1x 19-Pin, HDMI, Type A, Female, Input
- 2x 19-Pin, HDMI, Type A, Female, Output
- 1x S/PDIF Coaxial, Female, Output
- 1x S/PDIF Toslink, Female, Output
- 1x 4-pin DIP switch, EDID mode control
- 1x 2-pin DIP switch, F/W and Service
- 1x 5-Pin, Micro-USB, Female, Firmware update
- 1x Power jack
Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 5V/2A
■ UL Listed: E135856/Level:VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:FCC, CE, RoHS
TAA compliant
Warranty:1 years limited
Country of origin:Taiwan
*Notes:
- Auto downscale from 4K to 1080p should work in most cases. If Auto doesn’t work, try the Forced downscale option
- Downscaling to 720p and 480p is not supported.
- Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P.
- YCbCr 4:2:2 downscaling is not supported.
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported.
- 4K @30Hz monitors will display in 1080p @60Hz when the source content is 4K @60Hz.
- Some Sharp 4K TV models (such as 4T-C45AH1T, LC-43UC30U) are found incompatible with our Splitter in a downscaling operation. Contact us before purchasing if you are not sure about compatibility.
- Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.
Package Contents
■ 1x2 HDMI 2.0 Splitter with Audio Extractor / Auto Scaling & EDID Management
■ Power Adapter
■ Quick Start Guide
