- AcePro HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Kit
■ Transmits 4K HDMI signals with stereo audio to a remote display over Cat5e/6/7 cabling up to 120 meters Note: A good quality Cat5e/6/7 cable is essential in delivering quality content, Cat6/6a/7 is recommended over Cat5e ■ Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 255 total units, limited to 100 transmitters. Additional transmitter units (part # CE-H25B11-S1) and receiver units (part # CE-H25C11-S1) sold separately Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability ■ Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images ■ IR pass back function to control the source device from RX location ■ Computer control software to select and switch between source devices (Matrix only) ■ HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
Highlights
Transmits 4K HDMI signals with stereo audio
To a remote display over Cat5e/6/7 cabling up to 120 meters
Note:A good quality Cat5e/6/7 cable is essential in delivering quality content, Cat6/6a/7 is recommended over Cat5e
Works as a scalable TX/RX Matrix over dedicated IP network
Allows up to 255 total units, limited to 100 transmitters. Additional transmitter units (part # CE-H25B11-S1) and receiver units (part # CE-H25C11-S1) sold separately
Note:Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
Delivers up to 4K@60Hz video resolution
To deliver stunning and crystal clear images
IR pass back function
To control the source device from RX location
Computer control software to select and switch between source devices (Matrix only)
HDbitT protocol with H.264 compression over IP
Delivers superior performance and reliability
Specification
Transmission Protocol:HDbitT, V1.3x-c (H.264 compression)
Compliant with HDMI 2.0 and HDCP 2.2
HDMI resolution:Up to 4Kx2K@60Hz
Maximum transfer rate:18Gbps
HDMI cable length:Up to 5m, 26AWG (Input & Output)
Supports 2-Ch PCM stereo audio
Connection modes:

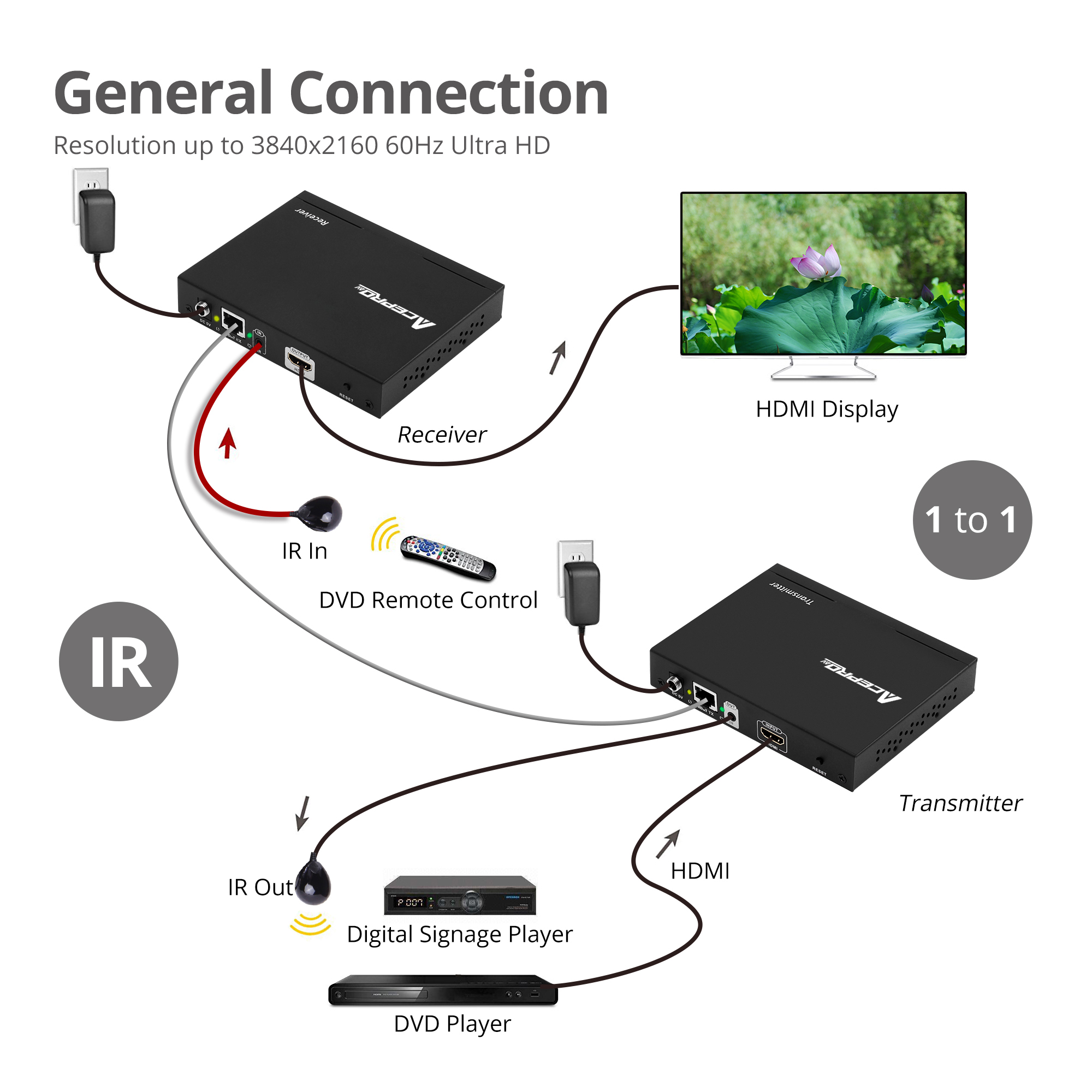

■ One-to-One: Extender, 1 TX to 1 RX

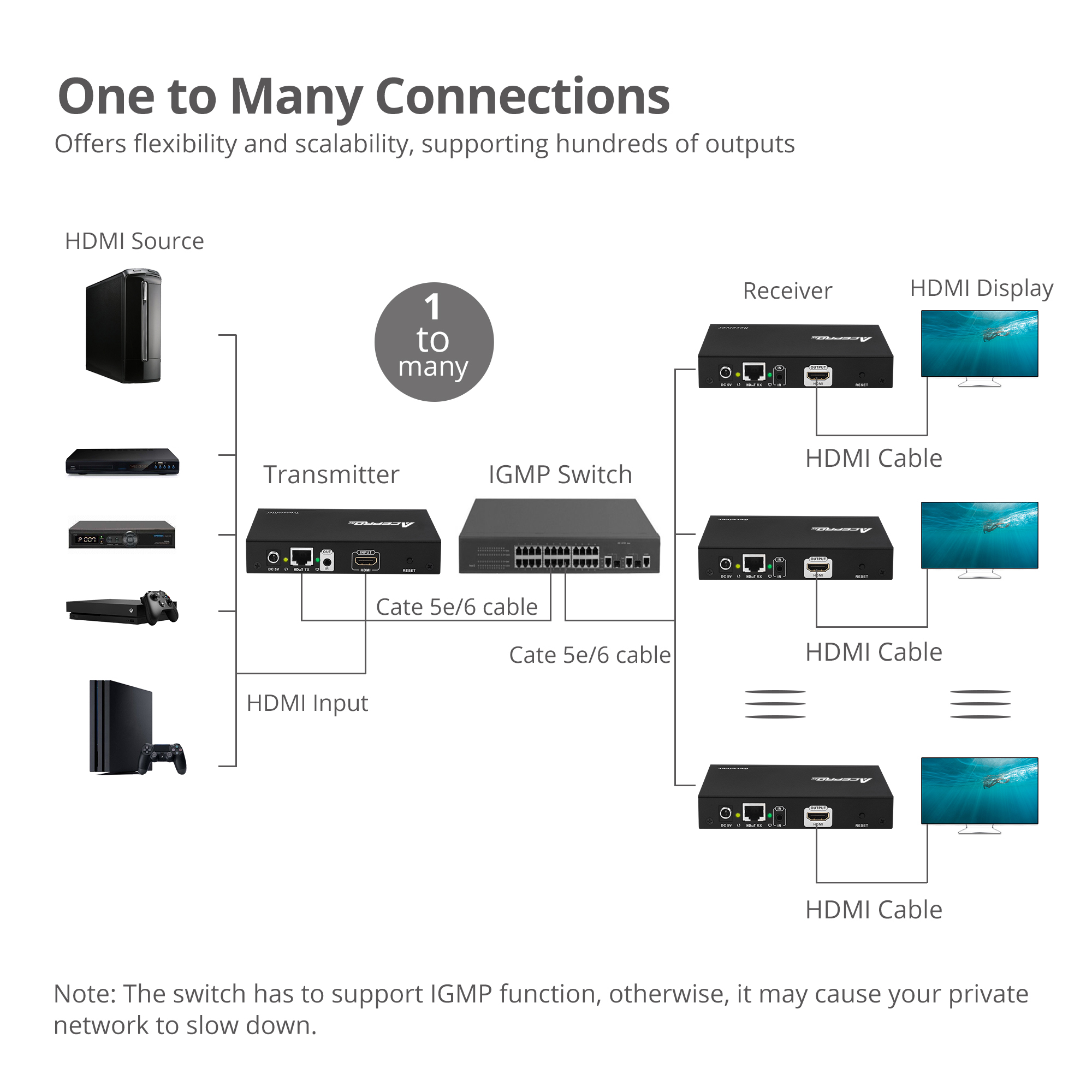

■ One-to-Many: IP Splitter using IGMP Gigabit Switch

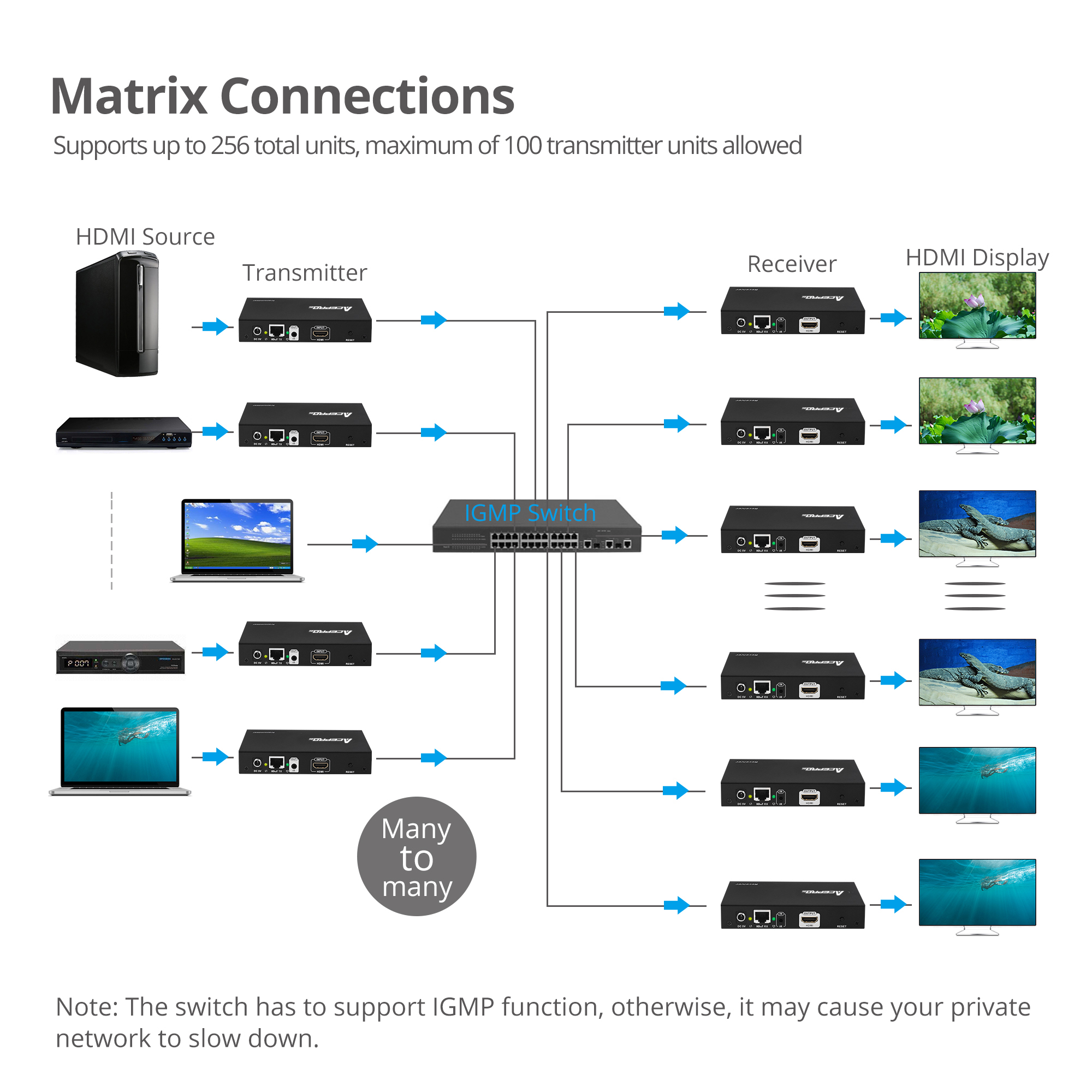

■ Many-to-Many: IP Matrix using IGMP Gigabit Switch
Transmission distance:
■ One-to-One: 120 meters
■ One-to-Many / Many-to-Many: 100 meters
Supports full frequency IR signal from 20KHz to 60KHz
Latency:< 200ms
Protection Level:
■ A Contact discharge level 3
■ B Air discharge level 3
■ C Standard: IEC61000-4-2
Housing material:Metal Housing
Housing color:Black
Product:

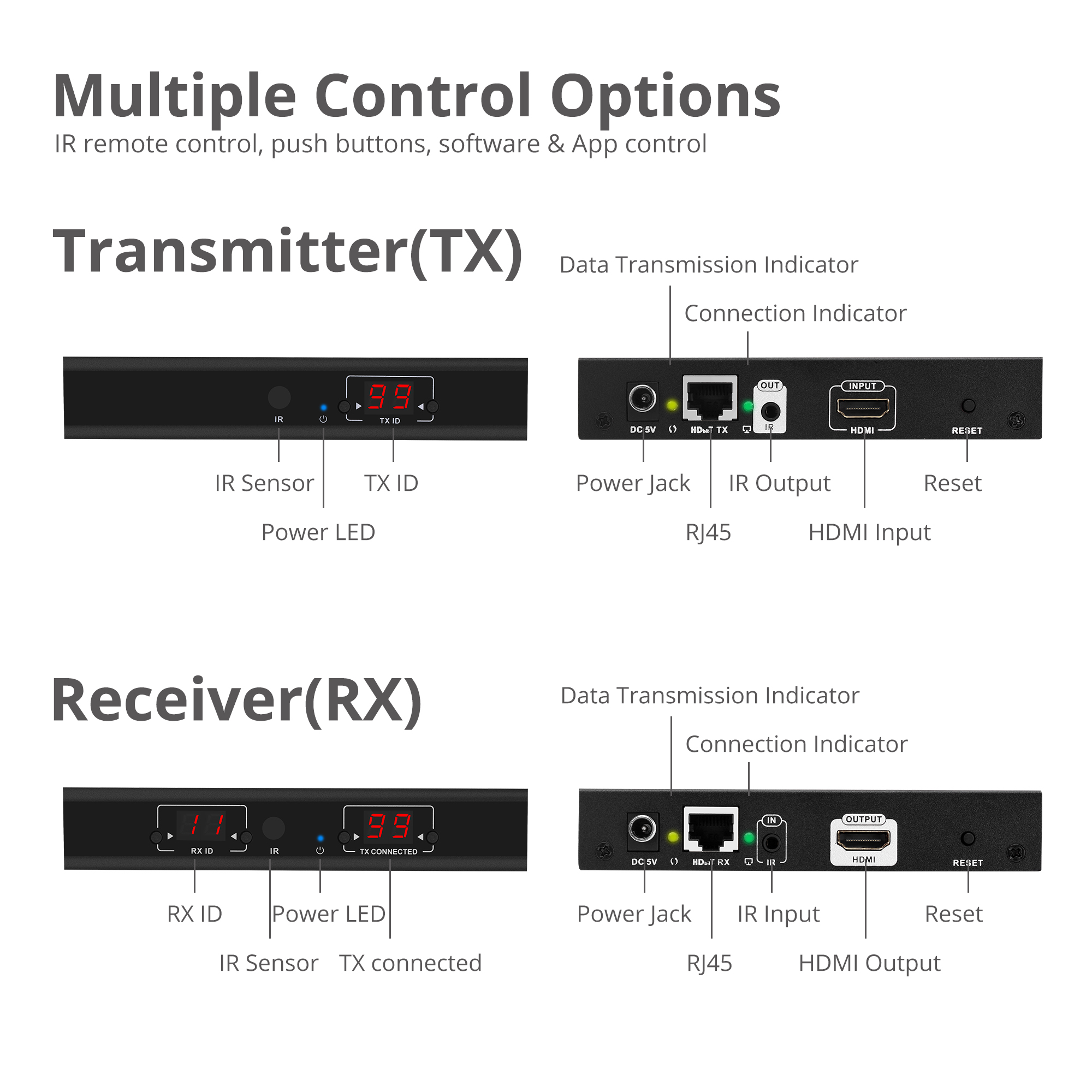

Transmitting unit (TX):
■ Dimensions: 5.28" (L) x 1.18" (H) x 4.33" (W)
■ Weight: 0.72 lbs
■ Connectors:
- 1x 19-pin HDMI, Type-A, Female, Input
- 1x 3.5mm jack, IR Blaster
- 1x 8-pin RJ45, HDbitT, Output
- 1x Power jack
- 1x Switch button (for ID)
- 1x Reset button
Receiving unit (RX):
■ Dimensions: 5.28" (L) x 1.18" (H) x 4.33" (W)
■ Weight: 0.72 lbs
■ Connectors:
- 1x 19-pin HDMI, Type-A, Female, Output
- 1x 3.5mm jack, IR Receiver
- 1x 8-pin RJ45, HDbitT, Input
- 1x Power jack
- 2x Switch button (For RX ID & TX ID connected)
- 1x Reset button
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/3A
■ UL Listed: E335801 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:China
Requirements
■ 100% copper wire Cat5e/6/7 cable using T568B wiring standard
- Cat6/6a/7 is recommended over Cat5e for optimal performance and reliability
Package Contents
■ HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Kit (1 Transmitter + 1 Receiver)
■ Power adapter (2pcs)
■ IR Blaster cable & IR Receiver cable
■ Mounting ear (4pcs) and Screw (8pcs)
■ Remote Control
■ Insert card
■ User Manual
