- AcePro-CEA6-1
- AcePro HDMI 4K30Hz HDbitT over IP Extender - Receiver
■ With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver ■ Supports up to 4K @30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance ■ Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. *The kit (CE-H25D11-S1) and additional Receivers (CE-H25E11-S1) are sold separately ■ One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable ■ High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Highlights
With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft
Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver

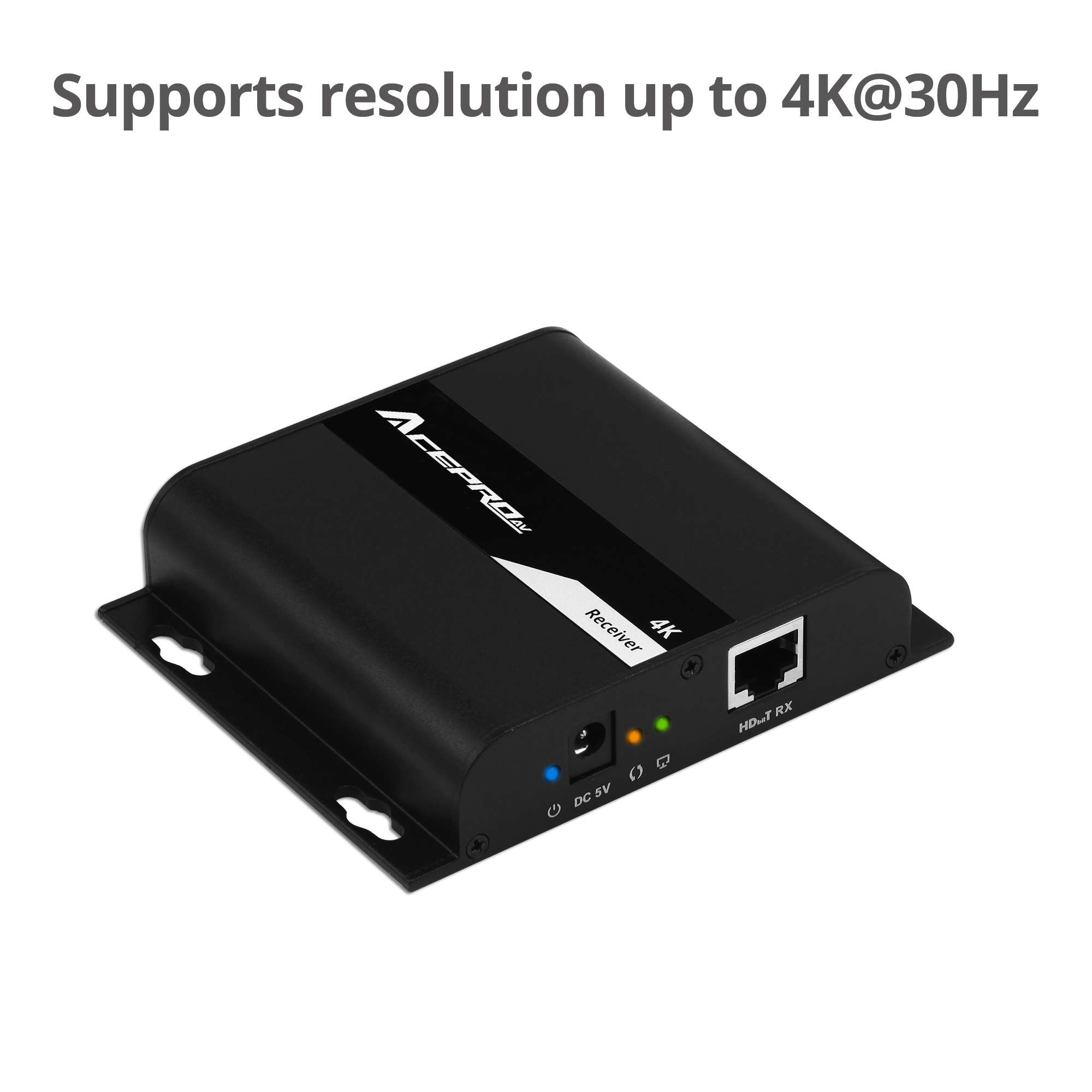

Supports up to 4K @30Hz and 1080p.
HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance

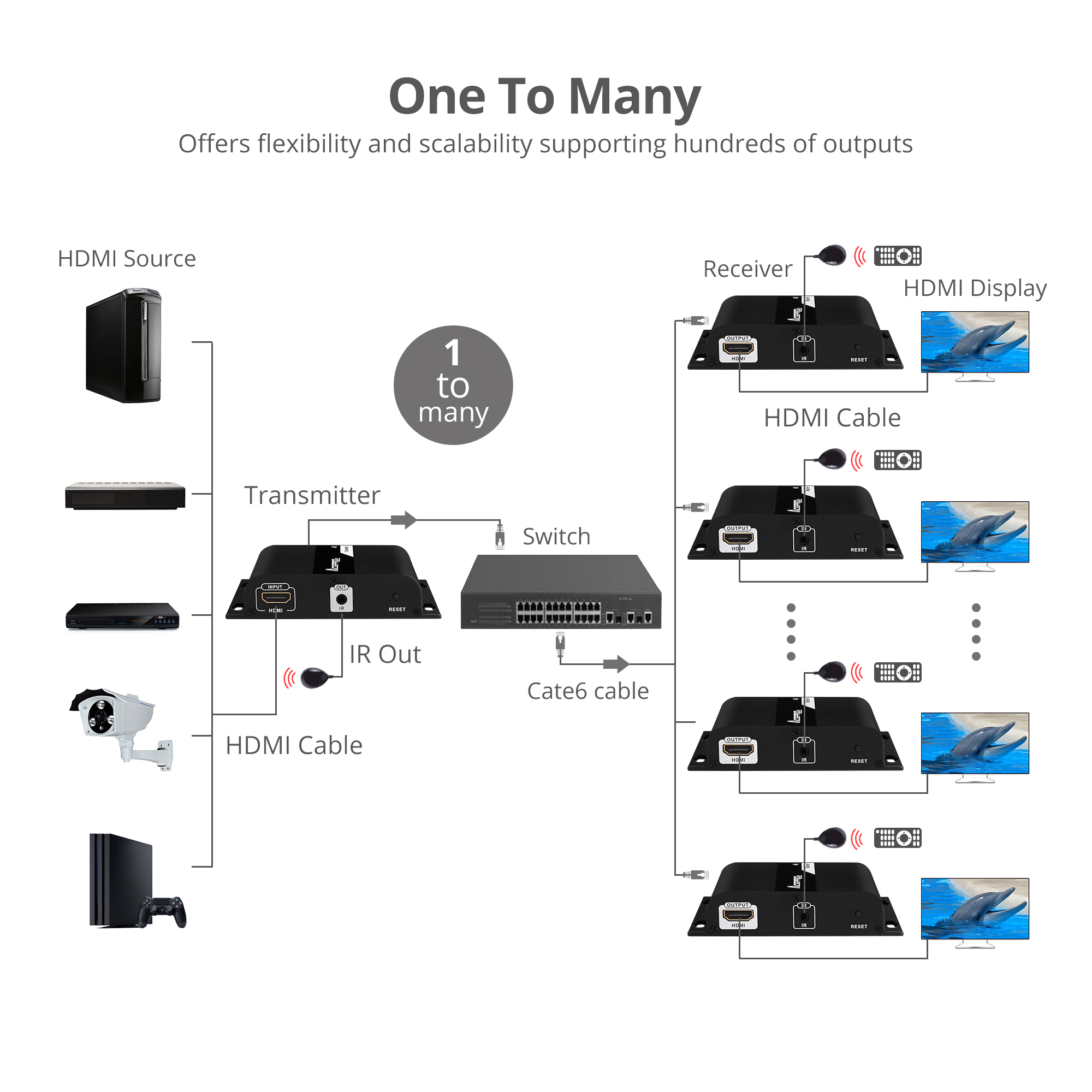

Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches
Or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays. *The kit (CE-H25D11-S1) and additional Receivers (CE-H25E11-S1) are sold separately
One-directional IR control from RX side to TX side.
Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable

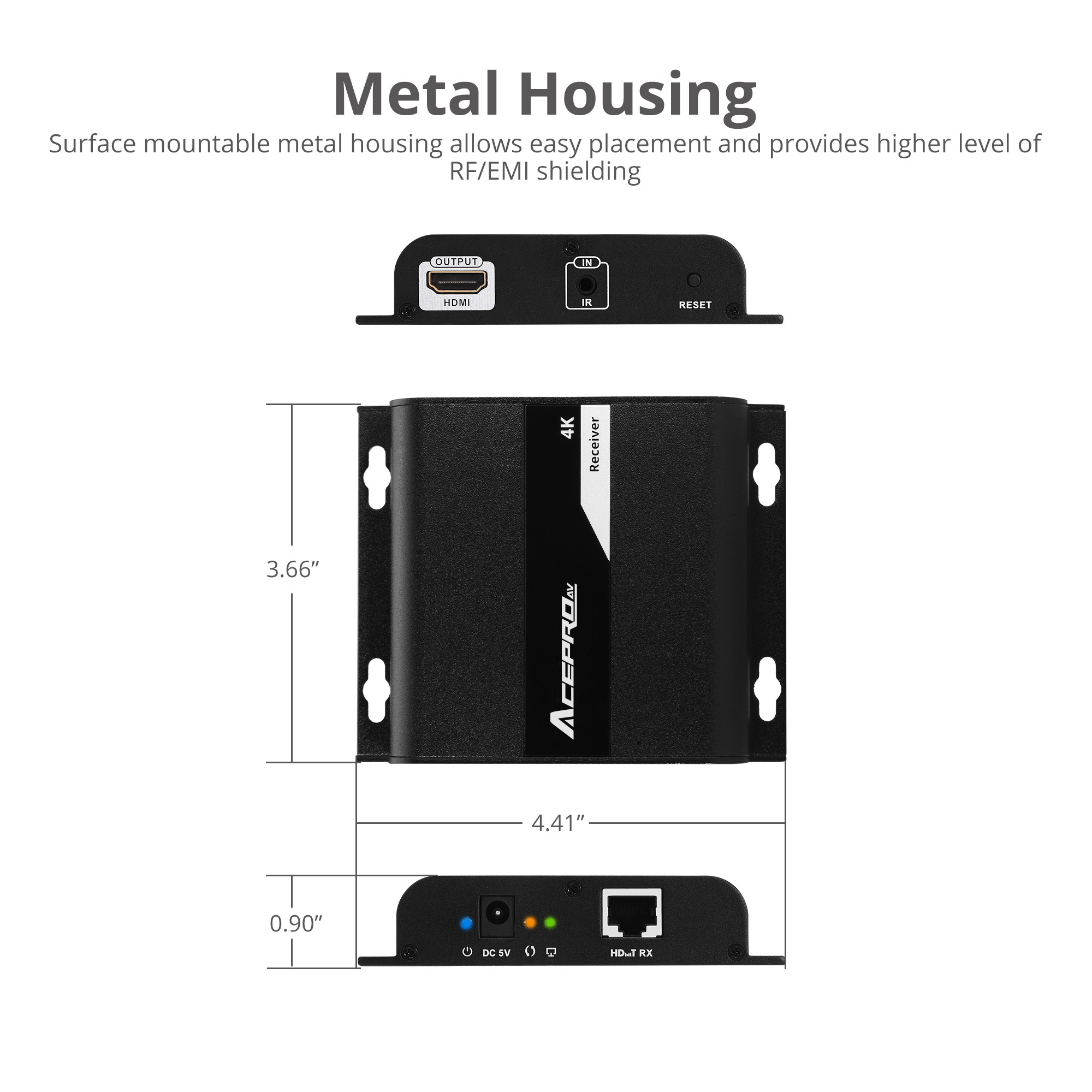

High quality surface mountable metal housing efficiently dissipates heat build-up
To ensure system stability and trouble-free operation
Specification
Transport protocol: HDbitT
Compliant with HDMI 1.4 and HDCP 2.2
Support connections:
■ Point to Point connection: up to 120m
■ One to many connection (dedicated unmanaged Gigabit network routers or switches recommended)
Transmission distance: Up to 394ft (120 meters)
2-Ch PCM stereo audio
Full frequency IR signal from 20KHz to 60KHz
Resolution: 480p / 720p / 1080i / 1080p@60Hz,4K@30Hz
Metal housing surface mountable
HDMI cable length: 10 meters (max), each input and output
■ Product (RX):
- Dimensions : 4.45" (L) x 0.94" (H) x 3.70" (W)
- Weight: 0.37 lbs

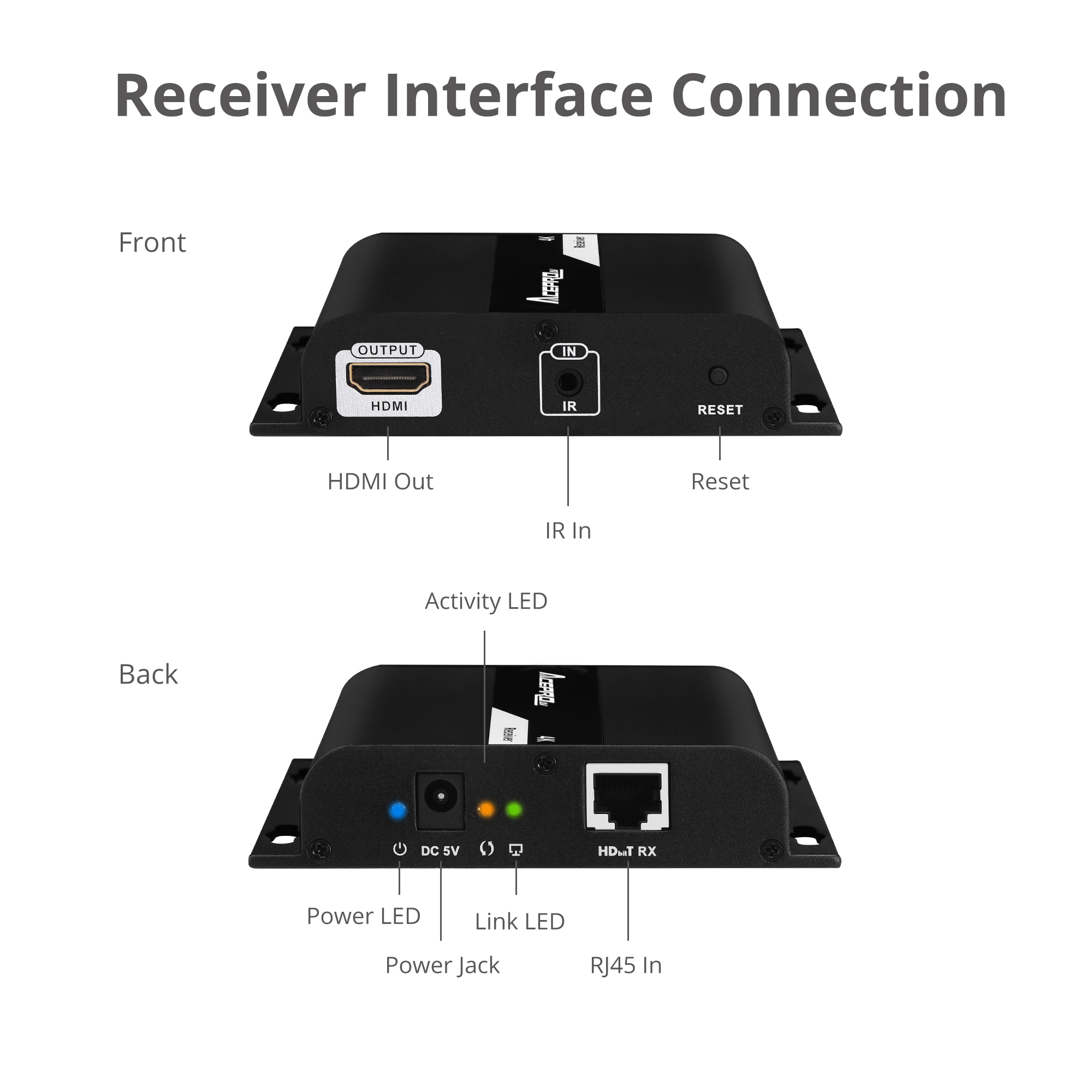

- Connectors:
-- 1x 19-pin HDMI, Type A, Female, Output
-- 1x 3.5mm jack, IR Receiver
-- 1x 8-pin, RJ45, HDbitT signal input
-- 1x Reset button
-- 1x Power jack
Power adapter:
■ Input: 100-240V / 50-60Hz
■ Output: DC 5V/2A
■ UL listed: E335801 / Level: VI
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 5% to 85% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 year limited
Country of origin: China
Requirements
■ HDMI display and HDMI cable
■ Cat6 cable (solid copper wire recommended)
■ Dedicated unmanaged Gigabit Ethernet Switch (for 1-to-many connection)
■ HDMI 4K30Hz HDbitT over IP Extender - Receiver, part # CE-H25D11-S1, sold separately. For network setup with multiple Receivers
Package Contents
■ HDMI 4K30Hz HDbitT over IP Extender - Receiver
■ Power adapters (1pcs)
■ IR Receiver cable (1pc)
■ Quick Start Guide
