  • AcePro 1x4 HDMI Splitter HDbitT over IP Extender - 120m

■ Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 4 displays
■ Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches
With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
■ Delivers crystal clear Full HD content up to 1080p@60Hz resolution
■ IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
■ High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
■ Plug-n-Play installation, no software installation required

  • $0 $0

Highlights

Extends HDMI signals up to 120m (394ft)
Over economical Cat6 cabling to up to 4 displays

Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches
With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
Note:Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately

Delivers crystal clear Full HD content up to 1080p@60Hz resolution

IR remote control through Cat6 cable
Allows you to control the HDMI source device at the remote display location

High quality durable metal housing with ventilation panels
Provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation

Plug-n-Play installation, no software installation required

Specification

Transport protocol:HDbitT



Transmission distance:Up to 120m (394ft) via single Cat6 cable at 1080p@60Hz



Audio:7.1 Channel, PCM, DTS, AC3 audio



Full frequency IR signal from 20KHz to 60KHz



Video resolution:480p / 720p / 1080i / 1080p@60Hz



Product housing:TX Metal and RX Aluminum with wall mount design



Network cable:UTP/STP Cat6/6a/7



Connection methods:

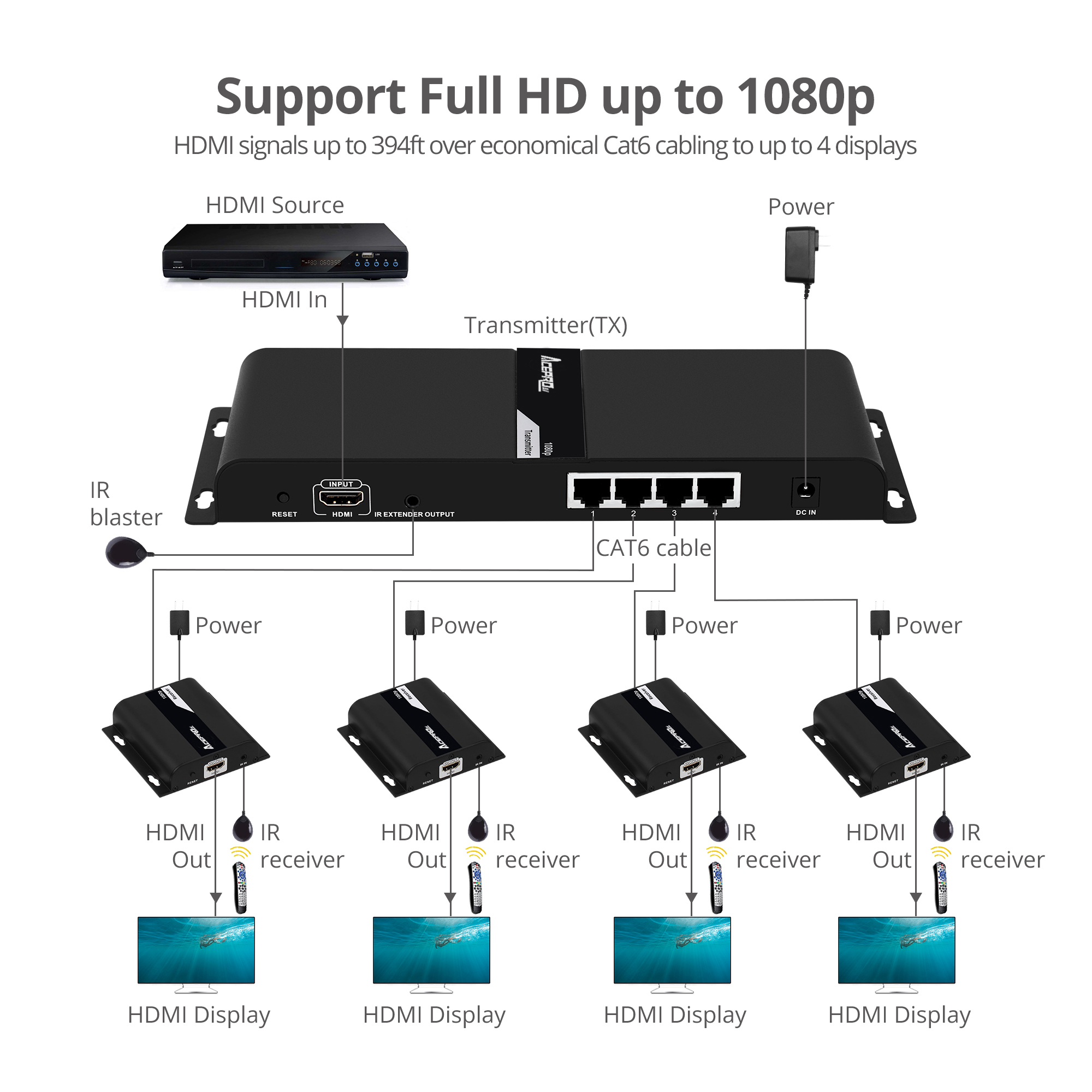

■ 1x4: Direct connection

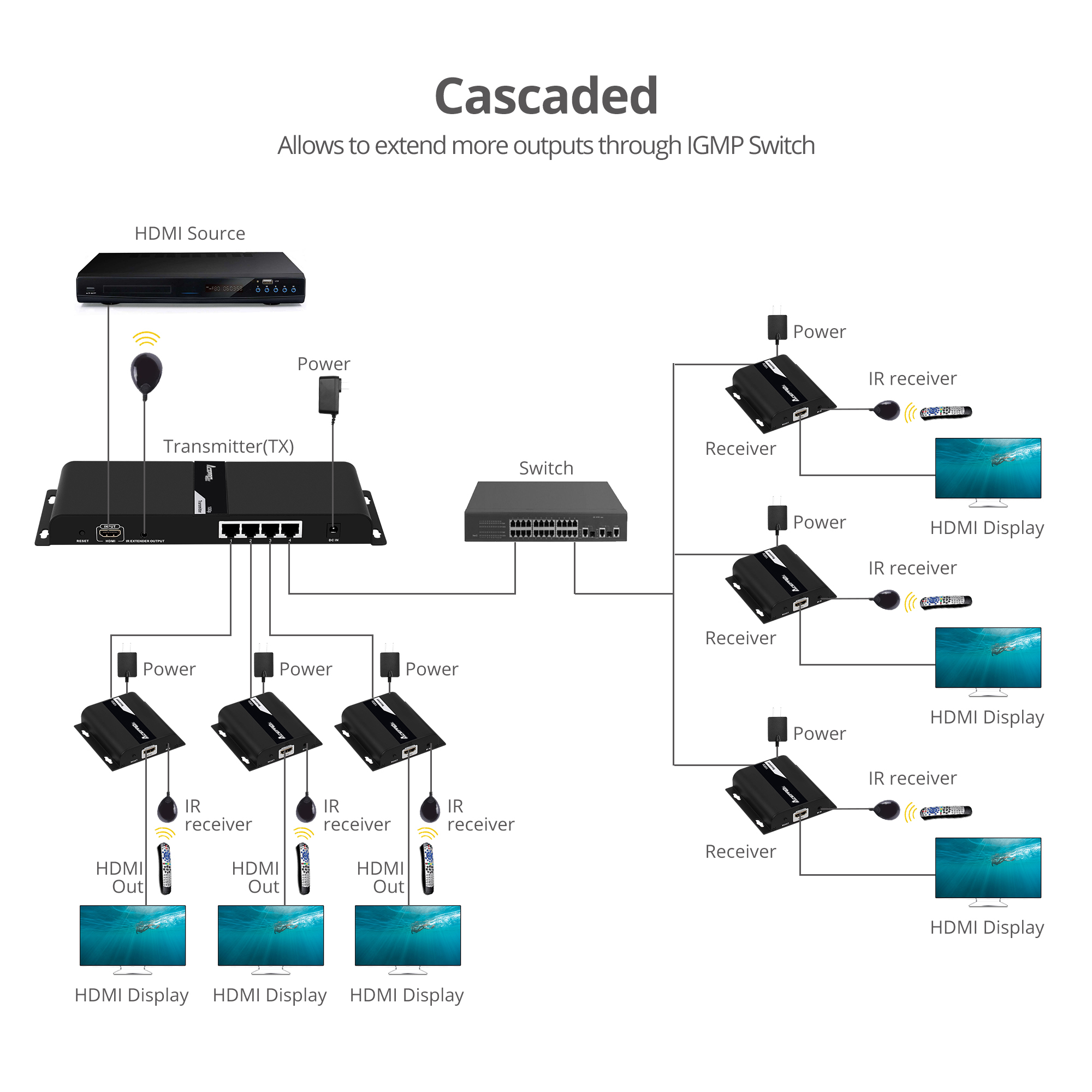

■ Cascade: 1-to-Multiple through IGMP Gigabit network routers or switches



Product:

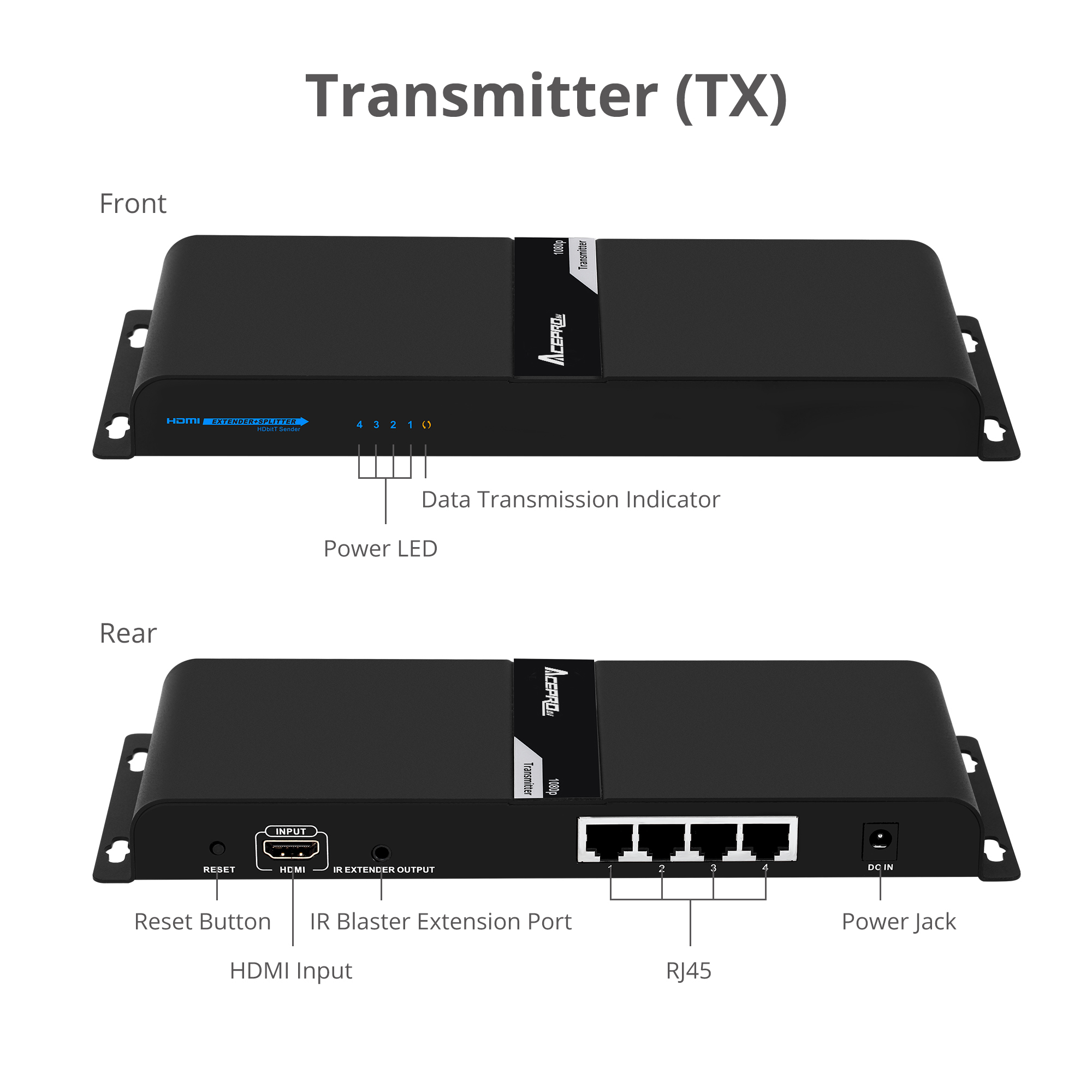

■ Transmitting unit (TX):
Dimensions: 9.92" (L) x 0.98" (H) x 3.82" (W)
Weight: 1.33 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR, Output
4x 8-pin, RJ45, HDbitT signal, Output
1x Power jack, 5V/2A
1x Reset button

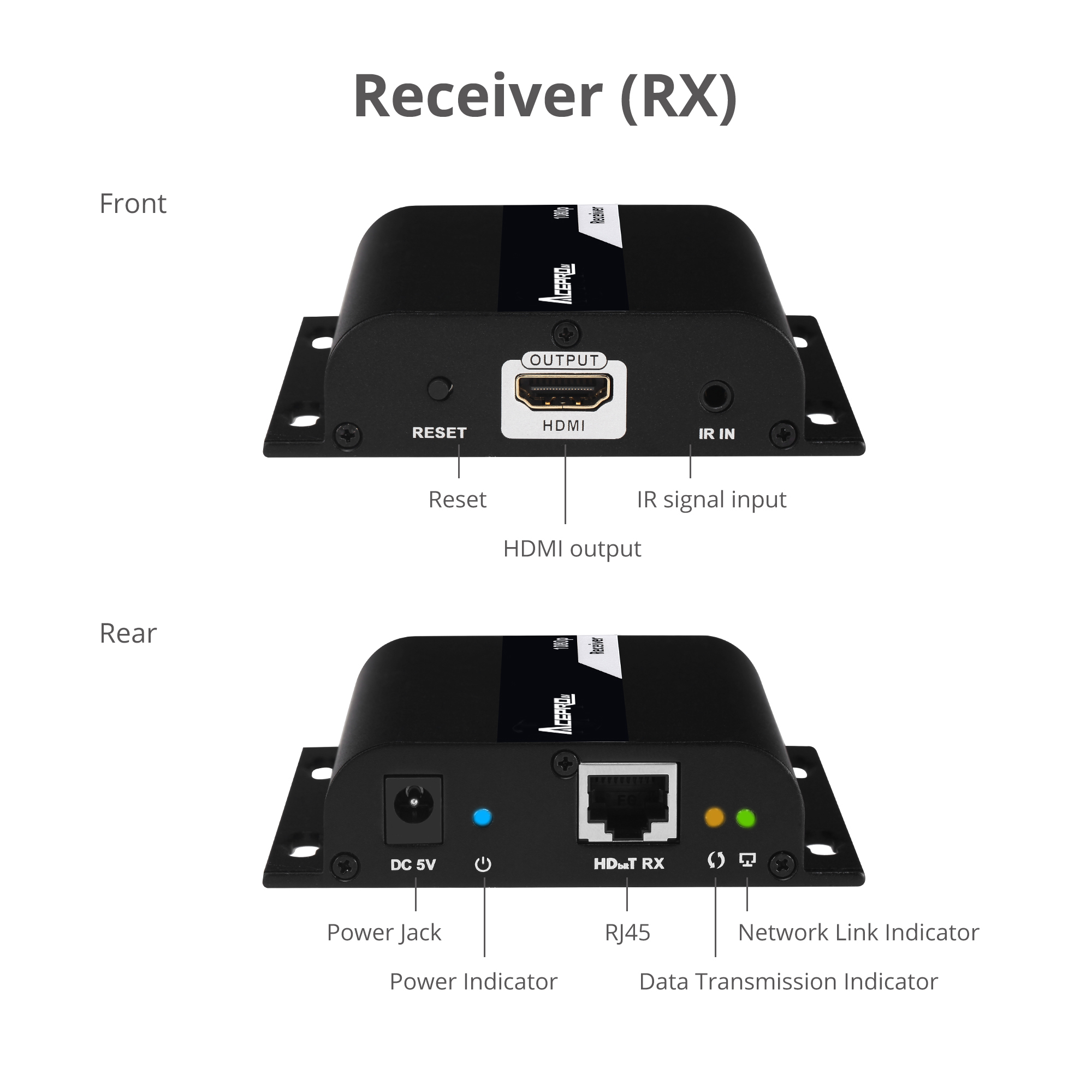

■ Receiving unit (RX):
Dimensions: 3.81" (L) x 0.93" (H) x 3.70" (W)
Weight: 0.33 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR, Input
1x 8-pin, RJ45, HDbitT signal, Input
1x Power jack, 5V/1A
1x Reset button





Power adapter:
■ Input: 100-240V / 50-60Hz
■ TX: DC 5V/2A
■ RX: DC 5V/1A
■ UL listed: E335801 / Level: VI



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 0 to 90% RH (non-condensing)



Certifications/Standards:FCC, CE, RoHS



Warranty:1 years limited



Country of origin:China



Requirements
■ Cat6/6a/7 cable using T568B wiring standard
100% copper wire recommended for best performance
■ HDMI displays and cables
■ Dedicated IGMP Gigabit network routers or switches (for Cascade connection)



Package Contents
■ 1x4 HDMI Splitter HDbitT over IP Extender - 120m (1 TX & 4 RXs)
■ Power adapter (5pcs)
■ IR Blaster extension cable (1pc)
■ IR Receiver extension cable (4pcs)
■ Screw kit
■ Quick Start Guide
