• AcePro-SW09-1
  • AcePro 3x1 HDMI 4K Multi Presentation Switcher - BYOD

■ Allows HDMI, Mini DisplayPort, or USB-C DP Alt source signals to display on an HDMI projector or display/br> ■ Device Auto Detection - recognizes when a source device is powered on or connected and switches it to the HDMI output automatically/br> ■ Auto Scan - Scans input sources, starting at HDMI, then Mini DisplayPort, ending at USB-C, and automatically switches the 1st active source to the HDMI display. This feature is activated when the active source device is either unplugged or turned off/br> ■ Mini DisplayPort and USB-C input delivers video resolutions up to 4K@60Hz YUV 4:4:4/br> ■ HDMI input delivers video resolutions up to 4K@60Hz YUV 4:4:4, 4K HDR, and Dolby Vision/br> ■ HDMI 2.0, DisplayPort 1.2, and HDCP 2.2 compliant/br> ■ Plug-n-play, no driver installation required/br> ■ Powered by USB Type-A port or wall charger/br> ■ Perfect multimedia tool for meeting rooms, class rooms, lecture halls/br>

  • $0 $0

Highlights

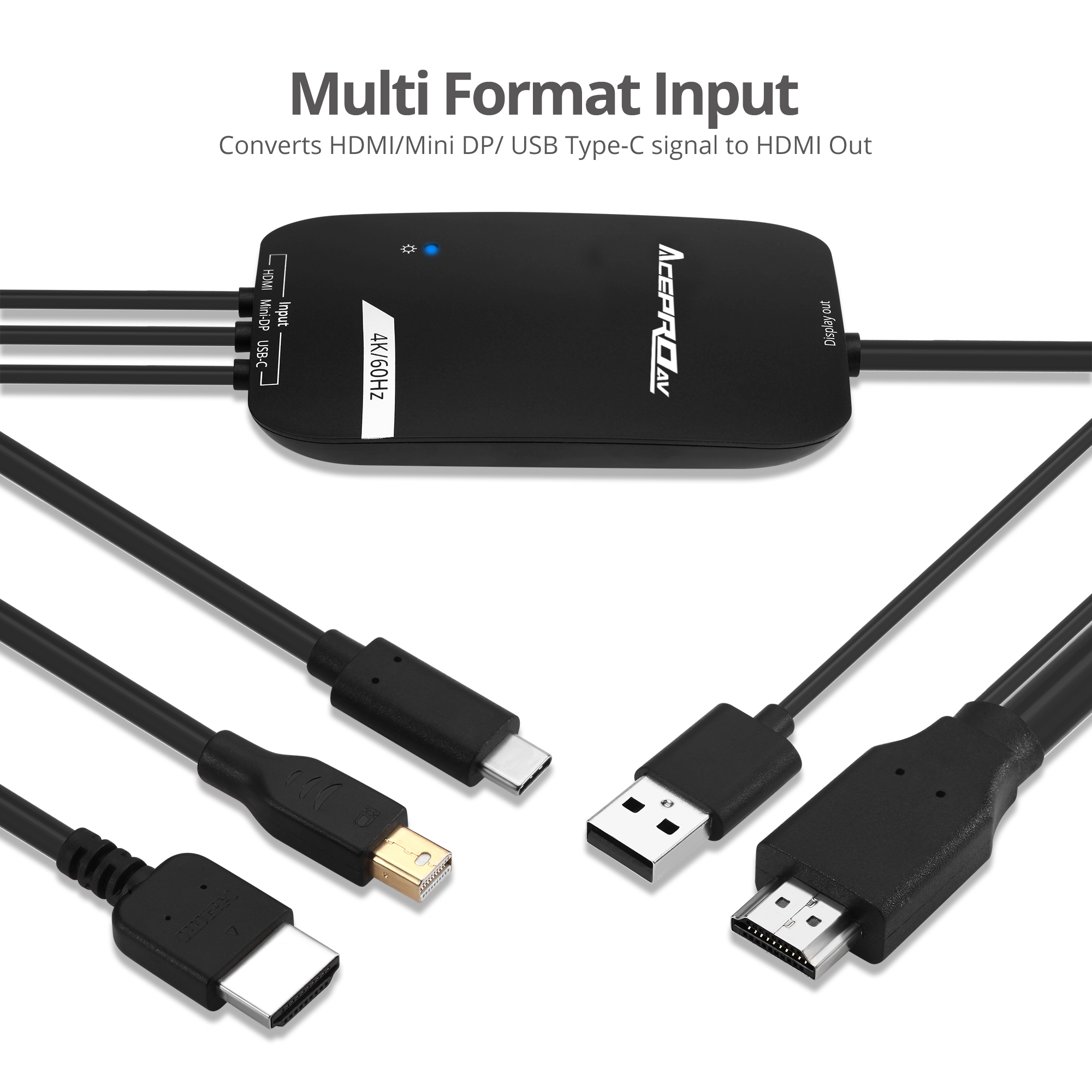

Allows HDMI, Mini DisplayPort
Or USB-C DP Alt source signals to display on an HDMI projector or display

Device Auto Detection
Recognizes when a source device is powered on or connected and switches it to the HDMI output automatically

Auto Scan - Scans input sources
Starting at HDMI, then Mini DisplayPort, ending at USB-C, and automatically switches the 1st active source to the HDMI display. This feature is activated when the active source device is either unplugged or turned off

Mini DisplayPort and USB-C input delivers video resolutions up to 4K@60Hz YUV 4:4:4


HDMI input delivers video resolutions up to 4K@60Hz YUV 4:4:4, 4K HDR, and Dolby Vision


HDMI 2.0, DisplayPort 1.2, and HDCP 2.2 compliant


Plug-n-play, no driver installation required


Powered by USB Type-A port or wall charger


Perfect multimedia tool for meeting rooms, class rooms, lecture halls

Specification

Compliant with HDMI 2.0 / DP 1.2 / HDCP 2.2



Resolution:



■ HDMI input: up to 4K@60Hz YUV 4:4:4, 4K@60Hz 10-bit YUV 4:2:0 HDR
■ Mini DisplayPort input: up to 4Kx2K@60Hz YUV 4:4:4
■ USB-C input: up to 4Kx2K@60Hz YUV 4:4:4



HDMI Audio: LPCM 7.1 audio, Dolby Atmos®, Dolby®TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through

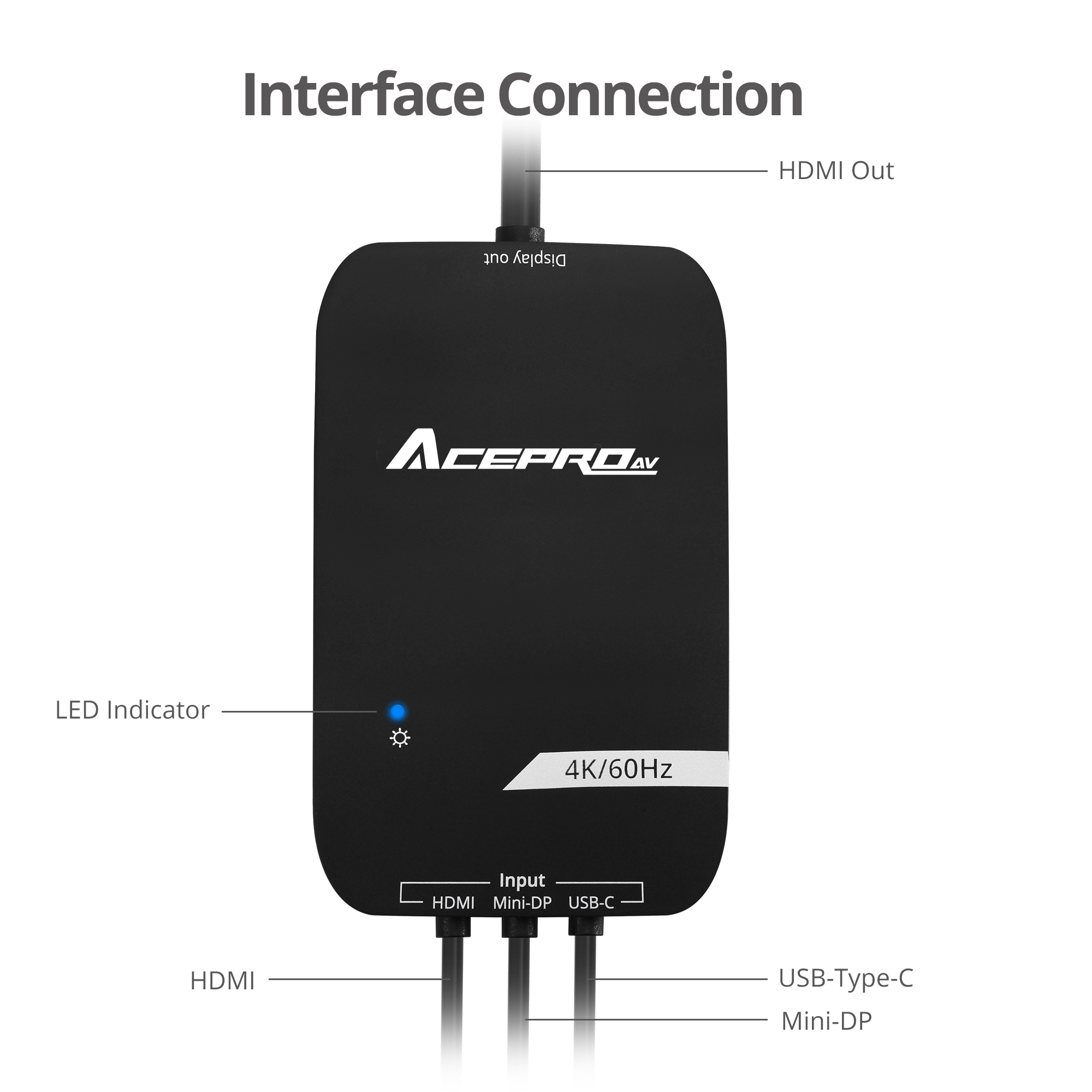

Input connector:
■ HDMI, Male
■ Mini DisplayPort, Male
■ USB Type-C, Male



Output connector:
■ HDMI Type-A, Male
■ USB Type-A, Male, Power only



Video resolution:
■ Up to 4K@ 60Hz 8-bit YUV 4:4:4 / 10-bit YUV 4:2:0 HDR (HDMI input only)



Cable length:
■ Input: HDMI / Mini DP / USB-C: 1ft
■ Output:
HDMI: 9.8ft
USB Type-A: 5ft
■ Product:
Dimensions (housing only): 3.27" (W) x 0.79" (H) x 5.31" (L)
Weight: 0.79 lbs
Color: Black
Housing material: Plastic
ESD protection: Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
■ Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 10~90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 3 years limited



Country of origin: China



Requirements

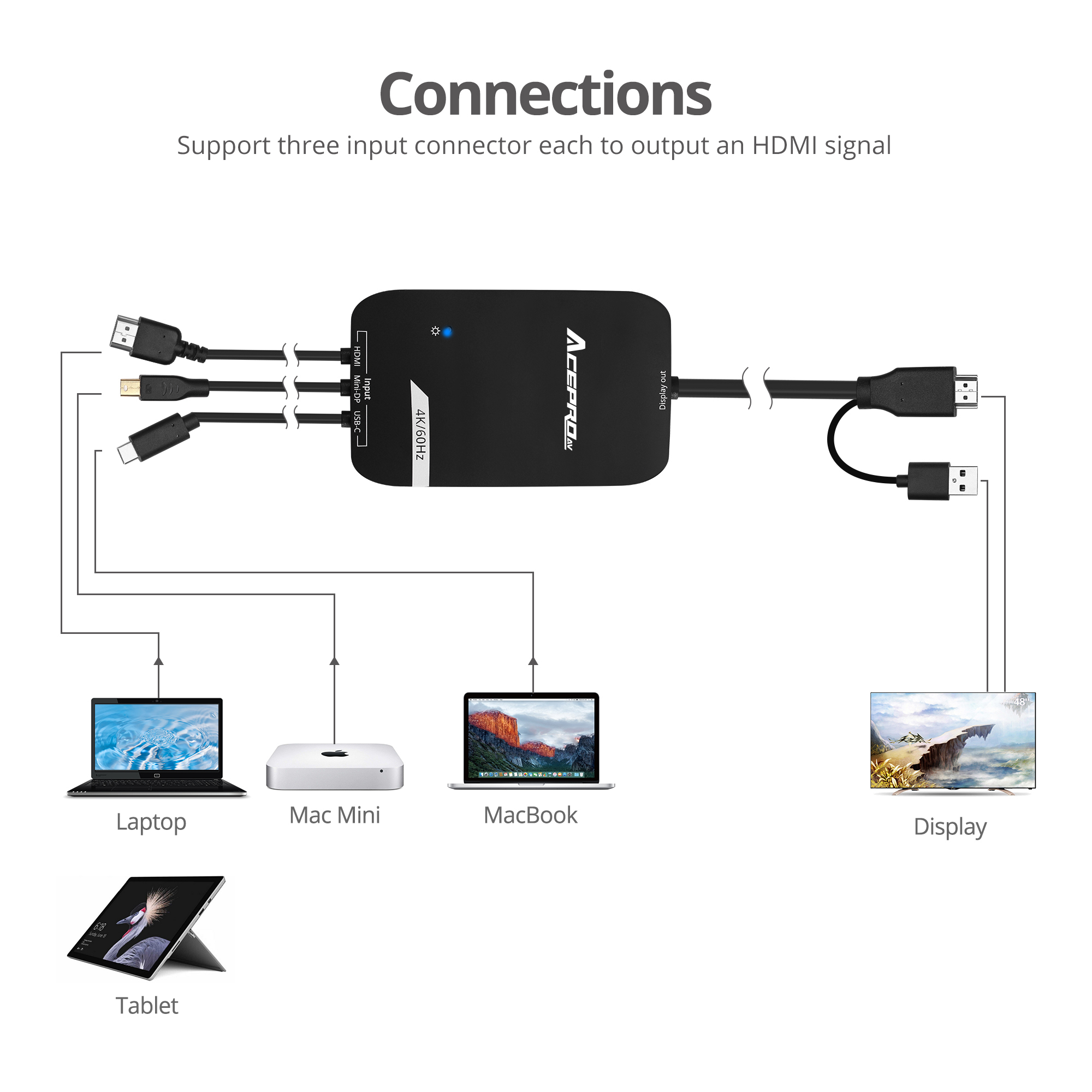

■ HDMI, Mini DisplayPort, or USB-C DP Alt mode Notebook / Laptop / Smartphone / Tablet
■ HDMI display device (projector / monitor / TV)
■ USB Type-A port or wall charger to power the Switcher



Package Contents
■ 3x1 HDMI 4K Multi format Presentation Switcher - BYOD
■ Quick Start Guide
