• new | AVLAB-CB36-1
  • AVLAB 1-Port Industrial USB to RS-232 Cable

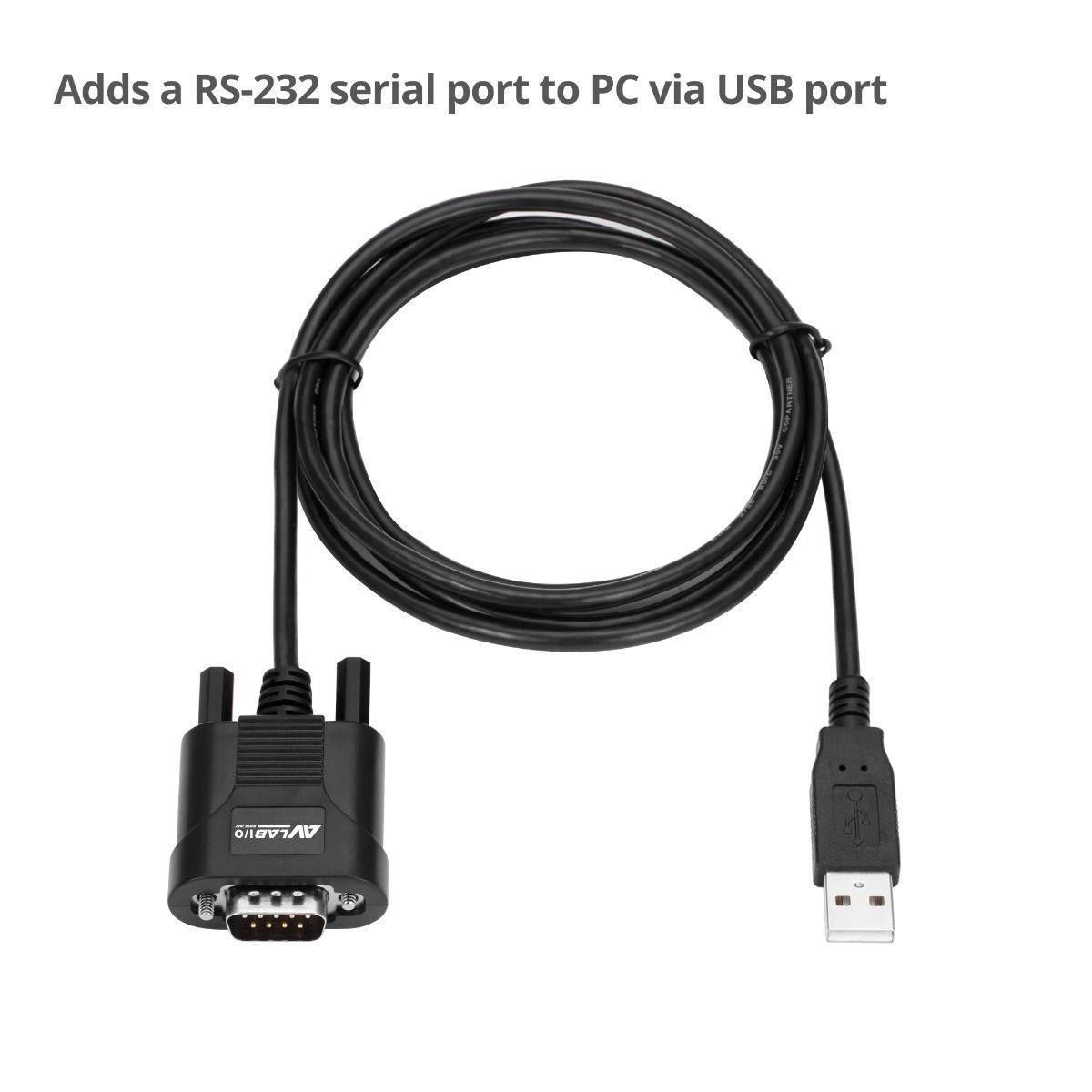

■ Converts one USB Type-A port into one 9-Pin RS-232 serial port on a Windows desktop or notebook computer
■ Supports USB 1.1 specifications with serial port data transfer rates up to 230Kbps

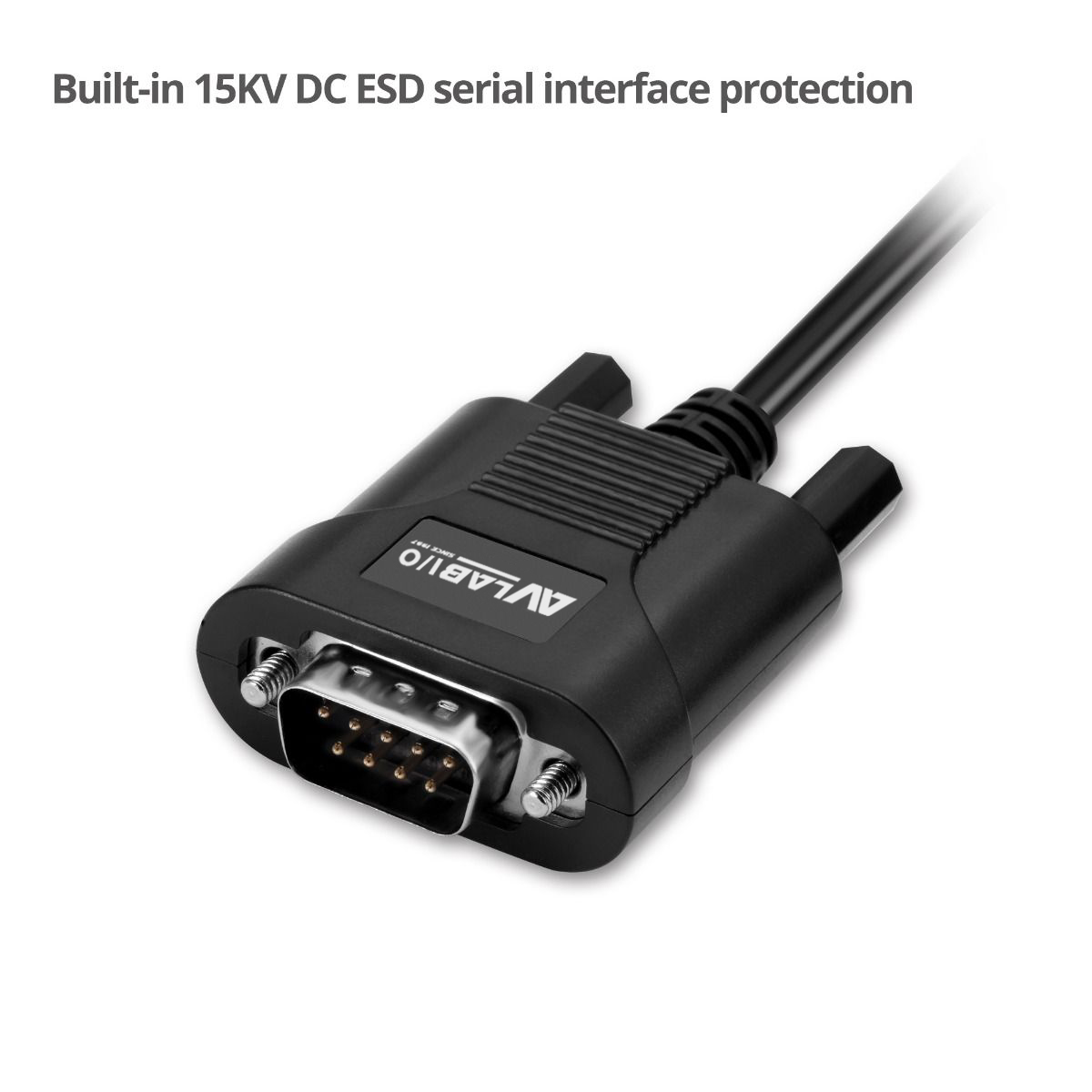

■ Features built-in 512 byte FIFO buffers, 15KV DC ESD serial interface protection with software flow control

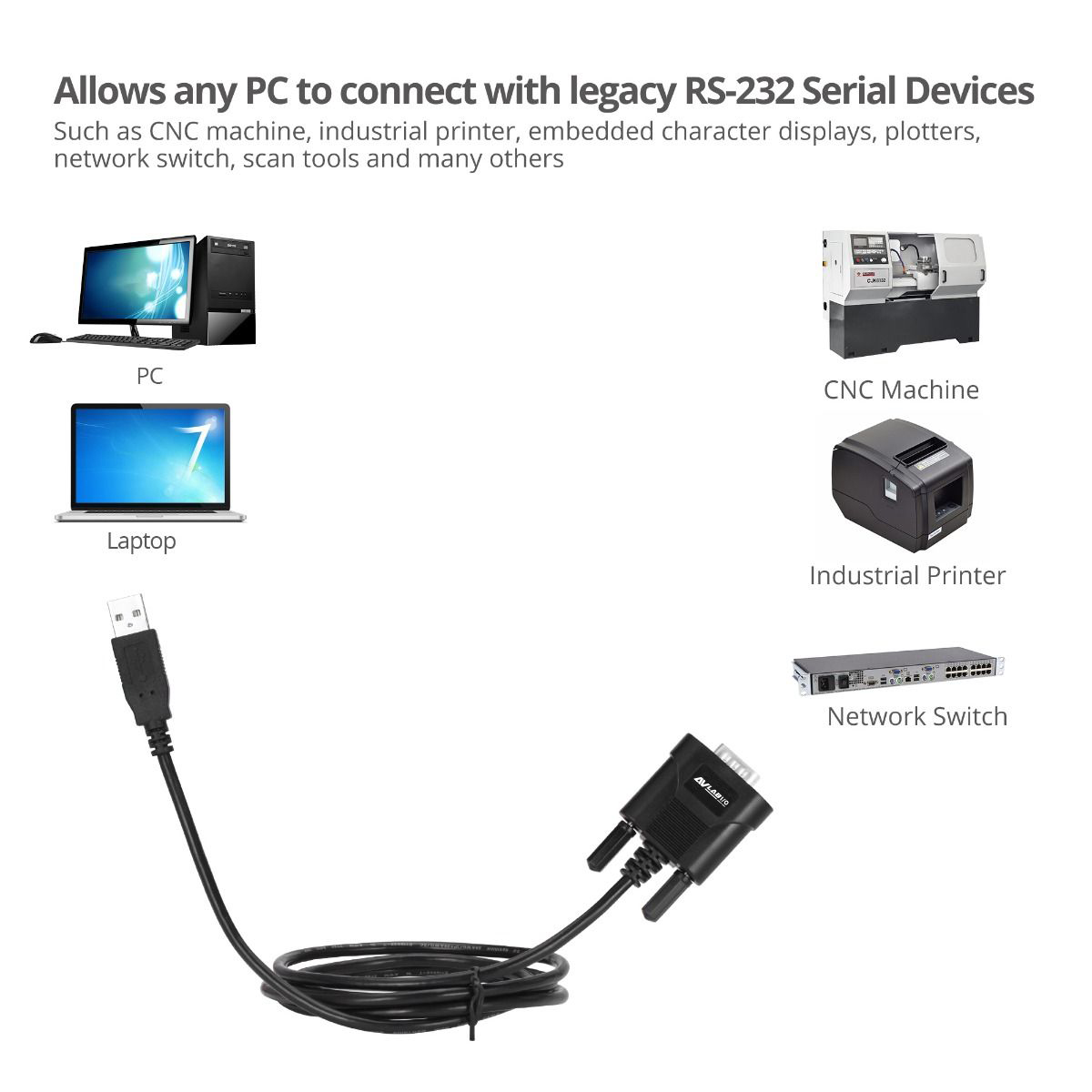

■ Works flawlessly with RS-232 serial devices such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more
■ Plug-and-play and powered by the USB bus, no external power adapter is needed

  • $0 $0

Highlights

Converts one USB Type-A port into one 9-Pin RS-232 serial port
On a Windows desktop or notebook computer

Supports USB 1.1 specifications
With serial port data transfer rates up to 230Kbps

Features built-in 512 byte FIFO buffers
15KV DC ESD serial interface protection with software flow control

Works flawlessly with RS-232 serial devices
Such as modems, ISDN terminal adapters, PDAs, bar code scanners, label printers, and many more

Plug-and-play and powered by the USB bus
No external power adapter is needed

Specification

Chipset:Prolific PL2303HXD



Compliant with USB specification, revision 1.1



Data transfer rate:230Kb/s (max)



Support 15KV DC ESD serial interface protection



Product:
■ Overall length (including USB cable): 60.63" (150mm)
■ Dimensions (RS-232 housing only): 1.57" (L) x 1.65" (W) x 0.67" (D)
■ Weight: 0.16 lbs
■ Color: Black
■ Housing material: Plastic



Connectors:

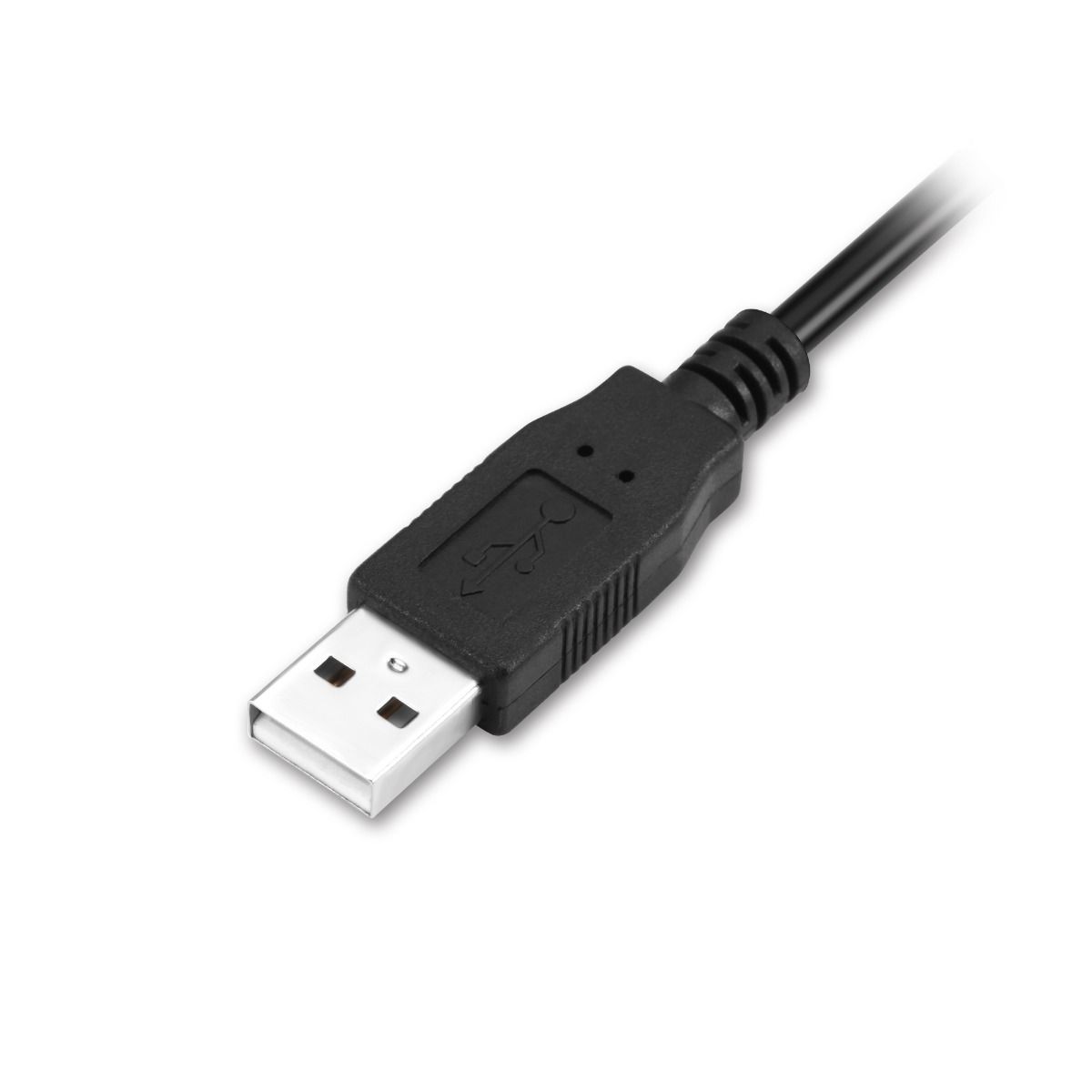

■ 1x USB 4-Port, Type-A, Male
■ 1x 9-pin, D-Sub, RS-232, Serial port, Male>



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 5 to 85% RH (non-condensing)



Certifications/Standards:FCC, CE, RoHS



Warranty:1 years limited



Country of origin:China



Requirements
■ Desktop or notebook computer with an available USB type-A port
■ Windows® 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32 -/64-bit)
■ Windows® Server 2012 / 2008 R2 / 2008 / 2003 (32-/64-bit)



Package Contents
■ 1-Port Industrial USB to RS-232 Serial Adapter Cable
■ Driver CD
■ Quick Start Guide
