• new | AVLAB-CB40-1
  • AVLAB 4K DP 1.2 AOC Cable - 20M

■ Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances

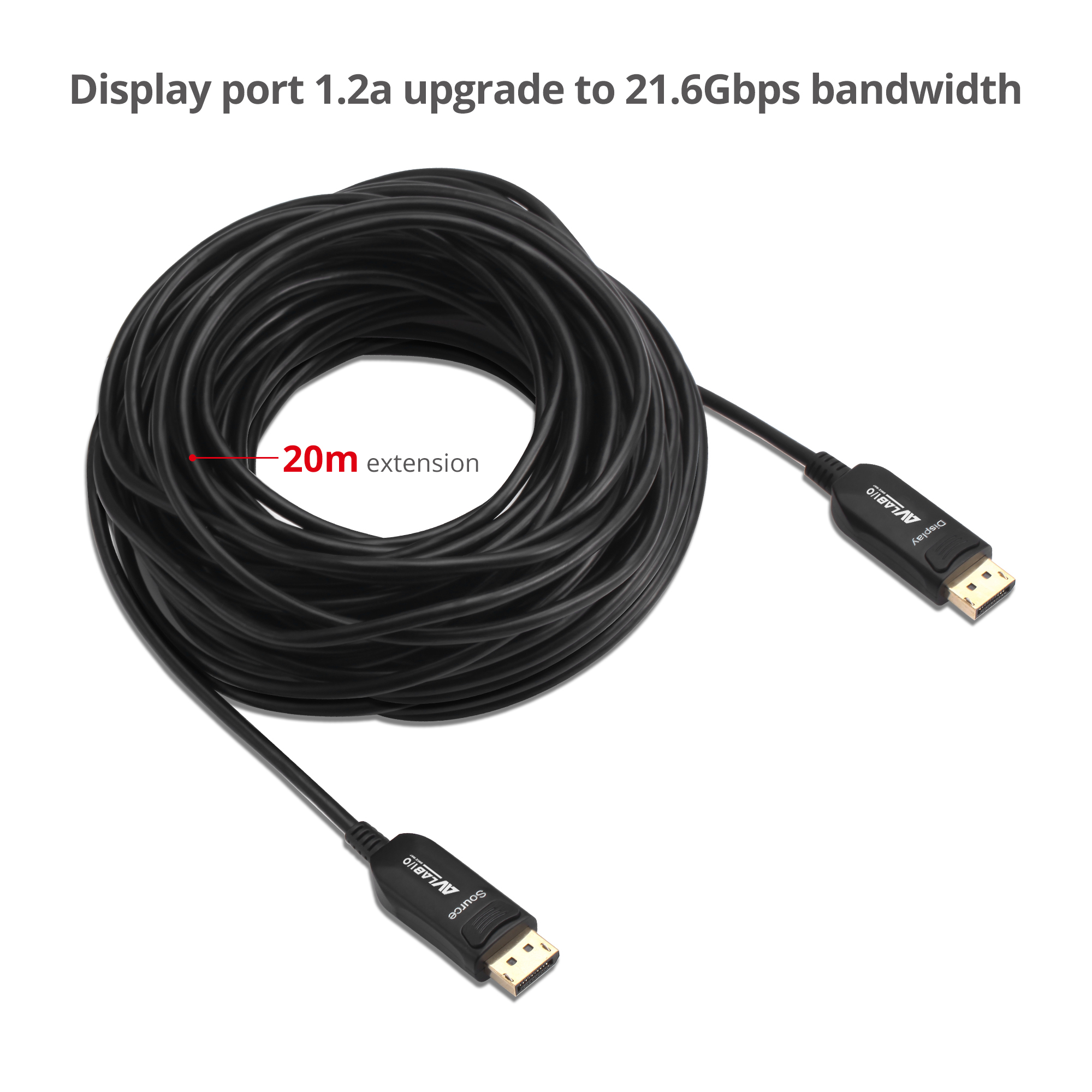

■ Transmits Ultra HD 4K signals up to 20 meters (66ft)
■ Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps
■ 21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution
■ AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity
■ Very low Electro-Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments
■ Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices
■ Premium quality latching DisplayPort connector prevents accidental disconnection
■ Plug and Play and hot swappable

  • $0 $0

Highlights

Connects DisplayPort source devicee
To DisplayPort equipped monitors or displays over long distances

Transmits Ultra HD 4K signals up to 20 meters (66ft)

Compliant with DisplayPort 1.2 specification
1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps

21.6Gbps signal bandwidth
And up to 4Kx2K 60Hz YUV 4:4:4 resolution

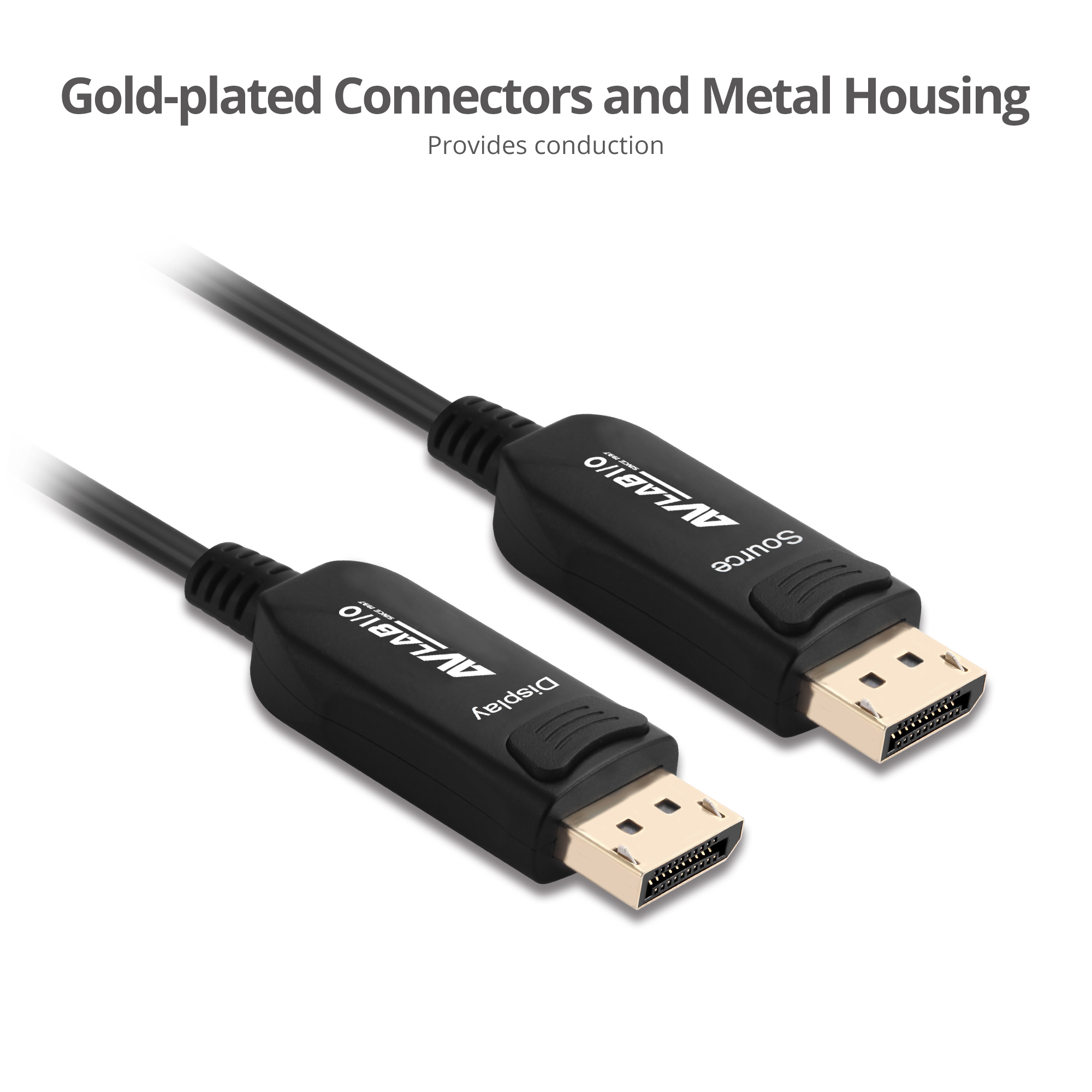

AOC (Active Optical Cable) Fiber/Copper inner conductor material
And gold-plated connectors provide maximum video clarity

Very low Electro-Magnetic Interference (EMI)
And Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments

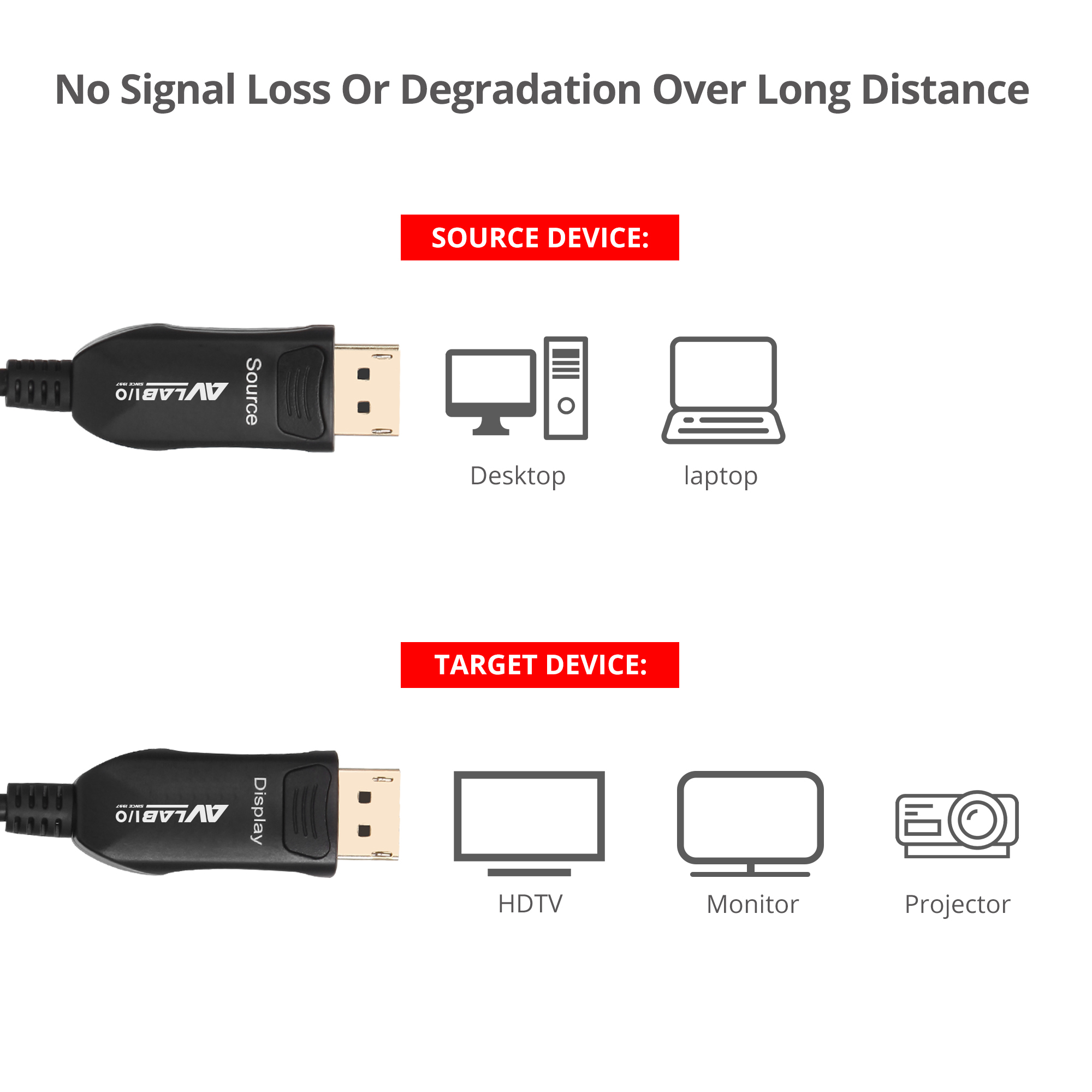

Features unidirectional connection requiring the cable to be installed in a specific direction
The end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices

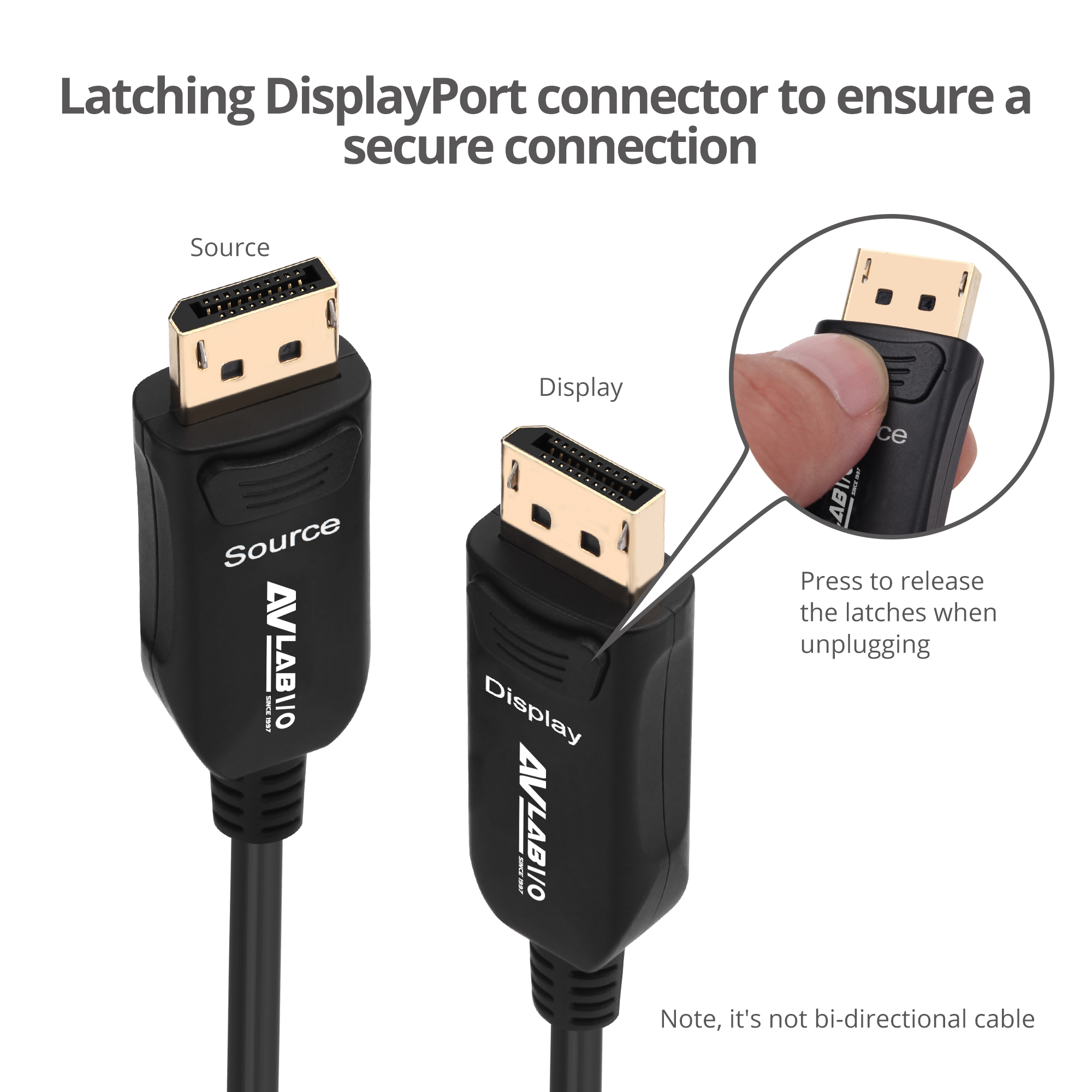

Premium quality latching DisplayPort connector prevents accidental disconnection

Plug and Play and hot swappable

Specification

Compatible with DisplayPort 1.2 specification



Complies with HDCP 2.2 and 1.4 content protection



Resolution: Up to 4Kx2K 60Hz YUV 4:4:4



Bandwidth: Up to 21.6Gbps (5.4Gbps per channel)



Active Optical Cable Technology:4x Discrete Optical Channels, 10GHz, 850nm



Cable outside diameter:4.5mm OD



Wire gauge:26AWG



Cable jacket:
■ PVC
■ Flame retardance: UL VW-1



Product:
■ Cable length: 20m (66ft)
■ Cable weight: 1.83 lbs
■ DP connector housing material: Zinc alloy
■ Color: Black



Connectors:
■ 1 x 20-Pin, DisplayPort, Latching, Male, Source
■ 1 x 20-Pin, DisplayPort, Latching, Male, Display
■ Gold plated



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: -10 to 158 degrees F
■ Humidity: < 5% to 85% (non-condensing)



Certifications/Standards:FCC, CE, RoHS



Warranty:1 year limited



Country of origin: Engineered in the USA / Manufactured in China



Note: This cable features unidirectional design, which requires the cable to be installed in a specific direction. Each DisplayPort connector is labeled for easy cable orientation to ensure proper device connection.
