• new | AVLAB-CB48-1
  • AVLAB 4K DP 1.2 AOC Cable - 60M

■ Connects Ultra HD 4K HDMI source devices such as Blu-ray players, set-top boxes, and game consoles to 4K HDMI display devices such as TVs, monitors or projectors up to 60 meters away with no signal loss
■ Compliant with HDMI 2.0 and HDCP 2.2 standards
■ 18Gbps signal bandwidth and 4K@60Hz YUV 4:4:4 video resolution
■ AOC (Active Optical Cable) Fiber/Copper inner conductor material and 24K gold-plated connectors provide maximum video clarity
■ Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into an HDMI source and the end marked Display plugs into a TV, monitor, projector, and other display devices
■ Supports 16bit/24bit (RGB/YCbCr) Deep Color depth, HDR, CEC, 3D and ARC
■ Premium zinc alloy HDMI connector housing with the easy-grip design for the trouble-free plugin or remove
■ Triple-shielded cable effectively blocks electronic interference and radio frequency interference to prevent signal loss and screen ghosting

  • $0 $0

Highlights

Connects Ultra HD 4K HDMI source devices
Such as Blu-ray players, set-top boxes, and game consoles to 4K HDMI display devices such as TVs, monitors or projectors up to 60 meters away with no signal loss

Compliant with HDMI 2.0 and HDCP 2.2 standards

18Gbps signal bandwidth and 4K@60Hz YUV 4:4:4 video resolution

AOC (Active Optical Cable) Fiber/Copper inner conductor material
And 24K gold-plated connectors provide maximum video clarity

Features unidirectional connection requiring the cable to be installed in a specific direction
The end marked Source plugs into an HDMI source and the end marked Display plugs into a TV, monitor, projector, and other display devices

Supports 16bit/24bit (RGB/YCbCr) Deep Color depth, HDR, CEC, 3D and ARC

Premium zinc alloy HDMI connector housing with easy-grip design
For trouble-free plugin or remove

Triple-shielded cable effectively blocks electronic interference
And radio frequency interference to prevent signal loss and screen ghosting

Specification

Compliant with HDMI 2.0 specification



HDCP 2.2/1.4 compliant



Resolution:Up to 4Kx2K@60Hz YUV 4:4:4



Bandwidth:Up to 18Gbps



Fiber cable:OM3



Cable outside diameter:5.0mm



Cable jacket:
■ PVC
■ Flame retardance: UL VW-1



Product:
■ Cable length: 60m (197ft)
■ Cable weight: 3.92 lbs
■ HDMI connector housing material: Zinc alloy
■ Color: Black



Connectors:
■ 1 x 19-Pin, HDMI Type-A, Male, Source
■ 1 x 19-Pin, HDMI Type-A, Male, Display

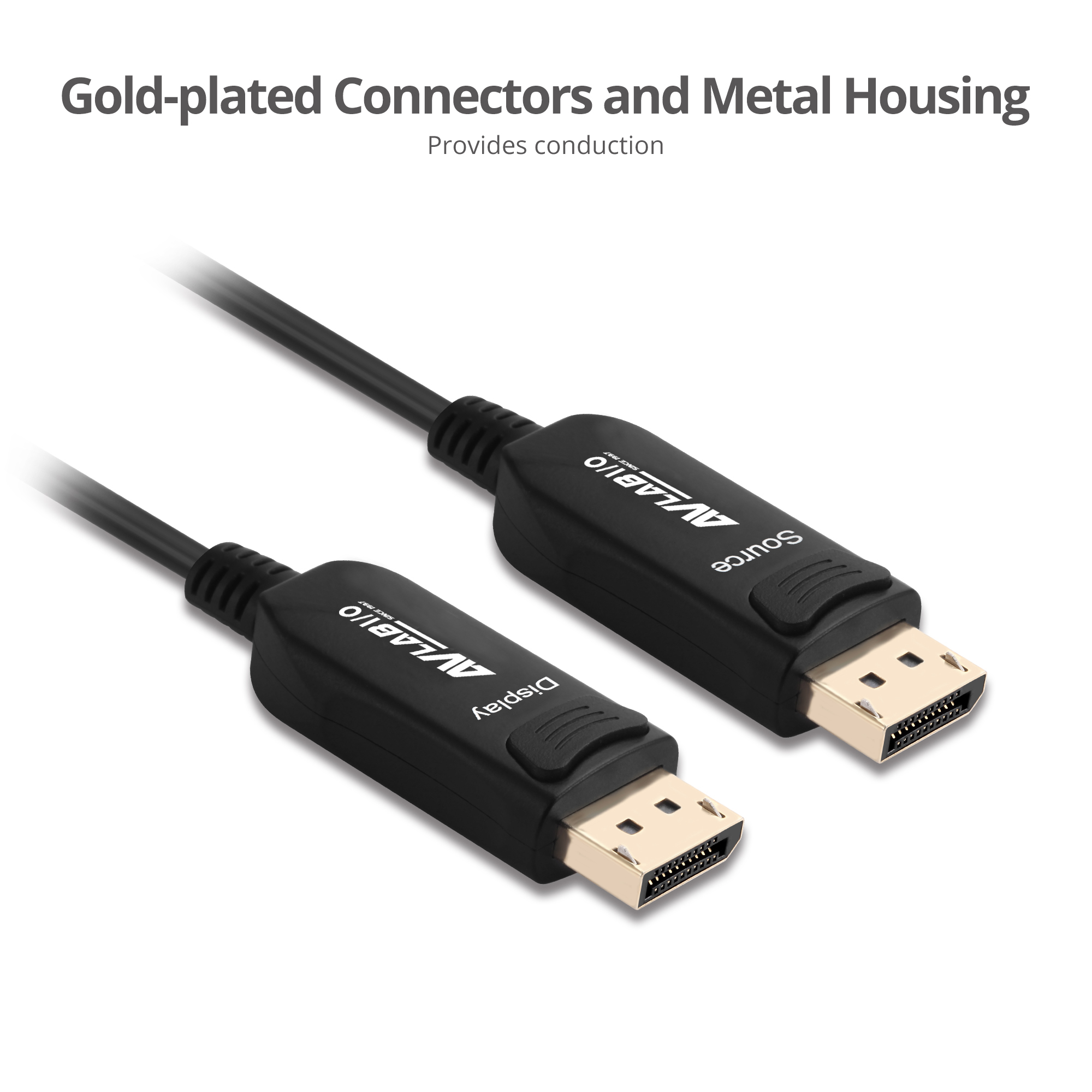

■ Gold plated



Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: -10 to 158 degrees F
■ Humidity: < 85% non-condensing



Certifications/Standards:FCC, CE, RoHS



Warranty:1 years limited



Country of origin:Engineered in the USA / Manufactured in China



Note:This cable features unidirectional design, which requires the cable to be installed in a specific direction. Each HDMI connector is labeled for easy cable orientation to ensure proper device connetion.



Package Contents
■ 4K HDMI 2.0 AOC Cable - 60m
