- AcePro-CEC2-1
- AcePro Live Game HDMI Capture PCIe Card
■ STREAM & RECORD - Easily records HDMI signals through PCIe slot with low latency, ideal for gaming, meetings, or live streaming. Note: Does not capture or record HDCP protected signals ■ HDMI INPUT & OUTPUT - Captures and records in 1080p @60Hz while simultaneously gaming in 4K @60Hz display through the HDMI output ■ MIXED AUDIO SUPPORT - Supports stereo audio embedding and HDMI audio stream, great for adding voice-overs on your gameplay. Also supports audio extraction to stereo out ■ UNIVERSAL COMPATIBILITY - Compatible with most 3rd party software such as OBS Studio, downloadable from https://obsproject.com ■ HDMI loop-out to monitor the HDMI signal ■ Auto-detection of video format, video recording and live streaming quality decided by software setting ■ Plug and play - no driver installation required Compatibility Notes: - Does not capture or record HDCP protected signals - HDCP protected signals will pass through to the HDMI loop-out port
Highlights

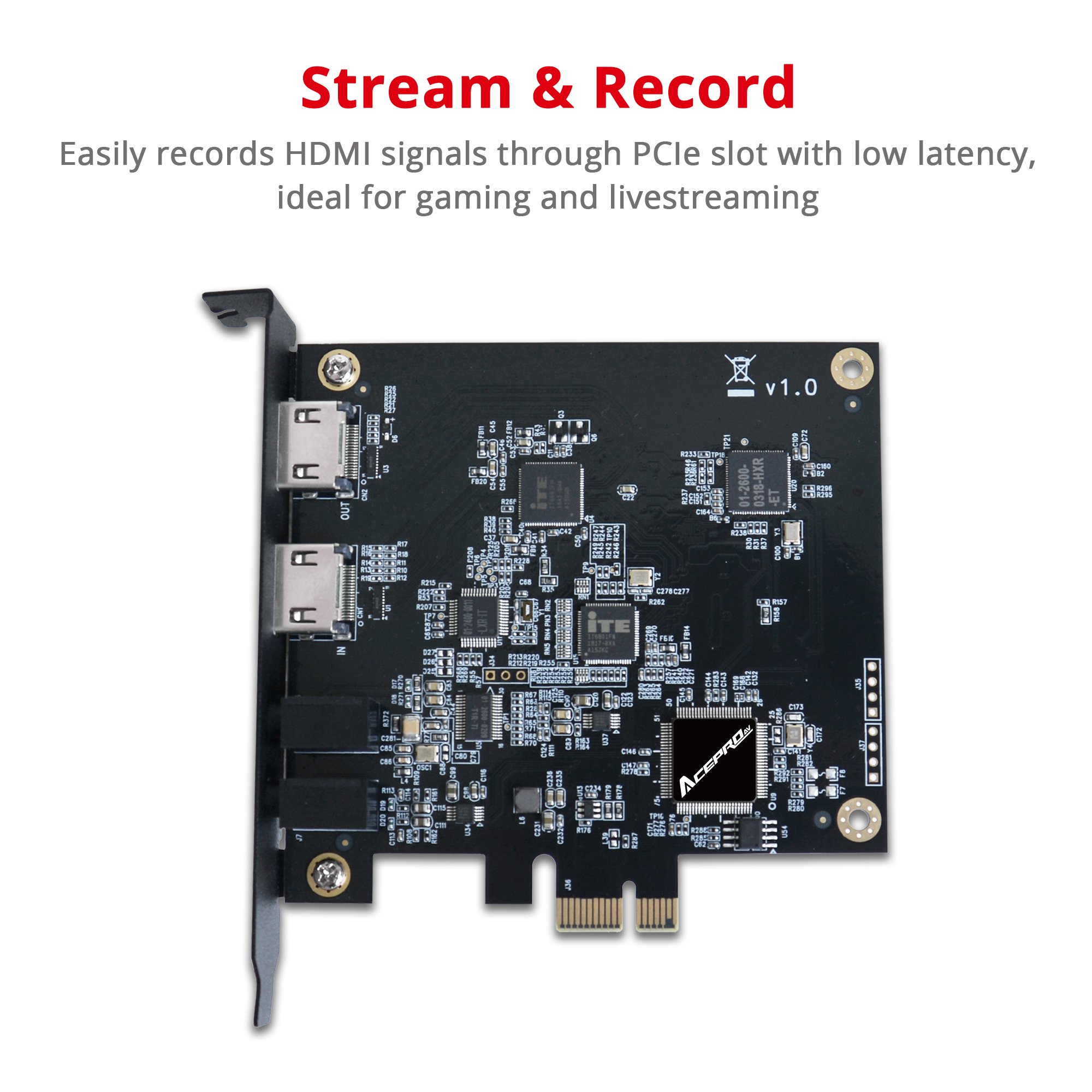

STREAM & RECORD
Easily records HDMI signals through PCIe slot with low latency, ideal for gaming, meetings, or live streaming. Note: Does not capture or record HDCP protected signals

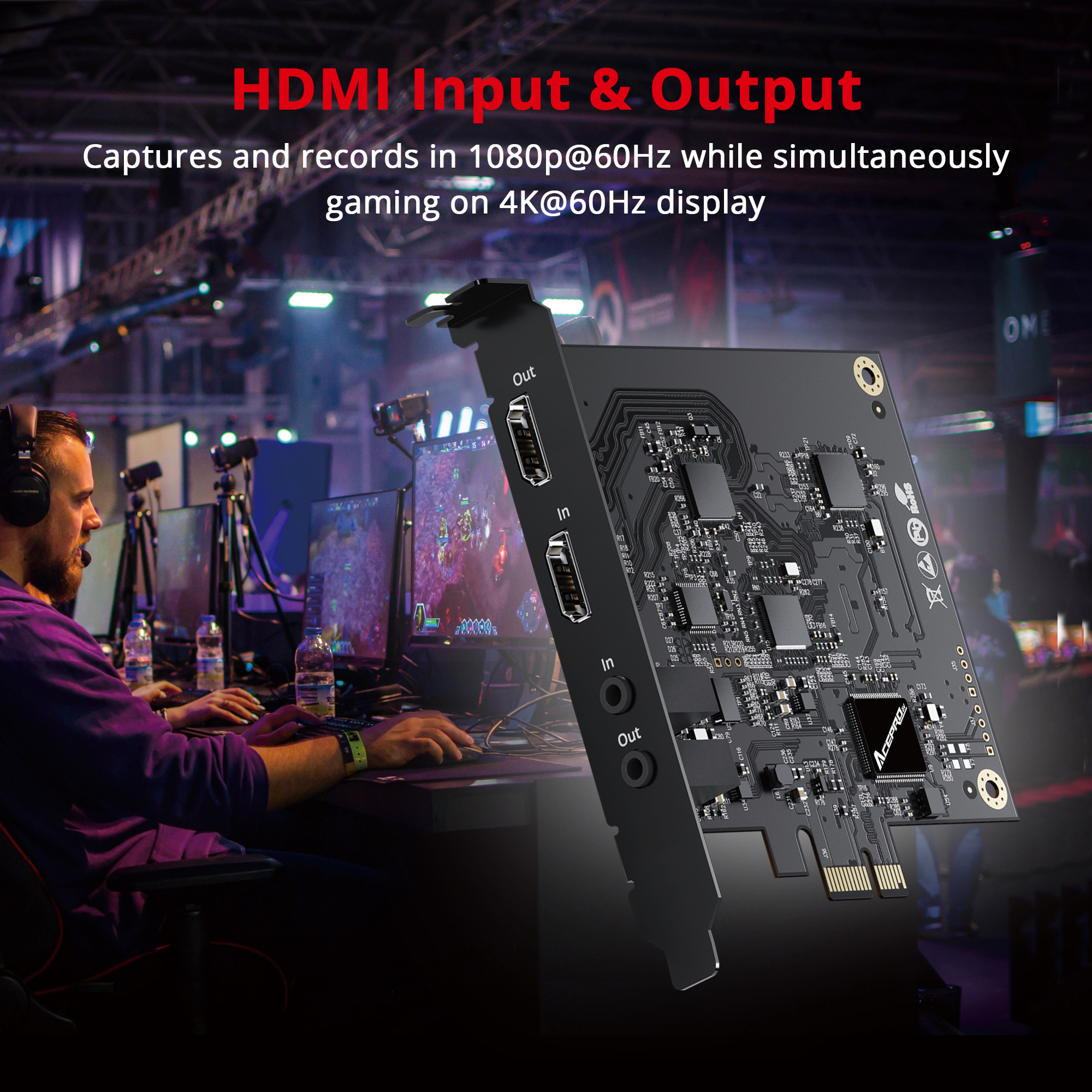

HDMI INPUT & OUTPUT
Captures and records in 1080p @60Hz while simultaneously gaming in 4K @60Hz display through the HDMI output

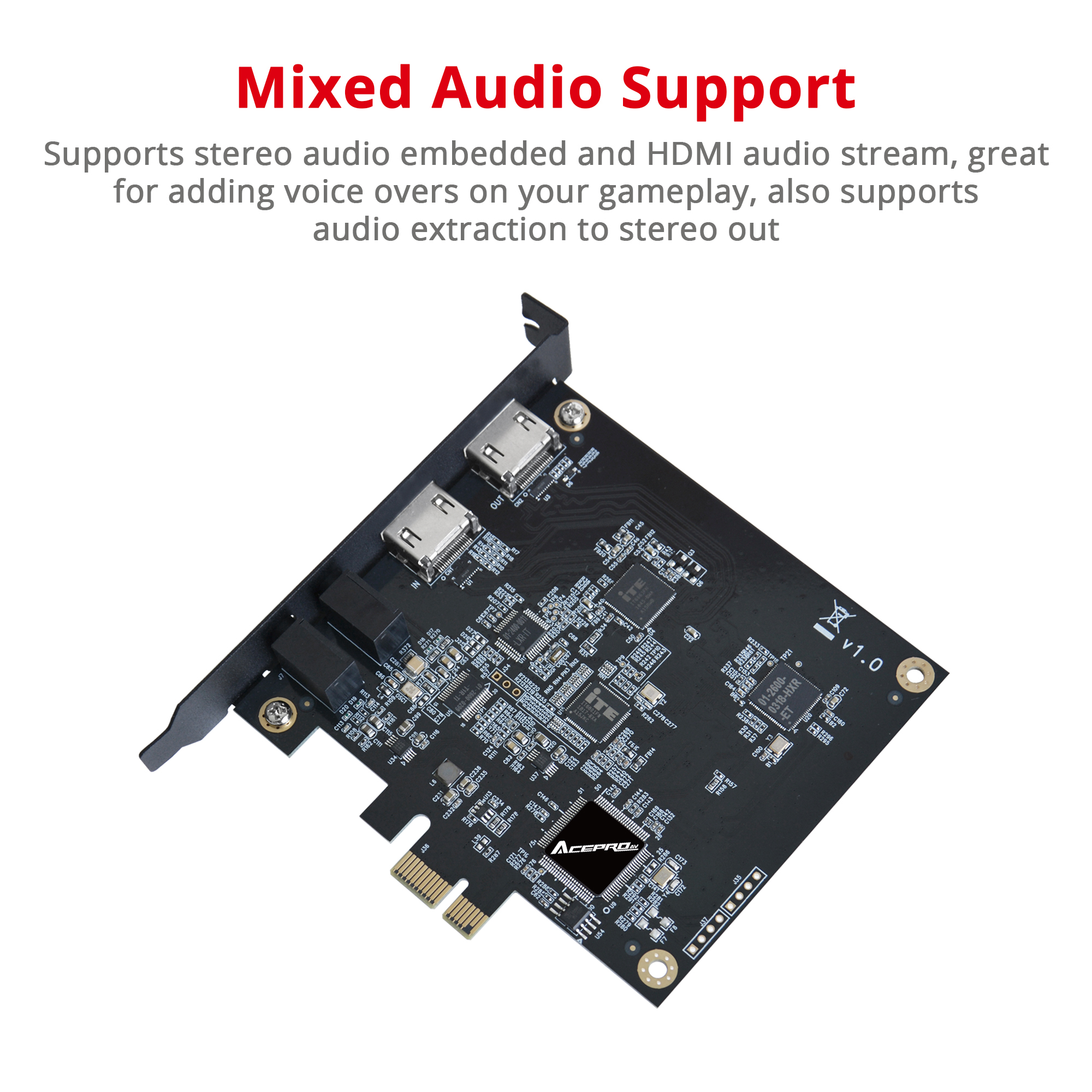

MIXED AUDIO SUPPORT
Supports stereo audio embedding and HDMI audio stream, great for adding voice-overs on your gameplay. Also supports audio extraction to stereo out
UNIVERSAL COMPATIBILITY
Compatible with most 3rd party software such as OBS Studio, downloadable from https://obsproject.com
HDMI loop-out to monitor the HDMI signal
Auto-detection of video format
Video recording and live streaming quality decided by software setting
Plug and play
no driver installation required
Compatibility Notes:
- Does not capture or record HDCP protected signals
- HDCP protected signals will pass through to the HDMI loop-out port
Specification
Chipset:EJ168A + ITE6663+ ITE6881
Support HDMI input & loop-out max resolution 4K@60Hz (YUV 4:4:4)
Support video capture/record/stream:1080p@60Hz (max)
Support line-in mix with HDMI audio
Bandwidth:Input video up to 600MHz
Recording mode:H.264 (software compression)
Recording video Format:MJPG/YUY2
PCIe version:PCIe Gen 2.0
Installation form factor:Full profile
Bus type:PCI Express x1 slot
Product:
■ Dimensions: 4.72" (L) x 0.79" (W) x 4.25" (H)
■ Weight: 0.14 lbs
■ Color: Black

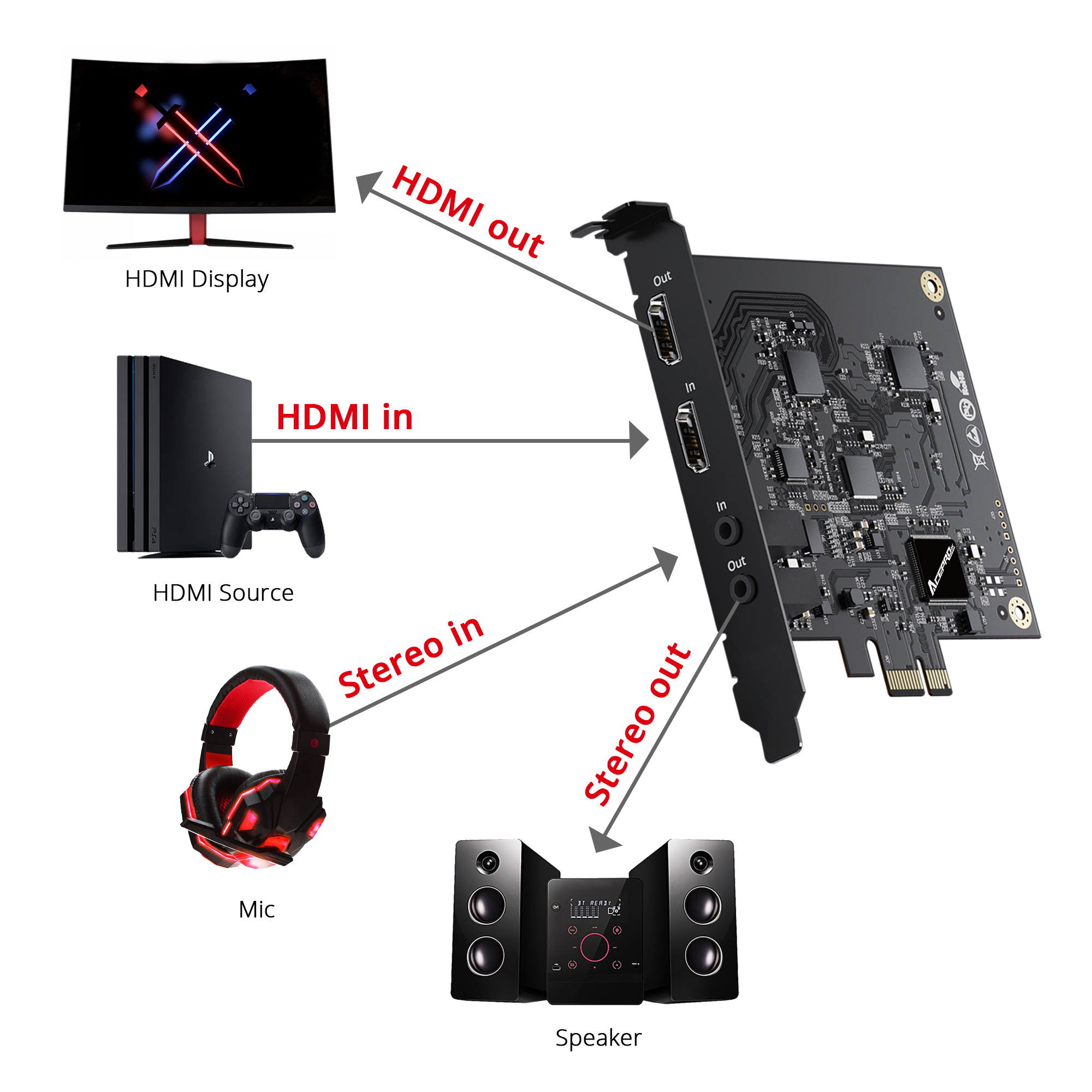

■ Connector:
- 1x 19-pin HDMI Female, Input
- 1x 19-pin HDMI Female, Loop-out
- 1x 3.5mm Audio, Aux input
- 1x 3.5mm Audio, Output
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 178 degrees F
■ Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Compatibility:
- Does not capture or record HDCP protected signals
- HDCP protected signals will pass through to the HDMI loop-out port
Requirements
■ Desktop PC with one available PCIe slot
■ Windows® 10 / 8 / 7 (32-/64-bit)
■ 3rd party capture software such as OBS Studio, available at: https://obsproject.com
Package Contents
■ Live Game HDMI Capture PCIe Card
■ Quick start guide
