• AVLAB-US41-1
  • AVLAB Dual Profile USB 3.0 4-Port PCIe Host Card

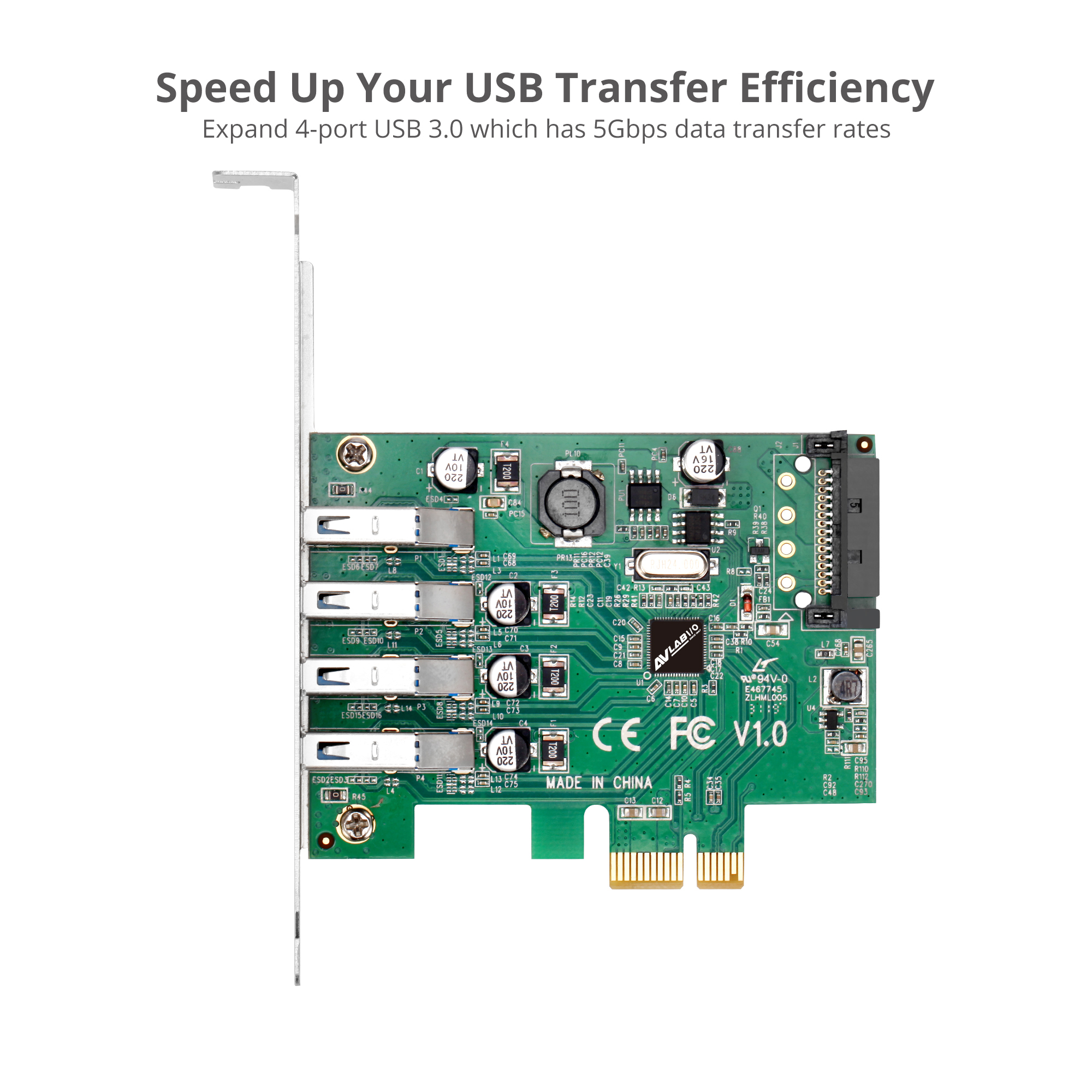

■ Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system
■ Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset
■ Compliant with USB data transfer rates - Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)
■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification
■ Compliant with USB legacy and UASP mode (UASP requires Windows 10 and 8 native USB 3.0 host drivers only)
■ PCI Bus Power Management Interface Specification Revision 1.2

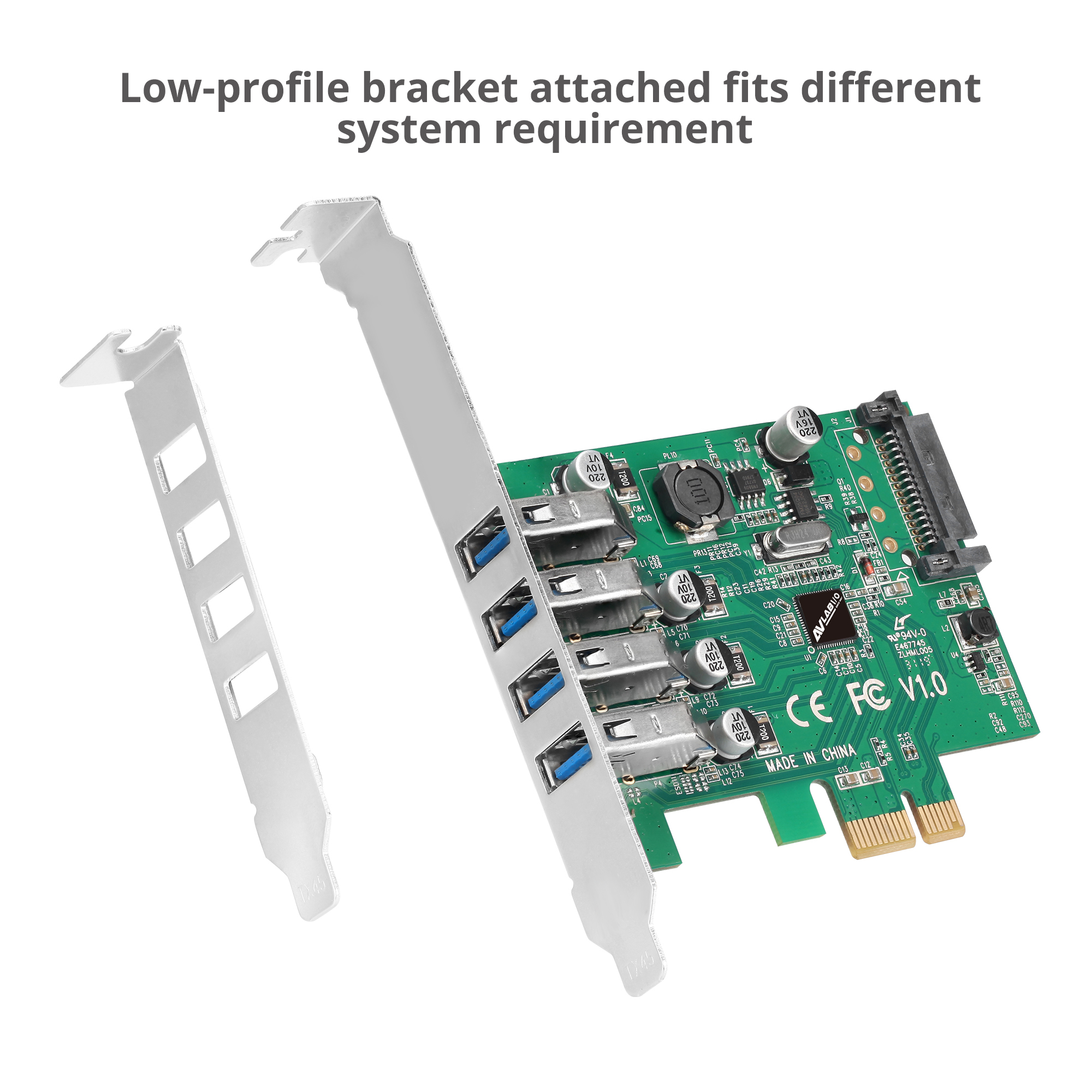

■ Dual-profile design installs into different system form factor chassis with the included full and low profile brackets
■ Each USB port features over-current protection to protect your connected device from power surges

  • $0 $0

Highlights

Adds four SuperSpeed USB 3.0 Type-A ports to your desktop system


Complies with PCIe 2.0 standard with high performance NEC uPD720201 chipset


Compliant with USB data transfer rates
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps)

Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0 specification


Compliant with USB legacy and UASP mode
(UASP requires Windows 10 and 8 native USB 3.0 host drivers only)

PCI Bus Power Management Interface Specification Revision 1.2


Dual-profile design installs into different system
Form factor chassis with the included full and low profile brackets

Each USB port features over-current protection
To protect your connected device from power surges

Specification

Chipset: Renesas uPD720201



Compliant with USB 3.0 Specification



Bus connector: PCI Express 1x



Version: PCI Express 2.0



USB data transfer rate: Up to 5Gbps



Per port over-current protection



USB power output: Up to 5V/900mA



Product:
■ Dimensions: 3.35" (L) x 0.79" (H) x 2.68" (W)
■ Weight: 0.15 lbs
■ PCB Color: Green
■ Connectors:
4x 9-pin USB 3.0 Type A, Female

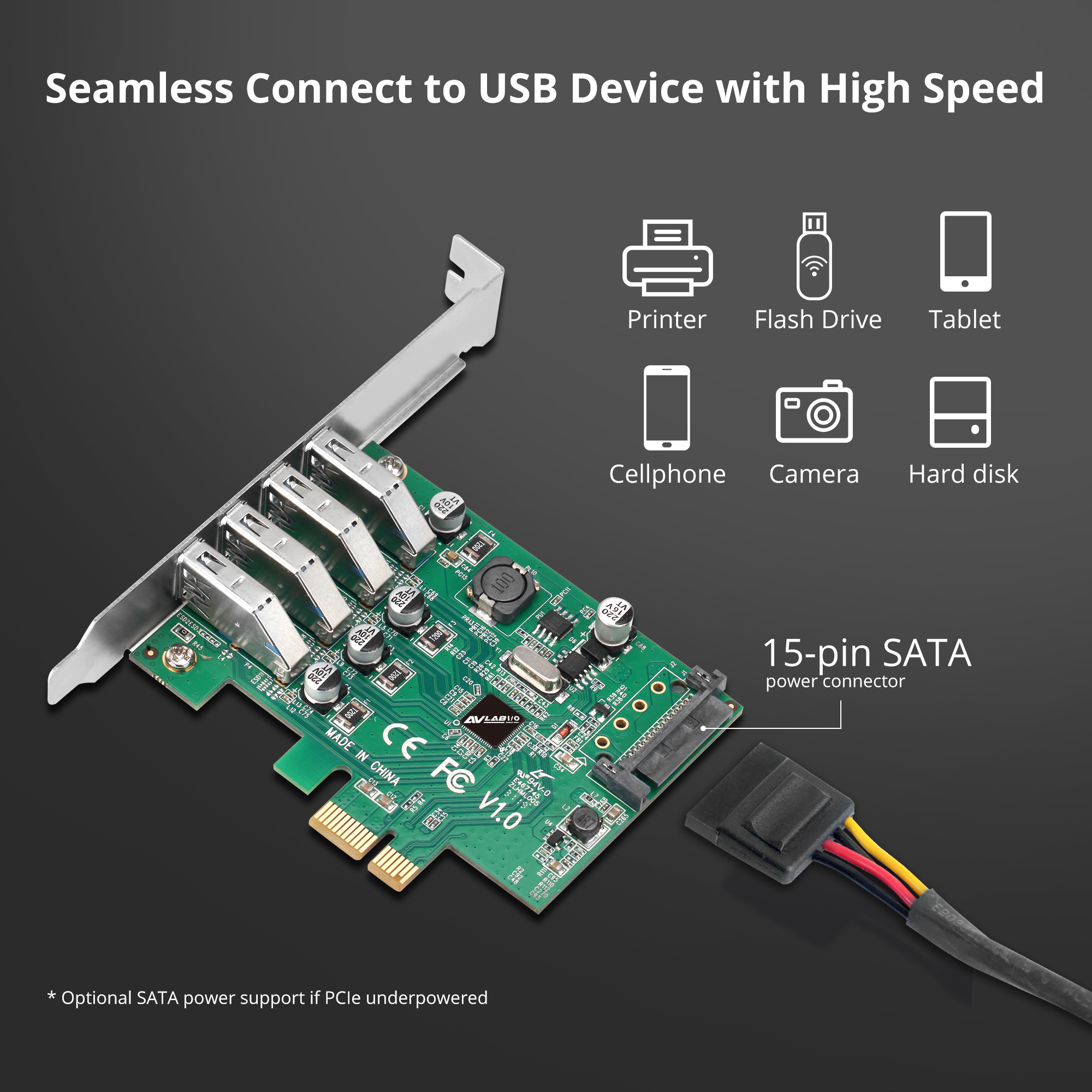

1x 15-pin SATA power connector
-- SATA power connection is required



Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 2 years limited



Country of origin: China



Requirements

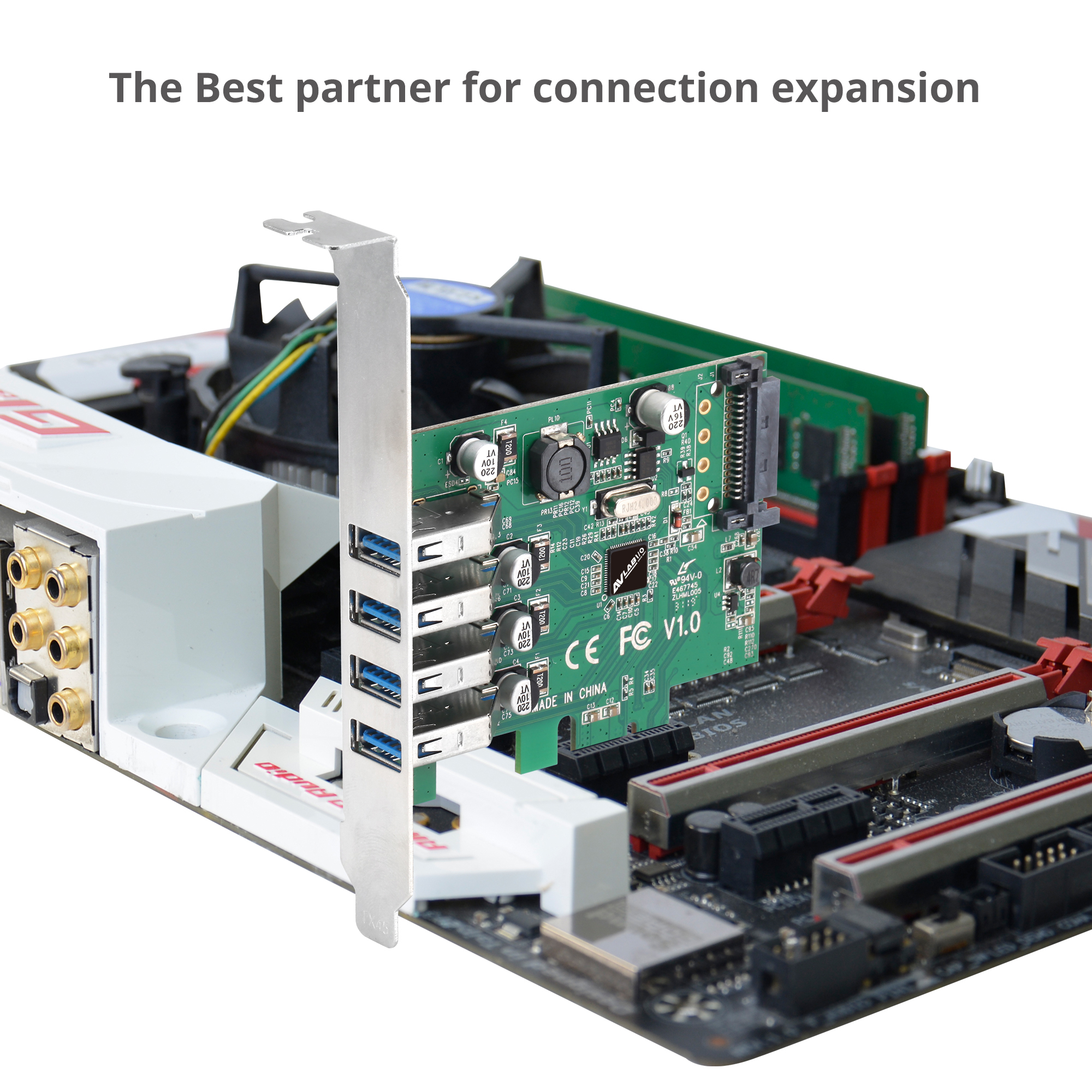

■ Desktop PC with one available PCI Express (PCIe) slot
■ SATA power connection is required
■ Windows® 10 / 8.x / 7
■ Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008



Package Contents
■ DP USB 3.0 4-Port PCIe Host Card
■ Low profile bracket
■ Driver CD
■ Quick Start Guide
