- AcePro-EX35-1
- AceProAV HDMI 1080p@60Hz Extender over Cat5e/6 cable up to 164ft with IR & Loop-out

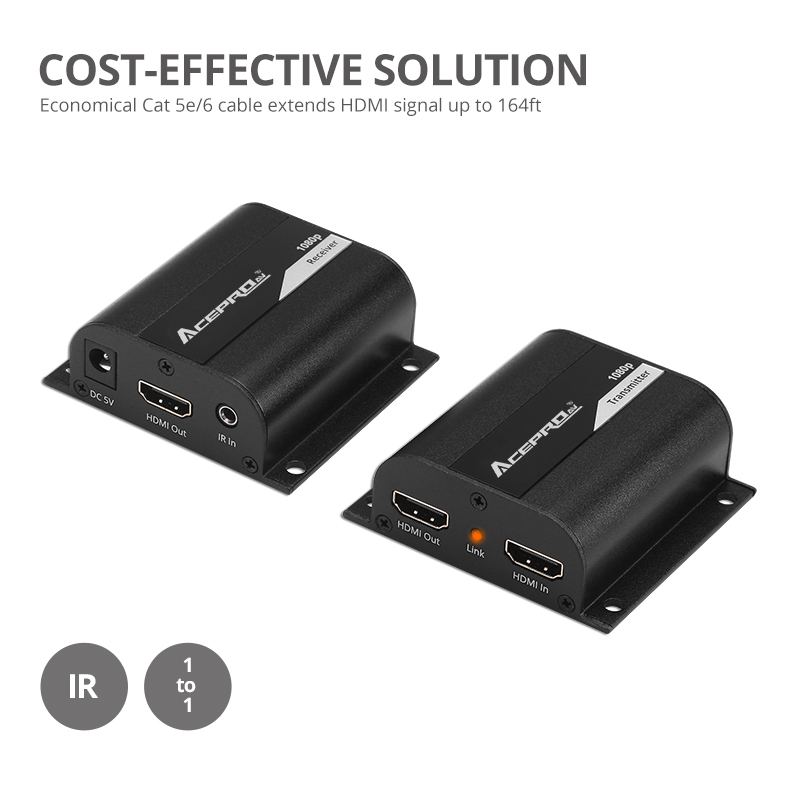

Extends HDMI signals up to 164ft over a single CAT5e/6 cable with a local HDMI output for monitoring the extended display
Highlights
- Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164ft via Cat5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
- Note: An extension of over 100ft requires a Cat6 100% copper UTP cable
-

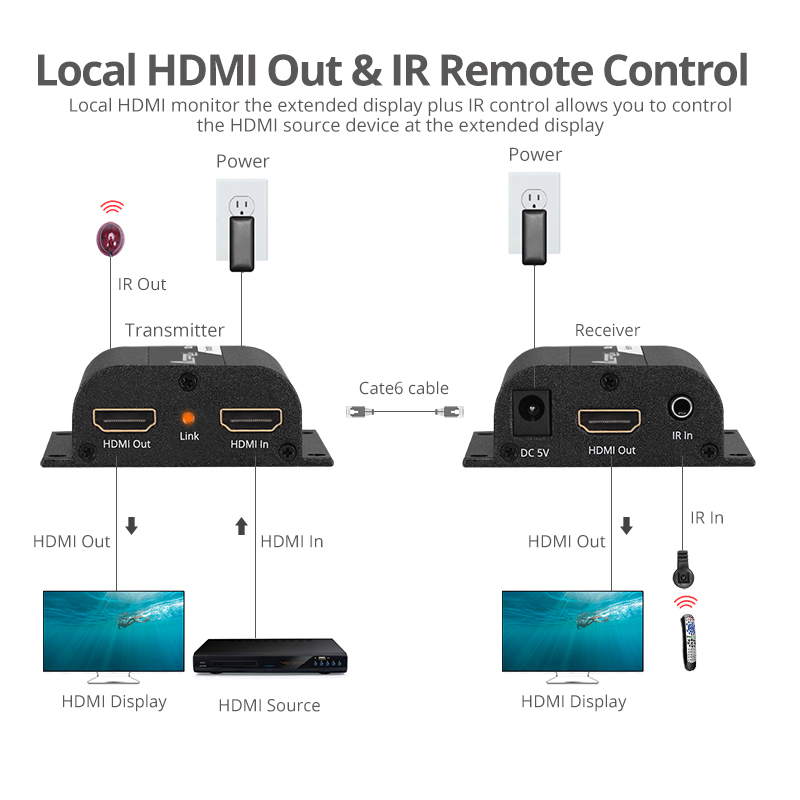

- IR remote control through CAT5e/6 allows you to control the HDMI source device at the extended display location
- Built-in HDMI output on the transmitter allows for local monitoring of the extended display
- Delivers high-quality audio/video transmission without compression for optimal performance, supports video resolution up to 1080p (Full HD) and 3D
- Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
- Plug-n-Play installation, no software installation or hardware setup is required
- Compatibility:
- An extension of over 100ft requires a Cat6 100% copper UTP cable
- Does Not work with Routers or Switches
Specification
- HDMI 1.3 and HDCP 1.2 compatible
- Supports resolution: 480p/720p/1080i/1080p
- Transmission distance: up to 164ft (50m)
- Note: An extension of over 100ft requires a Cat6 100% copper UTP cable
- HDMI cable length: up to 2 meters (Input & output)

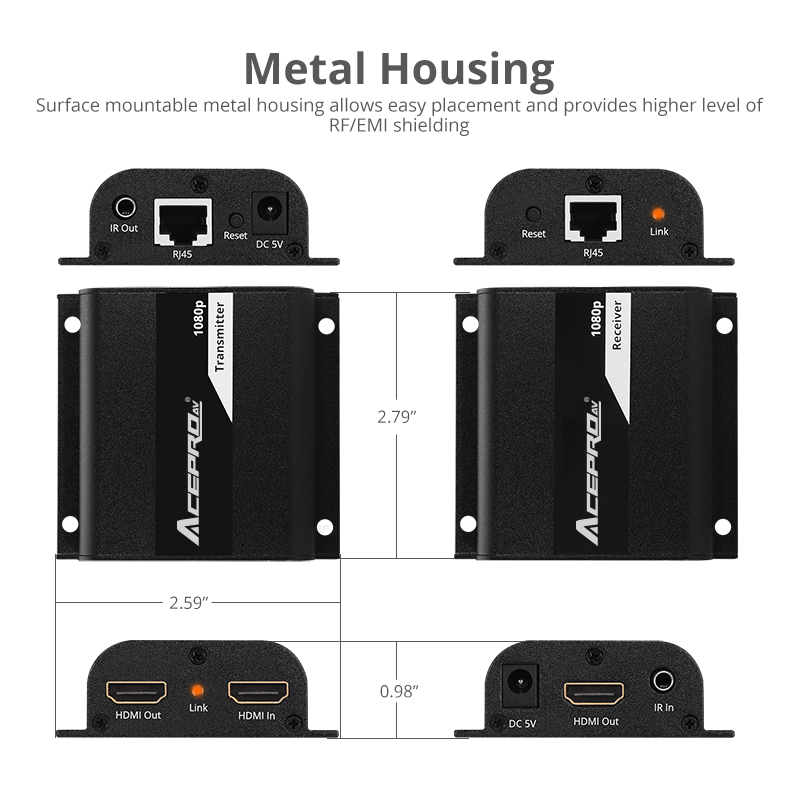

- Housing: Metal
- Products:
-
- Transmitting unit (TX):
- Dimensions: 2.80" (L) x 0.97" (H) x 2.60" (W)
- Weight: 0.19 lbs

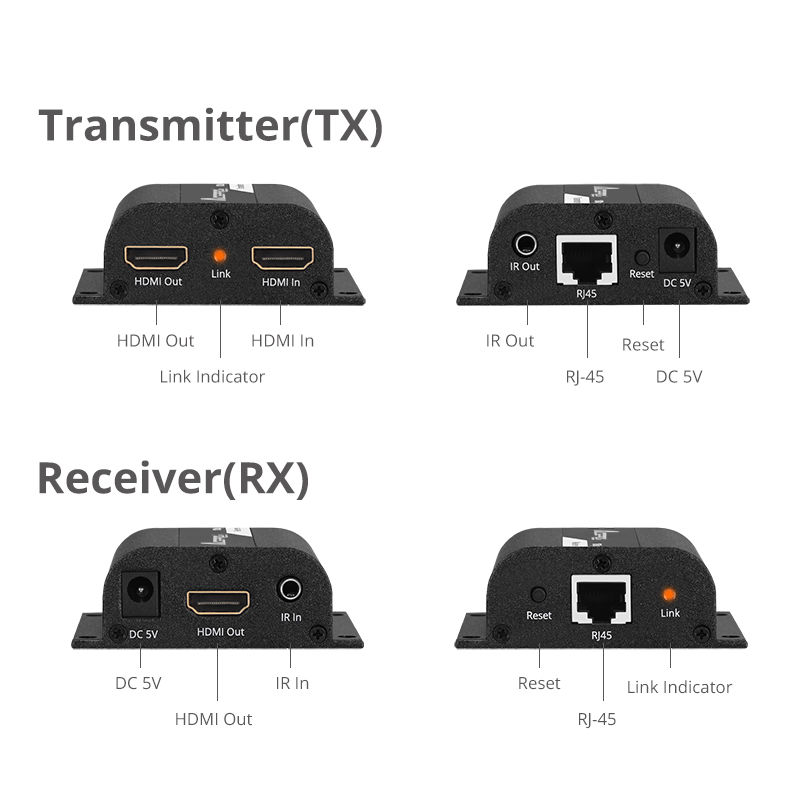

- Connectors:
- Input:
- 1x, 19-pin HDMI, Type A, Female
- Output:
- 1x, 8-pin, RJ45
- 1x, 19-pin HDMI, Type A, Female
- 1x, 3.5mm jack, IR
-
- Note: An extension of over 100ft requires a Cat6 100% copper UTP cable
Receiving unit (RX):
- Dimensions: 2.80" (L) x 0.97" (H) x 2.60" (W)
- Weight: 0.18 lbs
- Connectors:
- Input:
- 1x, 8-Pin, RJ45
- 1x, 3.5mm jack, IR
- Output:
- 1x, 19-pin, HDMI, Type A, Female
- Power adapter:
- Input: 100-240VAC
- Output: 5V DC, 1A
- Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 0% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
