• AcePro-KV06-1
  • AceProAV 4-Port DisplayPort 1.2 KVM plus USB 3.0 Data Hub

  • DisplayPort 1.2
  • 21.6G
  • 4x1
  • 4K60Hz
  • KVM
  • USB 3.0
  • USB Keyboard & Mouse
  • 3.5mm phone & Mic jacks
  • Switch button
  • Hotkeys
  • Auto EDID

  • $0 $0

Highlights

  • Features
  • Create a high-performance workstation via one set of keyboard and mouse to control 4 DisplayPort computers with USB 3.0 and audio devices



  • Effortlessly Switch
  • Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate



    Built-in signal level enhancement slide switch reforms DP source and resolve unstable original DP input automatically



  • High Resolution

  • Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, 3D, Deep color.

    **Note: Does NOT work with passive or active DP-to-HDMI/DVI/VGA adapters

    * HDR is not supported



  • High Performance

  • Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported

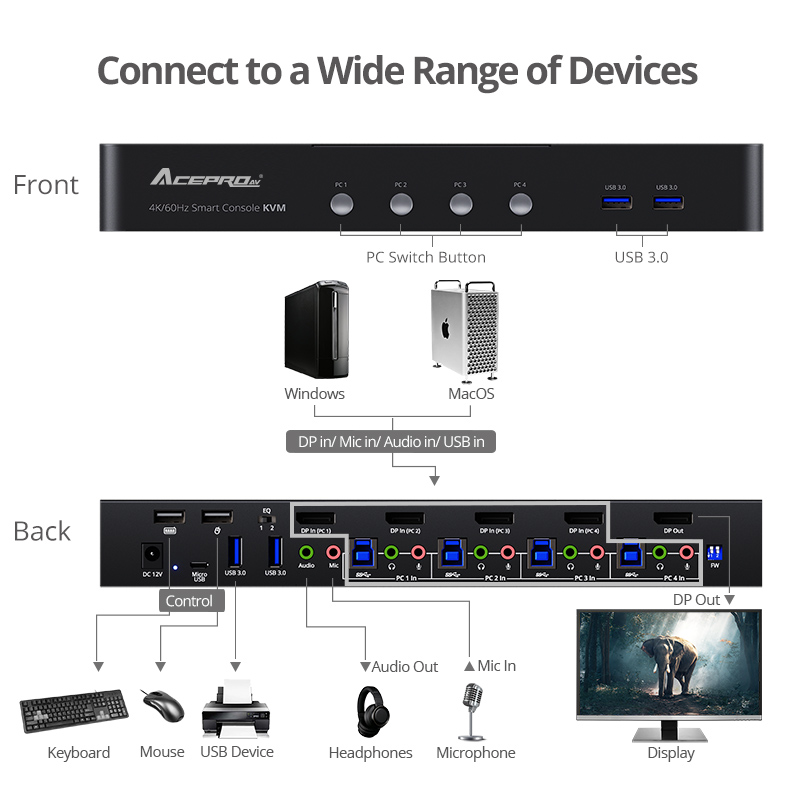

  • Multiple Connectivity Port

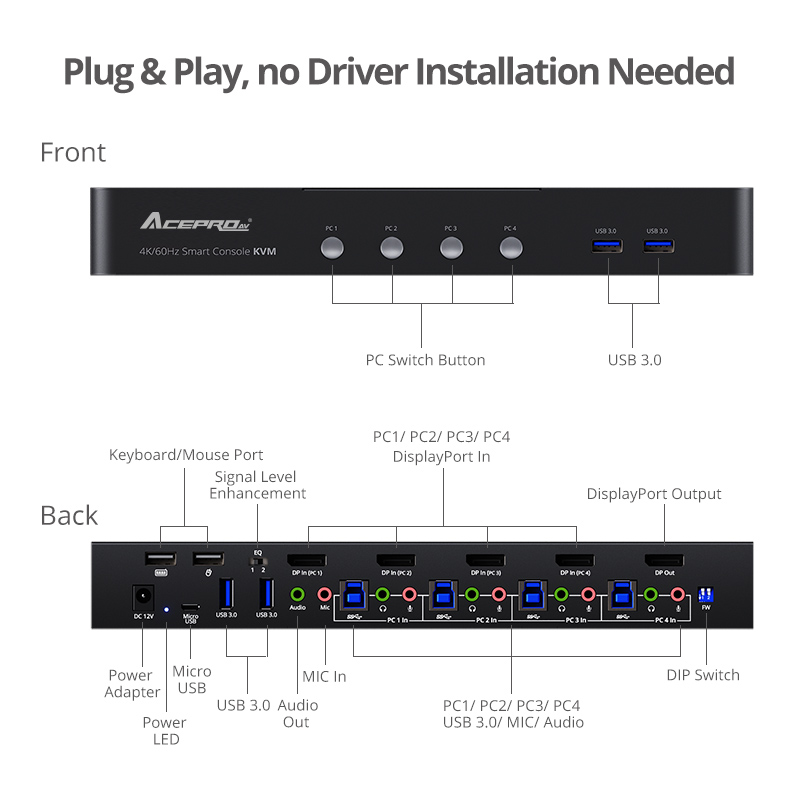

  • Comes with four DisplayPort video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, ten 3.5mm audio jack ports to connect stereo speakers / earphone or microphone, one Micro USB port for Firmware update, one DIP Switch, and one Slide Switch (signal level)



  • HIGH-SPEED DATA TRANSFER

  • Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps



  • Maximum Compatibility

  • Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required



  • TAA Compliant

  • Completely manufactured in a TAA designated country



  • Metal Housing Design

  • Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life



  • ESD Protection

  • An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device



  • Application

    • Educational facilities
    • Gaming
    • Hospital
    • Workstation
    • Control center
    • Reception desk
    • Media editing
    • Retail stores
    • Audio/Video presentation room



  • Need to Know Before Buying

  • 1. Please confirm your 4 computers with DisplayPort 1.2 port, USB 3.0 Type-B port, audio port and Mic ports

    2. Requires DisplayPort 1.2 connection for the display/monitor resolution that supports 4K@60Hz* Please note that HDR is not supported

    3. If you want to take full advantage of DisplayPort 1.2 full specifications, you need the DisplayPort 1.2 cable capable of the correct bandwidth. For example, if you are running 4K@60Hz, then please use our DisplayPort 1.2 cables (those are included) or use the DisplayPort certified cables

    4. Four USB 3.0 cables are required to connect to the USB peripheral devices. * Not support Dynamic Device Mapping (DDM) fast switching



Specification

Hardware
Chipset TI SN75DP130
Software
OS Compatibility Windows® 10, Mac OS ® 10.10 or new
Video
DisplayPort 1.2 3840x2160@60Hz YUV 4:4:4 8-bit
Bandwidth DisplayPort: Up to 21.6Gbps
Video cable length DisplayPort: Up to 3M (max)
USB 3.0 4x Type-A, Gen 1 up to 5Gbps
USB 1.1 2x Type-A, up to 12Mbps
Power Adapter
Input AC 100-240V / 50-60Hz
Output DC 12V/2A
UL Listed E163743 /Level: VI
Audio
7.1 channel surround sound
PCM 2.0 channel stereo digital audio
Environmental conditions
Operating temperature 32 to 104 degrees F
Storage temperature -4 to 140 degrees F
Relative humidity <85% RH (non-condensing)
Product Info
Dimensions 11.10” (L) x 1.43” (H) x 4.38” (W)
Weight 2.09 lbs
Color Black
Housing material Metal
Certifications/Standards
FCC, CE, RoHS, TAA compliant, Cable UL Listed: E301195
Country of origin: Taiwan
