• AcePro-SW13-1
  • AceProAV 4K HDMI Dual-View Wireless Presentation Switch

Share up to 16 devices wirelessly with dual screen main display, 4K resolution, perfect for meeting and boardroom presentation

  • $0 $0

Highlights

  • Allows sharing laptop, tablet, smart phone wirelessly, easily join meeting room and board room presentations
  • Supports Dual view on-screen display and up to 16 simultaneous connections.  Note: Requires Dual View Wireless Media Presentation Kits (part # AcePro-SW14-1) and additional Wireless Media Presentation Transmitter - HDMI Dongle (part # AcePro-SW15-1), each sold separately
  • Supports Whiteboard and Annotation allows documents to be easily written, edited, captured and shared, more productive and effective collaboration
  • Three different security levels to satisfy different security requirements, according to different security sensitive environments or security policies

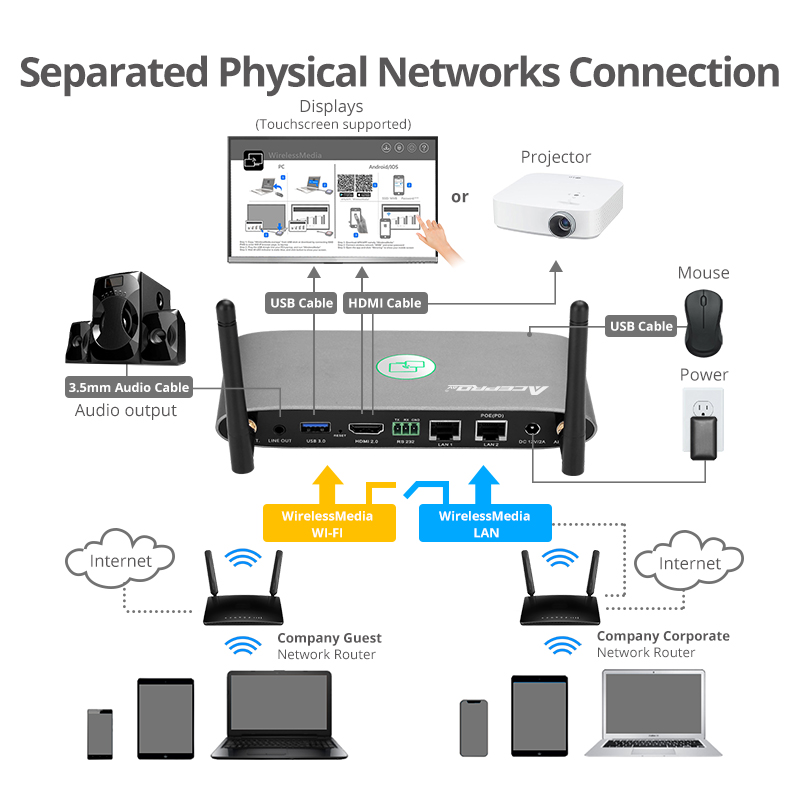

  • Provides two segmented routing options to connect to the base unit simultaneously and separately, including wireless WI-FI network and wired LAN network
  • Provides nearly zero latency mouse operation on the main screen
  • Supports VESA PC resolution input with auto-detect
  • Supports HDMI/USB plug-in auto configuration/pairing for wireless media presentation.  Note: Additional Wireless Media Presentation Transmitter - HDMI Dongle (part # AcePro-SW15-1) sold separately
  • Supports remote mouse to control the active source devices from other smart devices
  • Supports "Airplay" for Apple iPhone or MacBook devices

Specification

  • HDMI standard: Up to HDMI 2.0
  • HDCP version: Up to HDCP 2.2
  • HDMI output: 1x HDMI 19-pin female connector
  • Video resolution (output): 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
  • Video playback frame rate: 20-60 FPS
  • Video capacity: 1080P @ <60Hz Airplay for IOS devices / app; 1080P @ <60Hz "WirelessMedia" app; 1080P @ <30Hz for all show-me button
  • Audio input: Airplay, DLNA, Windows/MAC, WMH
  • Analog audio output: 1x 3.5mm PC audio female connectors
  • Control connectors: 3.5mm Phoenix terminal/ RS232 interface
  • USB interface: USB 3.0 x1, USB 2.0 x1, Type-C x1
  • Number of window simultaneously on screen (max): 2 + 14 (2 main windows + 14 thumbnail windows)
  • Latency: <100ms, Min 20ms
  • Network connectivity:
    • Wireless data rate: Up to 1200Mbps
    • Wireless transmission protocol: WIFI IEEE 802.11 a/g/n/ac
    • Frequency band: 2.4 GHz & 5 GHz
    • WIFI Antenna: MIMO 2x2
    • LAN Ethernet port 1: 100Mbps
    • LAN Ethernet port 2: 1Gbps, with POE
    • POE standard: IEEE 802.3af
  • Base unit:
    • Dimensions: 6.50" (W) x 0.87" (H) x 3.54" (D)
    • Weight: 0.80 lbs
    • Color: Silver
    • Housing material: Metal

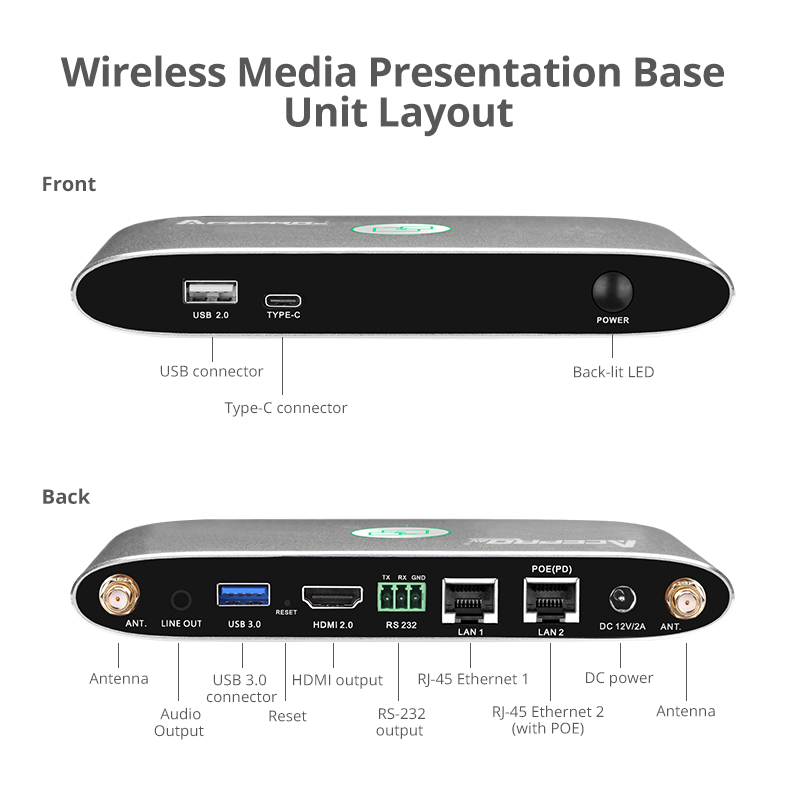

    • Connectors:
      • 1x USB 2.0 Type-A, Female
      • 1x 24-pin, USB-C , Female
      • 1x Back-lit LED
      • 1x Power Switch
      • 1x 19-pin, HDMI Type-A, Female, Output
      • 1x Line audio output
      • 1x USB 3.0 Type-A, Female
      • 1x Reset button
      • 1x RS232, 3-pin 3.5mm Phoenix terminal
      • 1x 8-pin, RJ45, 100Mbps
      • 1x 8-pin, RJ45, 1000Mbps, support POE
      • 1x DC power jack, 12V/1.5A, UL: E24161885WU, VI
      • 2x Antenna fixture points
  • USB A/C Dongle:
    • Dimensions: 2.76" (W) x 0.39" (H) x 0.67" (D)
    • Weight: 0.18 lbs
    • Color: Golden
    • Housing material: Metal
    • Connector:
      • 1x USB 3.0 Type-A, Female
      • 1x USB 3.0 Type-C, Female
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 20~90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
