- AcePro-SW14-1
- AceProAV 4K HDMI Dual-View Wireless Presentation Switch with Kits
Share up to 16 devices wirelessly with dual screen main display, 4K resolution, perfect for meeting and boardroom presentation
Highlights
- Allows sharing laptop, tablet, smart phone wirelessly, easily join meeting room and board room presentations
- Supports Dual view on-screen display and up to 16 simultaneous connections. Note: Requires Dual View Wireless Media Presentation (part # AcePro-SW13-1) and additional Wireless Media Presentation Transmitter - HDMI Dongle (part # AcePro-SW15-1), each sold separately
- Supports Whiteboard and Annotation allows documents to be easily written, edited, captured and shared, more productive and effective collaboration
- Three different security levels to satisfy different security requirements, according to different security sensitive environments or security policies

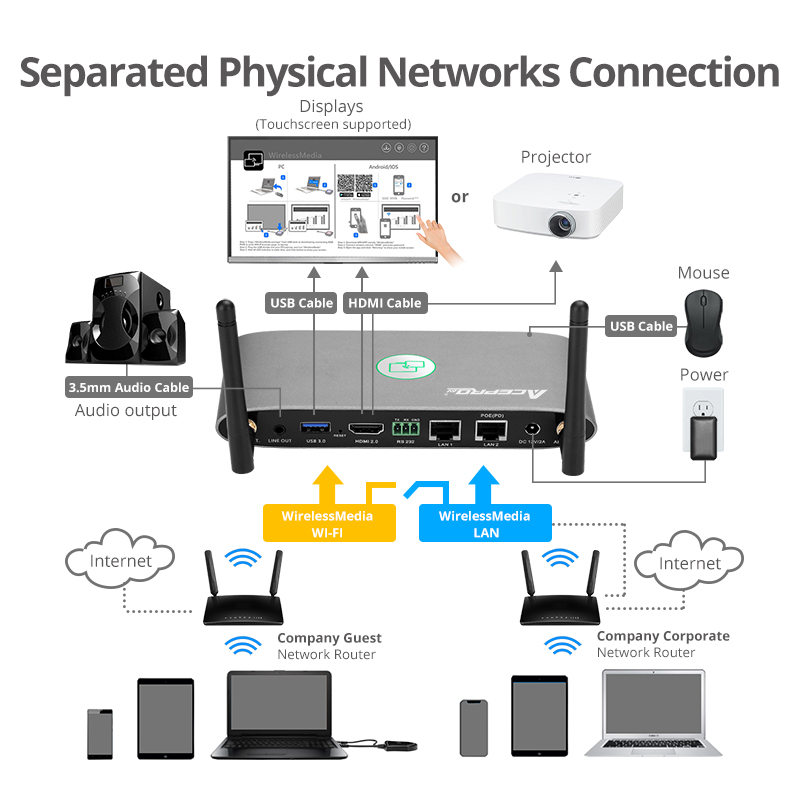

- Provides two segmented routing options to connect to the base unit simultaneously and separately, including wireless WI-FI network and wired LAN network
- Provides nearly zero latency mouse operation on the main screen
- Supports VESA PC resolution input with auto-detect
- Supports HDMI/USB plug-in auto configuration/pairing for wireless media presentation
- Supports remote mouse to control the active source devices from other smart devices
- Supports "Airplay" for Apple iPhone or MacBook devices
Specification
- HDMI standard: Up to HDMI 2.0
- HDCP: Up to HDCP 2.2
- HDMI output: 1x HDMI 19-pin female connector
- Video resolution (output): 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
- Video playback frame rate: 20-60 FPS
- Video capacity: 1080P @ <60Hz Airplay for IOS devices / app; 1080P @ <60Hz " WirelessMedia" app; 1080P @ <30Hz for all show-me button
- Audio input: Airplay, DLNA, Windows/MAC, WMH
- Analog audio output: 1x 3.5mm PC audio female connectors
- Control connectors: 3.5mm Phoenix terminal/ RS232 interface
- USB interface: USB 3.0 x1, USB 2.0 x1, Type-C x1
- Number of window simultaneous on screen: 2+14 (2 main windows+14 thumbnail windows)
- Latency: <100ms, Min 20ms
- Network connectivity:
- Wireless data rate: Up to 1200Mbps
- Wireless transmission protocol: WIFI IEEE 802.11 a/g/n/ac
- Frequency band: 2.4 GHz & 5 GHz
- WIFI Antenna: MIMO 2x2
- LAN Ethernet port 1: 100Mbps
- LAN Ethernet port 2: 1Gbps, support POE
- POE standard: IEEE 802.3af
- Base unit:
- Dimensions: 6.50" (L) x 0.87" (H) x 3.54" (W)
- Weight: 0.80 lbs
- Color: Silver
- Housing material: Metal

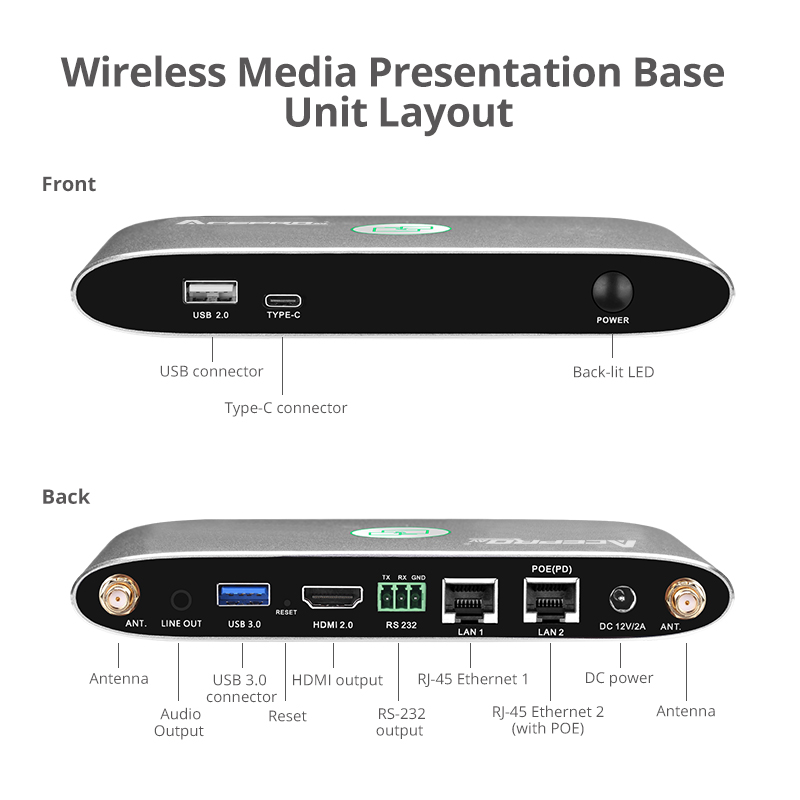

- Connectors:
- 1x USB 2.0 Type-A, Female
- 1x 24-pin, USB-C , Female
- 1x Back-lit LED
- 1x Power Switch
- 1x 19-pin, HDMI Type-A, Female, Output
- 1x Line audio output
- 1x USB 3.0 Type-A, Female
- 1x Reset button
- 1x RS232, 3-pin 3.5mm Phoenix terminal
- 1x 8-pin, RJ45, 100Mbps
- 1x 8-pin, RJ45, 1000Mbps, support POE
- 1x DC power jack, 12V/1.5A
- 2x Antenna jack

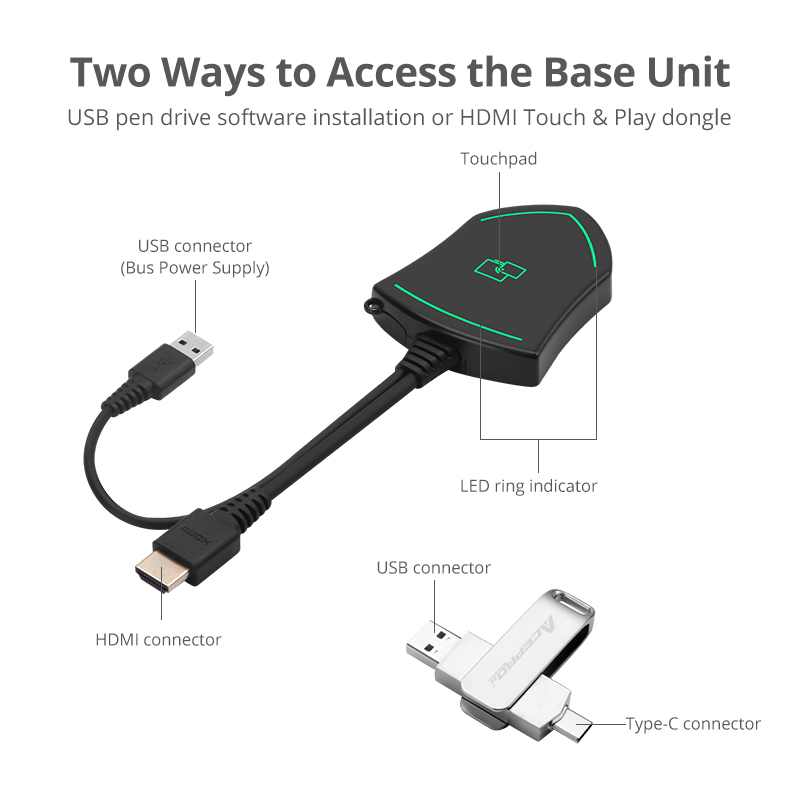

- USB A/C Dongle:
- Dimensions: 2.76" (L) x 0.39" (H) x 0.67" (W)
- Weight: 0.18 lbs
- Color: Golden
- Housing material: Metal
- Connectors:
- 1x USB 3.0 Type-A, Female
- 1x USB 3.0 Type-C, Female
- Transmitter - HDMI Dongle:
- Dimensions: 11.34" (L) x 0.47" (H) x 2.52" (W)
- Weight: 0.21 lbs
- Color: Black
- Housing material: ABS
- Connectors:
- 1x 19-pin, HDMI Type-A, male, Input
- 1x USB 2.0 Type-A, male
- 1x Touch button
- 2x LED ring
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 20~90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
