- AcePro-EX39-1
- AceProAV HDMI 1080p@60Hz over IP Transmitter - Matrix Connections plus PoE RS-232 IR
Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Highlights

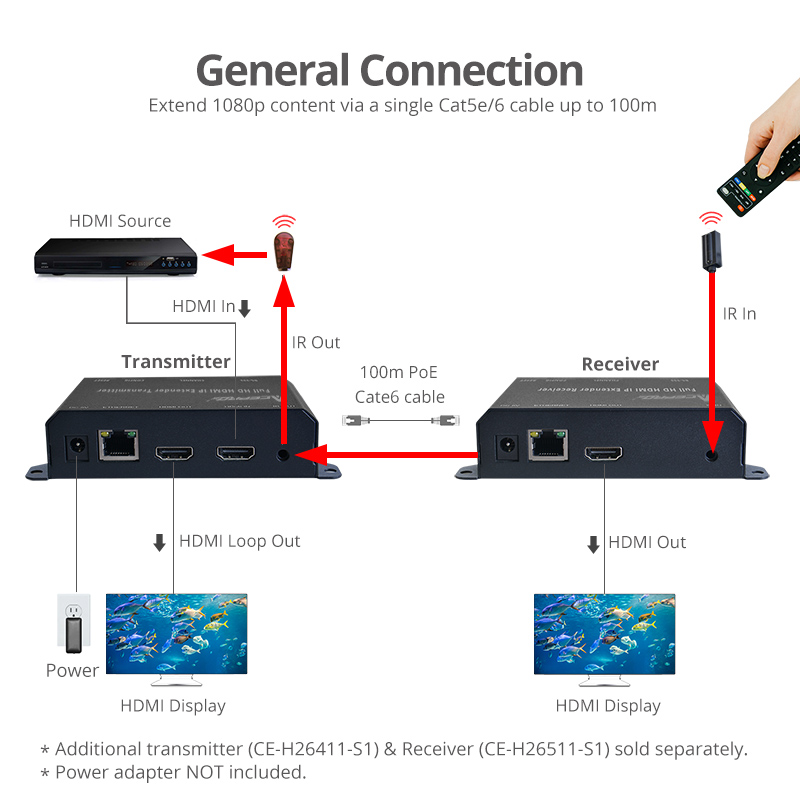

- Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part# AcePro-EX40-1, sold separately

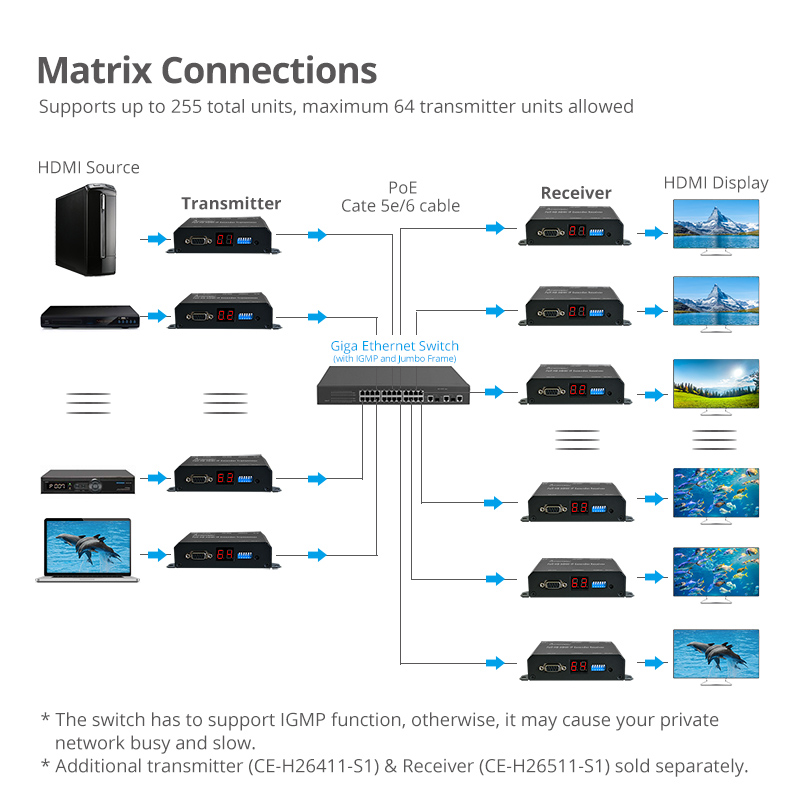

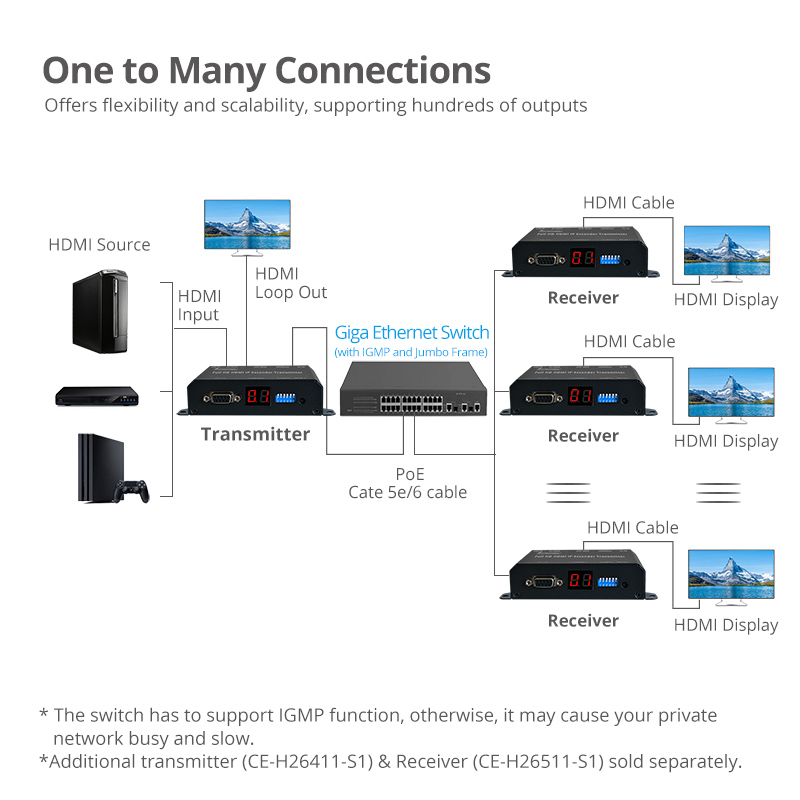

- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional transmitter units (part# AcePro-EX39-1) and receiver units (part# AcePro-EX40-1) sold separately
Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability - Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- Local HDMI loop-out allows you to monitor the extended display from the source location
- IR pass back function controls the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix mode only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Specification
- Compliant with HDMI 1.3
- Video resolution: 1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50, 480i 60/50, 480p 60/50
- Video compression:
- H.264 compression video format Full HD encoder/ decoder
- MP3 compression audio format stereo 192Kbps encoder/ decoder
- Media stream up to 18Mbps
- HDMI Audio: Stereo 192Kbps
- IP PROTOCOL: TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
- LAN port: RJ-45 connector for 10/100 BASE-T Cat extension
- Serial port: DB-9 RS-232 female connector
- Power input: RJ-45, Power over Ethernet (PoE), 36V to 57V, 7W in
- ESD protection: Air gap discharge +-8KV, contact discharged +- 4KV
- Product:
- Dimensions: 5.12" (W) x 3.23" (H) x 1.19" (D)
- Weight: 0.64 lbs
- Housing material: Metal Housing
- Housing color: Black

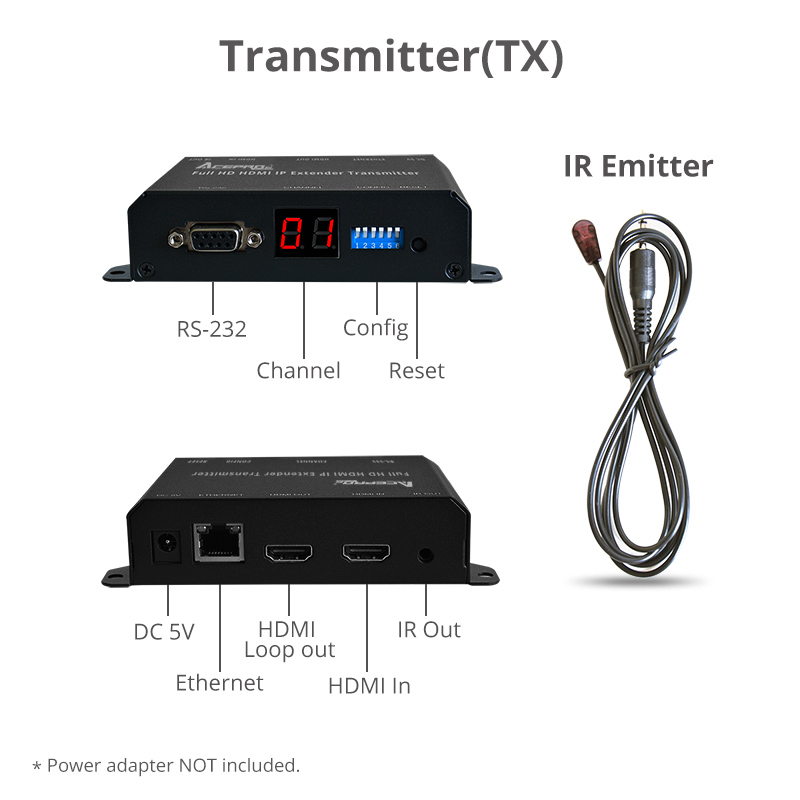

- Connectors:
- 1x 19-pin HDMI, Type-A, Female, Input
- 1x 19-pin HDMI, Type-A, Female, loop Output
- 1x 8-pin RJ45, Output
- 1x 3.5mm phone jack for IR
- 1x 9-Pin RS-232 Serial
- 1x 6-pin DIP Switch for channel
- Power jack: 5V/2A input, 5.5mm (OD) x 2.1mm (ID) x 10mm (D) (required with non-PoE Gigabit Switches or 1-to-1 (TX/RX) direct connection), power adapter purchase separately
- Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
