• AcePro-VW07-1
  • AceProAV 4-Port 2x2 Video Wall Processor plus Multi-inputs & Casacdable

Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays

  • $0 $0

Highlights

  • Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays
  • Create a 2x2 Video Wall using any source device to four displays

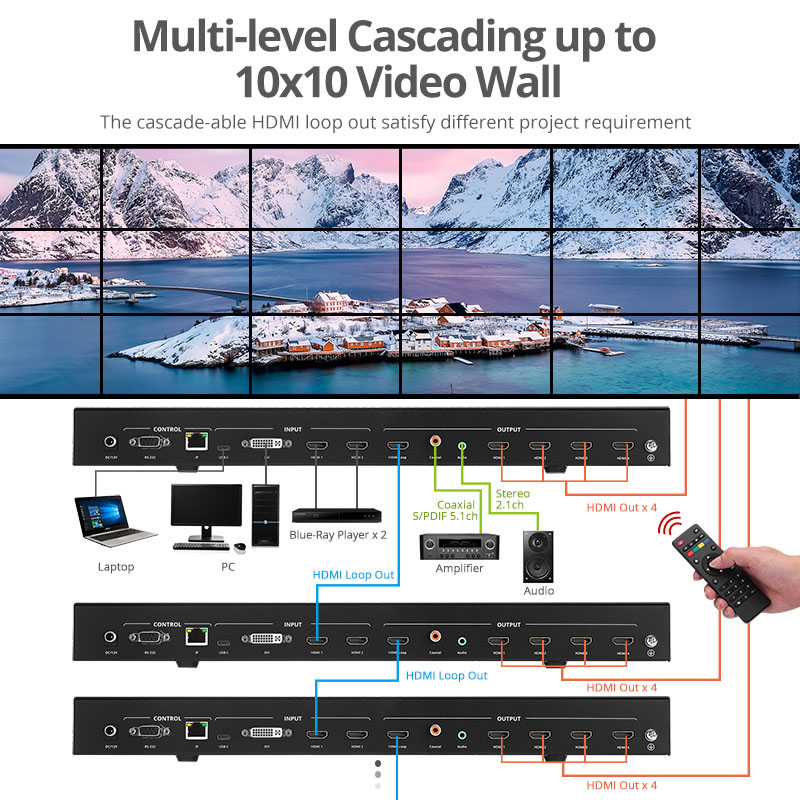

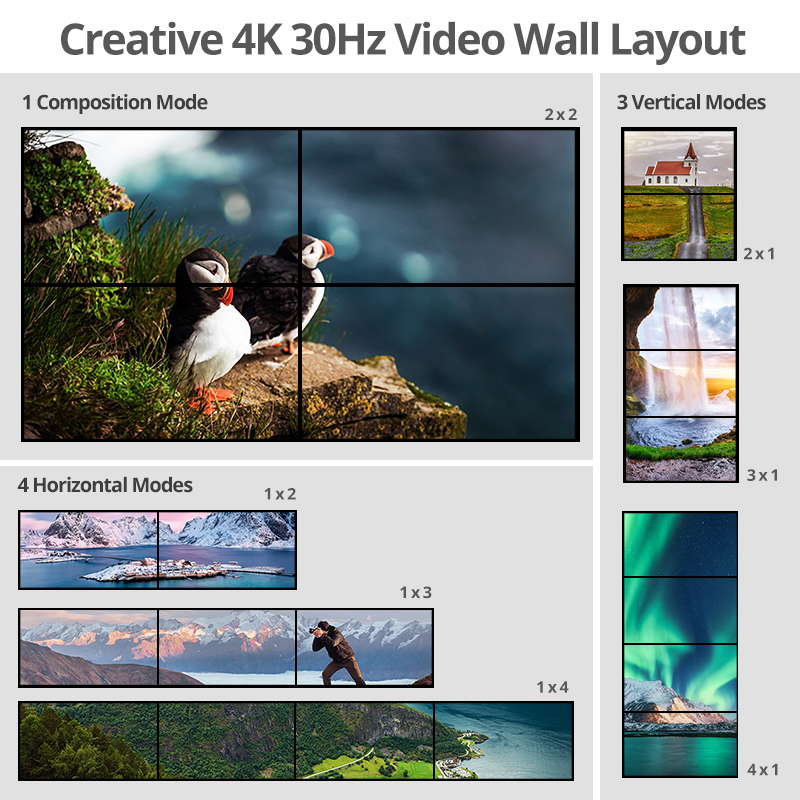

  • Supports multi-level cascading to create 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and 10x10 (max) video walls
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p, copy the EDID of the HDMI loop out or any output port
  • Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input
  • SupportsSource device switching via front panel button, remote control, RS232 command, and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
  • Mounting brackets included for various installation options

Specification

  • Compliant with HDMI 1.4, HDCP 2.2
  • Video resolution: up to 3840x2160@30Hz for Type-C and HDMI inputs, 1920x1200 for DVI input
  • Video input: USB-C / DVI / HDMI input
  • Audio:
    • Coaxial S/PDIF output: Up to 5.1 channels
    • 3.5mm jack: Stereo 2ch
  • LAN port: RJ-45 connector for 10/100 BASE-T CAT-5 extension
  • Serial port: DB-9 RS-232 female connector
  • Control: Front panel button, remote control, RS232 command and TCP/IP control
  • Power consumption: 15watts (Maximun)
  • Product:
    • Dimensions: 17.24" (L) x 1.73" (H) x 7.48" (W)
    • Weight: 5.51 lbs
    • Color: Black
    • Housing: Metal

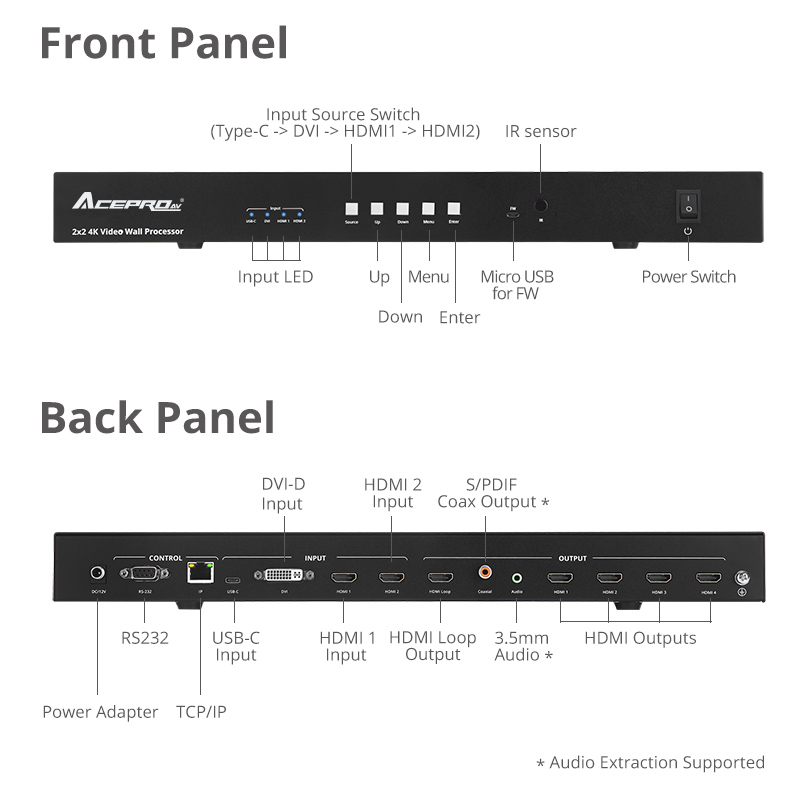

    • Connector:
      • 2 x 19-pin, HDMI, Video Input
      • 1 x 24-pin, USB-C, Video Input
      • 1 x 29-pin, DVI-D, Video Input
      • 5 x 19-pin, HDMI, Video Output
      • 1 Coaxial S/PDIF, Audio Output
      • 1 x 3.5mm, Stereo Audio Output
      • 1 x 9-pin, RS-232 Serial, Control
      • 1 x 8-pin, Ethernet, TCP/IP Control
      • 1 x 5-pin, Micro USB, Firmware update
  • Power Adapter:
    • Input: 100-240VAC, 50/60 Hz
    • Output: DC 12V,2A
    • UL Listed: E504312 / Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 112 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 20 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
