- AcePro-SW18-1
- AceProAV 2-Port HDMI 2.0 4K@60Hz Switcher / Splitter
Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management
Highlights

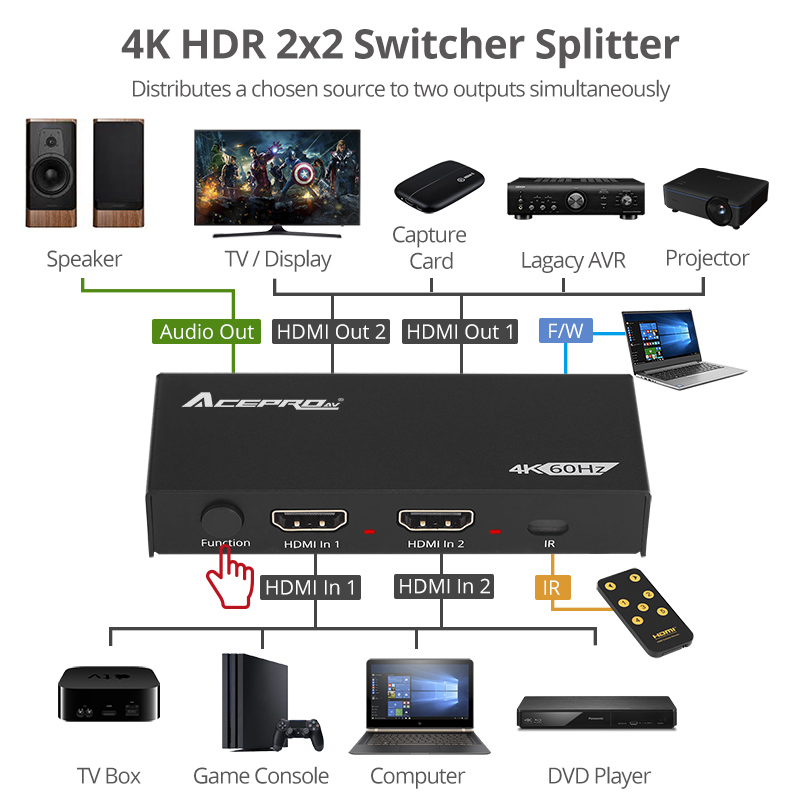

- Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only

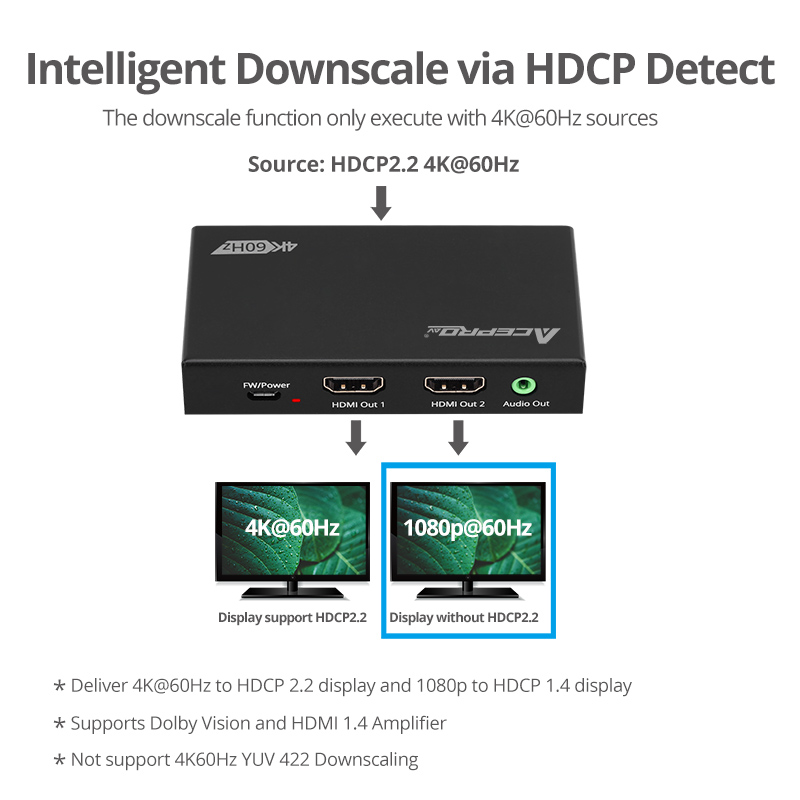

- Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors
- High quality materials and metal housing extends the stability and durability, allowing for long hours of operation
- Built-in EDID management and firmware update mechanism further expands compatibility
- EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes
- Individual LED indicators for power and EDID mode allow for easy and quick operating status
Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported
Specification
- Compliant with HDMI 2.0, HDCP 2.2/1.4
- Video bandwidth: 18Gbps
- Resolution: 480p/720p/1080i/1080p/ HDR 4K2K@60Hz (4:2:0 10bit) / 4K2K@60Hz (YUV 4:4:4 8bit)
- Audio: LPCM up to 7.1, Dolby Atmos and DTS-X (Copy EDID)
- Down scaling: 4K@60Hz (YUV 4:4:4) to 1080p@60Hz. Note: 4K@60Hz (YUV 4:2:2) down scaling is not supported
- Display mode (output): Mirror
- Product:
- Dimensions: 3.86" (L) x 0.67" (H) x 2.05" (W)
- Weight: 0.33 lbs
- Color: Black
- Housing: Metal

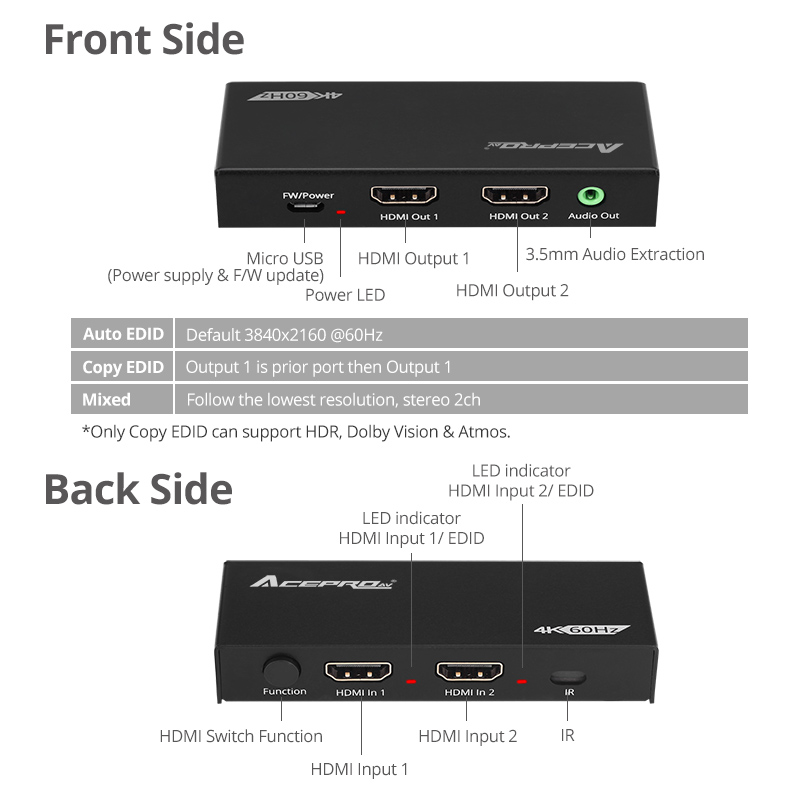

- Connectors:
- 2x 19-Pin, HDMI, Type A, Female, Input
- 2x 19-pin, HDMI, Type A, Female, Output
- 1x Push button for Switch function & EDID Selection
- 1x 5-pin Micro USB, Female, Power & F/W update
- 1x 3.5mm jack, Stereo audio, Output
- EDID management (controlled by the included Remote Control):
- Auto EDID: 4K@60Hz
- Copy EDID: The EDID of the monitor connected to HDMI Out 1 is used for the connected displays
- Mixed EDID: The EDID of the monitor with the lowest resolution/audio capability is used for the connected displays
- Power Adapter:
- Input: 100-240VAC, 50/60 Hz
- Output: 5V/1A
- Environmental conditions:
- Operating temperature: 23 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
