- AcePro-DK05-1
- AceProAV Triple 4K@60Hz Mixed Output USB-C DP Alt Mode Docking Station 11-Port
Advanced hybrid docking station adds three 4K displays, 6 USB 3.0 Type-A 5Gbps ports, a Gigabit Ethernet port, a stereo audio/microphone port, and USB Power Delivery charging up to 100 watts to Windows and Mac computers
Highlights
- Adds up to Three 4K Displays - One 4K@30Hz via USB-C DisplayPort Alt outputs plus two 4K@60Hz via DisplayLink outputs
Note: Non DisplayPort Alt mode USB-C ports will only provide two 4K displays through advanced DisplayLink chipset and drivers - USB-C non-DisplayPort Alt Mode Compatibilty - Capable of providing non-DP Alt mode USB-C and USB Type-A laptops with dual 4K@60Hz outputs via DisplayLink chipset and drivers
Note: Type-A computers require USB 3.0 Type-A to USB-C cable (cable not included) - Hybrid Video Outputs - Supports triple monitor via 3 DP, 3 HDMI, or Mixed outputs. For USB-C Alt-mode or Thunderbolt 3 laptops support 3 displays (one 3840x2160@30Hz + two 3840x216060Hz), non- DP Alt mode USB-C computers only support 2 Displays up to 3840x2160@60Hz via DisplayLink chipset and drivers
- 100 Watt PD Charging - Includes high quality USB-C 20V/5A cable for connection to laptop, supports up to 100W Power Delivery charging for laptop. The included 135W power adapter ensure enough power for laptop charging and USB peripherals
- Fully USB-C Compatible - Supports USB-C DP Alt mode, non USB-C Alt-mode, and Thunderbolt 3 laptops and desktops
- SuperSpeed USB 3.0 - Provides six USB 3.0 Type-A 5Gbps ports; enhance your laptop's connectivity options and performance capabilities
- Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity
- Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities
- Power LED - Built-in LED provides easy recognition of power status
Compatibility Notes:
- macOS 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on AVLT's website - Docking station is suggested for use with web and productivity software; not recommended for gaming
- Cannot be used with non-DisplayLink USB adapters and docking stations
macOS Limitations:
- Our adapter is not compatible with MacOS 10.13.4 to 10.13.6. It's recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- Does not support movie/video playback via iTunes and HDCP protected content via Safari web brower (Netflix, Amazon Prime, Hulu, HBO Go, etc...)
Specification
- Chipset: DisplayLink DL-6950-N
- Compliant with Universal Serial Bus 3.0 and 2.0 specification

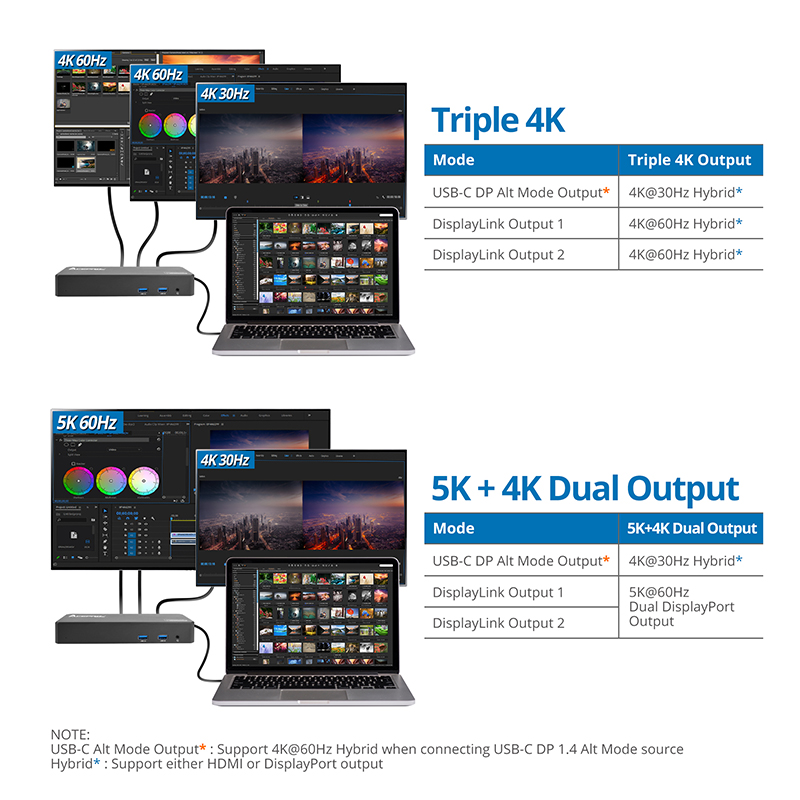

- Resolution: 5K (Connect both DisplayLink controlled DisplayPort outputs to a single 5K DisplayPort TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p
- USB 3.0 data transfer rate up to 5Gb/s
- Compatible networks: 10/100/1000 Mbps, Gigabit Ethernet
- Audio:
- HDMI / DP: Up to 5.1 Channel surround sound
- 3.5mm Headset Jack: 2-Ch stereo audio
- Display Modes: Extended, Mirror, and Primary Display
- Power Delivery: PD 3.0 up to 100W via USB-C source
- Product:
- Dimensions: 7.87" (L) x 1.18" (H) x 3.35" (W)
- Weight: 0.68 lbs
- Color: Black
- Housing material: ABS

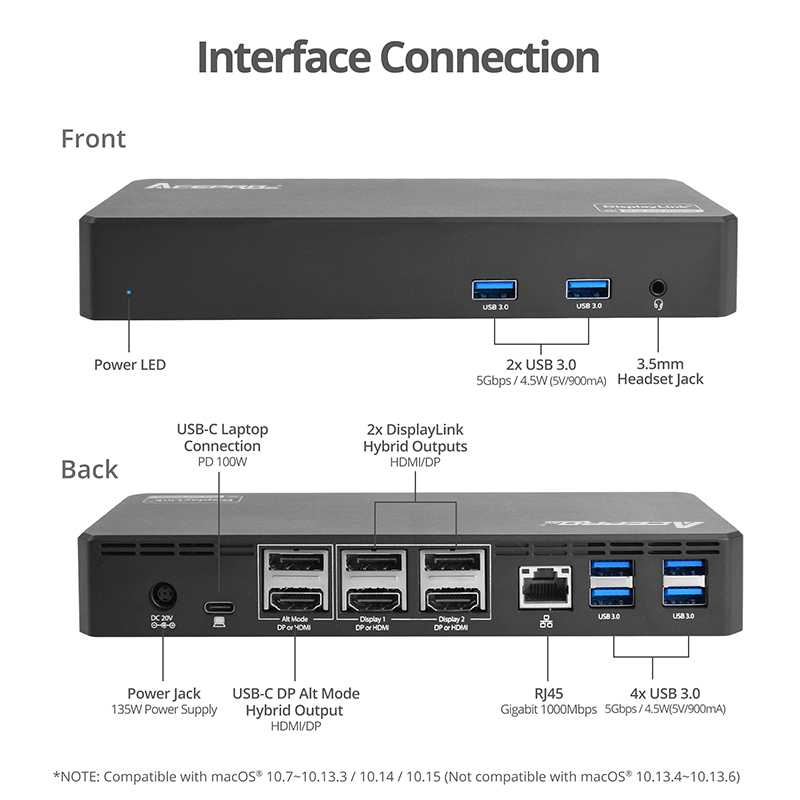

- Connectors:
- 1x 24-pin USB-C with PD 100W, Female, Source connection
- 3x 19-pin HDMI Female, Output
- 3x 20-pin DisplayPort Female, Output
- 6x 9-pin USB 3.0 Type-A port, Female
- 1x 8-pin RJ45, Gigabit Ethernet
- 1x 3.5mm Headset Jack, Stereo audio & Microphone
- 1x Power jack
- Power Adapter:
- Input: AC 100-240V/50-60Hz
- Output: DC 20V/6.75A; 150 watts
- UL Listed: E132068 / Class VI
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: < 10% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: Thailand
