• AcePro-SP22-1
  • AceProAV 4-Port HDMI 2.0 4K@60Hz Splitter plus EDID Management & Compact Design

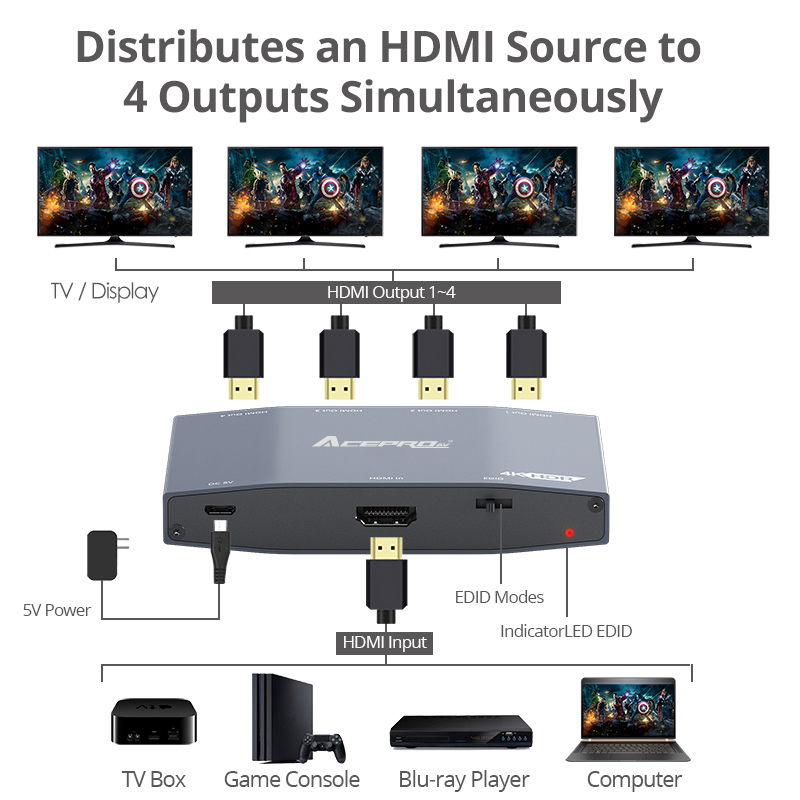

Distibutes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously, with 4K HDR and EDID management, without signal degradation

  • $0 $0

Highlights

  • Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
  • Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
  • Compatible with 4K@60Hz YUV 4:4:4 8bit and 4K@60Hz YUV 4:2:0 10-bit HDR, xvYCC, x.v.Color & Deep Color & Dolby Digital, DTS-HD and Dolby TrueHD audio
  • 4 built-in EDID modes selectable via front panel push button for easy and flexible monitor detection and setup
  • HDR10, Dolby Vision, and Dolby Atmos technology via EDID learning of the display connected to HDMI Output 1
  • High quality materials with metal housing extends the stability and durability, allowing for long hours of operation
  • LED status indicators for power, signal and EDID mode allow for easy and quick recognition

Specification

  • Chipset: EP91X4
  • Compliant with HDMI 2.0a, HDCP 2.2/1.4 specification
  • xvYCC, x.v.Color and Deep Color
  • Resolution: up to 4K@60Hz YUV4:4:4 8bit, 4K@60Hz YUV 4:2:0 10bit HDR
  • Video bandwidth: Up to 18Gbps (single-link 600MHz)
  • Video: 480p/720p/1080i/1080p/HDR 4K@60Hz (YUV 4:2:0 10bits)/4K@60Hz (YUV 4:4:4 8bits)

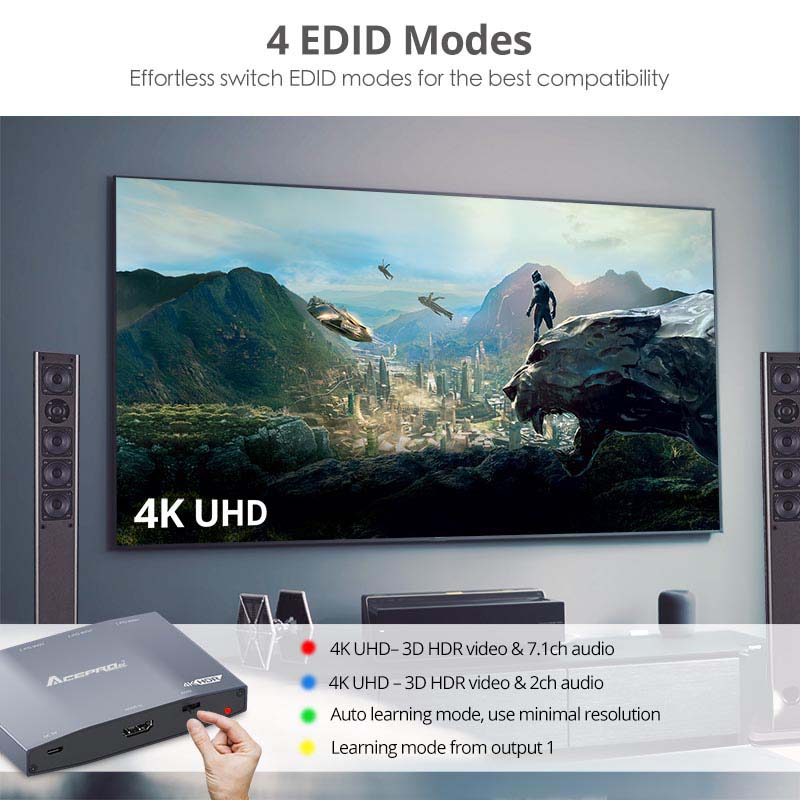

  • EDID modes:
    • Red LED: 4K@60Hz, 8/10/12bit, 3D, HDR, 7.1ch
    • Blue LED: 4K@60Hz, 8/10/12bit, 3D, HDR, 2ch
    • Green LED: Auto EDID analysis learning - use the EDID of the display with the lowest capabilities
    • Yellow LED: EDID learning - use the EDID of the display connected to HDMI Output 1
  • Audio: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
  • ESD protection: ±15kV Air / ±8kV Contact
  • HDMI cable length:
    • 4K @60Hz: Up to 10 meters (5m/In ; 5m/Out)
    • 1080p & 4K@30Hz: Up to 15 meters (5m/In ; 10m/Out)
  • Product:

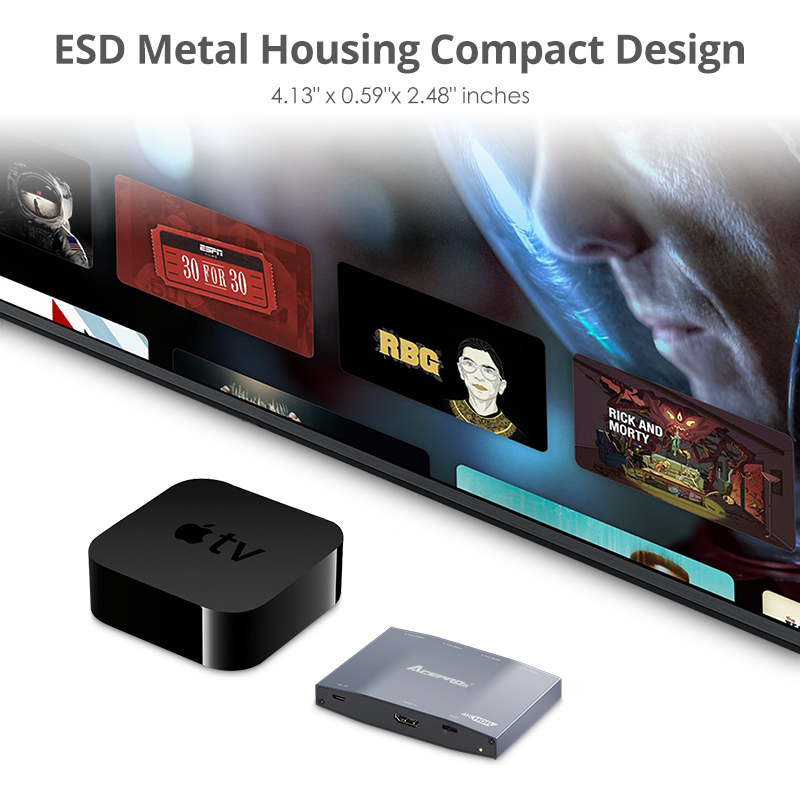

    • Dimensions: 4.13" (L) x 0.59" (H) x 2.48" (W)
    • Weight: 0.27 lbs
    • Color: Pantone 425C
    • Housing material: Aluminum
  • Connector:
    • 1x 19-Pin, HDMI, Type A, Female, Input
    • 4x 19-Pin, HDMI, Type A, Female, Output
    • 1x Slide Switch for EDID Selection
    • 1x 5-Pin, Micro-USB, Female, Power
  • Power adapter:
    • Input: 100-240VAC, 50/60 Hz
    • Output: DC 5V/2A
    • UL Listed: E135856 /Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 20 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • TAA compliant
  • Country of origin: Taiwan
