• AcePro-KV11-1
  • AceProAV 2-Port HDMI 2.0 Mixed Input KVM Switch plus USB 2.0 Hub

Control two 4K HDMI or DisplayPort computers with one keyboard, mouse, with microphone input and stereo audio output and dual HDMI outputs for extended, mirror, primary dual display capabilities

  • $0 $0

Highlights

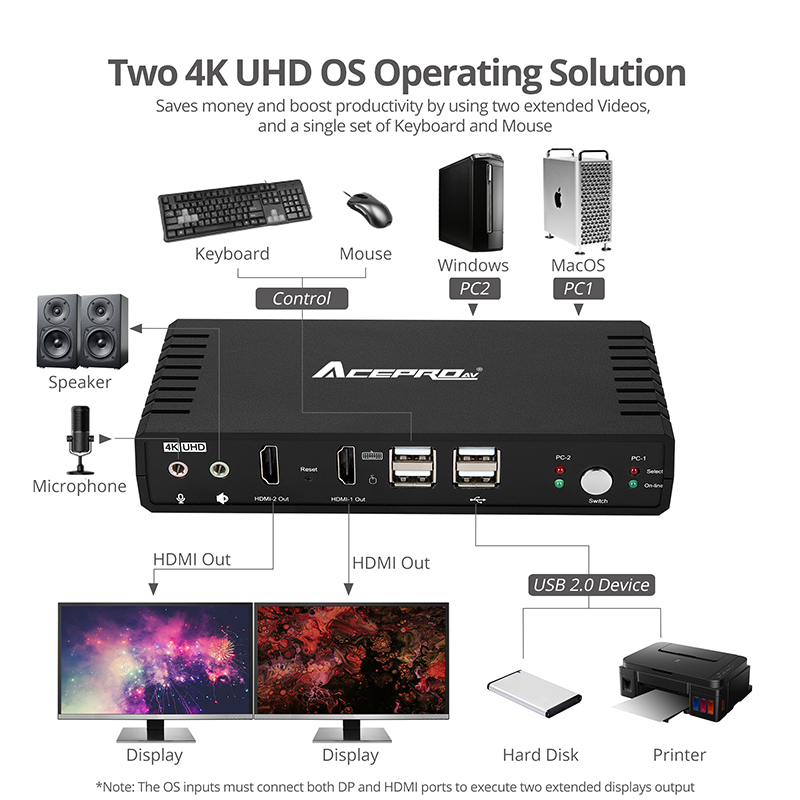

  • Device Control - Allows you to control two 4K computers with one USB keyboard, USB mouse, Dual 4K HDMI displays, adds microphone input and speaker out connection, plus dual USB 2.0 ports for connecting USB 2.0 peripheral devices and share them between the 2 computers
  • UHD 4K Resolution -  This HDMI KVM switcher offers true Ultra-HD 4K at 60Hz resolution; it features EDID bypass which ensures visual workspace and high screen resolutions that are easy to connect and configure for most any system.
  • Advanced Dual-Head Design - Features Dual 4K inputs: allows you to connect two 4K HDMI sources or two 4K DisplayPort sources or mix HDMI and DisplayPort source devices
  • Dual Displays - Dual 4K HDMI outputs allow for Extended, Mirror, or Primary display mode configuration
  • Compliance -  HDMI 2.0 and HDCP 2.2
  • Easy Device Switching - Convenient front panel select button or keyboard hot-key commands
  • USB 2.0 Hub - Includes 2-port USB 2.0 HID Hub for Keyboard and Mouse connection, plus another 2 USB 2.0 ports for connecting USB flash drives or any USB devices to the KVM Switch allowing the connected computers to access them
  • Multimedia Connections - Includes 3.5mm jack for microphone and stereo audio connections
  • Display Auto Scan - Supports auto scanning feature between each display
  • LED Indicators - Displays KVM connections and status
  • Easy Installation - Plug-n-play, no driver installation needed

Specification

  • Compliance: HDMI 2.0, HDCP 2.2
  • Resolution: 3840x2160@60Hz YUV 4:4:4 8-bit and 3840x2160@60Hz YUV 4:2:0
  • Video Bandwidth: Up to 18Gbps
  • USB data transfer rate: USB 2.0 up to 480Mbp
  • 3.5mm audio jack: PCM 2-CH stereo
  • Power adapter: 5V/2A
  • Product:
    • Dimensions: 6.57" (L) x 1.28" (H) x 3.27" (W)
    • Weight: 0.51 lbs
    • Color: Black
    • Housing material: Plastic

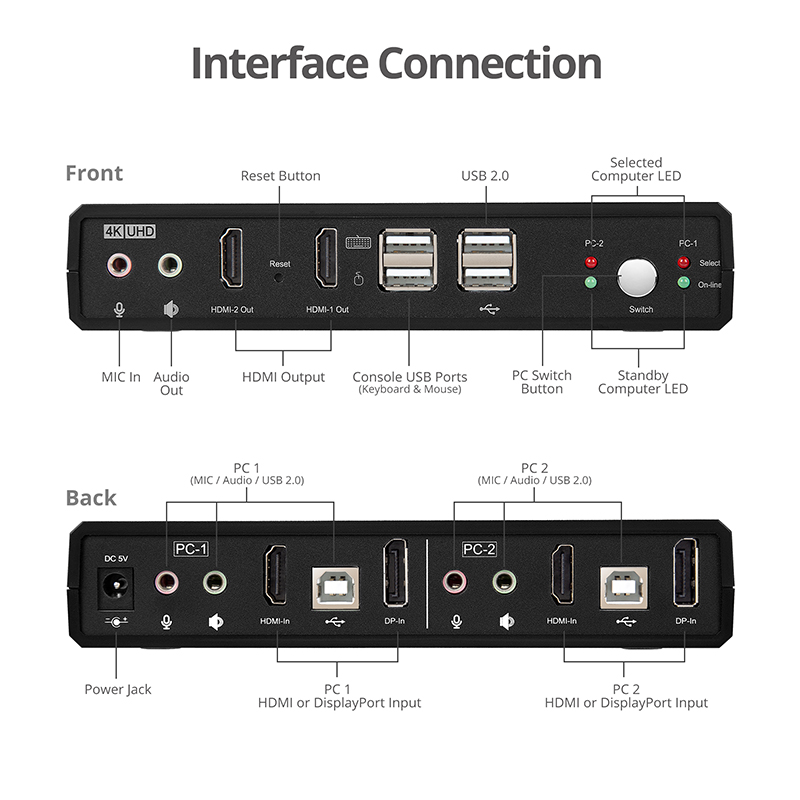

    • Interfaces/Ports:
      • 2x 19-pin HDMI 2.0, Female, Input
      • 2x 20-pin, DisplayPort 1.2, Female, Input
      • 2x 4-pin USB 2.0 Type-B, Female, Input
      • 2x 3.5mm jack for Microphone, Female, Input
      • 2x 3.5mm jack for Stereo audio, Female, Output
      • 2x 19-pin, HDMI 2.0, Female, Output
      • 2x 3.5mm Microphone & Stereo Audio, Female, Output
      • 2x 4-pin USB 2.0 Type-A, HID Devices, Female
      • 2x 4-pin USB 2.0 Type-A, Hub, Female
      • 1x Push button for device switching
      • 1x Power jack
  • Power Adapter:
    • Input: 100-240V, 50-60Hz
    • Output: DC 5V/2A
    • UL listed: E168210 / Level: VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degree F
    • Relative Humidity: 0% to 80% non-condensing
  • Certifcations/Standards: FCC, CE, RoHS
  • TAA compliant
  • Country of origin: Taiwn
