• AcePro-EX43-1
  • AceProAV HDMI 2.0 4K@60Hz ipcolor Extender plus Loop-out IR HDR ARC

Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, local HDMI out, and ARC using industry leading ipcolor video transmission technology

  • $0 $0

Highlights

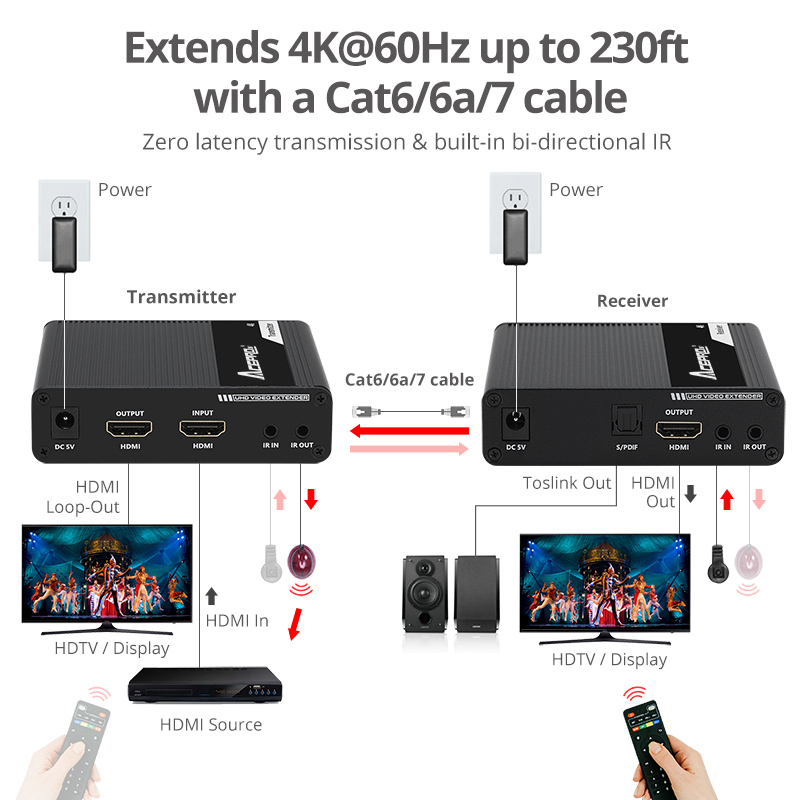

  • 4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable
  • Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency

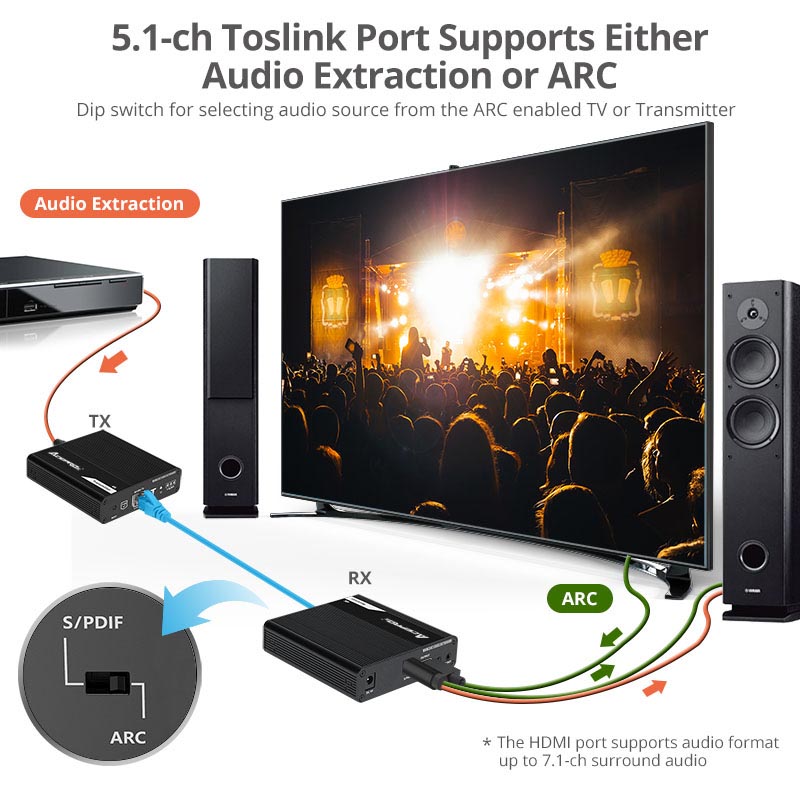

  • Audio Extraction - Extracts digital audio from the HDMI signal and routes it  through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
  • IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
  • Auto EDID and  Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)
  • Protection - Lightning Protection, Surge Protection, ESD Protection
  • High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
  • Easy Installation - Plug and play installation, no driver installation required

Specification

  • Compliance: HDMI 2.0, HDCP 2.2
  • Resolution: 4K (3840x2160)@60Hz, HDR YUV 4:2:0 10bit
  • ipcolor Transmission protocol:
    • Latency: Zero
    • Signal compression: None
  • Audio:
    • HDMI input: PCM 2/5.1/7.1, Dolby, DTS 5.1
    • Toslink output: PCM2, DTS 5.1, Dolby 5.1
  • Transmission Distance:
    • 4K@60Hz: Up to 40m via Cat5 cable
    • 4K@60Hz: Up to 70m via Cat6/6a/7 cable
  • IR Remote Control: 20-60Hz Frequency Range
  • Product:
    • Color: Black
    • Housing: Aluminum, ABS

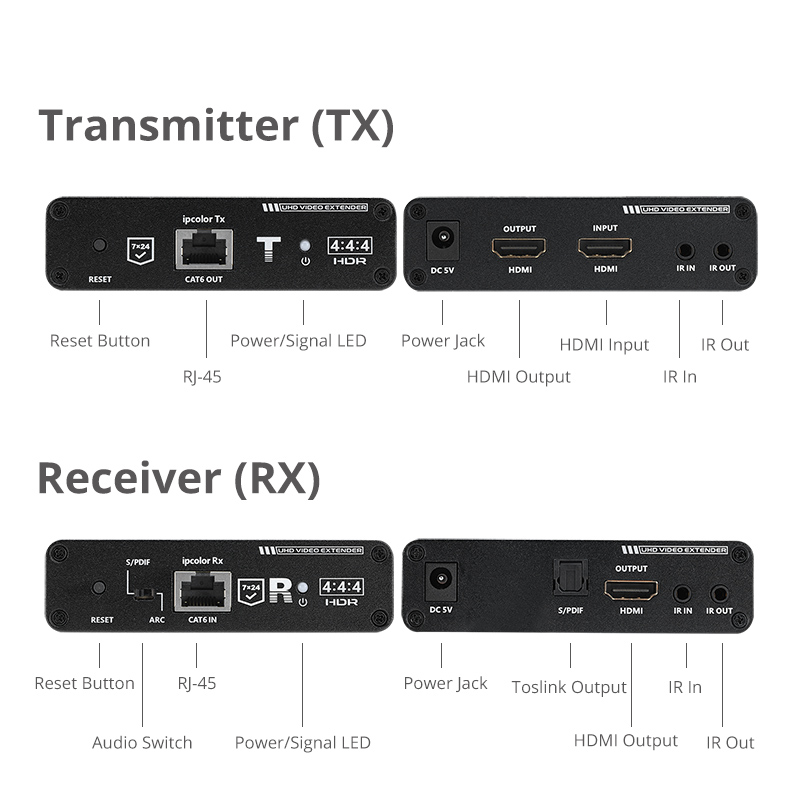

    • Transmitting unit (TX):
      • Dimensions: 4.17" (L) x 1.03" (H) x 3.90" (W)
      • Weight: 0.46 lbs
      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Input
        • 1x19-pin HDMI, Female, Loop-out
        • 1x 3.5mm jack, IR Blaster
        • 1x 3.5mm jack, IR Receiver
        • 1x 8-pin, RJ45, Output
        • 1x Reset button
        • 1x Power jack
  • Receiving unit (RX):
    • Dimensions: 4.17" (L) x 1.03" (H) x 3.90" (W)
    • Weight: 0.46 lbs
    • Connectors:
      • 1x 19-pin HDMI, Type A, Female, Output
      • 1x 3.5mm jack, IR Blaster
      • 1x 3.5mm jack, IR Receiver
      • 1x 8-pin RJ45, Input
      • 1x S/PDIF Toslink, Output, Audio / ARC
      • 1x Slide switch, S/PDIF & ARC control
      • 1x Reset button
      • 1x Power jack
  • Power adapter:
    • Input: 100-240V / 50-60Hz
    • Output: DC 5V/2A
    • UL listed: E335801 / Level: VI
  • Environmental conditions:
    • Operating temperature: 14 to 140 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
