Highlights

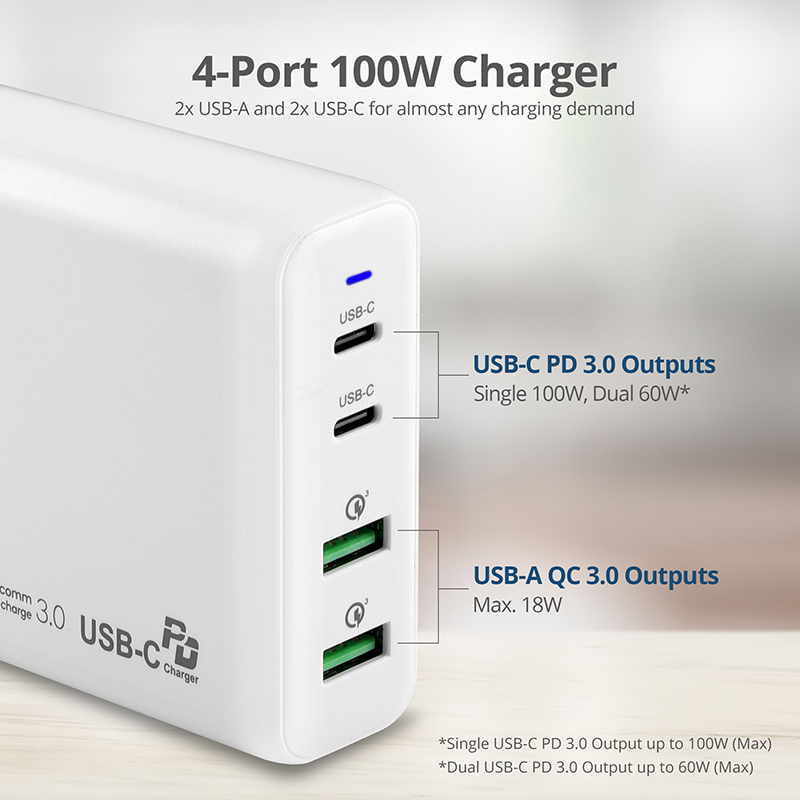

- One-Stop Charging: Combines 2 USB Type-C and 2 Type-A charging ports into one 100W compact charger
- USB Power Delivery 3.0 PPS: Allows for dynamic adjustment of non-standard voltages and currents between the charger and the client
- Dual USB-C Charging: Supplies up to 100W (single 100W, dual 60W) charging power to your USB-C laptop or portable device for fast charging of USB-C compatible devices
- Dual USB Type-A Charging: Certified Qualcomm® QC 3.0 Quick Charge technology supplies up to 18W charging power to easily satisfy your portable device's daily power charging needs
- Efficient Charging: Simultaneously charges up to four USB devices with two USB-C PPS (single 100W, dual 60W) and two Type-A QC 3.0 fast charging (up to 18W each) ports. Note: The Charger's total power output of 100W is shared among all of the charging ports
- Power Source: Integrated 120W power adapter supplies both USB Power Delivery (PD) 3.0 with PPS technology and Quick Charge 3.0 technology to fulfill most USB-C power-hungry devices (Max 100W) and Type-A QC 3.0 compliant devices (Max 18W) with reliable power and intelligent charging
- Safety Protection: Meets FCC, CE and ETL standards, built-in over-load, over-voltage, over-current and short-circuit protection circuitry, your devices and the charger itself are protected from unforeseen power problems while charging
Specification
- Qualcomm® QC 3.0 Quick Charge certified
- USB Power Delivery 3.0 PPS specification compatible
- Power output:
- Total power output: 100 watts shared among all the charging ports
- USB Power Delivery 3.0 PPS (USB-C):
- Single USB-C: up to 100W (5V/9V/12V/15V@3A; 20V/3A or 5A)
- Dual USB-C: up to 60W (5V/9V/12V/15V/20V @ 3A)
- PD 3.0 PPS output: 3.3V to 11V/4A (max); 3.3V to 20V/5A (max)
- Quick Charge 3.0 (Type-A):
- USB Type-A: up to 18W (3.6V-6.5V/3A), (6.5V-9V/2A), (9V-12V/1.5A)
- Protection: Over-load, Over-Voltage, Over-Current and Short-Circuit
- Product:
- Dimensions: 4.45" (W) x 1.12"(H) x 3.15" (D)
- Weight: 0.67 lbs
- Housing material: Plastic
- Color: White
- Connectors:
- 1x, AC Power plug, 100-240V, 50/60Hz 1.5A,input
- 2x, 24-pin, USB-C, Female, output
- 2x, 4-pin, USB, Type-A, Female, output
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 158 degrees F
- Relative humidity: 10% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS, ETL, Qualcomm® QC 3.0
- Country of origin: Engineered in USA , Manufactured in China
