- AcePro-CB09-1
- AceProAV HDMI 2.0 to DisplayPort 1.2 4K@60Hz Converter / Adapter
Easily add a DisplayPort 1.2 display to your HDMI compatible computer, Laptop, notebook, game console, etc...
Highlights

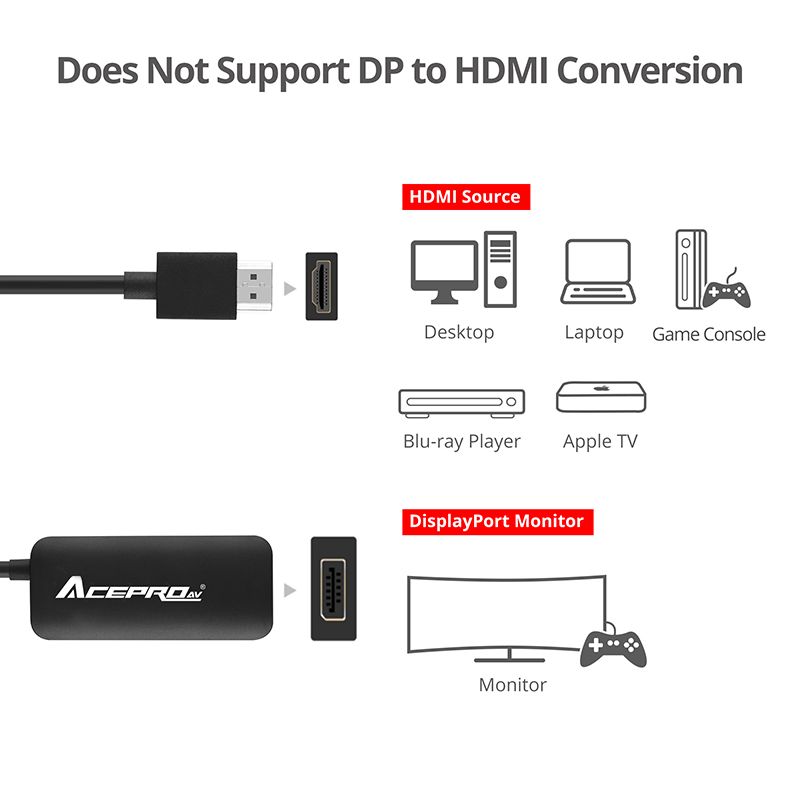

- Easily converts an HDMI output into a DisplayPort video output allowing you to add a DisplayPort display Note: This is NOT a bi-directional adapter. Does not work for DisplayPort to HDMI 2.0 conversion
- Compliant with DisplayPort 1.2 specification for 1.62, 2.7Gbps and 5.4Gbps video bandwidth
- Supports up to 3840x2160@60Hz YUV 4:4:4 8-bit / HDR and 1920x1080@60/120/144Hz high resolutions Note: 4K@60 YUV 4:2:0 video sources will display in 4K@30Hz resolution. Does Not support 4K@60Hz YUV 4:2:0 10bit HDR
- Active HDMI to DisplayPort 1.2 converter lets you connect an HDMI enabled video source, such as Laptop, PC, desktop, Nintendo Switch, Xbox one, PS4 Pro, video game console...etc, to DisplayPort 1.2 displays
- Compliant with HDMI 2.0a, HDCP 2.2
- Supports 2-ch stereo audio

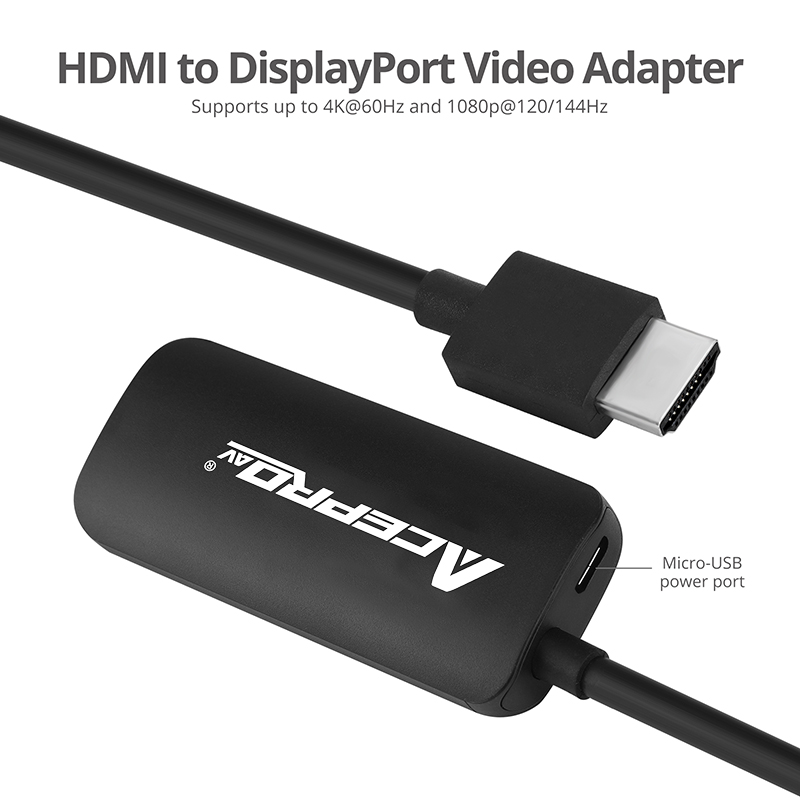

- The included Micro USB Power cable connects to either an available USB port on your source device or a USB wall charger to power the HDMI to DisplayPort converter
- USB-Powered, Plug and play, no software required
Specification
- Chipset: LT6711A
- Compliant with HDMI 2.0a, HDCP 2.2
- Video resolution: Up to 4K@60Hz (YUV 4:4:4 8bit) and 8bit HDR; 1920x1080@60/120/144Hz Note: 4K@60 YUV 4:2:0 video source will display in 4K@30Hz; Does Not support 4K@60Hz YUV 4:2:0 10bit HDR
- Supports 2-ch stereo audio
- Bandwidth: Up to 18Gbps (600MHz Single-link)
- Adapter type: Active
- Product:

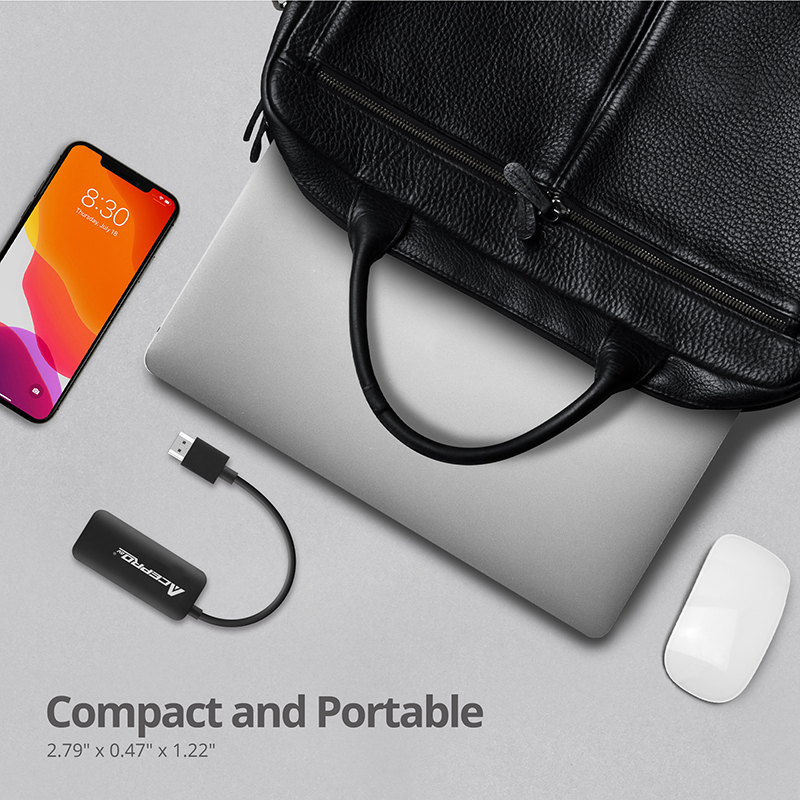

- Dimensions: 2.81" (W) x 0.48" (H) x 1.22" (D)
- Weight: 0.07 lbs
- Overall length: 9.8" (250mm)
- Cable length: 5.9" (150mm)
- Color: Black
- Housing: ABS
- Connectors:
- 1x 19-Pin, HDMI Type-A, Male, Input
- 1x 20-pin, DisplayPort, Female, Output
- 1x 5-pin Micro USB, Female, Power jack, Input
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
