• AcePro-CB08-1
  • AceProAV USB 3.0 Type-A to DVI/VGA 1080p Converter / Adapter

Adds a DVI or VGA display to USB 3.0 enabled computers

  • $0 $0

Highlights

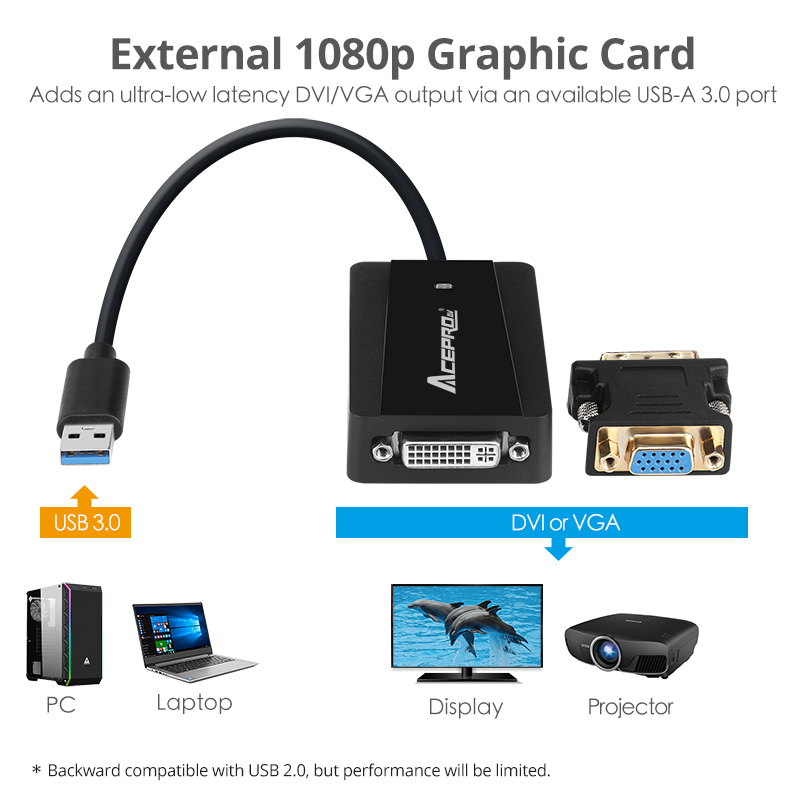

  • Designed to add an additional DVI or VGA display to your USB 3.0 enabled computer
  • USB 3.0 adapter leverages SuperSpeed bandwidth of up to 5Gbps for the best performance and backwards compatible with USB 2.0 ports
  • Connects to either DVI or VGA displays. For VGA displays, use the included DVI-to-VGA adapter
  • Resolutions: HD 1920x1080@60Hz up to 2048x1152@60Hz
  • Multiple display modes including primary, extended, and mirror
  • Hot-pluggable and powered from the USB bus, no external power adapter is needed
  • Notes:
  • macOS 10.15 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on AVLT's website
  • Our adapter DOES NOT work with macOS 10.13.4 - 13.6 update. It's recommended to upgrade to 10.14 or later or stay with 10.13.3 or earlier
  • macOS limitations:
  • Does Not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc.)

Specification

  • Chipset: DisplayLink DL-3500
  • USB data transfer rate: Up to 5Gbps
  • Connects up to 6 adapters per system
  • Compliant with USB 3.0 and backwards compatible with USB 2.0 specification
  • Compliant with DVI specification v1.0
  • Resolution:
    • DVI: Up to 2048x1152@60Hz & 1920x1080@60Hz
    • VGA: Up to 2048x1152@60Hz & 1920x1080@60Hz
  • Display modes: Primary, Extend and Mirror
  • USB bus powered and hot-pluggable
  • Product:

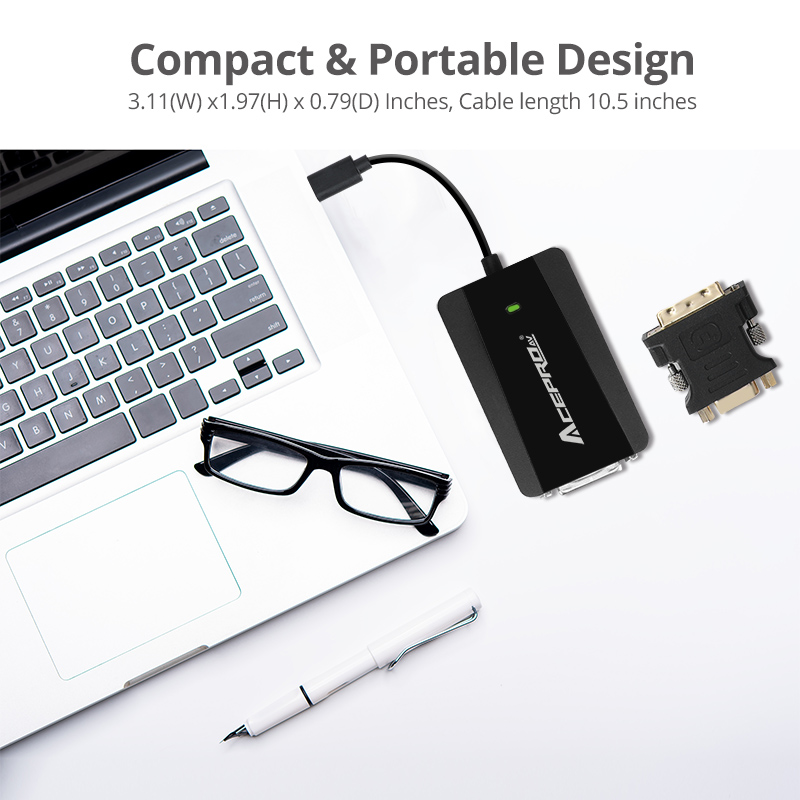

    • Dimension: 3.11" (W) x 0.79" (H) x 1.97" (D)
    • Weight: 0.13 lbs
    • Color: Black
    • Housing Material: Plastic
    • Connectors:
      • 1x 9-pin, USB 3.0, Type A, Male, Input
      • 1x 29-pin, DVI-I, Female, Output
  • Environmental conditions:
    • Operating temperature: 50 to 104 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: <85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
