• AVLAB-CB06-1

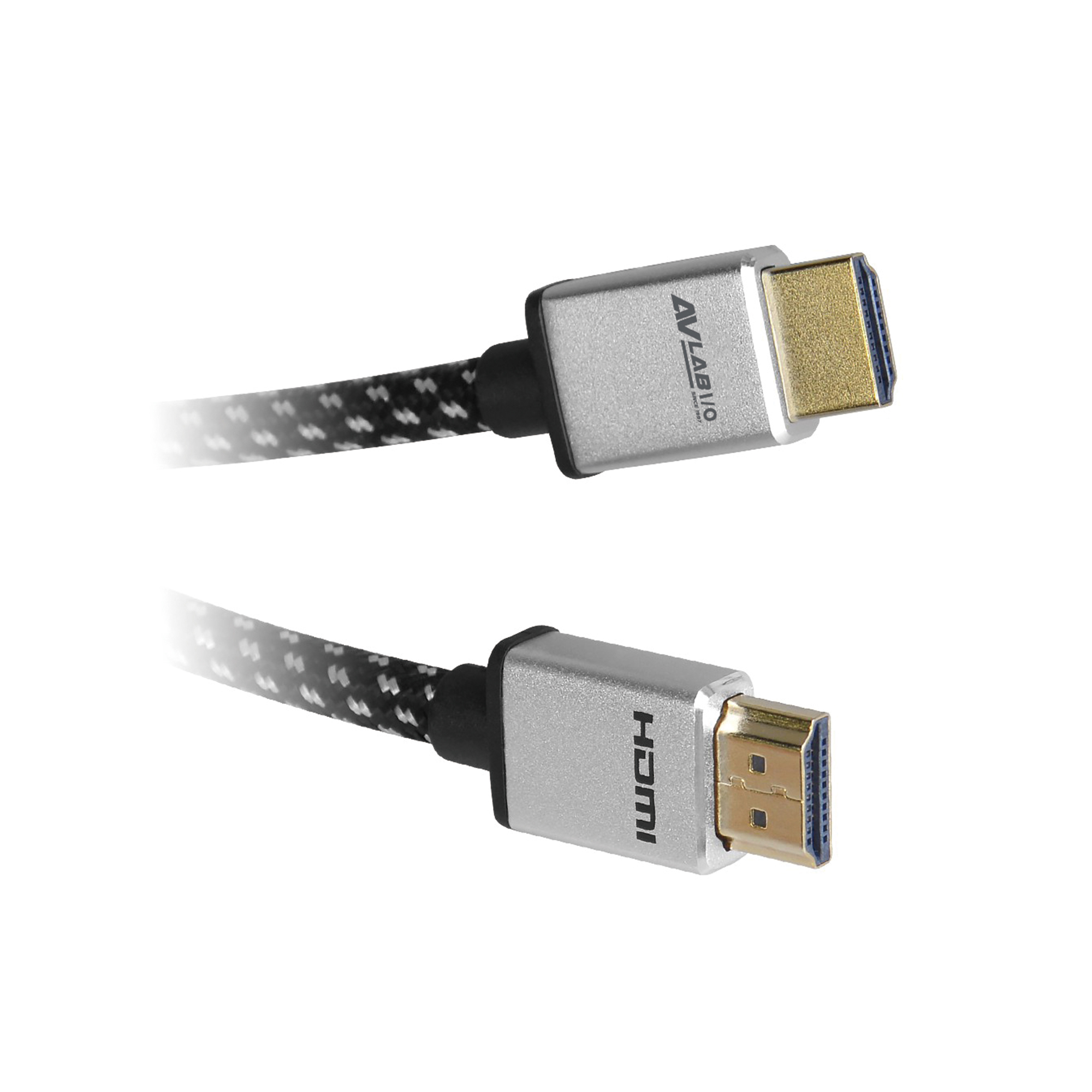

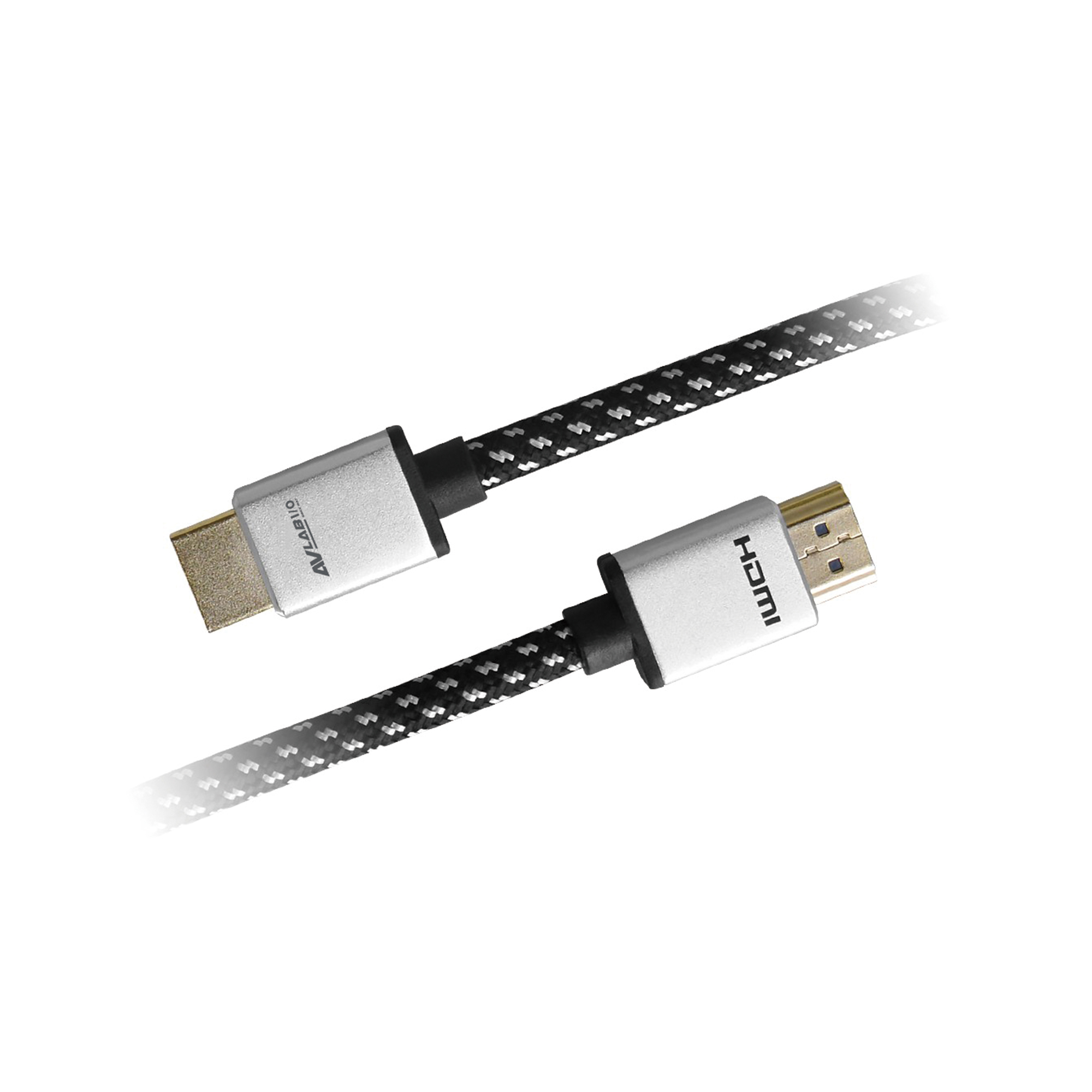

  • AVLAB High Speed HDMI with Ethernet Cable - 2M, 4K 60Hz, Aluminum

■ Supports ultra-high definition video resolution up to 4K (3840/4096 x 2160 pixels)
■ Triple-shielding durable woven braided cable effectively reduces interference
■ Gold-plated connectors provide ultimate conductivity and deliver flawless HD A/V signals
■ Pure copper wires prevent signal degradation and transmit HDMI signal in optimal quality
■ Incorporates both Ethernet data with Audio Return Channel and supports HDCP 2.2
■ Compatible with HDMI version 2.0, backwards compatible with HDMI v1.4 / 1.3

  • $0 $0

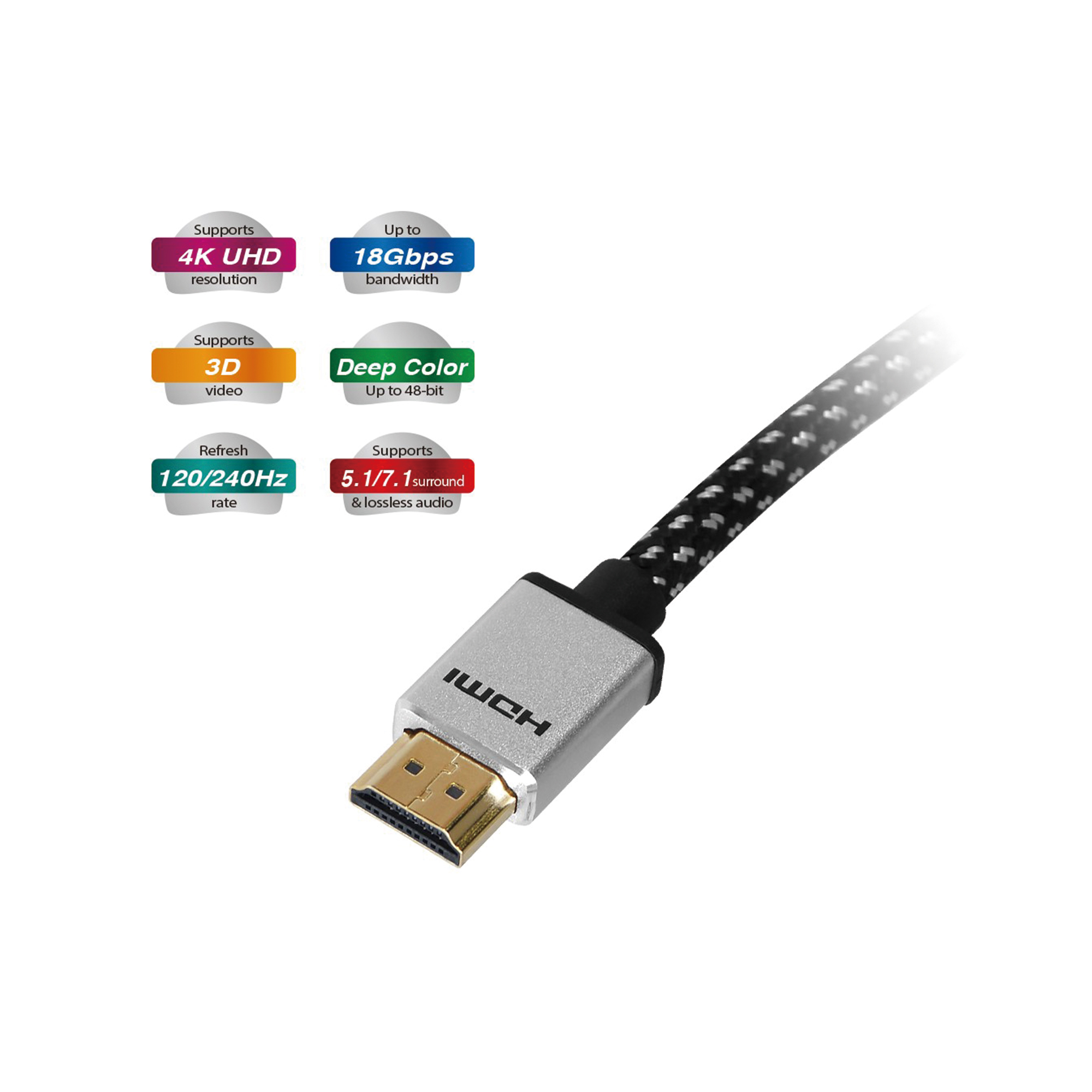

Highlights

Supports ultra-high definition video resolution
up to 4K (3840/4096 x 2160 pixels)

Triple-shielding durable woven braided cable
effectively reduces interference

Gold-plated connectors
provide ultimate conductivity and deliver flawless HD A/V signals

Pure copper wires
prevent signal degradation and transmit HDMI signal in optimal quality

Incorporates both Ethernet data with Audio Return Channel
and supports HDCP 2.2

Compatible with HDMI version 2.0
, backwards compatible with HDMI v1.4 / 1.3

Specification

HDMI 2.0 compatible




Supports HDCP 2.2




Supported resolution: 720p, 1440p, 1080p (Full HD), 2160p (4Kx2K@60Hz)




Bandwidth: Up to 18Gbps




Refresh rate: Up to 240Hz





Supports HDMI over Ethernet and Audio Return Channel




Audio: 7.1 surround audio and up to 32 channels




Color depth: 48-bit Deep Color




Cable jacket: Woven Braided




Product:
■ Cable length: 2m (6.6ft)
■ Weight: 0.22 lbs
■ Wire material: Copper
■ Wire gauge: 30 AWG
■ OD: 6.8mm
■ Color: Black with white



Connectors:
■ HDMI Type A, male (19-pin) to HDMI Type A, male (19-pin)
■ Housing material: Aluminum
■ Plating: Gold-plated



Certifications/Standards: RoHS





Warranty: 1 years limited




Country of origin: China



Package Contents
■ Woven Braided High Speed HDMI Cable 2m - UHD 4Kx2K

Download

FAQ

  • Q: What is USB Type-C?
  • USB-C is a type of USB connector that is capable of supporting the following:
    ■ Data transfer speeds up to 10Gbps, if you use USB 3.1.
    ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it.
    ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode).

    If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth.

    Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
  • Q: Does this cable/adapter require me to install drivers. Or perform any other setup tasks?
  • This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
  • Q: The monitor is not getting a signal and the monitor says “Out of Range.” What do I do?
  • The error “Out of Range” normally means that the resolution being output by the computer is not compatible with the display. Try lowering the resolution to see if that helps resolve the issue.

    You may need to connect another monitor or restart the computer or source to accomplish this.
  • Q: What is Thunderbolt 3?
  • Thunderbolt™ 3 is the latest version of the Thunderbolt standard for connecting computers and electronic devices. It is capable of the following:
    ■ Total bandwidth up to 40Gbps. Data transfer speeds are dependent on the other features that you are using in your setup.
    ■ USB 3.1 Gen 2 support.
    ■ 4K 60Hz video on one or two separate displays.
    ■ 5K 60Hz video on a single display.
    ■ A 10 GbE network connection between two Thunderbolt 3 compatible computers.
    ■ Up to six devices daisy-chained from a single Thunderbolt 3 port.
    ■ Alternate modes, such as DisplayPort Alternate Mode (DP Alt Mode).
    ■ Bi-directional power delivery up to 100W (not all Thunderbolt 3 devices support power delivery).

    USB-C and Thunderbolt 3

    Thunderbolt 3 uses the USB-C connector, but not all host connections, cables, and devices with a USB-C connector support Thunderbolt 3. This means that a USB-C device is compatible with a Thunderbolt 3 host connection, but a Thunderbolt 3 device is not compatible with a USB-C host connection. Therefore, it is important to know whether you have a USB-C or a Thunderbolt 3 host, cable, or device.
