- AcePro-CV24-1
- AceProAV - Aluminum HDMI to VGA Adapter Converter with Audio
Convert HDMI Signals to VGA and Audio Signals
Highlights

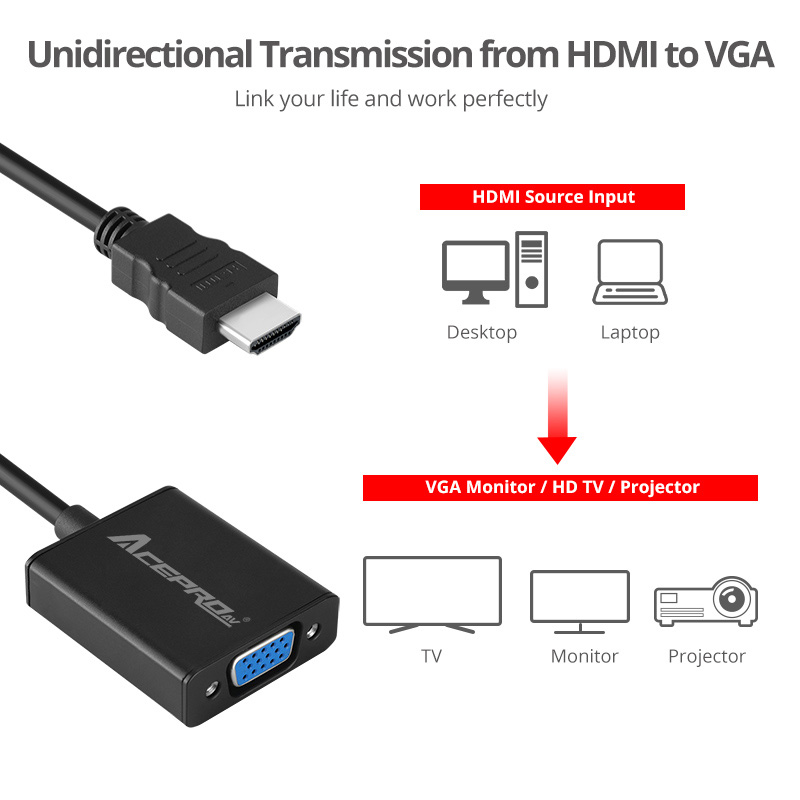

- Designed to connect HDMI digital devices to analog VGA display devices
- Converts digital HDMI signals to analog VGA with 2-channel stereo audio
- Supports 2-channel stereo audio via a 3.5mm jack output that most frequently available to speakers, home stereo systems or AV receivers
- Easy to install and makes high definition video and audio more affordable and accessible
Specification
- Chipset: Lontium
- Supports 1920x1080 or HDTV resolutions up to 1080p
- Display modes:
- PC: VGA, SVGA, XGA, SXGA, WXGA, UXGA
- HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
- Supports 8-bit RGB analog video (VGA port)
- 2-channel stereo audio output

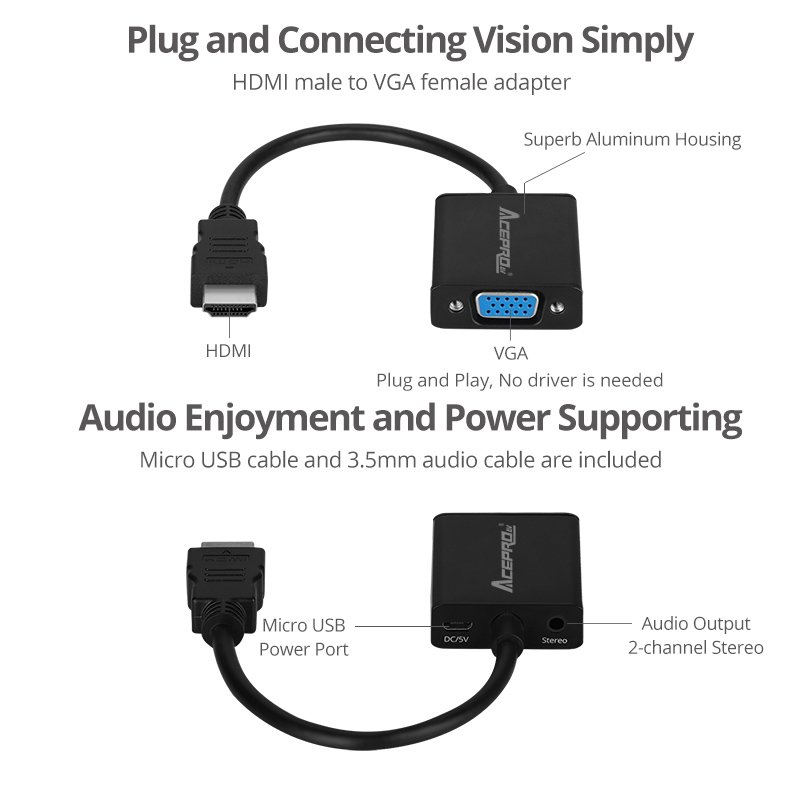

- Connectors:
- 19-pin HDMI (male)
- 15-pin VGA (female)
- 3.5mm jack analog stereo audio output
- 5-pin Micro USB plug for power input
- Overall length: 9.85" ± 0.4" (250mm ± 10mm)
- Weight: 0.11 lbs
- Color: Black
- Material: Aluminum + Plastic
- USB cable:
- Type A (male) to Micro B (male)
- Color: Black
- Length: 35.43" ± 0.6" (900mm ± 15mm)
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: < 85% non-condensing
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China

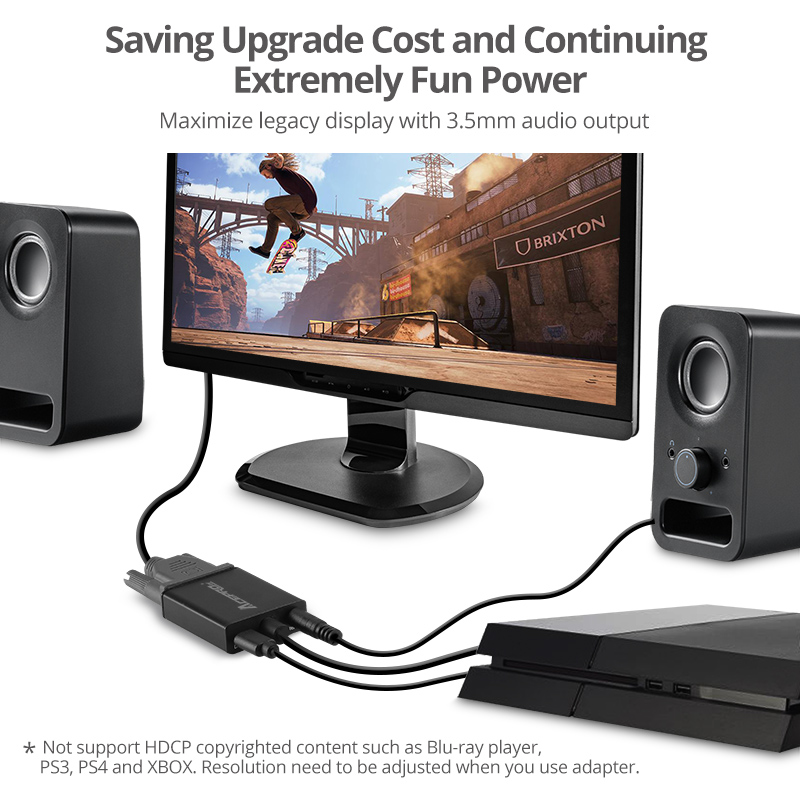

* Note: This product does not allow HDCP enabled/protected signals from source devices such as Blu-ray players or PS3 game consoles to pass through to non-HDCP compliant displays.
